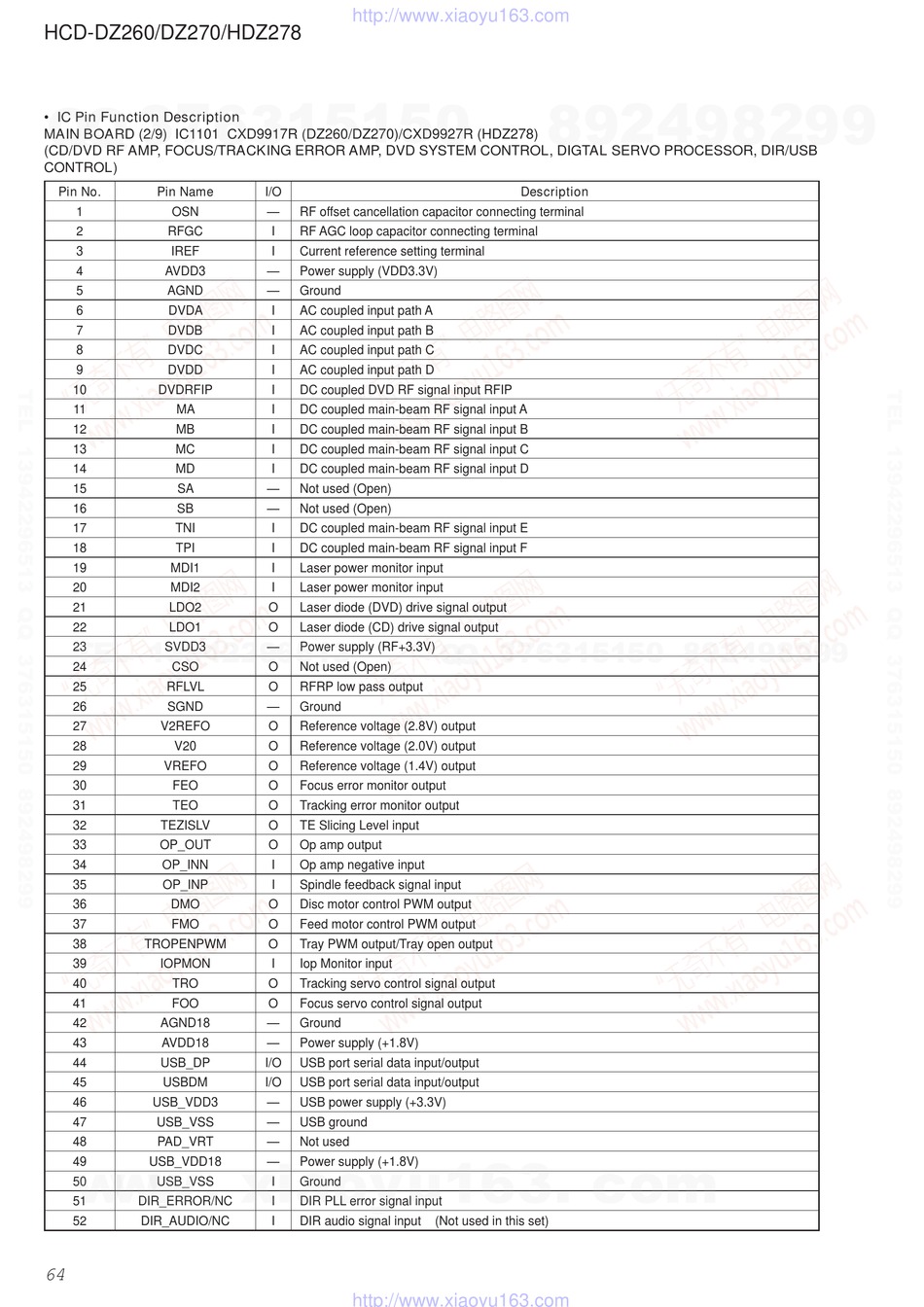

Sony HCD-DZ7260 Service Manual page 64

HCD-DZ260/DZ270/HDZ278
QQ
3 7 63 1515 0
• IC Pin Function Description
MAIN BOARD (2/9) IC1101 CXD9917R (DZ260/DZ270)/CXD9927R (HDZ278)
(CD/DVD RF AMP, FOCUS/TRACKING ERROR AMP, DVD SYSTEM CONTROL, DIGTAL SERVO PROCESSOR, DIR/USB
CONTROL)
Pin No. Pin Name
1 OSN
2 RFGC
3 IREF
4 AVDD3
5 AGND
6 DVDA
7 DVDB
8 DVDC
9 DVDD
10 DVDRFIP
11 MA
12 MB
13 MC
14 MD
15 SA
16 SB
17 TNI
18 TPI
19 MDI1
20 MDI2
21 LDO2
22 LDO1
TE
L 13942296513
23 SVDD3
24 CSO
25 RFLVL
26 SGND
27 V2REFO
28 V20
29 VREFO
30 FEO
31 TEO
32 TEZISLV
33 OP_OUT
34 OP_INN
35 OP_INP
36 DMO
37 FMO
38 TROPENPWM
39 IOPMON
40 TRO
41 FOO
42 AGND18
43 AVDD18
44 USB_DP
45 USBDM
46 USB_VDD3
www
47 USB_VSS
48 PAD_VRT
49 USB_VDD18
.
50 USB_VSS
51 DIR_ERROR/NC
52 DIR_AUDIO/NC
