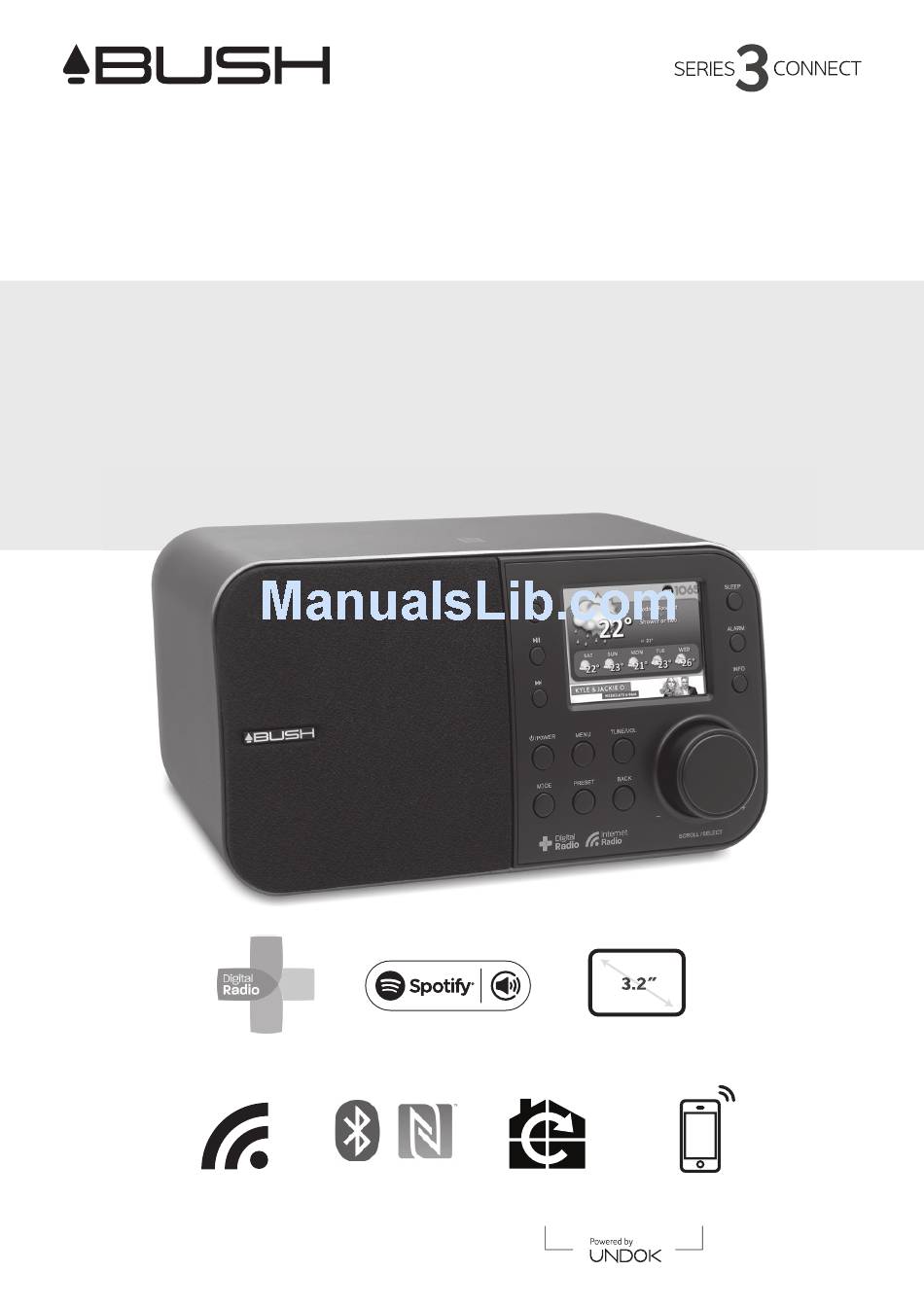

- Page 1 BR320DABC USER MANUAL Digital & Internet Radio with Colour Display DAB+ / FM Spotify Connect Easy to Read Radio Enabled Colour LCD Display 16,000+ Internet Bluetooth / Multi-Room Smartphone Radio Stations NFC Connect Audio Streaming App Control...
-
Page 2: Important Safety Instructions
BR320DABC Important Safety Instructions 1. Read these instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all instructions. 5. Do not use the speaker near water. 6. Clean only with dry cloth. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS SPEAKER TO RAIN OR MOISTURE. -
Page 3: Table Of Contents
BR320DABC Contents Important Safety Instructions ......................2 Contents ............................3 Your radio ............................5 Front View ..........................5 Top View ........................... 7 Rear View ..........................7 Getting Started ..........................8 Setup Wizard ..........................10 ... - Page 4 BR320DABC Selecting FM Mode ........................ 27 Scan settings .......................... 27 Audio Settings ........................27 Storing Preset Stations ......................28 Recalling a Preset Station ...................... 28 Aux in Mode ........................... 29 Bluetooth Mode ..........................30 ...
-
Page 5: Your Radio
BR320DABC Your radio Front View button MODE button Press to skip to previous track in Press to switch mode among Internet, Spotify, Music player and Bluetooth Spotify Connect, Music player, DAB, FM, mode. Aux in and Bluetooth mode. Press and hold to fast reverse... - Page 6 BR320DABC Icons on display Icon WiFi level Music/program is paused Music player mode - Music/programs played from a Media Server on your network Repeat play Shuffle play Alarm 1 is active Alarm 2 is active Sleep timer is active and unit will go to standby after “##” minutes Preset station “#”...
-
Page 7: Top View
Top View NFC sensor Rear View DC IN socket AUX IN socket Headphone socket AUDIO OUT sockets 5V 2.1A USB port - For charge mobile device. DAB/FM antenna... -
Page 8: Getting Started
BR320DABC Getting Started Carefully remove your radio from the box. You may wish to store the packaging for future use. What you can find inside of your package Main unit Power adapter Quick Start Guide Positioning your Radio Place your radio on a flat / stable surface that is not subject to vibrations. - Page 9 BR320DABC Charging from USB port The USB port is designed for charging mobile devices (e.g. MP3 player, mobile phone, etc.). It supplies 5 V DC at a charging current of up to 2100 mA (2.1 A). Use a USB cable (not included) to connect mobile device to the USB port of the unit and the mobile device will start charging.
-
Page 10: Setup Wizard
BR320DABC Setup Wizard For initial use, the display will show “Setup wizard” screen. Press SCROLL/SELECT knob to confirm “YES” to start setup. Options in the setup wizard include the following: Date/Time Set 12 or 24 hour format Auto update Synchronously update clock from the playing program you selected or set by yourself. - Page 11 BR320DABC Note: If a password (WEP/WPA) isn’t required by your network, radio will connect to the network automatically. Turn SCROLL/SELECT knob to cycle through the alphanumeric character list, press SCROLL/SELECT knob to select an appointed character. Note: WEP/WPA pass codes are case-sensitive.
-
Page 12: Internet Radio Mode
BR320DABC Internet Radio Mode The display will show “Main menu” after “Setup wizard” completed. Press SCROLL/SELECT knob to select Internet radio mode. While “Station list” is highlighted, press SCROLL/SELECT knob to confirm. → Then refer following section to choice stations. Or if failed to connect to network, please follow: Check your Router, see it working normally or not;... -
Page 13: Selecting A Station Through "Stations
BR320DABC Selecting a station through “Stations” Stations enables you to select a station from categories: Location, Genre, Popular stations or New stations, or search stations. Press MENU button - Station list - Stations, press SCROLL/SELECT knob to confirm. → In “Stations” menu: “Location”... -
Page 14: Selecting A Program Through "Podcasts
BR320DABC Selecting a program through “Podcasts” Podcasts enables you to select a podcast from categories: Location or Genre, or search podcasts. Press MENU button - Station list - Podcasts, press SCROLL/SELECT knob to confirm. → In “Podcasts” menu: “Location” enables you to choose from the podcasts provided by any country which you choose from a list. -
Page 15: Getting Access Code And Faq From "Help
BR320DABC Getting Access Code and FAQ from “Help” Press MENU button - Station list - Help, press SCROLL/SELECT knob to confirm. Turn SCROLL/SELECT knob to select Get access code or FAQ, and then press SCROLL/SELECT knob to confirm It uses for creating an account when registering your radio on portal Get access code www.wifiradio-frontier. -
Page 16: Adding Station To "My Added Stations
To add a Favourite Station, first find a station and then click the “Add” icon. After you added the stations, in order to have your radio access your new settings, get your radio power off for several minutes is necessary. The added stations are accessible by pressing MENU button - Station list - My favourites. -
Page 17: Storing Preset Stations
BR320DABC Storing Preset Stations Your radio can store up to 10 of your favourite Internet stations. This will enable you to access your favourite stations quickly and easily. 1. While playing your favourite station, press and hold PRESET button on the main unit until display shows as below: 2. -
Page 18: Spotify
Tap the square image of the song’s cover art in the bottom left of the screen. Then tap the Connect icon Tap “BR320DABC” from the list. If you can’t see it, just check it’s connected to the same WiFi network as your phone of tablet. -
Page 19: Controlling Spotify Connect
BR320DABC The Connect icon will turn green to signify that your radio is now selected and being used for audio playback. Your Spotify app will only recognize your radio when the radio is connected to the internet (i.e. in Internet Radio, Spotify Connect or Music player mode). To use Spotify when your radio is in non-internet modes (i.e. -
Page 20: Music Player Mode
BR320DABC Music player Mode In order for your radio to play music files from a computer, the computer must be set up to share files or media. The built-in Music player allows devices like this radio to play unprotected audio files (AAC, MP3, WMA) from a shared media library, navigating through tag menus such as Artist, Album or Genre. -
Page 21: Playing Shared Media
Make sure that the radio has access to the shared media by selecting it and clicking Allow. You can also set a name for the shared media in the box of Name your media library. Click OK to close the dialogue boxes. The PC is now ready to stream the music to the radio. -
Page 22: My Playlist
My Playlist The My Playlist feature enables you to create a playlist of your favourite tracks from your music libraries. Once you have your playlist ready you can choose to play through the playlist on your radio and can also set shuffle and repeat play functions while your playlist is playing. To save a track to “My Playlist”, browse the track you want to add to the playlist, press and hold SCROLL/SELECT knob, and then the track is added to the playlist. -
Page 23: Dab Mode
BR320DABC DAB Mode Selecting DAB Mode Press MODE button repeatedly to select DAB mode. For initial use, radio will carry out a full scan and store stations list in memory Once the scanning is completed, the DAB/DAB+ stations will be displayed in alphanumeric order. -
Page 24: Scanning Stations
BR320DABC Scanning Stations Press MENU button, turn SCROLL/SELECT knob to select “Scan”, and then press SCROLL/SELECT knob to full scan. Manual Tune This can help you when adjusting your antenna or when adding stations that were missed while auto tuning. -
Page 25: Changing Station Order
BR320DABC Changing Station Order You may want to display the stations in different order. Press MENU button, turn SCROLL/SELECT knob to select “Station order”, and then press SCROLL/SELECT knob to confirm. Turn SCROLL/SELECT knob to select “Alphanumeric”, “Ensemble” or “Valid”, and then press SCROLL/SELECT knob to confirm your selecting option. -
Page 26: Recalling A Preset Station
BR320DABC 2. Turn SCROLL/SELECT knob to cycle through the preset numbers 1-10. 3. Select one preset number and then press the SCROLL/SELECT knob, display will show “Preset stored”. 4. Preset number “ #” will show on the display. Recalling a Preset Station Press PRESET button to show the saved preset stations. -
Page 27: Fm Mode
BR320DABC FM Mode Selecting FM Mode 1. Press MODE button repeatedly to select FM mode. 2. For initial use, it will start at the beginning of the FM frequency range (87.50MHz). Otherwise, the last listened FM station will be selected. -
Page 28: Storing Preset Stations
BR320DABC Storing Preset Stations Your radio can store up to 10 of your favourite FM stations. This will enable you to access your favourite stations quickly and easily. 1. While playing your favourite station, press and hold PRESET button on the main unit until display shows as below: 2. -
Page 29: Aux In Mode
BR320DABC Aux in Mode Aux in allows for quick and easy connection to an MP3 player or other external audio sources. Before connecting to the mains socket, use a 3.5mm audio cable (not supplied) to connect to your external audio device through the AUX IN socket on the rear of unit. -
Page 30: Bluetooth Mode
Activate your Bluetooth device and select the search mode. “BR320DABC” will appear on your Bluetooth device. Select “BR320DABC” and enter “0000” for the password if necessary. icon will remains steadily on the display when connection is successful. While a track is playing, you can:... -
Page 31: General Operation
BR320DABC General Operation Setting Sleep This feature enables your radio to switch to standby mode by itself after a set sleep time. Press MENU button - Main menu - Sleep, and then press SCROLL/SELECT knob to confirm. Turn SCROLL/SELECT knob to view options Sleep OFF, 15, 30, 45 or 60 MINS, press SCROLL/SELECT knob to confirm. -
Page 32: Setting Equaliser
BR320DABC Setting Equaliser This feature enables you to choose a sound equalization profile. Each of the equalization setting will change the tone of the sound from your radio when selected. Press MENU button - Main menu - System settings - Equaliser, and then press SCROLL/SELECT knob to confirm. -
Page 33: Setting Time/Date
BR320DABC Setting Time/Date Press MENU button - Main menu - System settings - Time/Date, press SCROLL/SELECT knob to confirm. Turn SCROLL/SELECT knob to select options, and then press SCROLL/SELECT knob to confirm the setting. Manually set-up both Time and Date Set Time/date: “Update from DAB”, “Update from FM”, “Update from... -
Page 34: Software Update - Over The Network
Software Update – Over the network From time to time, your radio may make software upgrades available with bug fixes and/or additional features. If your radio detects that newer software is available, it will ask if you want to go ahead with an update. -
Page 35: Setting Backlight
Start UNDOK app, making sure your radio and smartphone are connected to same WiFi network. All available devices will be listed. Tap your radio “BR320DABC xxxxxxxxxxxx” (the 12 digit alphanumeric code is the MAC address of your radio) to connect to. - Page 36 BR320DABC If you have more than one radio (multi-room capable device), you can group them to play synchronously. Tap the ▼ “Return to device list” icon. Create group, taping the edit icon which is following device name on device list, and then “Group Setup”...
- Page 37 BR320DABC Figure 3 Figure 4 Figure 5 Figure 6 Figure 7...
- Page 38 Alternatively, you can edit group through your radio. Press MENU button - Main menu - System settings - Multi-room, and then press SCROLL/SELECT knob to confirm. Turn SCROLL/SELECT knob to select options, and then press SCROLL/SELECT knob to confirm. View your radio state (Ungrouped, Server or Client) and the View details group which it belong to.
-
Page 39: Menu Map
BR320DABC Menu Map... - Page 40 BR320DABC...
-
Page 41: Troubleshooting
Move the unit away from them (especially those with motors and transformers). Desired station not found. Weak signal. Search manually. I cannot find “BR320DABC” Ensure the Bluetooth function is activated on your on my Bluetooth device Bluetooth device. Re-pair the unit with your Bluetooth device. - Page 42 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. FEB16-BR320DABC...
