Quick Start Guide Guide de démarrage rapide 快速入门指南 Cisco Small Business 371 Series Wireless Access Point Point d'accès sans fil Série 371 371 系列无线接入点...

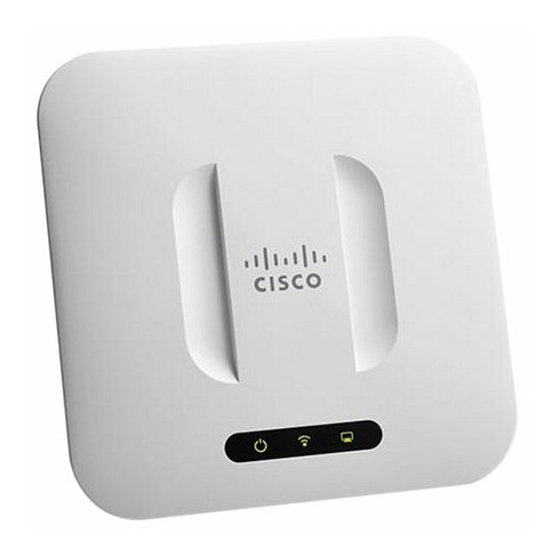

Thank you for choosing the Cisco Small Business WAP371 Wireless Access Point. The Cisco WAP371 is an indoor dual radio 802.11ac + 802.11n access point. This guide is designed to familiarize you with the general layout of the access point, describe how to deploy the device in your network, and describe how to configure the device.
Subnetwork Mask 255.255.255.0 If you are using a Cisco Small Business RV Series router, the default range for the DHCP assigned address is from 192.168.1.100 to 192.168.1.254. Any device connecting to the same LAN will be assigned an IP address in this range.
Wall and Ceiling Mounting The Cisco WAP371 device can be wall or ceiling-mounted. A mounting kit is packaged with your device. The kit is designed to install your device to the wall or the ceiling.
To mount the Cisco WAP 371 device to a wall or ceiling: Determine where you want to mount the device. Verify that the surface is smooth, flat, dry, and sturdy. Drill two pilot holes into the surface 2.75 inches (70 mm) apart for your Cisco WAP device.
GE Ethernet link is active. Solid Amber FE Ethernet link is active. Flashing Transmitting or receiving data. If you need help resolving a problem, visit the Cisco Small Business Support Community at www.cisco.com/go/smallbizsupport. Cisco Small Business WAP371 Series Wireless Access Point...
Firefox. In the Address field, enter the default DHCP address and press the Enter key. Enter the default user name of cisco and password of cisco in the User Name and Password fields. Click Login. The Wireless Access Point Setup Wizard appears.
To use ping on a computer running Windows: Verify that the Cisco WAP371 is powered on and the lights indicate the appropriate links. Locate the device’s IP address. While there are different ways to locate your device’s IP address, this procedure uses Cisco FindIT.
Page 9
60 seconds, the access points will fallback to the following default static IP address: 192.168.1.245 and a default mask of 255.255.255.0. To reach that IP address, be sure that your computer is on the 192.168.1.xxx network. Cisco Small Business WAP371 Series Wireless Access Point...
• With the power on, press and hold the Reset button with an opened paperclip for more than 10 seconds. – All of the lights will go off. – Release the Reset button when the power light turns on. Cisco Small Business WAP371 Series Wireless Access Point...
_support_center_contacts.html Cisco Small Business www.cisco.com/go/smallbizfirmware Firmware Downloads Select a link to download firmware for Cisco Small Business Products. No login is required. Downloads for all other Cisco Small Business products, including Network Storage Systems, are available in the Download area on Cisco.com at www.cisco.com/go/software...
Page 12
Small Business Support, Global: www.cisco.com/go/sbsc Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company.
Bienvenue Merci d'avoir choisi le point d'accès sans fil Cisco Small Business WAP371, un point d'accès bibande 802.11ac + 802.11n destiné à une utilisation en intérieur. Ce guide a pour but de vous familiariser avec les caractéristiques générales du point d'accès.
Page 15
Masque de sous-réseau 255.255.255.0 Si vous utilisez un routeur Cisco Small Business de la série RV, la plage d'adresses par défaut pour l'adresse attribuée par le serveur DHCP inclut les valeurs comprises entre 192.168.1.100 et 192.168.1.254. Tout appareil relié au même réseau LAN se verra attribuer une adresse IP dont la valeur se situe dans cette plage.
Page 16
Montage mural ou au plafond Le Cisco WAP371 peut être fixé au mur ou au plafond. Il est livré avec un kit de montage. Le kit est conçu pour installer votre appareil au mur ou au plafond.
Page 17
Pour installer le Cisco WAP371 au mur ou au plafond : Déterminez l'endroit où vous souhaitez installer l'appareil. Assurez-vous que É TAPE la surface est lisse, plane, sèche et solide. Percez deux trous pilotes espacés de 70 mm. É TAPE Insérez une vis dans chaque trou en laissant un espace entre la surface et la...
Page 18
Orange fixe Liaison Ethernet FE active. Clignotant Transmission ou réception de données. Si vous avez besoin d'aide, rendez-vous sur le site de la communauté EMARQUE d'assistance Cisco Small Business, à l'adresse www.cisco.com/go/smallbizsupport. Point d'accès sans fil Cisco Small Business Série WAP371...
Page 19
Cisco Small Business, y compris l'utilitaire Cisco FindIT Network Discovery Utility qui vous permet de trouver automatiquement tous les appareils Cisco Small Business pris en charge dans le même segment du réseau local que votre ordinateur. Vous pouvez obtenir une vue instantanée de chaque appareil ou lancer l'utilitaire de configuration du produit pour afficher et configurer les paramètres.
Si vous ne parvenez pas à afficher l'utilitaire de configuration, vous pouvez utiliser la commande ping pour effectuer un test de connexion entre l'ordinateur et l'appareil. Pour utiliser la commande ping sur un ordinateur exécutant Windows : Vérifiez que le point d'accès Cisco WAP371 est sous tension et que les DEL É TAPE indiquent que les liaisons appropriées sont actives.
Page 21
Le navigateur web peut pointer vers une adresse IP incorrecte ou votre ordinateur peut être configuré avec une adresse IP qui n'appartient pas au sous-réseau sur lequel se trouve l'appareil. Point d'accès sans fil Cisco Small Business Série WAP371...
• Lorsque l'appareil est sous tension, appuyez sur le bouton de réinitialisation pendant plus de 10 secondes avec l'extrémité d'un trombone. – Toutes les DEL s'éteignent. – Relâchez le bouton de réinitialisation lorsque le voyant d'alimentation s'allume. Point d'accès sans fil Cisco Small Business Série WAP371...
Resources. Faites défiler la page jusqu'à Technical Documentation. Cisco Small Business Site Cisco Partner Central - www.cisco.com/web/partners/sell/smb Small Business (connexion partenaire requise) Page d'accueil Cisco Small www.cisco.com/smb Business Point d'accès sans fil Cisco Small Business Série WAP371...
Page 24
Assistance aux PME (monde entier) : www.cisco.com/go/sbsc Cisco et le logo Cisco sont des marques commerciales ou des marques commerciales déposées de Cisco Systems, Inc. et/ou de ses filiales aux États-Unis et dans d'autres pays. Pour consulter la liste des marques commerciales de Cisco, rendez-vous sur : www.cisco.com/go/trademarks.
Page 33
心 思科 Small Business 客户协议 http://www.cisco.com/web/CN/smallbusiness 思科 Small Business 产品兼容性 http://www.cisco.com/web/CN/smallbusiness 和安全提示 思科 Small Business 产品保修 http://www.cisco.com/go/cn/small_service 条款 思科 Small Business 产品渠道合 http://www.cisco.com/web/CN/partners/smb_kr/ 作伙伴中心 index.html 思科 Small Business 产品服务热 8008888168 (固定电话) 线 4006282616 (移动电话) 思科 系列无线接入点 Small Business WAP371...
Page 35
FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 36
IC Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
Page 37
IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé...
