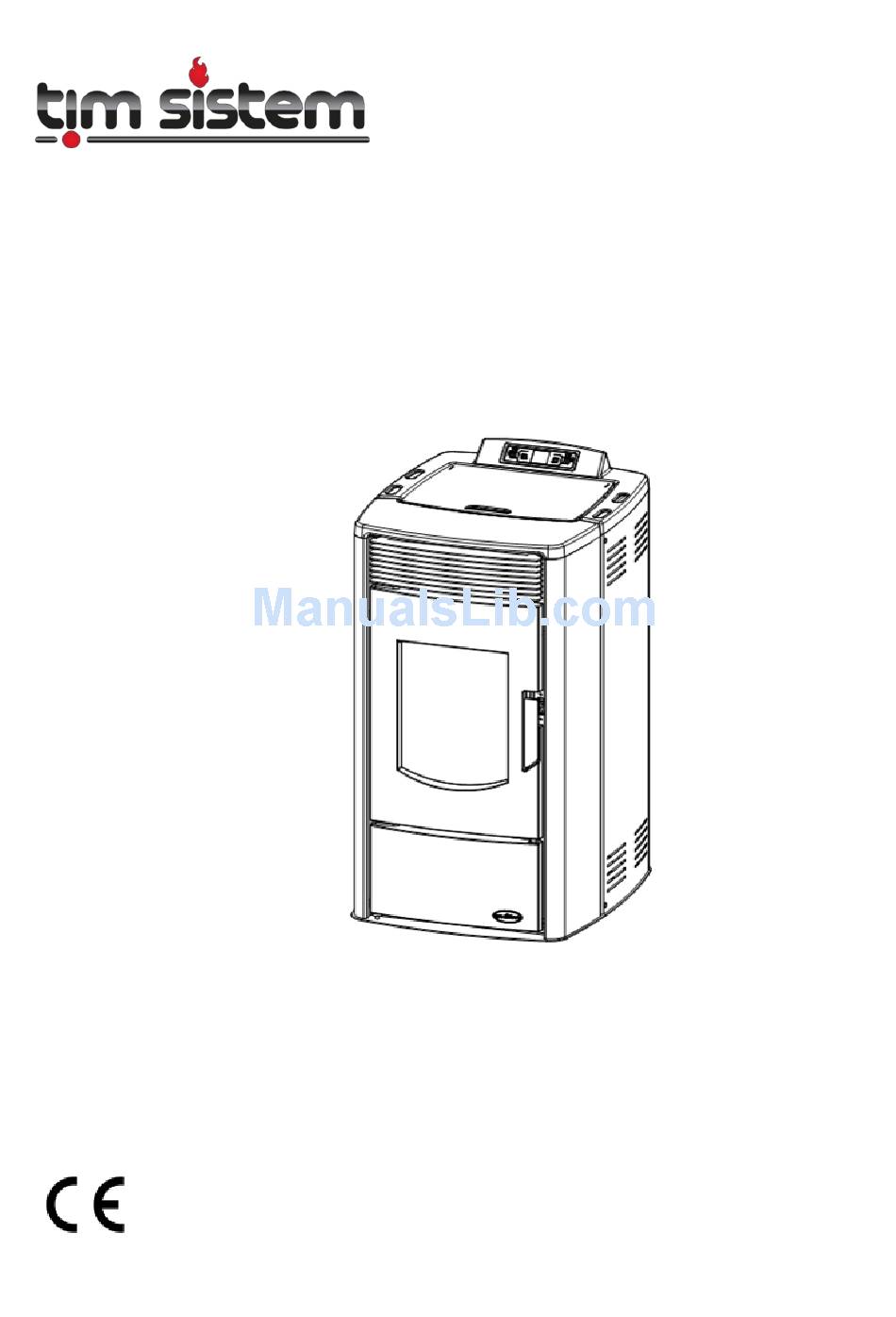

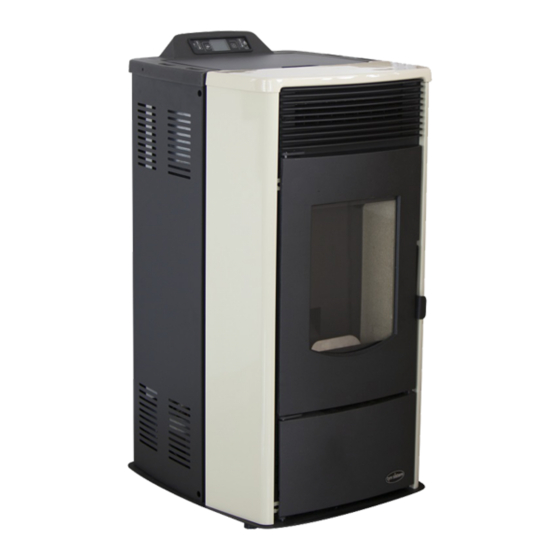

RITTIUM 7
Owner's manual
INSTALATION, OPERATING AND MAINTENANCE INSTRUCTION
Available in ceramic and metal sheet version.
* * * ceramic top plate version
EN 14785:2006
pellet stove

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the rittium 7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tim Sistem rittium 7

Summary of Contents for Tim Sistem rittium 7

  • Page 1 RITTIUM 7 pellet stove Owner’s manual INSTALATION, OPERATING AND MAINTENANCE INSTRUCTION Available in ceramic and metal sheet version. * * * ceramic top plate version EN 14785:2006...

  • Page 3: Table Of Contents

    CONTENTS About pellet ........Quality of pellet .

  • Page 4: About Pellet

    1. ABOUT PELLET Pellet is an energy fuel with high energy efficiency, which is produced in special technological process of milling, drying and pressing of various materials of biological origin. As raw materials for its production can be used wood from forestry waste, firewood, sawdust and other wood waste (wood pellets);...

  • Page 5: Remarks Before Operating The Stove

    2. REMARKS BEFORE OPERATING THE STOVE Always follow the references given in this chapter. The manufacturer doesn’t take a responsibility for consequences in opposite cases. Not respecting the instructions of use and maintenance, you lose your right to a warranty. •...

  • Page 6: Technical Specifications

    3. TECHNICAL CHARACTERISTICS Table 1. contains the technical characteristics Table 1. Power 6 kW 8 kW 10 kW Dimension (W x L x H) 523 x 603 x 1041 Weight Fuel (dimension) wood pellet (6 mm L30 mm)  80 Smoke drain 12±2 Draft...

  • Page 7: Basic Features Of The Stove

    4. BASIC FEATURES OF THE STOVE Image 2. Basic features 1. Firebox doors 11. Storage cover 2. Door handle 12. Storage 3. Door glass 13. Upper ceramic plate 4. Ashtray door 14. Back side 5. Ashtray 15. Smoke drain 6. Combustion pot 16.

  • Page 8: Instalation Of The Stove

    5. INSTALATION OF THE STOVE With a stove you will get the user’s manual, remote control and power cable. These accessories , included with the stove are presented on an Image 3. Image 3. Included accessories Before you start installation of the stove , you must read carefully instructions for use and maintenance, get to know well a regional regulations and legislation, in order to apply them.
  • Page 9 Stove should be set 300 mm away from the obstacle on its sides, 300 mm from the back side, while the front side should be at least 800mm away from obstacles. Do not place any objects on the stove, because they could be damaged by a high temperatures that the stove emits.

  • Page 10: Display And Remote Control

    6. DISPLAY AND A REMOTE CONTROL On display there are 6 keys which are being used for managing different functions of the stove. In the middle, there is a display where is being shown a basic information about the stove operation. Image 6.

  • Page 11: Remote Control

    Timer indicator (turning the on and off according to a selected program) Heater indicator for burning the pellet Engine for pellet insertion indicator Emissions fan indicator Blower indicator Water pump indicator (this symbol is an optional and it has its function with a stove for a floor heating) Warning indicator (the stove operate in incorrect way) Table 2.
  • Page 12 Pressing the buttons 1 and 6 at the same time turns stove ON and OF. Pressing the buttons 1 and 2 is being set a wanted temperature. Buttons 5 i 6 are there for mode settings. Settings of temperature and mode are described accurately in the chapter “USE OF THE STOVE”.

  • Page 13: Use Of The Stove

    7. USING THE STOVE Follow this guide always, so that the stove remains in good condition as long as possible and to avoid unnecessary costs. Before initializing the stove, check to see if the stove is well connected to the power source and the chimney. To turn on the stove, it is also necessary to change the main switch from position 0 to position 1.

  • Page 14: Temperature And Mode Settings

    3 - 4 min. Periodically stove cleans the pot where the pellet combustion takes place. This operation is followed by a message CLEANING FIRE POT. A time that precedes the cleaning is different depending on the model stove. When shutting down the stove, you need to press key 4 and keep it that way for a while, until on display appears the message CLEANING FINAL.

  • Page 15: Settings

    8. SETTINGS 8.1. Blower settings (optional) Setting the blowers is possible only in stoves with heat dissipation channel. Setting can be done either when the stove is on or when it is switched off (main switch for the power supply on). The setting is being done in a following way: Press the key 3 (set), after what it will appear a message menu 01 ADJUST BLOWERS, and then again press the key 3 (set), and a display will show menu 01 VENT-2 0 VENT-3 0.

  • Page 16: Clock Settings

    8.2. Clock settings Clock setting is being done in following way. Press the key 3 (set), after what there will be displayed a message menu 01 ADJUST blowers. Then press the key 5 and you’ll be displayed a message menu 02 SET CLOCK; afterwards, press again the key 3 (set), in order to access the clock setting menu.

  • Page 17: Timer Settings

    8.3. Timer settings There are three kinds of timer settings: • Daily - allows the stove itself on and off 2 times during the day • Weekly - allows the stove is programmed to be 4 times during the day to include and exclude seven days a week Weekend setting - allows the stove twice and switched off during Saturday and •...

  • Page 18: Daily Programmer

    Daily programming indicator Weekly programming indicator Weekend programming indicator Timer indicator To exit the timer setting press the key 4 twice 8.3.2. Daily programming indicator NOTE: Make sure that the starting up and shutting down time does not overlap. It is also necessary to pay attention that between this two processes pass at least 30 minutes.
  • Page 19 MENI SETING OPTIONS DISPLAY APPEARANCE m-3-2-01 CHRONO DAY off/on m-3-2-02 START 1 DAY off/00:00-23:50 m-3-2-03 STOP 1 DAY off/00:00-23:50 m-3-2-04 START 2 DAY off/00:00-23:50 m-3-2-05 STOP 2 DAY off/00:00-23:50 To exit the settings press the key 4 twice. SETTING EXAMPLE: The stove is starting up at 6 am and turning off at 8 am, the next starting is at 2 pm and turning off in 10:30 pm.

  • Page 20: Weekly Programmer

    8.3.3. Weekly programming NOTE: Make sure that the starting up and shutting down time does not overlap. It is also necessary to pay attention that between this two processes pass at least 30 minutes. During the daily programming you can set four starting ups and four shutting downs of the system.
  • Page 21 m-3-3-02 m-3-3-03 m-3-3-04 m-3-3-05 START STOP MONDAY TUESDAY PROG-1 PROG-1 PROG-1 PROG-1 off/00:00-23:50 off/00:00-23:50 on/off on/off m-3-3-06 m-3-3-07 m-3-3-08 m-3-3-09 WEDNESDA THURSDAY FRIDAY SATURDAY PROG-1 PROG-1 PROG-1 PROG-1 on/off on/off on/off on/off m-3-3-10 m-3-3-11 m-3-3-12 m-3-3-13 SUNDAY START STOP MONDAY PROG-1 PROG-2 PROG-2...
  • Page 22 m-3-3-22 m-3-3-23 m-3-3-24 m-3-3-25 MONDAY TUESDAY WEDNESDA THURSDAY PROG-3 PROG-3 PROG-3 PROG-3 off/on off/on off/on off/on m-3-3-26 m-3-3-27 m-3-3-28 m-3-3-29 FRIDAY SATURDAY SUNDAY START PROG-3 PROG-3 PROG-3 PROG-4 off/on off/on off/on off/00:00-23:50 m-3-3-30 m-3-3-31 m-3-3-32 m-3-3-33 STOP MONDAY TUESDAY WEDNESDA PROG-4 PROG-4 PROG-4...

  • Page 23: Weekend Programmer

    m-3-3-11 START PROG-2 05:30 m-3-3-01 CHRONO WEEKLY m-3-3-12 STOP PROG-2 10:00 m-3-3-02 START PROG-1 06:00 m-3-3-13 MONDAY PROG-2 m-3-3-03 STOP PROG-1 08:00 m-3-3-14TUESDAY PROG-2 m-3-3-04 MONDAY PROG-1 m-3-3-15 WEDNESDA PROG-2 m-3-3-05 TUESDAY PROG-1 m-3-3-16 THURSDAY PROG-2 m-3-3-06 WEDNESDA PROG-1 m-3-3-17 FRIDAY PROG-2 m-3-3-07 THURSDAY PROG-1 m-3-3-18 SATURDAY PROG-2 m-3-3-08 FRIDAY PROG-1...
  • Page 24 Once again, press the key 3 (set) and you will get a displayed message off m-3- 3-01 CHRONO WEEK-END. With the keys 1 and 2 switch the program to on in order to activate a weekly timer. Use the keys 5 and 6 to scroll through menus, and the keys 1 and 2 to change the parameters.

  • Page 25: Language Settings

    To exit the settings press the key 4 twice. SETTING EXAMPLE: The stove is starting up at 8 am and turning off at 5 pm. The next starting is at 8 pm and turning off at 11:30 pm. Parameters need to be set according to a following table.

  • Page 26: Stand-By Mode

    8.5. STAND-BY mode STAND-BY mode is being used to sett up the stove in order to reduce an unnecessary use of the fuel. It's function is to turn off the stove automatically, as soon as the required temperature has been achieved. Stand-by mode is set in the way that as soon as the difference in a temperature is higher than 2 C, the stove is automatically turning off.

  • Page 27: Sound-Alerts

    8.6. Sound alerts Speaker serves to avert the malfunction of the alarm by beeping. The speaker can be turned on or off. Turning the speaker on is done as follow. Press the key 3 (set) and you will get a displayed message menu 01 ADJUST BLOWERS.

  • Page 28: Operation

    The appearance of the display when you start inserting pellets is shown in the figure below. The countdown starts from 90 seconds back and down. To stop loading pellets press the key 4. 8.8. Information on the operation of the stove Information on the operation of the stove are useful because at any moment you can traced in what mode is the stove operating, the temperature of exhaust gases, the fan speed, time remaining until the next action, etc.

  • Page 29: Technical Settings

    To exit this menu press the key 4. 8.9 Technical settings IMPORTANT !!! This menu is reserved only for professionals trained to adjust the stove, and for the service. Any change in the parameters that was made by unauthorized persons will mean the loss of warranty !!!

  • Page 30: Operation Info

    9. OPERATION INFO Status of stove can be verified with the help KEYS. Pressing this key is possible to see the current temperature of exhaust gases, modes stoves, pellet insertion, the remaining time left to act so. Pressing and holding the help key there will show a following screen layout.

  • Page 31: Potential Errors In Operation

    10. POTENTIAL ERRORS IN OPERATION In each stove malfunction indicator will blink next to a warning sign and the stove will automatically stop working. There are several errors that can occur in stove operation, which will be described in detail below. Error caused by malfunction of the emissions fan.
  • Page 32 Check of the probe that measures the temperature of exhaust gases is being done in a following way: Press button 2 and hold it until the next image appears on display. Number of 373 C indicates that the exhaust gas sensor is defective or not well connected to the connector.
  • Page 33 Unscrew the lid on the safety thermostat (1) and check if the needle (2) is in or out. If the needle is pulled out, push a pin and let the stove back in operation. If the needle is in, or if it cannot be retracted, and the stove still reports the same error, call the service.
  • Page 34 The high temperature of the exhaust gases. When the exhaust gas temperature exceeds pre-set value, on display appears the messages HOT EXHAUST. Stove will automatically switch to a lower mode and reduce the temperature of exhaust gases. If this message occurs frequently call service.

  • Page 35: Cleaning And Maintainance

    11. CLEANING AND MAINTAINANCE During the daily and weekly cleaning turn off the stove at the main switch, set the switch in the position 0. When the stove is being completely cleaned you must shut it off from the power source. Stove can be cleaned at least 30 minutes after the cessation of work, in order to avoid burns in contact with hot parts of the stove.
  • Page 36 13. Enclosure: Electrical scheme 1. Ground 2. Flat cable for a display 3. Communication port RS232 4. Encoder cable 5. Probe of ambient temperature 6. Probe of emissions temperature 7. Connectors of safety thermostat, safety depressor and motor reduction 8. Lighter 9.

  • Page 37: Warranty

    The warranty for this product is 24 months. TIM SISTEM is obliged to provide spare parts in due time after the stove is no longer produced. This warranty does not cover damage caused by:  inadequate use of stoves;...
  • Page 38 NOTES AND SERVICE CALENDAR _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________...
  • Page 39 _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _________________________________________________________________ _____ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________...
  • Page 40 TIM SISTEM d.o.o. Prva industrijska Str. No.9, Industrial area Nova Pazova, 22 330 Nova Pazova, Srbija tel/fax: +381 22 32 80 76 e-mail: office@timsistem.rs www.tmisistem.rs...
