RITTIUM 7
PELLET STOVE
Available in ceramic and metalsheet version.
Owners's manual
INSTALATION, ADJUSTMENT AND OPERATING INSTRUCTION
* metalsheet version
EN 14785:2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RITTIUM 7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tim Sistem RITTIUM 7

Summary of Contents for Tim Sistem RITTIUM 7

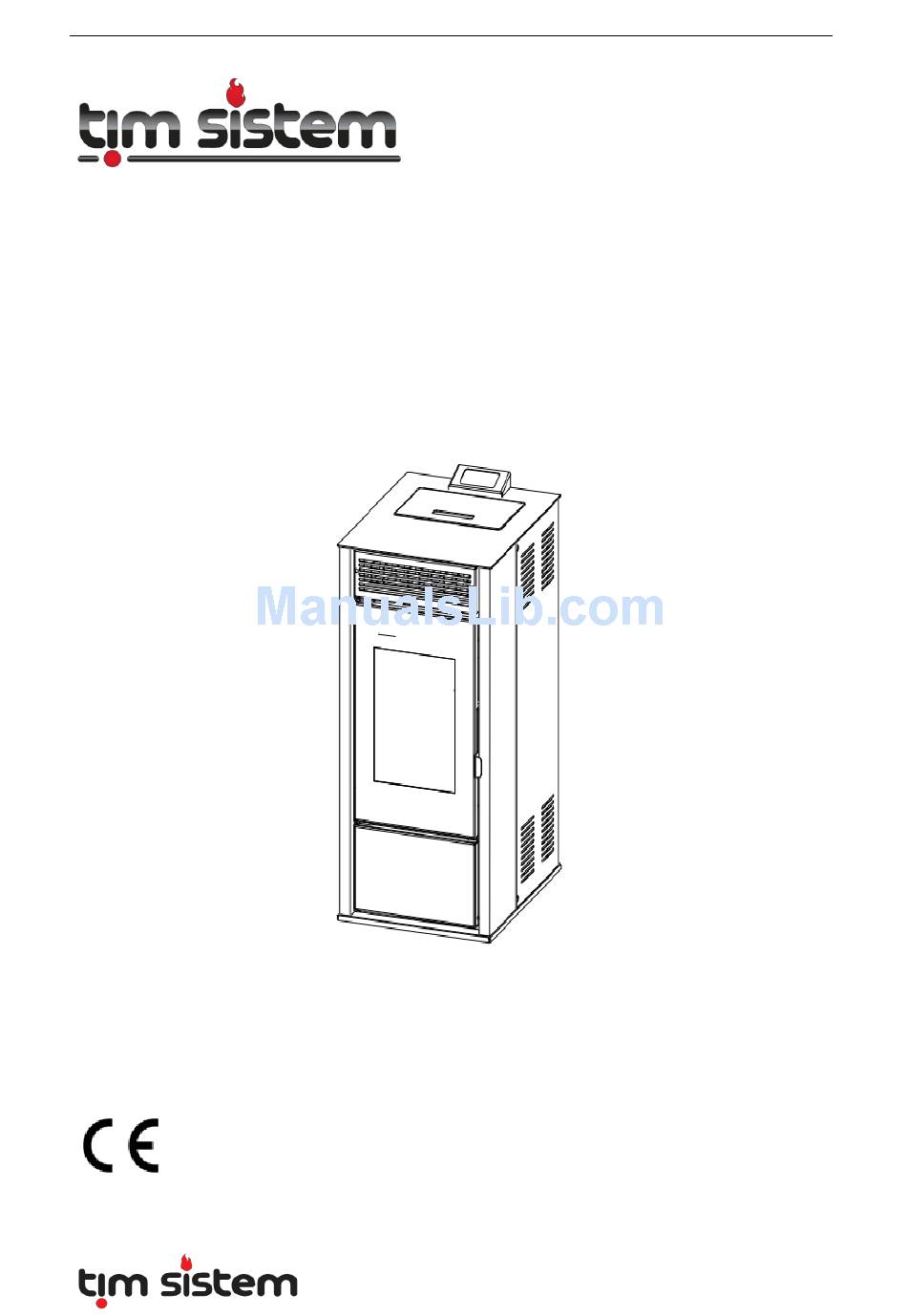

  • Page 1 RITTIUM 7 PELLET STOVE Available in ceramic and metalsheet version. Owners’s manual INSTALATION, ADJUSTMENT AND OPERATING INSTRUCTION * metalsheet version EN 14785:2006...
  • Page 3 1. WHAT IS PELLET? Pellet is an energy fuel with high energy efficiency, that is produced in special technological process of milling, drying and pressing of various materials of biological origin. As raw materials for its production can be used wood from forestry waste, firewood, sawdust and other wood waste (wood pellets);...
  • Page 4 2. REMARKS BEFORE OPERATING THE STOVE Always follow the references given in this chapter. The manufacturer doesn’t take a responsibility for consequences in opposite cases. Not respecting the instructions of use and maintenance, cause the lose of right for consumer warranties. ...

  • Page 5: Technical Characteristics

    3. TECHNICAL CHARACTERISTICS Table 1. contains the technical characteristics Power 6 kW 8 kW 10 kW Dimension (W x L x H) 523 x 603 x 1041 Weight Fuel (dimension) wood pellet (6 mm L30  80 Smoke drain 12±2 Draft Capacity of a storage 230 ±...
  • Page 6 4. BASIC PARTS OF THE STOVE * * picture of Rittium 7 with ceramic top plate Image 2. Basic parts 1. Door of the firebox 2. Door handle 3. Glass on the door 4. Ashtray door 5. Ashtray 6. Combustion pot 7.
  • Page 7 Place the stove as close as possible to a smoke drain, where is also a power connection. The stove shuld be away from any possible obstacles, like presented in Figure 4. Figure 4. Optimal distance * picture of Rittium 7 with ceramic top plate...
  • Page 8 Stove should be set 300 mm away from the obstacle on its sides, 300 mm from the back side, while the front side should be at least 800mm away from obstacles. Do not place any objects on the stove, because they could be damaged by a high temperatures that the stove emits.
  • Page 9 6. USING KEYBOARD 6.1. Keyboard with remote control Fumis ALPHA capacitive touch keyboard is designed intuitivey. It enables users at home to operate with the Fumis ALPHA controller. NOTE: For best performance keep the keyboard clean. Stains (for example, grease) on the buttons can send the signal that the button was pressed.
  • Page 10 Button Description Power ON/OFF buttons is used for turning the combustion system on or off. Press and hold the button for 1 second. Menu buttons are used for navigating the first level menu context. The currently selected menu context is indicated with the corresponding icon at the top.
  • Page 11 6.1 Menu structure...
  • Page 12 NOTE: The Fumis ALPHA menu structure depends on the configuration and options. The menu structure in FIGURE 35 shows all possible menu entries. Depending on the selected configuration, some entries are not available. In such cases the menu entry is not included and submenus are renumbered accordingly.
  • Page 13 To set the time and date, in the Time context press the Enter button. The hour value is blinking. With the edit buttons set the desired hour. Then press the right menu button. The minute value is blinking. Set the desired minute. Press the right menu button and set the date in the same manner. The date is set in the format dd.mm.yyyy.
  • Page 14 To view current burning power, press the menu button to enter the Power context. The current burning power level value is shown on display. For faster heating up to the desired room temperature you can increase the burning power setting. In the Power context press the Enter button.
  • Page 15 Example: To enable or disable the operation of the combustion system with the weekly timer programs, press the menu button to enter the Time context and then press edit button to select the Weekly timer ON/OFF. Press Enter and toggle the weekly timer on or off. If you disable the weekly timer operation, set the combustion system operation manually.
  • Page 16 TIP: We recommanded you to use Key lock option when cleaning the Fumis ALPHA keyboard. You can increase or decrease or decrease the display brightness in the idle mode to conserve energy. As soon as you touch the keyboard, the brightness of the display will increase to default value.
  • Page 17 7.1 Low fuel Indication: Icon No fuel is on Code: A0001 Cause: When the fuel in the container reaches Low fuel level., the notification is triggered. This notification is available if you are using the Fuel autonomy option combustion system is equipped with the fuel level sensor.
  • Page 18 7.6. Pressure sensor failure Indication: Icon Service is blinking Code: A007 Cause: The pressure sensor malfunctioned. The combustion system still operational. Solution: Contact the service personnel. 7.7. Regular maintenance required Indication: Icons Cleaning and Service are blinking Code: A002 Cause: The Time to service shows in hours when you should contact the service personnel to perform regular maintenance of your combustion system.
  • Page 19  Code E108: Security switch error  Code E109: Pressure switch error  Code E110: NTC1 error  Code E111: TC1 error  Code E112: Fuel over temperature  Code E115: General error Solution: Note the error code and contact the service personnel. 7.11.
  • Page 20 7.13. Unspecific errors on Fumis ALPHA keyboard Certain information stored in Fumis ALPHA controller is updated to Fumis ALPHA keyboard at startup (for example, configuration). In case the Fumis ALPHA keyboard displays unexpected errors when making changes to the controller, disconnect and then reconnect the keyboard to reset the keyboard. If the problem persists, contact ATech for support.
