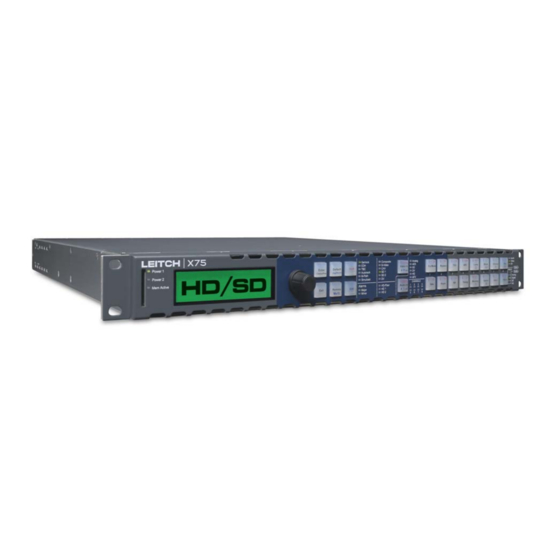

Leitch X75HD Product Manual

Multiple path frame synchronizer, converter and more
Hide thumbs Also See for X75HD:
Table of Contents

Advertisement

Quick Links

X75 Product Guide
Multiple Path Frame Synchronizer, Converter and More ...
June 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X75HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leitch X75HD

Summary of Contents for Leitch X75HD

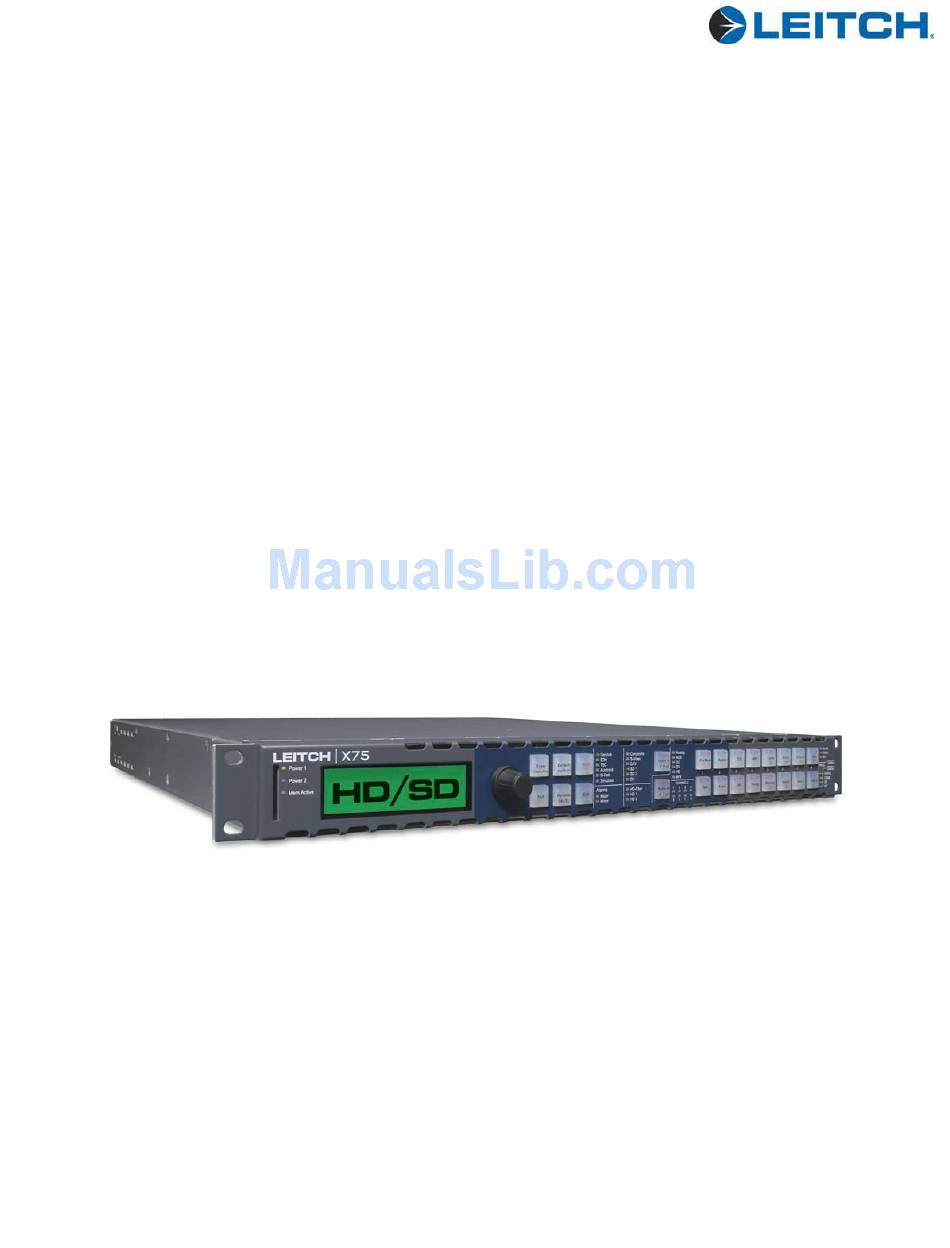

  • Page 1 X75 Product Guide Multiple Path Frame Synchronizer, Converter and More … June 2005...
  • Page 2 Copyright © 2005, Leitch Technology, Inc. All rights reserved. • Leitch is a registered trademark of Leitch Technology Corporation that may be registered in some jurisdictions. X75, X75SD, X75HD, Pilot, Navigator, CCS and DPS-575 are either registered trademarks or trademarks of Leitch Technology Corporation in the U.S. and/or other countries. The names of actual companies and products mentioned herein may be the trademarks of their respective owners.

  • Page 3: Table Of Contents

    Rear Panel........................12 Functional Block Diagrams..................13 X75SD Base Model ........................13 X75-DPS-575 Base Model......................13 X75HD Base Model........................14 X75HD with X75OPT-HDDUOCON ....................14 8 Channel Audio Synchronizer Option ...................15 16 Channel Audio Synchronizer Option ..................15 Control Architecture .....................16 Pilot and Navigator GUI .........................17 Web Server Menus..........................19 Who needs an X75? ......................20...
  • Page 4 Weight and Dimension........................40 Power ..............................40 HD Conversion ..........................42 Frequently Asked Questions ..................43 General Questions ...........................43 Fiber Optics Questions........................44 Streaming, Compressed and Metadata Questions ................44 Control Questions ...........................45 Video Questions..........................46 Audio Questions..........................49 X75 Advertisement......................51 X75HD Brochure......................52 Page ii • Contents X75 Product Guide...

  • Page 5: Introduction

    Introduction This guide provides detailed information about the X75HD™ and X75SD™ systems, and how each fits into the Video Processing Product line. The following topics are discussed: • Market Requirements • About the X75 • Positioning Statement • Value Propositions •...

  • Page 6: About The X75

    About the X75 The X75 is: • An award winning multiple-path converter, frame synchronizer and more — all in a unique 1RU package designed for hybrid analog, digital and HDTV applications. • An extension to the frame synchronizer — including more functions such as up, down and cross- conversion —...

  • Page 7: Product Overview

    X75 provides an ideal bridge between analog, digital and high definition systems with analog, digital and embedded audio. I/O Flexibility The X75HD offers unparalleled I/O flexibility. Up to seven input and eight output formats are provided — depending on the selected options. I/O features include: •...

  • Page 8: Video Processing

    PC control and monitoring over large networks entirely manageable. A built-in Web Server and optional SNMP (Simple Network Management Protocol) are industry standard means of controlling and monitoring the X75 over Ethernet. Leitch’s CCS (Command and Control System), Co-Pilot and Navigator software further enhance the remote control aspects of the X75.

  • Page 9: User-Selectable Modes

    User-selectable Modes Operational modes for numerous applications are user-selectable: • M-PATH: M-PATH is a means of selecting or detecting input signals to processed output signals. The default M-PATH mode is called “All Output Select” in which a single input is processed to all outputs.

  • Page 10: Features And Benefits

    Features and Benefits The following topics are discussed in this section: • Summary — Key Features and Benefits • In Depth — Key Features and Benefits Summary — Key Features and Benefits X75’s key features and benefits are: • Economy — enables you to use less equipment for your video and audio processing applications. •...
  • Page 11 SDTV and HDTV logo generator, source ID. • For surround sound applications, X75 includes embedded audio for SDTV and HDTV plus analog and digital audio interfaces: Integrated Dolby E and Dolby Digital (AC-3) audio decompression. Voice-over capability. 16 channels of core audio processing. IP Enabled Control Ethernet is the key to X75’s IP enabled control flexibility, including: •...

  • Page 12: Product Features

    Product Features This section provides itemized lists of X75 features: • Processing • Inputs and Outputs • Audio • Control and Monitoring • Miscellaneous Features Processing X75 processing features include: • Frame syncs for analog (optional with TBC), SDTV and HDTV. •...

  • Page 13: Audio

    Audio X75 audio features include: • 16 channels of internal audio processing (gain, invert, swap, sync/delay, sum). • Embedding and de-embedding for four groups for SDI and HD-SDI. • Optional compressed audio decompressor (Dolby E, AC-3, Pro Logic). Note: Pro Logic II not supported. •...

  • Page 14: Front Panel

    Front Panel The figure below illustrates the X75’s front panel. X75HD Front Panel Rear Panel The figure below illustrates the X75HD’s rear panel, with functional sections highlighted: X75HD Rear Panel — Functional Sections Page 12 • Front Panel X75 Product Guide...

  • Page 15: Functional Block Diagrams

    Functional Block Diagrams This section provides simple functional block diagrams of several X75 models. • Note: Throughout the diagrams: Brown Italic Text = Optional X75SD Base Model Streaming Video and Audio Thumbnail SDTV Frame Sync SD-SDI In SD-SDI Out SD-SDI In SD-SDI Out DV (SDTV 25Mb) In DV (SDTV 25Mb) Out...

  • Page 16: X75Hd Base Model

    X75HD Base Model HDTV Fiber Out HDTV Fiber In HDTV 1.485 1.485 Frame Sync HD-SDI Out HD-SDI In Gb/s Gb/s DVI-D HD-SDI In Up/Down/Cross Converter & Frame Sync Streaming Video and Audio Thumbnail SD-SDI Out SD-SDI Out SDTV DV (SDTV 25Mb) Out...

  • Page 17: Channel Audio Synchronizer Option

    8 Channel Audio Synchronizer Option 4 SRC HDTV Demux 1/2 HDTV Demux 3/4 HDTV Demux 5/6 8 Channel HDTV Demux 7/8 Synchronizer HDTV Demux 9/10 HDTV Muxed 1-16 HDTV Demux 11/12 HDTV Demux 13/14 HDTV Demux 15/16 Dolby E, AC-3 SDTV Demux 1/2 SDTV Muxed 1-16 SDTV Demux 3/4...

  • Page 18: Control Architecture

    Control Architecture The X75 can be equipped with a local control panel, or it can also be controlled in the following ways: • Ethernet — X75 includes two 10/100-BaseT Ethernet ports: One Ethernet port is dedicated to control, monitoring and low bit-rate streaming, providing a low frame rate video-only thumbnail.

  • Page 19: Pilot And Navigator Gui

    Pilot and Navigator GUI A variety of screen cuts from the X75’s Pilot and Navigator GUI are illustrated below. Thumbnail for Monitoring Pilot / Navigator Screen Cut with Thumbnail Optional Low Resolution Streaming Pilot / Navigator Screen Cut with Streaming Image X75 Product Guide Control Architecture •...
  • Page 20 Menu Path Display Nested folders for menu navigation Pilot / Navigator Screen Cut with Menu Path and Nested Folders Page 18 • Control Architecture X75 Product Guide...

  • Page 21: Web Server Menus

    Web Server Menus A built-in Web Server for use with web browsers such as IE and Netscape is provided: X75 Product Guide Control Architecture • Page 19...

  • Page 22: Who Needs An X75

    Who needs an X75? X75 customer profiles and categories are listed below: • Video Engineers — looking for frame synchronizers for input processing, timing and lip sync corrections. • Audio Engineers — looking for multi-channel processing for multi-language and surround sound ®...
  • Page 23 Cross-conversion for programs that are recorded in other then the native station format. As a simple switcher, X75HD switches between SD and HD inputs with clean (and quiet) SD and HD outputs with voiceover. Ideal for use with Dolby E and AC-3 compressed audio, the X75HD simplifies and reduces the amount of equipment needed to synchronize and time your video and audio signals.

  • Page 24: Advantages, Strengths And Differentiations

    Advantages, Strengths and Differentiations • Key X75 Advantages • Top Ten Strengths • Key Differentiations Key X75 Advantages Following are the top advantages of the X75: • Field Upgrade to HDTV for SDTV versions. • Entry Level HDTV versions include up, down, cross conversion. •...

  • Page 25: Key Differentiations

    Key Differentiations Following are the top key differentiations of the X75: • More functions in a small space. • SDTV versions upgradeable to HDTV in the field. • Analog interface for video and audio option in the same package. • Future proofed with two Ethernet connections (separate IP addresses), DVI-D and HD optical fiber interfaces.

  • Page 26: Hardware And Software Options

    The X75 can be provided as a direct equivalent replacement to the DPS-575, or as a X75SD package, or as a X75HD package. • Note: the analog video input is optional for the X75SD and X75HD packages. The following topics are discussed in this section: •...

  • Page 27: Hardware Options

    • Video and audio, no control panel and 2 power supply. • Video and audio with local control panel and 2 power supply. Hardware Options The following hardware options are available: • A field upgrade to HDTV for DPS-575 equivalent and X75SD models. •...

  • Page 28: Ordering Information

    Ordering Information X75HD ordering information is provided below. • Packages • Hardware Options • Software Key Options • Cable Options • Spares Kit and Extra Manuals Packages The table below lists X75-DPS-575 equivalent packages: DPS-575 Equivalent Models with Extras Model...
  • Page 29 1RU Up/Down/Cross Converter & Synchronizer, Video and 16 Channel Audio, No Control Panel (for simultaneous Up and Down or simultaneous Cross and Down conversion, the X75OPT-HDDUOCON software key option is required) X75HD with Up and Down and Cross Conversion (single channel) and Redundant PSU Model Description X75HD-2PS 1RU Up/Down/Cross Converter &...

  • Page 30: Hardware Options

    FC type fiber connectors for HD sub-module X75OPTFIBER-ST ST type fiber connectors for HD sub-module X75-RCP Remote Control Panel for X75HD and DPS-575 X75OPT-PS Power Supply Field Retrofit Kit Software Key Options The table below lists X75 software key options:...

  • Page 31: Cable Options

    Cable Options The table below lists optional cables for the X75: X75 Cable Options Model Description X75OPTCAB-16-C Cable Set for 16 Ch. Audio Synchronizer, Unbalanced Coax AES (one set included) X75OPTCAB-16-X Cable Set for 16 Ch. Audio Synchronizer, Balanced XLR AES X75OPTCAB-16-CX Cable Set for 16 Ch.

  • Page 32: Specifications

    Specifications Tables are provided for the following X75 specifications: • HD-SDI Video Input • HDTV Fiber Video Input • SD-SDI Video Input • S-Video Input • Analog Composite Video Input • Component Input • Genlock Input • HD-SDI Video Output •...

  • Page 33: Hd-Sdi Video Input

    HD-SDI Video Input HD-SDI Video Input Specifications Item Specification Standard SMPTE 292M Connector BNC (IEC169-8) Impedance 75 Ω Return Loss > 18 dB, typical, from 5 MHz to 1485 MHz Equalization Adaptive cable equalization for up to — • 328 ft (100 m), typical, of Belden 8281 co-axial cable, or •...

  • Page 34: S-Video Input

    S-Video Input S-Video Input Specifications Item Specification Standard NTSC, PAL-M, PAL-B Connector 4-pin DIN Analog Composite Video Input X75OPT-A3D and X75OPT-PQM Analog Composite Video Input Specifications Item Specification Standard NTSC (SMPTE 170M), PAL-B (ITU624-2), SECAM, PAL-M Connector BNC (IEC 169-8) Quantization Normal mode, non-TBC: •...

  • Page 35: Component Input

    Component Input Component Video Input Specifications Item Specification Format Betacam Connector BNC (IEC 169-8) Input Level 1.0 V pk-to-pk Quantization Normal mode, non-TBC mode CAV • Y: 12 bits • Cb: 10 bits • Cr: 10 bits Normal mode, non-TBC mode S-Video •...

  • Page 36: Hd-Sdi Video Output

    HD-SDI Video Output HD-SDI Video Output Specifications Item Specification Standard SMPTE 292M Connector BNC (IEC169-8) Impedance 75 Ω Return Loss > 18 dB, typical, from 5 MHz to 1485 MHz Signal level 800 mV ± 10% DC offset 0.0 V ± 0.5 V Rise/fall time <270 ps Overshoot...

  • Page 37: Sd-Sdi Video Output

    SD-SDI Video Output SD-SDI Video Output Specifications Item Specification Standard SMPTE259M-C, 270 Mbps, 525/625 component Quantization 10 bits Connector BNC (IEC169-8) Impedance 75 Ω Return loss >18 dB from 5 MHz to 270 MHz Signal level 800 mV ± 10% DC offset 0.0 ±...

  • Page 38: Component Output

    Component Output Component Video Output Specifications Item Specification Format Betacam Connector BNC (IEC 169-8) Quantization Y: 12 bits, Cb: 10 bits, Cr: 10 bits 75 Ω Impedance Return Loss > 40 dB (1 kHz to 6 MHz) Frequency Response Y: ±0.1 dB to 5.5 MHz Pb/Pr: ±0.10 dB to 3.0 MHz DC Offset <...

  • Page 39: Analog Audio Input

    AES / DARS Input Specifications — Unbalanced Item Specification Standard AES3, SMPTE 276M Type Unbalanced, AC coupled Connector BNC (IEC169-8) Sensitivity <100 mV 75 Ω Impedance Return loss > 25 dB, 0.1 MHz to 6 MHz Input Audio Rate 32 kHz to 108 kHz Analog Audio Input Analog Audio Input Specifications Item...

  • Page 40: Analog Audio Output

    AES Output Specifications — Unbalanced Item Specification Standard AES3, SMPTE 276M Type Unbalanced, AC coupled Connector BNC (IEC169-8) Signal Level 1.0 V ± 10% (pk-to-pk) Impedance 75 Ω Return loss > 25 dB, 0.1 MHz to 6 MHz Jitter < ± 4 ns, peak value DC Offset 0.0 ±...

  • Page 41: Multi-I/O

    Multi-I/O Multi-I/O Specifications Item Specification Composite Output NTSC, PAL-B, SECAM, Sync Component Output Quantization 8 bits all Time Code Input GPI Inputs Number: 2 • Internally pulled HIGH • External contact closure to ground to trigger GPI Outputs Number: 2 •...

  • Page 42: Weight And Dimension

    Depth (includes extruding knobs and 21.5 in. (54.6 cm) BNCs) Power Power Consumption by Individual Component Component Description Power Consumption @ 115V AC X75HD/X75SD frame with main board 17.19 W Local control panel 6.96 W Blank front panel 5.25 W HDTV sub-module 28.35 W 8- or 16-channel audio sub-module 19.69 W...
  • Page 43 Power Consumption of Complete Packages — X75HD Models System Individual Power Consumption Configuration Components Description @ 115V AC X75HD 1+2+4 X75HD frame with main board, local 53 W control panel, and HDTV sub-module X75HD-2PS 1+2+4+8 X75HD frame with main board, local...

  • Page 44: Hd Conversion

    PQM analog video in and 8-channel audio sub-module HD Conversion The X75HD model can convert any of the input signals and formats listed below to any of the specified output signals and formats. • Note: “Y” indicates that this format conversion is supported.

  • Page 45: Frequently Asked Questions

    A complement of SDTV signals can be provided on the analog and digital SDTV outputs. The X75HD adds a complement of HDTV test signals on the HDTV outputs. If the audio option is used, there are four selectable test tones for the embedded, AES and analog outputs.

  • Page 46: Fiber Optics Questions

    How does the X75 handle closed captioning? • During upconversion, the X75HD processes the EIA-608 data on line 21 in the input SDTV signal and “transcodes” it into EIA-708 on line 9 of the output HDTV signal. A reverse processes occurs for downconversion.

  • Page 47: Control Questions

    What inputs can be streamed for monitoring purposes? • Thumbnail inputs: SDI1, SDI2, HD DWN, analog, TSG1, TSG2 • Streaming inputs: Composite, S-Video, CAV, SDI, SDI2, DV, down converted HDF, HD1, HD2. Is MXF support available on the X75? • The MXF wrapper is used for compressed video streams.

  • Page 48: Video Questions

    Control panel configurations can be copied to other control panels. Once completed, a control panel configuration is downloaded to the panel. (This is a future software release.) Can the RCP-CCS-1U control the X75HD, DPS-475 and DPS-575? • Yes. However, to control the DPS-475 and DPS-575, the CCS-DPS-575 Gateway is required (up to 20 units per gateway).
  • Page 49 When will the free software for the logo generators be available? • Mid-September 2005 Does the X75HD provide frame rate conversion (59.95 <> 50)? • Frame rate conversion (59.94<>50) for HDTV is not available at this time. However, 3:2 / 2:2 and reverse 2:3 conversions are available (23.98p<>59.94i and 25p<>50i).
  • Page 50 This implementation on the X75 will be single channel. The DVI-D output on the X75HD will be used to monitor HDTV coming out of the X75HD using plasma monitors. NEO SuiteView has a DVI-V input option that supports computer outputs (RGB), but it does not support DVI-D.

  • Page 51: Audio Questions

    Using the 16 channel audio option. • The X75OPT-AS-16 (included in X75HD-AV versions) provides four groups (16 channel) embedded audio processing. Embedded audio from the HD-SDI input and SD-SDI inputs can be processed with the analog (4 channels) and digital (5 AES, 10 channels) audio and embedded on both HD-SDI and SD-SDI outputs.
  • Page 52 Can the X75 monitor audio levels on the optional streaming monitor output? • No, not at this time. However, we are willing to discuss this capability. Can the preset audio levels be changed? • Levels are preset at the factory. They can be changed if required (these are “hidden” parameters, not available to users).

  • Page 53: X75 Advertisement

    X75 Advertisement X75 Product Guide X75 Advertisement • Page 51...

  • Page 54: X75Hd Brochure

    X75HD Brochure • Page 1 Page 52 • X75HD Brochure X75 Product Guide...
  • Page 55 • Page 2 X75 Product Guide X75HD Brochure • Page 53...
  • Page 56 • Page 3 Page 54 • X75HD Brochure X75 Product Guide...
  • Page 57 • Page 4 X75 Product Guide X75HD Brochure • Page 55...
  • Page 58 • Page 5 Page 56 • X75HD Brochure X75 Product Guide...
  • Page 59 • Page 6 X75 Product Guide X75HD Brochure • Page 57...
  • Page 60 • Page 7 Page 58 • X75HD Brochure X75 Product Guide...
  • Page 61 • Page 8 X75 Product Guide X75HD Brochure • Page 59...
  • Page 62 150 Ferrand Drive, Suite 700 Toronto, Ontario M3C 3E5 Canada Phone: 1-416-445-9640 Fax: 1-416-443-2725 Toll Free: 1-800-387-0233 Leitch Technology Corporation 4400 Vanowen Street Burbank, California 91505 Phone: 1-818-525-2599 Fax: 1-818-525-2587 Toll Free: 1-888-843-7004 www.Leitch.com Page 60 • X75HD Brochure X75 Product Guide...
