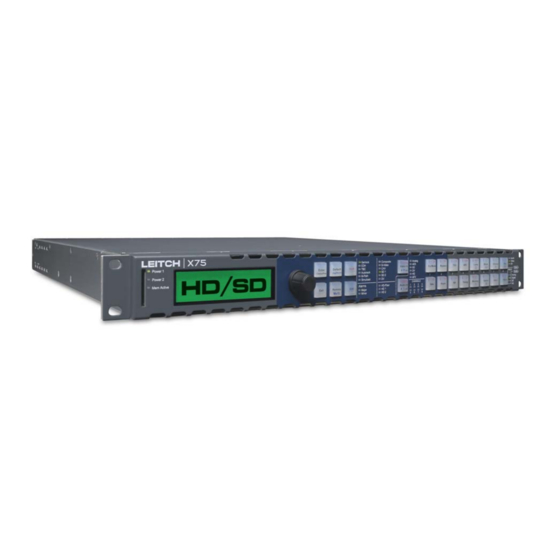

Page 1 X75HD High-Definition Digital Processing Synchronizer Installation and Operation Manual Preliminary Edition A 175-000243-00...
Page 2 Integrated Experience an Integrated Content Environment Leitch Technology is uniquely capable of meeting the needs of customers with a full range of products that provide Content the experience of an Integrated Content Environment — a streamlined workflow for the production, processing, transmission and management of content.
Page 3 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. X75HD High-Definition Digital Processing Synchronizer Installation and Operation Manual Preliminary Edition A December 2004...
Page 5: Preface
Preface Manual Information Purpose This manual details the features, installation procedures, operational procedures, and specifications of the X75HD High-Definition Digital Processing Synchronizer. Audience This manual is written for technicians and operators responsible for the installation, setup, and/or operation of the X75HD High-Definition Digital Processing Synchronizer.
Page 6: Writing Conventions
Indicates important information that helps to avoid and Note troubleshoot problems Obtaining Leitch Documents Leitch documents can be viewed or downloaded from the Leitch Web site at www.leitch.com (go to Support>Documentation). Alternatively, contact your Leitch customer service representative to request a document.
Page 7: Unpacking/Shipping Information
5. Remove all packaging material from the product and its associated components before you install the unit. Keep at least one set of original Leitch packaging, in the event that you need to return a product for servicing. If the original packaging is not...
Page 8: Safety Terms And Symbols
CAUTION: Indicates a hazard to property, including the product, or the need to take attention and refer to the manual Protective ground (earth) terminal FUSE: Replace with same type and rating of fuse Observe precautions for handling electrostatic-sensitive devices X75HD Installation and Operation Manual...
Page 9: Important Safety Instructions
Protect the Power Cord Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. X75HD Installation and Operation Manual...
Page 10 Observe precautions for handling electrostatic-sensitive devices. Fuse Replacement CAUTION: For continued protection against risk of fire, replace only with the same type of fuse. ATTENTION: Remplacer uniquement par un fusible de même type et calibre. viii X75HD Installation and Operation Manual...
Page 11: Injury Precautions
Laite on liitettää suojamaadoitus-koskettimilla varustettuun pistorasiaan. Sweden: Apparaten skall anslutas till jordat uttag. Do Not Operate Without Covers To avoid electrical shock or fire hazard, do not operate this product with covers or panels removed. X75HD Installation and Operation Manual...
Page 12 The parts of the equipment required to be earthed shall be connected to earth electrodes at the user’s premises. Protective earthing shall be provided either directly to the equipment or into the mains supply building installation. X75HD Installation and Operation Manual...
Page 13 Mains, disconnect the power supply cord plug from the AC receptacle. CAUTION: Do not expose this equipment to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the equipment. X75HD Installation and Operation Manual...
Page 14: Certifications And Compliances
16 A. EN61000-4-2 Electrostatic discharge requirements “ESD” 2 kV CD, 4 kV AD. EN61000-4-3 Radiated radio-frequency electromagnetic field immunity test 1V/m {1 kHz 80% AM, 80-1000 MHz}. X75HD Installation and Operation Manual...
Page 15 2. These devices will accept any interference received, including interference that may cause undesired operations. Changes or modifications not expressly approved by Leitch Technology, the party responsible for compliance to the FCC Part 15 Rule, could void the user’s authority to operate this equipment legally in the United States.
Page 16: Safety Standards
IEC 60950-1:2001 Ed. 1.0 Information Technology Equipment-Safety Part 1: General Requirements UL 60950-1:2003 IEC 60950-1:2001 Ed.1.0 Information Technology Equipment - Safety Part 1: General requirements CAN/CSA C22.2 IEC 60950-1:2001Ed.1.0 Information Technology Equipment-Safety No. 60950-1-03 Part 1: General Requirements X75HD Installation and Operation Manual...
Page 17: Table Of Contents
Injury Precautions .................. ix Certifications and Compliances ............xii EMC Standards ................xii Safety Standards ................xiv Section I—Getting Started Chapter 1: Introduction Overview ....................3 General Description .................4 Main Features ...................6 Front and Rear Panels ................8 x75HD Installation and Operation Manual...
Page 18 Bridging Router Switchers ..............32 Simulcast Switching ................33 Chapter 3: Module and Back Panel Descriptions Overview ....................37 AS-X75HD Module and Back Panel ............ 38 General Description ............... 38 Required Jumper Settings and Local Configuration ...... 39 Special Control Considerations ............41 A3D-X75 Module and Back Panel ............
Page 19 Supported Network Protocols ............68 Making Required Hardware Connections ........69 Setting IP and Subnet Mask Addresses ..........70 Remotely Controlling X75HD Systems ..........73 Preparing for Remote Control via RCP ..........73 Selecting a Remote Unit to Control ..........74 Configuring for HTTP Control (via Web Browser) .......76 Understanding X75HD Processing Modes ..........77...
Page 20 Control Mode Status LEDs ..............113 Chapter 8: Controlling the X75HD via Web Server Software Overview ..................... 115 Accessing the X75HD/Launching the Web Server Software ..... 116 Controlling Devices ................117 Navigating from the Main Menu Page ......... 117 Setting a Selected Value .............. 120...
Page 21 Using the FAV1 and FAV2 Function ..........150 Using the Bypass Function ..............151 Using the Keyer, Test Signal Generator (TSG), and Noise Reducer (NR) Functions .............151 Using the ARC Function ..............151 Using the Timing Control ..............151 Using Option Controls .................152 x75HD Installation and Operation Manual...
Page 22 Multi I/O Cable (CAB-X75MULTI) ........... 156 DVI-D Output Cable (CAB-X75-DVI) ..........159 Standard Audio Coax Cable (CAB-X75-COAX) ....... 160 Standard Audio Coax Cable (CAB-X75HD-COAX) ......162 Optional Audio BNC/XLR Cable (CAB-X75-COMBO) ....164 Optional Audio BNC/XLR Cable (CAB-X75HD-COMBO) ..... 167 Optional Audio XLR Cable (CAB-X75-XLR) ........
Page 23 Installing a 3D Adaptive Decoder Module (A3D-X75) .......196 Installing a New Module ...............196 Removing an Existing Module .............200 Installing or Replacing an X75PS Power Supply ........201 Removing an Existing Power Supply ...........201 Installing a New Power Supply ............205 Installing Fans ..................211 x75HD Installation and Operation Manual...
Page 24 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Contents xxii x75HD Installation and Operation Manual...
Page 25: Section I-Getting Started
Module and Back Panel Descriptions • Specifications • Initial Configuration After reading these chapters, you will have a general understanding of the X75HD along with its features and options, and how to install the system and get it up and running.
Page 27: Overview
This chapter describes main features and applications of the X75HD, including the following topics: • “General Description” on page 4 •...
Page 28: General Description
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 1: Introduction General Description The X75HD offers unparalleled I/O flexibility. Up to nine video inputs Note and ten video output formats are provided, dependant on the selected options: “Product Packages” on...
Page 29 Embedded metadata in the program stream (for example, closed captioning) is passed transparently from input to output. Control and monitoring of signals passing through the X75HD is enabled using IP over Ethernet. Instant operator control from the local or remote control panels allow for easy manipulation over video and audio signals.
Page 30: Main Features
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 1: Introduction Main Features All X75HD features and functions can be accessed from an installed front local control panel, an RCP-X75™ remote control panel, or a supported Web browser. Along with the applications described on “Chapter 2: X75HD...
Page 31 Among the many benefits provided by the X75HD, a major advantage is a reduction in the amount of equipment needed to perform everything that the X75HD can do in just one 1RU. In a single system, the X75HD combines HDTV frame synchronization along with up/down and cross/down conversion.
Page 32: Front And Rear Panels
Figure 1-2 illustrate the available X75HD front panels, including blank panels and control panels. For X75HD units with a blank front panel, all configuration and control must be done remotely using one of the following methods: • Separate remote control panel such as the RCP-X75 •...
Page 33 Rear Panel Description Figure 1-3 illustrates a typical rear panel with all module options installed. Figure 1-4 provides a graphical overview of the rear panel connector placement. Figure 1-3. X75HD Rear Panel Optional analog Optional audio HDTV video video input RS-232/ Dual...
Page 34: Overview Of Operating Modes
M-Path operation. If you want the X75HD system to operate in Simulcast mode (where any two inputs are selected to cleanly switch simultaneously between determined outputs, such as SDTV and HDTV), you will need to set-up the unit to process signal information differently.
Page 35 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 1: Introduction Figure 1-5. M-Path Single-Source Video and Audio Processing Figure 1-6. M-Path (Single-Video and Multi-Audio Source) Processing X75HD Installation and Operation Manual...
Page 36 Chapter 1: Introduction Audio Processing An X75HD unit can process up to 16-channels (8 stereo channels) of audio at the same time as the video. Any combination of audio is assigned from the inputs (four channel analog audio, five AES balanced or unbalanced, up to four groups demuxed from the SD-SDI and HD-SDI input) into the 16-channel processor.
Page 37 SDTV Demux 11/12 SDTV Demux 13/14 SDTV Demux 15/16 DV 1/2 DV 1-2 AES 1/2 AES 3/4 AES 5/6 AES 7/8 AES 1-5 AES 9/10 Analog 1/2 Analog 3/4 Analog 1-4 Figure 1-7. Audio Functional Block Diagram X75HD Installation and Operation Manual...
Page 38: Simulcast Operation
Simulcast operation allows you to identify two inputs and outputs (out of many possible inputs) that you intend to cleanly switch between frequently. As an example, when you enable this mode, the X75HD can cleanly switch SDTV and HDTV inputs to simultaneous, deterministic SDTV and HDTV outputs.
Page 39: Product Packages
Chapter 1: Introduction Product Packages There are a variety of different modules, product packages, and options available when ordering a X75HD system. See the following tables for more information: • Table 1-1: "X75HD Module and System Packages" on page 15 •...
Page 40 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 1: Introduction Table 1-1. X75HD Module and System Packages (Continued) Product Code Description Major Features • Same features as the X75HD, excluding the X75HD-LCAV SDTV and HDTV “all-in-one” local control panel...
Page 41: Options
Chapter 1: Introduction Options Table 1-2 describes the various options available for X75HD systems. Some can be installed in the factory at the time of purchase, while other options and upgrades can be ordered and installed at a later time by you.
Page 42 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 1: Introduction Table 1-2. X75HD System Options and Cables (Continued) Product Code Description Major Features Cable Options CAB-X75MULTI Optional accessory cable set for 1 ft (30 cm) multi I/O breakout cable with the...
Page 43 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 1: Introduction Table 1-2. X75HD System Options and Cables (Continued) Product Code Description Major Features CAB-X75HD-COMBO Optional cable for systems that 1 ft (30 cm) breakout cable with the...
Page 44: Typical Control Configurations
The X75HD can be configured, controlled, and monitored using the following methods: • Local control panel on X75HD (see the Control Panels for X75 Systems Installation and Operation Manual for details) • Separate remote control panel such as the RCP-X75 (see the...
Page 45 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 1: Introduction x75HD high-definition digital processing synchronizer 3rd party hub or switch Netscape Pilot/ CCS EP Navigator/ Openview Navigator MS IE CCS application Third-party control SNMP Web browser software...
Page 46 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 1: Introduction X75HD Installation and Operation Manual...
Page 47: Chapter 2: X75Hd Applications
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 2 X75HD Applications Overview The X75HD is more than just a synchronizer. It functions in many different ways and fills a variety of broadcasting roles, including the following: •...
Page 48 Simulcast switching of standard and high definition signals (see Table 2-9 on page The X75HD’s multi-conversion and frame synchronization abilities make it ideal for hybrid SDTV and HDTV broadcasts in cable, satellite, mobile, and production facilities. The following sections and tables describe the most common functions...
Page 49: Input Video Processing
SD-SDI and HD-SDI inputs of the X75HD. The X75HD is setup to auto-detect any of the three types of inputs and provide processed video to all of the outputs. The HDTV output can be preset to provide the required format (for example, 1080i or 720p) for the production.
Page 50 NTSC / PAL / SECAM CBVS SVID SVID BACKUP SDI 525, 625 SYNCHRONIZER, RGB/S UP/DOWN/CROSS CONVERSION SDI 525, 625 MAIN HD 1080I, 720P BACKUP HD 1080I, 720P ENET ANALOG AUDIO SYNCHRONIZER EMBEDDED AUDIO EMBEDDED AUDIO X75HD Installation and Operation Manual...
Page 51 Any tape format can be selected and converted to the required output format. VHS, 3/4”, 1” X75HD CBVS CBVS S-Video SVID SVID Betacam SYNCHRONIZER, RGB/S UP/DOWN/CROSS Digital Betacam CONVERSION DV (25Mb/s) HD 1080I, 720P ENET ANALOG AUDIO SYNCHRONIZER EMBEDDED AUDIO EMBEDDED AUDIO X75HD Installation and Operation Manual...
Page 52 Description Products An HD-SDI signal with embedded compressed audio is processed using the X75HD and audio X75HD and an external audio decompressor. decompressor (for example, AC-3™) The embedded compressed audio stream is de-embedded and provided as an AES stream into the audio decompressor. The decompressed audio streams (four AES, eight channels) are processed and timed with the video signal.
Page 53: Output Video Processing
X75HD and an external audio decompressor. audio compressor (for example, AC-3™) The HDTV video and four AES program signal is processed through the X75HD. The four AES streams are then compressed and embedded into the video program. Audio can be pre-timed to the video signal.
Page 54: Input Video And Audio Processing
AC-3™) Embedded compressed audio is sent to an audio decompressor, providing three AES (5.1) signals to the X75HD. The X75HD processes the audio signals and then sends them to an audio compressor. The compressed audio signal is sent to the X75HD where it is embedded into the output processed program video signal.
Page 55: Video And Audio Converting
Table 2-7. Wrap-Around for Tape Transports Description Products The X75HD provides conversion and processing for video and audio for HDTV X75HD-AV and all SDTV formats. Video and audio connections through the X75HD provide conversion and synchronization (along with time base correction, if required) for standard definition and high definition tape transports.
Page 56: Bridging Router Switchers
Table 2-8. Bridging Between Routing Switchers with Different Formats Description Products The X75HD provides conversion and processing for video and audio for HDTV X75HD, Panacea and and all SDTV formats. Integrator Routing Systems Video and audio can be converted through the X75HD providing bridges between sources and destinations in hybrid facilities.
Page 57: Simulcast Switching
SDTV and HDTV signals. Table 2-9. Simulcast Switching of Standard and High Definition Signals Description Products The X75HD provides SDTV to HDTV switching with SDTV and HDTV X75HD-AV simultaneous outputs. A high definition signal is switched to and from a standard definition signal.
Page 58 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 2: X75HD Applications X75HD Installation and Operation Manual...
Page 59 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 2: X75HD Applications X75HD Installation and Operation Manual...
Page 60 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 2: X75HD Applications X75HD Installation and Operation Manual...
Page 61: Chapter 3: Module And Back Panel Descriptions
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 3 Module and Back Panel Descriptions Overview This chapter briefly describes the X75HD modules and their corresponding back panels, including card-edge LEDs and controls, jumper settings, and connector information. •...
Page 62: As-X75Hd Module And Back Panel
AES I/O connectors Figure 3-1. AS-X75HD Back Panel This module provides all audio processing for the X75HD. You require this module to access, configure, and enable audio parameters in the Audio Setup menu such as gain, delay, tone, mute, fade, voice-over, AFV (audio follow video), and more.
Page 63: Required Jumper Settings And Local Configuration
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 3: Module and Back Panel Descriptions Required Jumper Settings and Local Configuration Setting Jumpers The AS-X75HD module requires you to configure several jumpers prior to operation to properly configure both the analog audio input and output impedance. •...
Page 64 4. Repeat for other wire connections. 5. Once all wiring in completed, plug the receptacle into the analog audio input ports (each labelled CH1 CH2 CH3 CH4), and then secure into place with the attached connector screws. X75HD Installation and Operation Manual...
Page 65: Special Control Considerations
For the AES input signals on DB-26 and DB-44 connectors, you can select either an Unbalanced or Balanced input from the Audio Setup menu. When a coaxial connection is used, select the default setting Unbalanced. With an XLR connection, the Balanced setting is required. X75HD Installation and Operation Manual...
Page 66: A3D-X75 Module And Back Panel
Y In Component Betacam video input connectors Figure 3-4. A3D-X75 Module Back Panel This module provides analog video processing for the X75HD. You require this module to input the analog video types shown in Figure 3-4, above (including analog composite, s-video, and component Betacam).
Page 67: Special Control Considerations
(composite, s-video, or CAV) first in order for the auto-detection to work across the HD/SD/analog inputs. You can select the desired input from the Analog Video Source parameter (found within the Video Setup menu/Analog Input submenu). X75HD Installation and Operation Manual...
Page 68: Hd-X75 Module And Back Panel
This back panel is located in the top, middle of the frame (rear-view), above the Multi I/O and DVI-D ports. The HD-X75 is a standard, factory-installed module that is shipped with all X75HD systems. HD In2 HD Out1...
Page 69: Special Control Considerations
HD/SD/analog inputs. You can select the desired input from the HD1/HDF Input Select parameter (found within the Video Setup menu/HD Input submenu). X75HD Installation and Operation Manual...
Page 70 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 3: Module and Back Panel Descriptions X75HD Installation and Operation Manual...
Page 71: Overview
“Checking the Packing List” on page 48 • “Preparing for Installation” on page 50 • “Installing Options” on page 53 • “Installing Rack Support Brackets and Cable Relief Bar” on page 54 • “Making Cable and System Connections” on page 57 X75HD Installation and Operation Manual...
Page 72: Chapter 4: System Installation And Connections
Checking the Packing List Before unpacking your product, read the “Unpacking/Shipping Information” on page Standard Items The following items are included with every X75HD system: • One X75HD High-Definition Digital Processing Synchronizer • One AC power cable (773-254 or 773-505) •...
Page 73 There may be items that you wish to order separately or that require replacing over the life span of your product. Replaceable items include the following: • Power supply (X75PS) • Fans (SPAREFAN-X75) • Rubber keymat (KEYPAD-X75) • Board stacker 2x15 pin (STACKER-X75) X75HD Installation and Operation Manual...
Page 74: Preparing For Installation
Meeting Environmental Requirements X75HD frames are cooled by forced air drawn in from the front of the Caution frame and exhausted through vents at the rear. There must be free...
Page 75: Understanding Power Supply Load Limitations
These ratings refer to the total module power consumption (excluding that of the power supply) allowable within a X75HD frame. The limits are based on the ability of the unit to dissipate heat over a temperature range of 32 °...
Page 76: Installing A Redundant Power Supply
“Appendix C: Servicing Instructions”. Upgrading to a Local Control Panel For information on upgrading an X75HD frame with a blank front panel to one with a local control panel, see “Appendix C: Servicing Instructions”. X75HD Installation and Operation Manual...
Page 77: Installing Options
• “Installing and Removing an Audio Synchronizer Module (AS-X75HD/AS-X75HD-L)” on page 186 • “Installing Optional HDTV Module with Fiber (HD-X75)” on page 191 • “Installing a 3D Adaptive Decoder Module (A3D-X75)” on page 196 X75HD Installation and Operation Manual...
Page 78: Installing Rack Support Brackets And Cable Relief Bar
Short rack support brackets Figure 4-1. Rack Support Brackets 2. Attach the short rack support brackets to the sides of the X75HD Caution frame using the screws that are provided in the frame holes. (See Figure 4-2 on page 55.)
Page 79 Cable relief bar support bracket Inside view Outside view (between support brackets) Secure the cable relief bar to the long rack support bracket through any of the bracket’s screw holes Figure 4-3. Installed Cable Relief Bar X75HD Installation and Operation Manual...
Page 80 Figure 4-4. Long Rack Support Bracket 5. Push the X75HD into the front of the rack, ensuring that the rack support brackets slide into the slotted rack supports. (See Figure 4-5.)
Page 81: Making Cable And System Connections
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 4: System Installation and Connections Making Cable and System Connections Some connections to the X75HD are provided via supplied breakout cable(s), others are made directly to the frame via single-link cabling. Figure 4-6...
Page 82 These outputs can be configured as a GPI output to trigger external devices. The functionality of this output is configured with the GPO Output parameter, found within the System Config menu, under the Setup submenu. Time Code Input This connector is reserved for future use. X75HD Installation and Operation Manual...
Page 83: Video Connections
(often referred to as “Firewire”) devices. In addition to carrying DV video and audio input and output, this port also provides DV device control, allowing control of the DV device directly from the X75HD. This connection is active only if the optional DVI I/O module is installed.
Page 84 When a valid signal is connected to the genlock input, all video outputs from the X75HD will be genlocked to this signal, and the Genlock LED will be on. When no external reference is supplied to the genlock input, the unit will operate using its own internal clock.
Page 85: Audio Connections
Composite Video Input This BNC connector, labeled CMPST, is used to feed composite 1 V pk-to-pk 75W video to the X75HD. The input video signal must be direct color or monochrome (such as from a satellite feed or live camera).
Page 86 600 or high impedance. Two analog audio receptacles (included with purchase of an AS-X75HD module) must be plugged into these connectors before configuration. See “AS-X75HD Module and Back Panel” on page 38 for more information.
Page 87: Remote Control Ports
“Configuring for HTTP Control (via Web Browser)” on page 76 details of controlling the unit from your web browser. Ethernet can also be used to control additional X75HD units from the front panel of this unit. When using Ethernet, the IP Address, Netmask, and Gateway settings of the unit must be configured for your network;...
Page 88 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 4: System Installation and Connections X75HD Installation and Operation Manual...
Page 89: Overview
Overview This chapter describes the various configurations and settings that are required before you begin operating the X75HD. Although you can modify all parameters and settings at any point during operation, there are certain control options and configurations that you need to set first, including those listed below: •...
Page 90: Initial Power-Up And Control Steps
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 5: Initial Configuration Initial Power-Up and Control Steps 1. If you have an AS-X75HD audio option card, ensure all jumper settings have been made (see “AS-X75HD Module and Back Panel”...
Page 91 “Configuring for HTTP Control (via Web Browser)” on page 76 for details). 8. Configure your video (and audio) input settings prior to operation (see “Configuring Video” on page 81 “Configuring Audio” on page 83 for details). X75HD Installation and Operation Manual...
Page 92: Configuring Network Settings
When shipped, the X75HD is configured with a default IP address along with other network settings. If you intend to control the unit remotely or connect it to a network hub/switch along with other X75HD units, you will need to reconfigure the IP with unique network settings.
Page 93: Making Required Hardware Connections
If you are connecting an X75HD directly to a PC (no network Note connection), connect one end of a cross-over Ethernet cable to the CTRL/STRM RJ-45 port on the back of the X75HD, and the other end The RJ-45 connector labelled to the PC Ethernet port. See Figure 5-1.
Page 94: Setting Ip And Subnet Mask Addresses
To allow devices to communicate on a network, you need to set all devices to the same subnet (network location). When shipped, all X75HD units are configured with the same default IP (device identifier) and subnet addresses. These addresses need to be changed so that each unit is uniquely identified and the network location of all units is accurately reflected.
Page 95 Setting the IP Address of a Single Unit Follow these steps to configure X75HD IP and subnet mask addresses: 1. Apply power (plug in) an X75HD unit with a frame-mounted local control panel (LCP). When ready for configuration, the X75HD main menu shows on the display screen.
Page 96 “Remotely Controlling X75HD Systems” on page 73 for more information on RCP configuration. 6. Connect all X75HD systems and remote panels to a network hub or switch using a 10/100Base-T Ethernet cable. 7. Ensure that all configured X75HD units are detected on the Note network.
Page 97: Remotely Controlling X75Hd Systems
Manual for more information on using an RCP-X75 remote control panel. Preparing for Remote Control via RCP You can remotely control X75HD units over a network from a remote Note control panel. RCP-X75 panels remotely control X75HD units via broadcast. Switchers and routers in the network need to be configured A frame-mounted local control accordingly.
Page 98: Selecting A Remote Unit To Control
An asterisks (*) beside an IP address indicates that this is the remote system currently being controlled by the panel. 3. Use the control knob to scroll through the list of available X75HD devices, highlight the unit you wish to control, and then press Enter.
Page 99 Using a Frame-Mounted Local Control Panel for Remote Operation After ensuring that all connections and network settings have been made, you can also remotely control X75HD units that are on the network using a frame-mounted local control panel (LCP). To do this, click Remote on the LCP to enter Remote mode, and to view the list of X75HD units available for control on the same subnet.
Page 100: Configuring For Http Control (Via Web Browser)
Once the networking parameters of the X75HD have been configured appropriately, and it is connected to the Ethernet network, the built-in Web server allows a standard Web browser to control the X75HD unit. Before controlling your unit in this way, note the following system and browser requirements: •...
Page 101: Understanding X75Hd Processing Modes
SV (high-end and low-end streaming video; reserved for future use) • HD (with various options like HD-F, HD1, HD2). These are the X75HD output groupings used for configuration purposes. Each of these output groups can be individually set to accept a specific input source.
Page 102: Input Video Modes
AllOutSelect control, and will process assigned include Highest, High, Normal, Low, and Lowest. whatever input is detected and send it to all outputs. If the X75HD (For example, if the X75HD detects more than one valid input, it will refer to the precedence order...
Page 103: Configuration Exceptions And Further Information
Mutually Exclusive Inputs Several input settings are mutually exclusive. For example, the back of the X75HD allows for up to three HD input sources; however, only one of these inputs sources can be accepted at a time. In this example, all output groups must be set to the same HD input type, not to three different input types.
Page 104 There are more advanced settings and configuration types outside of the M-Path menu. Advanced configurations are found within System Setup > Factory > Advanced Routing. However, Leitch advises that you do not attempt make advanced configurations prior to contacting your customer service representative. Any changes made in the Advance Routing menu will override manual settings made previously.
Page 105: Configuring Video
When multiple video sources are connected, the Video In Precedence setting determines the selection of the input video. For example, if the X75HD unit detects two input signals, it will accept the signal tagged as Higher over another lower-precedence signal. Found in the top-level Routing Setup menu, precedence levels include Highest, High, Normal, Low, and Lowest.
Page 106: Adjusting Video Levels
Figure 5-5. Single-Source Processing Adjusting Video Levels Various control panel buttons provide quick access to the video processing parameters of a selected video source. Simply press a button and use the control knob to change the selection. X75HD Installation and Operation Manual...
Page 107: Configuring Audio
Configuring Audio This section describes how to select a single audio source and how to quickly adjust audio levels. For more detailed and/or advanced information about audio configuration, see your X75HD High-Definition Digital Processing Synchronizer Installation and Operation Manual. Selecting an Audio Source Directly press the Audio In button to select any one set of audio inputs to be sent out to all audio multiple output sets.
Page 108 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 5: Initial Configuration X75HD Installation and Operation Manual...
Page 109: Overview
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 6 Specifications Overview This chapter describes all X75HD video, audio, and other miscellaneous performance and hardware specifications. The following specifications are included: • “Video Specifications” on page 86 •...
Page 110: Video Specifications
SMPTE 292M, Mode B Operation Number of inputs Connector Single mode fiber, SC connector standard (FC or ST type optional) Input wavelength 1200 to 1600 nm Max. input power 0 dBm, typical Sensitivity Better than -20 dBm X75HD Installation and Operation Manual...
Page 111 Connector BNC (IEC 169-8) Quantization 12 bits (SECAM and PAL-M is 8 bits) Input level 1.0 V pk-to-pk 75 W Impedance Return loss >40 dB, 0.1 MHz to 6 MHz Common mode range 5.0 V X75HD Installation and Operation Manual...
Page 112 >40 dB, 1 kHz to 6 MHz Common mode range 5.0 V CMRR 60 dB @ 50/60 Hz, 5 V pk-to-pk • Y: ±0.15 dB to 5.5 MHz Frequency response • Pb/Pr: ±0.10 dB to 3.0 MHz >60 dB X75HD Installation and Operation Manual...
Page 113: Output
> 18 dB, typical, from 5 MHz to 1485 MHz 800 mV ± 10% Signal level 0.0 V ± 0.5 V DC offset Rise/fall time <270 ps Overshoot <10% of amplitude Jitter <135 ps pk-to-pk X75HD Installation and Operation Manual...
Page 114 >18 dB from 5 MHz to 270 MHz Signal level 800 mV ± 10% DC offset 0.0 ± 0.5 V Rise/fall time 400 ps to 1500 ps (20% to 80%) Overshoot <10% Jitter <0.2 UI (pk-to-pk) X75HD Installation and Operation Manual...
Page 115 • Cr: 10 bits • GBR: 12 bits 75 W Impedance Return loss >40 dB (1 kHz to 6 MHz) • Y: ±0.1 dB to 5.5 MHz Frequency response • Pb/Pr: ±0.10 dB to 3.0 MHz X75HD Installation and Operation Manual...
Page 116 Specification • 1080i/29.97 Standard • 1080i/25 • 720p/59.97 • 480i/29.97 • 576i/25 Connector DVI-D Rise/fall times 75 ps to 0.4 UI (20% to 80%) Level 1.0 V ± 0.2 V (differential, pk-to-pk) Jitter 0.25 UI X75HD Installation and Operation Manual...
Page 117 32 kHz to 108 kHz Unbalanced Standard AES3, SMPTE276M Type Unbalanced, AC coupled Connector BNC (IEC169-8) Sensitivity <100 mV 75 W Impedance Return loss >25 dB, 0.1MHz to 6 MHz Input audio rate 32 kHz to 108 kHz X75HD Installation and Operation Manual...
Page 118 4.0 V (pk-to-pk) 110 W ± 20% (0.1 MHz to 6 MHz) Impedance Jitter <± 4 ns, peak value DC offset 0.0 ± 50 mV Rise/fall time 5 ns to 30 ns (10% to 90%) X75HD Installation and Operation Manual...
Page 119 28 dBu to 16 dBu (adjustable by 2 dB increments) Linearity <±0.5 dB (to -100 dBFS) Frequency response <±0.1dB (20 Hz to 20 kHz) >90dB (@ -1 dBFS, 20 Hz to 20 KHz), typical >100 dB X75HD Installation and Operation Manual...
Page 120 • Sink 64 mA, source 32 mA Connector DB-26 Table 6-20. DV I/O Specifications Item Specification Standard IEEE-1394 Connector IEEE-1394, 6 pin molex connector Table 6-21. Control/Streaming I/O Specifications Item Specification Connector RJ-45 • HTTP Protocols X75HD Installation and Operation Manual...
Page 121 • Fully loaded unit, no power cords: Weight 11 lbs (4.9 kg) • Breakout cables (each): 2.5 lbs (1.1 kg) Height 1RU, 1.75 in. (4.5 cm) Width 19 in. (48.3 cm) Depth (includes extruding 21.5 in. (54.6 cm) knobs and BNCs) X75HD Installation and Operation Manual...
Page 122 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 6: Specifications X75HD Installation and Operation Manual...
Page 123 • Using Special Function Buttons After reading these chapters, you will know how to operate the X75HD using the system’s front panel controls or a Web browser, and will become familiar with some of the major settings and options available...
Page 125 • “Control Mode Status LEDs” on page 113 This chapter does not give specific descriptions about available menus, submenus, parameters, or options. For this information, see the X75HD Control Options PDF document available from the Leitch Web site at www.leitch.com or on the accompanying CD.)
Page 126 Proc amp Control mode control and controls control controls status LEDs Control Menu Status and alarm Audio input LEDs Proc amp VFD screen knob controls indicators and controls status LEDs Figure 8-1. X75HD Front Panel X75HD Installation and Operation Manual...
Page 127 Chapter 8: Operation via Front Panel Controls Using the Control Knob and Menu Control Buttons All menus and device settings for the X75HD can be selected and configured by using the control knob and menu control buttons. Figure 8-2 shows the location of the control knob and various menu control buttons on the device.
Page 128 Chapter 8: Operation via Front Panel Controls Using Multi-Function Buttons Many of the buttons on the X75HD control panel have multiple functions assigned to them. Multi-function buttons can have up to three functions assigned to them. To select a certain function from a multi-function button, perform one of the following steps: •...
Page 129 “Configuring Network Settings” on page 68 “Remotely Controlling X75HD Systems” on page 73 for more information on configuring the X75HD for remote control. Setting Discrete Options The control knob cycles through discrete parameter and value options (such as “Auto, On, Off”). Depending on the parameter type, it will either wrap or clip when the control knob reaches the end of the option list.
Page 130 (whether you reached this value by pressing the Default button, or by scrolling to it with the control knob). 5. Press Exit to accept your new value and return to the previous menu or submenu. X75HD Installation and Operation Manual...
Page 131 Table 8-1. Genlock LED Status Definitions LED Status Operating Condition The control panel is configured to Auto Genlock and a stable genlock source is detected. Genlock is not selected. Flashing The genlock source is not stable or is missing. X75HD Installation and Operation Manual...
Page 132 VTR. The internal time base corrector is not active (the unit may be in Sync mode). Flashing The time base corrector is not operating correctly. X75HD Installation and Operation Manual...
Page 133 The Simulcast LED indicates when the unit is in Simulcast mode. If the Simulcast LED is not lit, the M-Path mode is in effect. Table 8-6. Simulcast LED Definitions LED Status Operating Condition The Simulcast mode is enabled. The Simulcast mode is not enabled. X75HD Installation and Operation Manual...
Page 134 X75 units. Table 8-7. Major and Minor Alarm LEDs LED Status Operating Condition Flashing Alarms are detected. No alarms are detected. Mem Active LED This LED is reserved for future use. X75HD Installation and Operation Manual...
Page 135 M-Path and corresponding video input source LEDs will light. When the selected input signal is absent, the LED flashes. “Chapter 10: Configuring Video” for more information. Figure 8-5. Video Input LED Area X75HD Installation and Operation Manual...
Page 136 The LEDs to the top, right side of this button indicate which input is currently selected. When the selected input signal is absent, the LED flashes. “Chapter 11: Configuring Audio” for more information. Figure 8-6. Audio Input LED Area X75HD Installation and Operation Manual...
Page 137 Whenever an audio parameter adjustment is made, the Audio LED lights. Whenever a video parameter adjustment is made, the Video LED lights. When the DV control is enabled, the DV LED lights. Figure 8-7. Control Mode Status LED Area X75HD Installation and Operation Manual...
Page 138 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 8: Operation via Front Panel Controls X75HD Installation and Operation Manual...
Page 139 (via Web Browser)” on page 76 for more information. contain stale information. Using Controlling the X75HD remotely from your PC through a standard Web the Back and Forward buttons on your browser may also browser gives you the same options for control and alarm monitoring as present you with stale data.
Page 140 In the Address, Location, or URL field of your Web browser (the name depends on the browser), type http:// followed by the IP Address of the X75HD you want to control. For example, if the X75HD is configured with the IP Address 10.0.0.1, you would enter the following location into your Web browser: http://10.0.0.1...
Page 141 Controlling Devices Click Menu Navigation from the Home page to open the Main menu page. The Main menu page provides access to all available X75HD menus and options. These menus mirror those accessible through the local and remote control panels of the unit.
Page 142 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 9: Controlling the X75HD via Web Server Software Available submenus Current location in menu structure Click a menu name to open the corresponding configuration page Main menu parameter options...
Page 143 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 9: Controlling the X75HD via Web Server Software 1. Main menu page Click Routing Setup to open the corresponding menu page 2. Routing Setup menu page Click Video In Precedence to open the corresponding menu page 3.
Page 144 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 9: Controlling the X75HD via Web Server Software Setting a Selected Value To set a parameter value, navigate through the required menu and submenu structure until you reach the desired option. Click the parameter name from the table to open the corresponding parameter page and to modify its value.
Page 145 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 9: Controlling the X75HD via Web Server Software For parameter options with discrete values, all of the available values are displayed. Click one of the values to set the option for that value.
Page 146 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 9: Controlling the X75HD via Web Server Software Current parameter setting or status Read-only information Click to open a Help page with information about read-only and disabled parameters Figure 9-6. Viewing a Read-Only Parameter...
Page 147 Navigating Menus and Options via the Menu Navigation Tree Click Menu Navigation Tree from the Home page to present the X75HD menu structure for selecting and setting options. These menus mirror those accessible through the local and remote control panels of the unit.
Page 148 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 9: Controlling the X75HD via Web Server Software Monitoring Alarms Click Monitoring from the Home page to open the X75 Alarms page and view or change the status of various of alarms and events. (See Figure 9-8 on page 125.)
Page 149 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 9: Controlling the X75HD via Web Server Software Action column Click the appropriate alarm action to disable (or enable) an alarm. Alarm Priority column This is a number between 0 and 255. The higher the number, the higher the priority.
Page 150 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 9: Controlling the X75HD via Web Server Software Getting Help For certain parameters, help text is provided to answer why a parameter may be disabled or is available only as a “read-only” item. On parameter setting pages where you cannot change the value, click Read-Only to open the provided Help page.
Page 151 Control Panels for X75 Systems Installation and Operation Manual. • For a list of all available menus and parameter options, see the separate Parameter Options document available for download from either the Leitch Web site (www.leitch.com) or the included X75HD documentation CD. X75HD Installation and Operation Manual...
Page 152 If Auto Detect is not enabled, the selected Video In LED flashes. Procedure X75HD units are shipped with Auto-Detect video mode as the factory Note default setting. This mode sets the X75HD to automatically detect...
Page 153 When multiple video sources are connected, the Video In Precedence setting determines the selection of the input video. For example, if the X75HD unit detects two input signals, it will accept the signal tagged as Higher over another signal that has been given a lower-precedence.
Page 154 Chapter 10: Configuring Video Adjusting Video Levels Various control panel buttons provide quick access to the video processing parameters of a selected video source. Simply press a button and use the control knob to change the selection. X75HD Installation and Operation Manual...
Page 155 Control Panels for X75 Systems Installation and Operation Manual. • For a list of all available menus and parameter options, see the separate Parameter Options document available for download from either the Leitch Web site (www.leitch.com) or the included X75HD documentation CD. X75HD Installation and Operation Manual...
Page 156 Ctrl and Mo/St buttons simultaneously. When Mono control is active, each button controls an individual gain. When Stereo control is active, the top and bottom front panel buttons work together (are “married”) so that either button will adjust the gain in stereo pairs. X75HD Installation and Operation Manual...
Page 157 The mapped buttons will illuminate during audio proc control. The audio Proc LEDs on the lower, right corner of the front panel indicate which processing block is currently selected. X75HD Installation and Operation Manual...
Page 158 SRC channels. (The Channel LED blinks if the corresponding audio signal is missing in both mono and stereo cases). “Proc Amp Controls” on page 141 for information on LED and channel mappings on a frame-mounted local control panel or RCP-X75 remote control panel. X75HD Installation and Operation Manual...
Page 159 (“<channel>”) to be automatically switched when the SD Out Sel parameter is switched to a specified input (“<input>”). For example, the Ch1-AFV-SD1 parameter specifies the audio input for SRC Channel 1 will be automatically switched when the SD Out Sel parameter changes to SD1. X75HD Installation and Operation Manual...
Page 160 HDX5/6 HDX5/6 AES4 SDX7/8 SDX7/8 HDX7/8 HDX7/8 HDX7/8 AES5 SDX9/10 SDX9/10 HDX9/10 HDX9/10 HDX9/10 SDX11/12 SDX11/12 HDX11/12 HDX11/12 HDX11/12 SDX13/14 SDX13/14 HDX13/14 HDX13/14 HDX13/14 SDX15/16 SDX15/16 HDX15/16 HDX15/16 HDX15/16 Figure 11-2. Default AFV Channel Assignment X75HD Installation and Operation Manual...
Page 161 Ch8-R (Stereo) AES1a Output AES1b (Mono) AES2a AES2b AES3a AA1/2~AA3/4 AES3b AES4a AES4b Tone Gen1 AES5a Tone Gen2 AES5b Tone Gen3 DV&Strm_a Tone Gen4 DV&Strm_b Mute Mute Mute Mute Figure 11-3. Advanced Audio Signal Routing X75HD Installation and Operation Manual...
Page 162 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Chapter 11: Configuring Audio X75HD Installation and Operation Manual...
Page 163 Control Panels for X75 Systems Installation and Operation Manual. • For a list of all available menus and parameter options, see the separate Parameter Options document available for download from either the Leitch Web site (www.leitch.com) or the included X75HD documentation CD. X75HD Installation and Operation Manual...
Page 164 (number of frames per update) applied to the incoming video (1 to 255). This will initially be the same as the value of the Strobe Rate parameter. The control knob changes the rate (and the Strobe Rate parameter updates accordingly). X75HD Installation and Operation Manual...
Page 165 When a shortcut (front panel) button is pressed, the parameter prefix on the VFD display indicates which video processing block is currently active. • HD: It lights when the HD video proc amp is selected. X75HD Installation and Operation Manual...
Page 166 Chapter 12: Using Special Function Buttons Audio Proc Amp Controls For X75HD unit equipped with the AS-X75HD module, it allows up to 16 mono channels to be synchronized, delayed and processed through the system. Depending on the selected audio source group type, the numbered buttons 1 through 16 are mapped accordingly to allow quick access to its audio gain controls.
Page 167 SD3/4 Gain3, Gain4 3, 4 SD5/6 Gain5, Gain6 5, 6 SD7/8 Gain7, Gain8 7, 8 SD9/10 Gain9, Gain10 9, 10 SD11/12 Gain11, Gain12 11, 12 SD13/14 Gain13, Gain14 13, 14 SD15/16 Gain15, Gain16 15, 16 X75HD Installation and Operation Manual...
Page 168 Lit LED Lit Audio Mapped Inputs Channels Input LEDs Parameters AA1/2 Analog Gain1, Gain2 AA3/4 Gain3, Gain4 AA5/6 Gain5, Gain6 AA7/8 Gain7, Gain8 AA9/10 Gain9, Gain10 AA11/12 Gain11, Gain12 AA13/14 Gain13, Gain14 AA15/16 Gain15, Gain16 X75HD Installation and Operation Manual...
Page 169 Find these eight LEDs directly to the right of the Audio In/A Proc button on a control panel. Options include Analog, AES, SD, DV, HD, and AFV (Audio Follow Video). X75HD Installation and Operation Manual...
Page 170 Digital: It lights for AES and DV channel audio gain adjustments. • SD: It lights during SDX (SD demuxed) channel audio gain adjustments. • HD: It lights during HDX (HD demuxed) channel audio gain adjustments. X75HD Installation and Operation Manual...
Page 171 A menu opens with the following options: Note • Recall Preset The Move Up and Move Down • Rename Preset options are used to change the order of the presets. • Move Up • Move Down • Delete Preset X75HD Installation and Operation Manual...
Page 172 To delete preset, follow these steps: 1. Press Memory. A menu opens with the following options: • Save Preset • List Presets 2. Select List Presets. 3. Scroll to the preset you would like to delete. X75HD Installation and Operation Manual...
Page 173 • Rename Preset • Move Up • Move Down • Delete Preset 5. Scroll through the list and select Delete Preset, and then press Enter. A confirmation box appears stating that the preset was deleted. X75HD Installation and Operation Manual...
Page 174 • Move up options are used to change the order of the presets. • Move down 5. Scroll to Delete Favorite, and then press Enter. A confirmation box appears stating that the favorite was deleted. X75HD Installation and Operation Manual...
Page 175 Using the Bypass Function Only the SD1 input-to-output video path has the physical relay bypass capability. When the X75HD unit is powered off or forced by the user, this relay is not energized to pass the signal straight through the output without any processing.
Page 176 Setup: The Setup menu contains a number of parameters that affect how your display screen operates. More information on each of these control options can be found in the Control Panels for X75 Systems Installation and Operation Manual. X75HD Installation and Operation Manual...
Page 177 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Section III—Appendixes This section contains the following topics: • Cables and Pinouts • Troubleshooting • Servicing Instructions These appendixes contain extra information useful for configuring, operating, and servicing your X75HD system.
Page 179 • “DVI-D Output Cable (CAB-X75-DVI)” on page 159 • “Standard Audio Coax Cable (CAB-X75-COAX)” on page 160 • “Standard Audio Coax Cable (CAB-X75HD-COAX)” on page 162 • “Optional Audio BNC/XLR Cable (CAB-X75-COMBO)” on page 164 • “Optional Audio BNC/XLR Cable (CAB-X75HD-COMBO)” on page 167 •...
Page 180 Pin 1 Pin 9 Pin 10 Pin 18 Timecode in S-video GPI inputs GPI outputs Pin 26 Pin 19 in 1 in 2 HD audio SD audio delay delay Figure A-2. CAB-X75MULTI I/O Connector Pinout X75HD Installation and Operation Manual...
Page 181 RCA Gnd GPI in 1 ground RCA Gnd GPI in 2 ground 4-Pin DIN-4 S-video (C) out XLR-3 Timecode in (–) SDTV audio delay out HDTV audio delay out GPI out 1 GPI out 2 X75HD Installation and Operation Manual...
Page 182 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Appendix A: Cables and Pinouts Table A-1. CAB-X75-MULTI I/O Pinout Descriptions (Continued) Pin Number Connection Type Description GPI in 1 GPI in 2 4-Pin DIN-3 S-video (Y) out X75HD Installation and Operation Manual...
Page 183 DVI-D Output Cable (CAB-X75-DVI) The optional DVI-D to DVI-D digital single-link cable connects a monitor to the DVI port on the back of the X75HD unit. This is a straight connection cable with no breakouts, and a single DVI-D connector for digital video output.
Page 184 DARS Pin 26 Pin 19 AES2 in Figure A-4. CAB-X75HD-COAX Connector Pinout Table A-2 describes each pin on the CAB-X75HD-COAX DB-26M connector and its connection type. Table A-2. CAB-X75HD-COAX Pinout Description Pin Number Connection Type Description Unbalanced AES1 in X75HD Installation and Operation Manual...
Page 185 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Appendix A: Cables and Pinouts Table A-2. CAB-X75HD-COAX Pinout Description (Continued) Pin Number Connection Type Description Unbalanced AES2 out BNC-GND Unbalanced DARS in ground BNC-GND Unbalanced AES1 in ground BNC-GND...
Page 186 Standard Audio Coax Cable (CAB-X75HD-COAX) Figure A-5 identifies the cable connectors available on the standard AES/EBU CAB-X75HD-COAX audio cable, which supports only the unbalanced audio signal. Figure A-5. CAB-X75HD-COAX Cable Connectors Figure A-6 shows the pinouts for the CAB-X75HD-COAX DB-44M connector.
Page 187 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Appendix A: Cables and Pinouts Table A-3 describes each pin on the CAB-X75HD-COAX DB-44M connector and its connection type. Table A-3. CAB-X75HD-COAX Pinout Description Pin Number Connection Type Description 1 through 30...
Page 188 CAB-X75-COMBO DB-26M connector. Pin 9 Pin 1 AES2 AES1 AES1 Out AES2 In DARS In Pin 10 Pin 18 DARS AES1 AES2 Out AES1 In Pin 26 Pin 19 AES2 In Figure A-8. CAB-X75-COMBO Connector Pinout X75HD Installation and Operation Manual...
Page 189 Balanced AES1 out ground XLR-1-GND Balanced AES2 out ground BNC-GND Unbalanced AES2 out ground Unbalanced DARS in XLR-3 Balanced AES1 in (-) XLR-2 Balanced AES1 in (+) Unbalanced AES 2 in BNC-GND Unbalanced AES2 in ground X75HD Installation and Operation Manual...
Page 190 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Appendix A: Cables and Pinouts Table A-4. CAB-X75-COMBO Pinout Description (Continued) Pin Number Connection Type Description Unbalanced AES1 out XLR-3 Balanced AES2 out (-) XLR-2 Balanced AES2 out (+) X75HD Installation and Operation Manual...
Page 191 Optional Audio BNC/XLR Cable (CAB-X75HD-COMBO) Figure A-9 identifies the cable connectors available on the optional AES/EBU CAB-X75HD-COMBO audio cable, which supports both the unbalanced and balanced audio signals. Figure A-9. CAB-X75HD-COMBO Cable Connectors Figure A-10 shows the pinouts for the CAB-X75HD-COMBO DB-44M connector.
Page 192 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Appendix A: Cables and Pinouts Table A-5 describes each pin on the CAB-X75HD-COMBO DB-44M connector and its connection type. Table A-5. CAB-X75HD-COMBO Pinout Description Pin Number Connection Type Description XLR-2...
Page 193 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Appendix A: Cables and Pinouts Table A-5. CAB-X75HD-COMBO Pinout Description (Continued) Pin Number Connection Type Description XLR-1-Gnd Balanced AES4 in ground XLR-3 Balanced AES4 in (-) XLR-1-Gnd Balanced AES3 in ground...
Page 194 Figure A-12. CAB-X75-XLR Connector Pinout Table A-6 describes each pin on the CAB-X75-XLR DB-26M connector and its connection type. Table A-6. CAB-X75-XLR Pinout Description Pin Number Connection Type Description XLR-2 Balanced DARS in (+) XLR-3 Balanced DARS in (-) X75HD Installation and Operation Manual...
Page 195 XLR-1-GND Balanced AES2 in ground XLR-1-GND Balanced AES1 out ground XLR-1-GND Balanced AES2 out ground XLR-3 Balanced AES1 in (-) XLR-2 Balanced AES1 in (+) XLR-3 Balanced AES2 out (-) XLR-2 Balanced AES2 out (+) X75HD Installation and Operation Manual...
Page 196 Appendix A: Cables and Pinouts Optional Audio XLR Cable (CAB-X75HD-XLR) Figure A-13 identifies the cable connectors available on the optional AES/EBU CAB-X75HD-XLR audio cable, which supports only balanced audio signals. Figure A-13. CAB-X75HD-XLR Cable Connectors Figure A-14 shows the pinouts for the CAB-X75HD-XLR DB-44M connector.
Page 197 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Appendix A: Cables and Pinouts Table A-7 describes each pin on the CAB-X75HD-XLR DB-44M connector and its connection type. Table A-7. CAB-X75HD-XLR Pinout Description Pin Number Connection Type Description XLR-2...
Page 198 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Appendix A: Cables and Pinouts Table A-7. CAB-X75HD-XLR Pinout Description (Continued) Pin Number Connection Type Description XLR-1-Gnd Balanced AES4 in ground XLR-3 Balanced AES4 in (-) XLR-1-Gnd Balanced AES3 in ground...
Page 199 The following troubleshooting tips can be found in this chapter: • “Recalling the Unique IP Address for a System” on page 176 • “Files are Corrupted (Entering Fail-Safe Mode)” on page 177 • “Not Receiving AES Audio Input Signal” on page 178 X75HD Installation and Operation Manual...
Page 200 • If you do not have a local or remote panel with a VFD screen for viewing your IP address, you can reset the X75HD to its default IP address and then reconfigure the address using your Web browser software. To do this, follow these steps: a.
Page 201 If your files become corrupted (for example, during an upload), you can put the system into Fail-Safe mode by pushing down the F.S. DIP switch on the back the X75HD unit. All system programs and current activity will cease. In Fail-Safe mode, all system functions are disabled except for the Note ability to upload new software via FTP.
Page 202 Appendix B: Troubleshooting Not Receiving AES Audio Input Signal If you do not appropriately select the X75HD for BNC or XLR input, you will not get an audio signal. Ensure that you have made the appropriate setting from the following menu path: Audio Setup >...
Page 203 • “Safety Precautions” on page 180 • “Understanding and Working With Fiber Optics” on page 181 • “Preparing the X75HD for Servicing” on page 185 • “Installing and Removing an Audio Synchronizer Module (AS-X75HD/AS-X75HD-L)” on page 186 • “Installing Optional HDTV Module with Fiber (HD-X75)” on page 191 •...
Page 204 LASER PRODUCT [Finland] LUOKAN 1 LASERLAITE. [Sweden] KLASS 1 LASER APPARAT. ESD Caution When servicing the X75HD and its components, take the proper precautions to avoid electrostatic discharge (ESD). Preventing Electrostatic Discharge CAUTION: Electrostatic discharge (ESD) can damage components in the product. To prevent ESD, observe these precautions when directed: •...
Page 205 2. The mirrored surface occurs at the core cladding interface. By sending on/off bursts of light within the optical fiber, light can be guided along varying paths. Figure C-1 Table C-1 on page 182 for further explanation. X75HD Installation and Operation Manual...
Page 206 Converts the incoming receiver optical power signal into • Transimpedance amplifier an output data signal. • Decision circuitry The role of the receiver circuitry is to provide standard ECL outputs based on the input voltage. X75HD Installation and Operation Manual...
Page 207 Most fiber manufacturers provide a plastic boot that fits over the ferrule body for this purpose. • Remove dust particles from the housing assembly with a blast of dry air when using interconnection housing to mate two optical fibres. X75HD Installation and Operation Manual...
Page 208 Place your finger against the tissue so that it is directly over the ferrule. v. Rotate the end of the connector. 5. Mate the connector immediately. Do not let the connector lie around before mating. X75HD Installation and Operation Manual...
Page 209 “Safety Precautions” on page 180. 2. Confirm that the X75HD is turned off and that the power cord is disconnected from the rear panel. Note that with the power cord disconnected, the unit is no longer grounded, so be cautious about static electricity.
Page 210 Installing a New Module If you have ordered an AS-X75HD or AS-X75HD-L module separately and wish to upgrade your X75HD system, you will need to install the module yourself. Follow these steps to install an audio synchronizer module in an X75HD frame: 1.
Page 211 Locating the standoffs on the main board Figure C-4. Locating Main Board Standoffs Positioning the module over the main board Align stackers with corresponding connectors on the main board Figure C-5. Positioning Module over Standoffs X75HD Installation and Operation Manual...
Page 212 Figure C-6. Pushing the Module on to the Main Board 7. Secure the new module to the main board using the provided screws. Figure C-7 on page 189 illustrates the location of the three module standoffs where you need to apply the screws. X75HD Installation and Operation Manual...
Page 213 Figure C-8. Securing the Back Connector to the Frame 9. Replace the chassis cover using the original screws. See “Preparing the X75HD for Servicing” on page 185 for more information on replacing the cover. X75HD Installation and Operation Manual...
Page 214 Inspect the connectors on the module and main board to ensure that all pins are straight. 5. Store the board in a protective bag to protect it from damage or ESD. X75HD Installation and Operation Manual...
Page 215 Installing a New Module If you have ordered an optional HD-X75 with fiber module separately and wish to upgrade your X75HD system, you will need to install the module yourself. Follow these steps to install a fiber connector module in an X75HD frame: 1.
Page 216 Locating the standoffs on the main board Figure C-10. Locating Main Board Standoffs Positioning the module over the main board Align stackers with corresponding connectors on the main board Figure C-11. Positioning Module over Standoffs X75HD Installation and Operation Manual...
Page 217 Figure C-12. Pushing the Module on to the Main Board 7. Secure the new module to the main board using the provided screws. Figure C-13 on page 194 illustrates the location of the three module standoffs where you need to apply the screws. X75HD Installation and Operation Manual...
Page 218 8. Screw the back panel into place using the screws removed in step 2. Securing the back connector to the frame Screw the back connector to the frame in three locations Figure C-14. Securing the Back Connector to the Frame X75HD Installation and Operation Manual...
Page 219 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Appendix C: Servicing Instructions 9. Replace the chassis cover using the original screws. See “Preparing the X75HD for Servicing” on page 185 for more information on replacing the cover. Removing an Existing Module...
Page 220 Installing a New Module If you have ordered an optional A3D-X75 module separately and wish to upgrade your X75HD system, you will need to install the module yourself. Follow these steps to install a 3D adaptive decoder module module in an X75HD frame: 1.
Page 221 Locating the standoffs on the main board Figure C-16. Locating Main Board Standoffs Positioning the module over the main board Align stackers with corresponding connectors on the main board Figure C-17. Positioning Module over Standoffs X75HD Installation and Operation Manual...
Page 222 Figure C-18. Pushing the Module on to the Main Board 7. Secure the new module to the main board using the provided screws. Figure C-19 on page 199 illustrates the location of the three module standoffs where you need to apply the screws. X75HD Installation and Operation Manual...
Page 223 8. Screw the back panel into place using the screws removed in step 2. 9. Replace the chassis cover using the original screws. See “Preparing the X75HD for Servicing” on page 185 for more information on replacing the cover. X75HD Installation and Operation Manual...
Page 224 Inspect the connectors on the module and main board to ensure that all pins are straight. 5. Store the board in a protective bag to protect it from damage or ESD. X75HD Installation and Operation Manual...
Page 225 Removing an Existing Power Supply 1. Remove all power from the frame, and then remove the chassis cover. See “Preparing the X75HD for Servicing” on page 185 more information. 2. Locate the failed power supply inside the system, located at the Note front of the unit behind the fan board.
Page 226 Main DC power cable connector Lift latches on top and pull connector off board simultaneously Secondary DC ribbon cable connector Pull connector off board Figure C-21. Removing the DC and Ribbon Cables X75HD Installation and Operation Manual...
Page 227 AC cables information. (one on top, one beneath) Grounding screw Figure C-23. Removing the AC Cable from AC Inlet 6. Push the AC inlet out of its position, through the back of the chassis. X75HD Installation and Operation Manual...
Page 228 If removing a redundant power supply, you must either replace the power supply prior to operation or install a cover plate over the AC inlet hole to maintain proper ventilation and avoid overheating. X75HD Installation and Operation Manual...
Page 229 1. Remove all power from the frame, and then remove the chassis cover. See “Preparing the X75HD for Servicing” on page 185 more information. 2. If you are replacing an existing power supply, identify and remove it from the frame.
Page 230 (See Figure C-27.) Secondary Main Main Secondary DC cable DC cable DC cable DC cable Main board Secondary (redundant) Primary power power supply supply Figure C-27. Connecting DC and Ribbon Cables X75HD Installation and Operation Manual...
Page 231 Attach the self-stick tie holders to chassis floor (two places for each power supply’s AC cabling). b. Feed the tie wraps through the holders. c. Wrap the tie wraps around the AC cabling. d. Clip any extra tie length. X75HD Installation and Operation Manual...
Page 232 AC inlet into the slot. (See Figure C-30.) Ensure the following during installation: • The Ground plug on the inlet faces must face the outside chassis wall • The AC inlet must snap securely into place X75HD Installation and Operation Manual...
Page 233 Neutral wire, while the Ground wire always plugs into the single row slot that is closest to the chassis wall. (See Figure C-31.) Live wire Neutral wire Ground wire (with ring terminal attached) Figure C-31. Connecting AC Cables to Inlet X75HD Installation and Operation Manual...
Page 234 Figure C-32. Grounding AC Inlet 10. Replace the cover on the frame, and then return power to the unit. “Preparing the X75HD for Servicing” on page 185 for more information on replacing the cover.
Page 235 Front panel securing screws (bottom) Remove screws to free front panel from the frame (seven on top, seven on bottom) Front of panel (upside down in this illustration) Figure C-33. Freeing the Front Panel from the Frame X75HD Installation and Operation Manual...
Page 236 (See Figure C-35.) Fan removal screws Header wires Fan connector Figure C-35. Removing Header Wires from Fan Assembly Connector 5. Unscrew the fan, and then pull it away from the assembly to remove it. X75HD Installation and Operation Manual...
Page 237 8. Replace the fan assembly inside the front cover, and then secure the assembly into place using the original screws from step 3. 9. Secure the front panel to the X75HD frame using the original screws from step 2. 10. Close the front panel, re-establish any connections, and then reapply power to the frame.
Page 238 Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute. Appendix C: Servicing Instructions X75HD Installation and Operation Manual...
Page 239 • Ninety days for Services. Please refer to the current "Leitch Limited Warranty Policy" for a complete description of the warranty provided, including important exclusions and limitations as well as procedures for obtaining warranty service.

Leitch X75HD Installation And Operation Manual

Chapter 1 : Introduction

Chapter 2: X75HD Applications

Chapter 3: Module and Back Panel Descriptions

Chapter 4: System Installation and Connections

Chapter 5 : Initial Configuration

Chapter 6 : Specifications

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leitch X75HD

Summary of Contents for Leitch X75HD

Table of Contents
