Vibra TPS SERIES Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
CONTENTS
1. Cautions and Preparation.......................................... 1
2. Display and keypad................................................. 2
3. Operation Instructions..............................................3
4 .User setting............................................................... 5
Attachment2. Breakdown and Solution.......................13
Attachment3. Alarming........................ ......................14

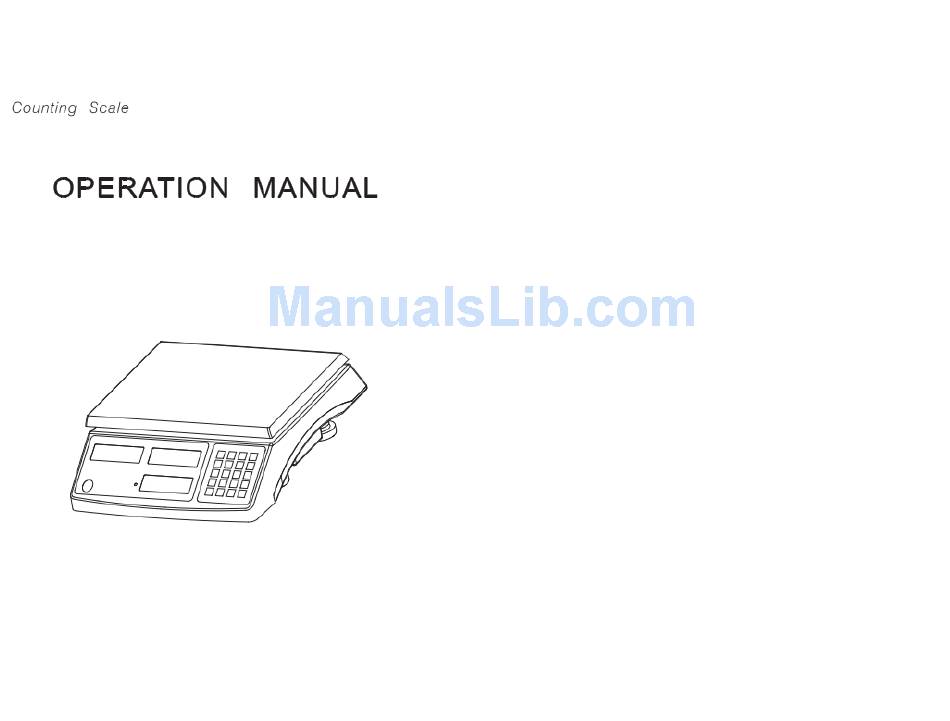

VIBRA TPS SERI C
COUNTING SCALES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPS SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vibra TPS SERIES

Summary of Contents for Vibra TPS SERIES

  • Page 1: Table Of Contents

    1. Cautions and Preparation.......... 1 2. Display and keypad..........2 3. Operation Instructions..........3 4 .User setting............... 5 Attachment1. RS232 communication protocols..12 Attachment2. Breakdown and Solution.......13 Attachment3. Alarming..........14 Attachment4, Specification and unit conversion ..15 VIBRA TPS SERI C COUNTING SCALES...

  • Page 2: Cautions And Preparation

    一 1 .0 Cautions and Preparation 2 .0 Display and keypad 1 .Display and operation panel can be cleaned by the wet towel but avoid soaking and cleaning. 2. In case that the scale is not in correct zero position, please press [ZERO] key, auto zero tracking function will work.

  • Page 3: Operation Instructions

    Clear inputted data in the weighing mode. 3.4. Tare and pre-tare If you are using a container for weighing，then you can place the In the weighing or counting mode, press [ZERO] to container on the platform. And for weighing press[TARE] key return to 0 and in the function setting, it is used to and the tare symbol will show on the display, which means it has set the value.
  • Page 4 A. Input the quantity and press 3.7. Accumulation check B. Flash for 1 second a. In the counting mode, press [TOTAL] to check the C. Counting finished accumulated weight, shown as the above fig2. b. Press to shift to the normal counting mode. 3.5.2 Unit weight setting (unit weight known) a.

  • Page 5: User Setting

    一 4 .0 User Setting In the weighing mode, press [CE] and [QUANTITY CHECK] at Note: the same time to shift to the user setting. Parameter 1: When the stability symbol appears, press [QUANTITY CHECK] to sample immediately and show the 4.
  • Page 6 to exit to the normal weighing mode. 4.4 Zero tracking range This setting is for zero tracking range in the weighing mode. User can select 0-6. The default value is 2. If the value is 0, which means that zero tracking is not proceeded. Press[ZERO] or 4.6 Backlight setting [TARE] to modify the parameter.
  • Page 7 4.7 Sampling self-average This function is to turn on/off sampling self-average. It is for averaging the unit weight automatically when counting,i.e. when the added quantity on the pan is 10%-100%, the machine will calculate the new unit weight according to new quantity, which makes the calculation more accurate.

  • Page 8: Attachment1. Rs232 Communication Protocols

    1 .Continuous transmission 2 .Stability transmission: stable once，transfer once. 3 .Response transmission a .Select “SENT” b .The flashing number on the second line shows the present value. Press [ZERO] or [TARE] to select. c. Press[M+] to enter the next setting or to cancel and exit.

  • Page 9: Attachment2:Breakdown And Solution

    symbol. 5) Unit: unit contains of 2Bits. If the unit is g, the first bit Is “blank". 6) The ASCII code of“blank" is "20H”. 4) Abnormal information response 7) Line feed/Carriage is the symbol of the stop bit. Its ASCII code is "OD"/"OA". 3.

  • Page 10: Attachment3. Alarming

    1 kg = 1000g 1 lb = 453. 59237g 1 oz = 28.349523125g VIBRA TPS 3C – 3kg/0.1g VIBRA TPS 2C – 2kg/0.1g VIBRA TPS 6C – 6kg/0.2g VIBRA TPS 5C – 5kg/0.2g VIBRA TPS 15C – 15kg/0.5g VIBRA TPS 10C – 10kg/0.5g VIBRA TPS 30C –...
