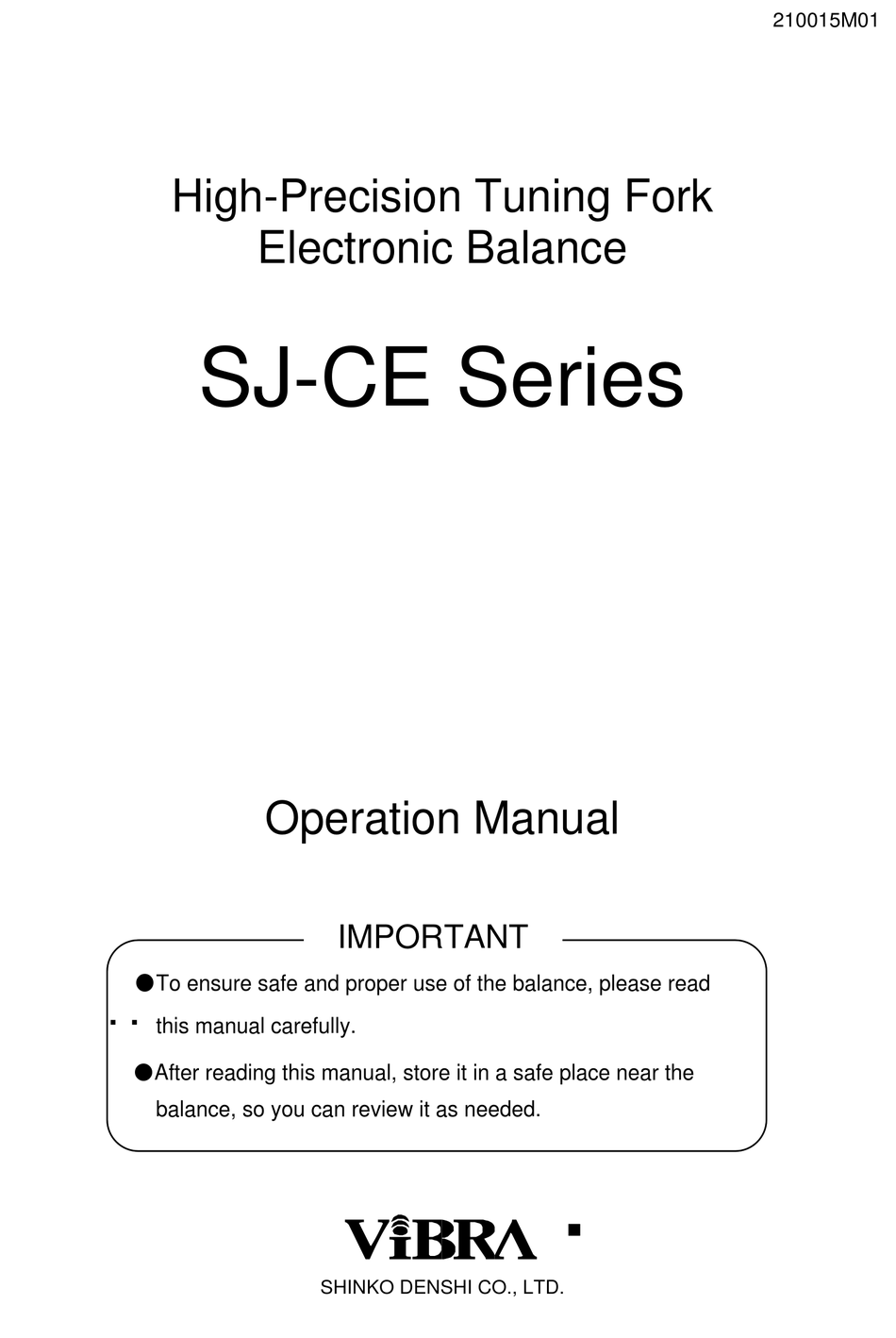

High-Precision Tuning Fork
Electronic Balance
SJ-CE Series
Operation Manual
To ensure safe and proper use of the balance, please read
this manual carefully.
After reading this manual, store it in a safe place near the
balance, so you can review it as needed.
SHINKO DENSHI CO., LTD.
IMPORTANT
210015M01
Advertisement
Table of Contents
Related Manuals for Vibra SJ-CE series
Summary of Contents for Vibra SJ-CE series
- Page 1 210015M01 High-Precision Tuning Fork Electronic Balance SJ-CE Series Operation Manual IMPORTANT To ensure safe and proper use of the balance, please read this manual carefully. After reading this manual, store it in a safe place near the balance, so you can review it as needed.
- Page 3 PREFACE Thank you for purchasing an SJ-CE Series electronic balance. This is a precision instrument equipped with exacting mechanisms in a compact body. The SJ-CE Series provides enhanced functions, including a counting mode for stock control of parts, a percentage mode for comparative measurements given in percentages, and a limit function for measuring constant quantities by consecutive weighings.
-
Page 4: Table Of Contents
CONTENTS 1. Precautions on the Use......2 8. Limit Function ........22 8.1 Limit Function Setup......22 2. Names of Component Parts....5 8.2 Setup of Limit Values by Actual 2.1 Main Unit .........5 Quantity Loads ......24 2.2 LCD Indicators and Operating Keys 8.3 Setting up Limit Values by Inputting ............6 Values ...........25 3. -
Page 5: Precautions On The Use
1. Precautions on the Use • This Section "Precautions Relating to Use" sets forth precautionary notes that the user should observe in order to prevent physical injury to the user and/or damage to property. • The nature of problems that may result in the event of improper operation, and consequential effects on the quality and performance of the balance, are indicated under the two categories of "Caution"... - Page 6 Do not place the balance on an unstable base or use the balance in a location where it may be subjected to shock. • The loaded sample may fall off the measurement pan. Do Not Use • Accurate measurement may be rendered impossible.
- Page 7 Avoid applying excess force or impact to the balance. • Place the sample to be measured on the balance carefully to prevent breakage or Do Not Apply malfunction. Force Do not use the balance in a location were it may be subjected to abrupt changes in ambient temperature or humidity.
-
Page 8: Names Of Component Parts

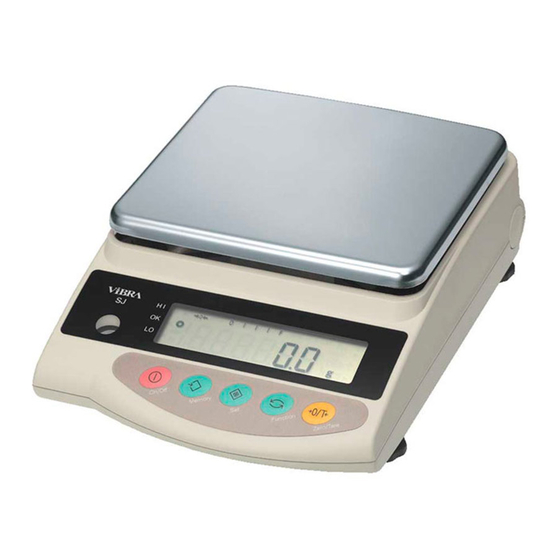

2. Names of Component Parts 2.1 Main Unit Round-pan types (SJ-220CE, SJ-420CE, SJ-620CE) Square-pan types ( SJ-1200CE, SJ-2200CE, SJ-4200CE, SJ-6200CE, SJ-12KCE) Measurement Liquid-crystal display (LCD) See page 6. Level For checking the level of the balance Turn the adjusters until the bubble rests Operation keys in the center of the Front View (round-pan type) -
Page 9: Lcd Indicators And Operating Keys
2.2 LCD Indicators and Operating Keys 2.2.1 Symbols Displayed Display Description Grams →0← Zero point Tare being subtracted Indication of stable balance (If the light is off, the balance is unstable.) Balance powered up (Lights up when the power is turned off) or data transmitted Counting mode Percentage mode ... -
Page 10: Names And Functions Of Operating Keys
2.2.2 Names and Functions of Operating Keys Operating Key Function Key to turn on/off the unit power On/off key [Brief press] initiates print or output. [Brief press] saves the settings of the number of pieces Memory key or percentages (%), or the limit value when using the limit function. -
Page 11: Basic Operations
3. Basic Operations 3.1 Installation Positioning the measurement pan First, mount the pan base on the main unit of the balance and place the measurement pan on top of it. Securing the exact level of the balance Turn the adjusters until the bubble rests in the center of the red circle on the level. -
Page 12: Operation Check
Operation Check Turning on the power When the balance has the AC adapter connected, it displays [ ]. Pressing the On/Off The display section lights up, and the balance is ready for operation. Checking the display Check to see if the display has any missing indications or unlit parts. -
Page 13: Operation For Tare Subtraction
3.3 Operation for Tare Subtraction Place the tare (container) on the balance. As you place the tare, the balance indicates its weight. Reset read-out indication to zero. Press the Zero/Tare key. The tare is subtracted and the balance indicates zero. ... - Page 14 Key Points of the Procedure The following applies equally to all the measurement modes for weight measurement, counting, and percentages. After the balance is switched off, there is still enough current to display [ ]. This indicates that the AC adapter is connected to an electrical outlet, but that the balance is turned off. When the balance is switched on again, [ ] will disappear.
-
Page 15: Functions
4. Functions 4.1 Setup and Checking of Functions Invoking the function Press and hold down the Function key until the indicator changes to “ ,” then release the key. The function setup mode is activated, and the first item, Key released ... -
Page 16: Description Of Functions
4.2 Description of Functions Item Set Value Description Disable Bar graph display Enable Disable Limit function Enable Always judge (judges even when the balance is Judgement unstable) condition Judge only when the balance is stable (does not judge ... -
Page 17: Interface Section
3 [Pcs] Setup of units of 4 [%] measurement to be displayed 5 Unit not set Disable Display of the Enable ( is the auxiliary scale interval.) auxiliary scale Note: The auxiliary-scale-interval place does not ... -
Page 18: Switching Function For Units Of Measurement
5. Switching Function for Units of Measurement Pressing the Function key allows the user to switch the unit of measurement to [ ], [ct], [%], and so Up to five different units can be registered for use only when the function key is properly set on a balance for which the balance is not sealed. - Page 19 Example: To change the default factory settings to pound units use [ ] in the factory settings. (cont.) Pressing the [Set] key to restore measurement mode. Pressing the key will reset the measurement mode Pressing the [Function] key to change the units of Press the Function key.
-
Page 20: Counting Pieces
6. Counting Pieces To implement piece-counting, the specified samples are loaded on the balance, and their average unit weight (hereinafter, simply the “unit weight”) is entered and saved. The procedure for saving unit weights is called sampling. The counting procedure consists of loading articles that have already been sampled on to the balance. The number of pieces is then calculated by dividing the total weight of the loaded articles by the unit weight saved in memory. - Page 21 Changing the sampling number, if necessary. If samples to be counted widely deviate in weight, or a higher measure of How to change the value accuracy is desired, it is recommended that users change the sampling number to a larger value.
-
Page 22: Increasing The Counting Accuracy (Memory Update Method)
6.2 Increasing the Counting Accuracy (Memory Update Method) This procedure is the same as the sampling procedure described on the previous page up, to the point at which the sampling number is changed. Loading samples Load the number of samples displayed. Count the samples precisely and load them on to the center of the ... -
Page 23: Measuring Percentage
7. Measuring Percentage The percentage measurement function operates by weighing an actual sample, selected as the reference, and saving its weight as the reference value and indexing it as 100%. When a measurement sample loaded on the balance is lighter or heavier than the reference, its weight is indicated as a percentage (%) value relative to the reference weight. - Page 24 Key Points of the Prcedure While samples are being saved, the value indication disappears temporarily, and only the [M] mark flashes. If the balance is affected by wind or other vibrations during this process, the saving time may be prolonged. ...
-
Page 25: Limit Function
8. Limit Function The limit function judges measurements according to a limit value saved in the balance. The function shows the judgement result by displaying the [ ] mark as either HI (excessive), OK (appropriate), or LO (insufficient). This function is very useful when discriminating between conforming and nonconforming articles. - Page 26 Selecting a function item Press the Function key. The display changes to the next item [Limit Function]. Setting the limit function Press the Zero/Tare key to set the value on the rightmost side to [1]. Limit function operations Setting the judgement condition Press the...
-
Page 27: Setup Of Limit Values By Actual Quantity Loads
8.2 Setup of Limit Values by Actual Quantity Loads Starting the limit function Press and hold down the key. Release the key when [ ] is displayed. The currently set lower-limit value flashes. Continuous pressing Key released Loading the sample for the lower-limit value Load the sample of the lower-limit value on the measurement pan. -
Page 28: Setting Up Limit Values By Inputting Values
8.3 Setting up Limit Values by Inputting Values Starting the limit function Press and hold down the Set key. Release the key when [ ] is displayed. The currently set lower-limit value flashes. Continuous pressing Key released Opening the value input screen Press the Zero/Tare... - Page 29 Setting up Limit Values by Inputting Values (cont.) Opening the value input screen Press the Zero/Tare key. Follow the same procedure as in “Step 2.” Setting the upper-limit value Follow the same procedure as described for the lower-limit value and ...
-
Page 30: Calibrating The Balance
9. Calibrating the Balance Calibration is possible only when the balance is unsealed. Since electronic balances are affected by gravity gravitational acceleration, they produce different values in various locations. Therefore, before use, balances must be calibrated at the location where they are installed. - Page 31 Calibrating the Balance (cont.) Calibrating the capacity point Load the calibration weight in the center of the balance. The display flashes, indicating that capacity point calibration is in progress. Terminating the span adjustment When the calibration of the capacity point is finished, the original measurement mode is restored.
-
Page 32: Operating The Balance With The Battery
10. Operating the Balance with the Battery This function can be used only when the balance is battery-operated. 10.1 Specifications • Built-in nickel-cadmium battery • Charging time: Approximately 12 hours • Drive time: Approximately 32 continuous hours • Number of charge/discharge cycles: 300 or more 10.2 Charging Method While the balance is battery-operated, [... -
Page 33: Troubleshooting
11. Troubleshooting The numbers in ( ) indicate reference pages Symptom Cause Possible remediation → • The AC adapter is not connected. There is no indication Check that the AC on the display. adapter is connected (8). • The balance is subject to air currents or →... -
Page 34: Specifications
12. Specifications 12.1 Basic Specifications Model 220CE 420CE 620CE 1200CE 2200CE 4200CE 6200CE 12KCE Max [ ] 1200 2200 4200 6200 12000 Min [ ] e [ ] 0.01 0.01 d [ ] 0.01 Max [ct] 1100 2100 3100 6000 11000 21000 Min [ct]... -
Page 35: Capacities And Minimum Indications For Different Indication Units
12.3 Capacities and Minimum Indications for Different Indication Units 220CE 420CE 620CE 1200CE 2200CE 4200CE 6200CE 12KCE 1200 2200 4200 6200 12000 0.01 0.01 0.01 1100 2100 3100 6000 11000 21000 carat(ct) Not abailable ounce(oz) 0.001 0.001 0.001 0.01 0.01 0.01 0.01 0.01... -
Page 36: Conversion Table Of Units
13. Conversion Table of Units unit gram carat ounce pound troy ounce penny weight 0.03527 0.00220 0.03215 0.64301 0.00705 0.00044 0.00643 0.12860 28.34952 141.74762 0.06250 0.91146 18.22917 453.59237 2267.96185 14.58333 291.66667 1ozt 31.10348 155.51738 1.09714 0.06857 1dwt 1.55517 7.77587 0.05486 0.00343 0.05 1tl (Hong Kong) 37.429...
