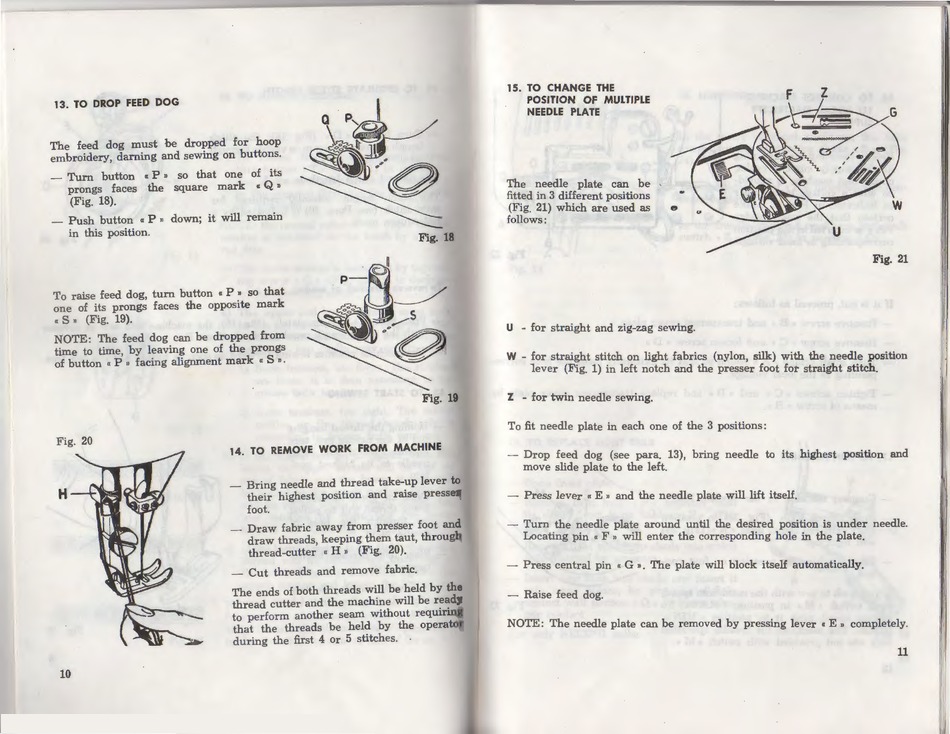

13. TO DROP FEED DOG
The feed dog must be dropped for hoop
embroidery, darning and sewing on buttons.
-
Turn button
«
P " so that one of its
prongs faces the square mark
«
Q
»
(Fig. 18).
-
Push button
u
P ,. down; it will remain
in this position.
To raise feed dog, turn button
«
P,, so that
one of its prongs faces the opposite mark
" S
,. (Fig.
19).
NOTE
:
The feed dog can be dropped from
time to
time,
by leaving one of the prongs
of button " P
u
facing alignment mark " S ,,
.
.
I
QP~~
~1'.
~j)···o
Fig.
18
p--~_/
~~/'s
~-·o
~
Fig.
19
Fig. 20
14. TO REMOVE WORK FROM MACHINE
H-+~
....
'"~"
10
-
Bring needle and thread take-up lever to
their highest position and raise presser
foot.
-
Draw fabric away from presser foot and
draw threads, keeping them taut, through
thread-cutter "H
»
(Fig. 20).
-
Cut threads and remove fabric.
The ends of both threads will be held by the
thread cutter and the machine will be ready
to perform another seam without requirin&
that the threads be held by the operator
during the first 4 or 5 stitches.
15.
TO CHANGE THE
POSITION OF MULTIPLE
NEEDLE PLATE
The needle plate can be
fitted in 3 different positions
(Fig. 21) which are used as
follows:
U -
for straight and zig-zag
sewing.
Fig. 21
W -
for straight stitch on light fabrics (nylon, silk) with the needle position
1ever (Fig. 1) in left
n
otch and the presser foot for straight stitch.
Z -
for twin needle sewing.
To
fit needle plate in each one of the 3 positions:
-
Drop feed dog (see para. 13), bring needle to its highest position and
move slide plate to the left.
-
Press lever " E
»
and the needle plate will lift
itself.
-
Turn the needle plate around until the desired position is under needle.
Locating pin " F
»
will enter the corresponding hole in the plate.
-
Press central pin " G
»
.
The plate will block itself automatically.
-
Raise feed
dog.
NOTE: The needle plate can be removed by pressing lever " E
»
completely.
11
