ion science GasClam User Manual

In-situ borehole gas monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GasClam Instrument User Manual V1.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GasClam and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ion science GasClam

Summary of Contents for ion science GasClam

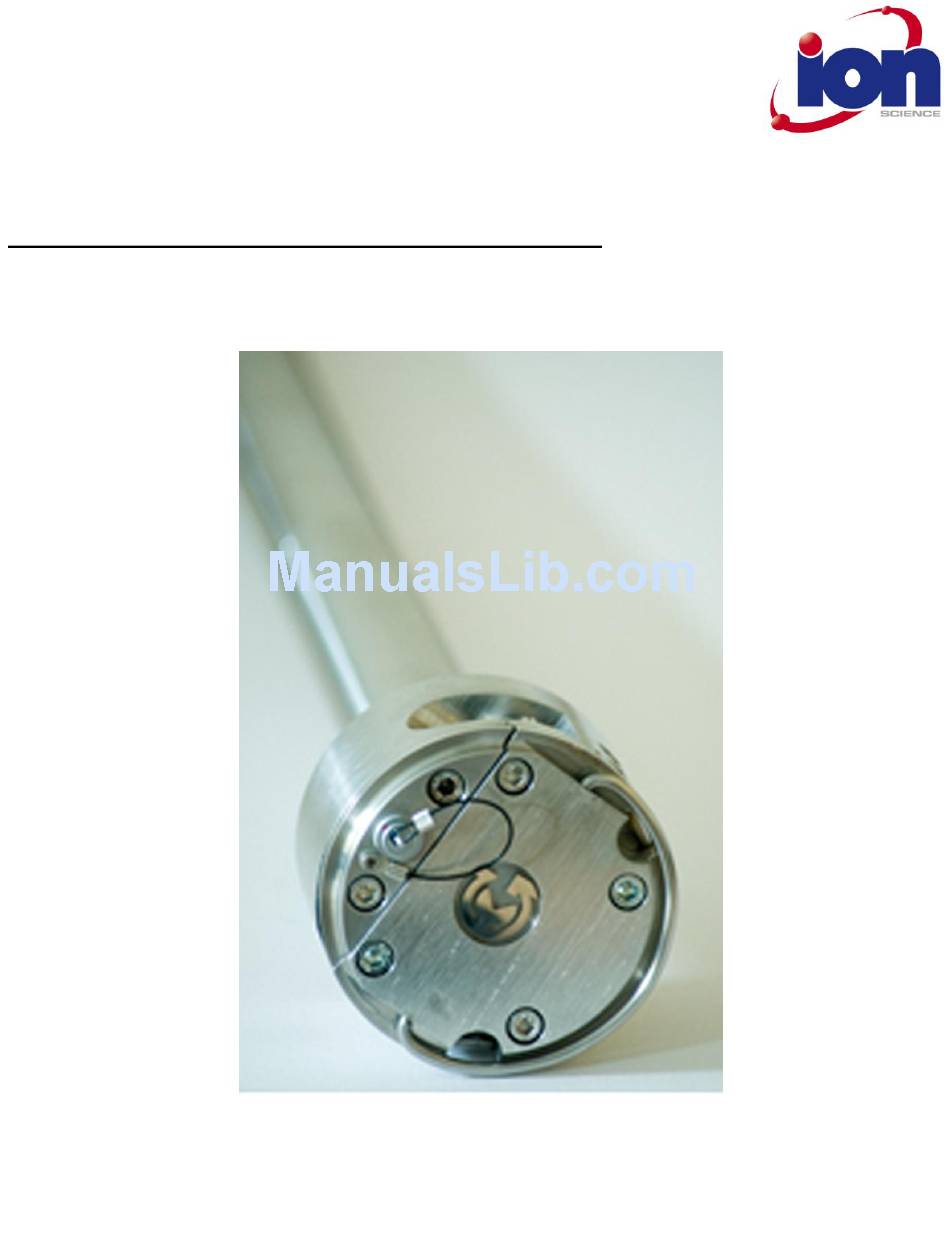

  • Page 1 GasClam Instrument User Manual V1.5...
  • Page 2 Gasclam Ion Science Ltd Page 1 of 37...

  • Page 3: Table Of Contents

    Keeping GasClam Dry and Clean . Effects of Flooding Getting Started 7-11 Packaging List . Turning on the GasClam . Physical Charateristics How GasClam Works and Access Areas . Software Installation Running Installation Battery Change . Software 11-16 Connecting Main Screen Last Reading Stored Errors .

  • Page 4: Declaration Of Conformity

    Gasclam Ion Science Ltd Declaration of Conformity The manufacturer, Elok-Opava, hereby declares and confirms that the characteristics of the product conform to the technical requirements stipulated by the technical standards. Furthermore, the manufacturer declares the product to be safe whilst adhering to the correct conditions for its installation, maintenance and use.

  • Page 5: Introduction To Gasclam

    Ion Science service department or an Ion Science approved service centre. Before using the GasClam you must read this manual paying particular attention to the section on the effects of water on your GasClam.
  • Page 6 1. Keeping your GasClam dry and clean in regular use To dry the gas before measurement there is a moisture stripping filter in the bottom section of the GasClam. Over time this will hydrate and its ability to remove moisture will decrease. If moisture is not successfully removed, concentration readings will be affected.
  • Page 7 Ion Science Ltd The effects of water on your GasClam 2. Effects of flooding on data and GasClam When the unit is not sampling it has an ingress protection rating of IP-68 (submersible to 10 meters for 1 week). However, ...

  • Page 8: Getting Started

    After the sampling processes have finished the red LED flashes intermittently, this equates to the „measuring‟ mode. To stop the GasClam press the button for two seconds, when it has stopped the LED will stop flashing, this equates to „sleeping‟ mode...
  • Page 9 3. Pressure transducer port cap 4. Gas inlet 5. Gas Outlet 6. Water proximity sensor 7. Pressure transducer hook 8. Battery compartment lid 9. Vent (with hose barb) 10. Rubber Collar GasClam identification plates with intrinsic safety specifications. Page 8 of 37...
  • Page 10 Gasclam Ion Science Ltd Getting Started How the GasClam Works and access areas Page 9 of 37...

  • Page 11: Software Installation

    Ion Science Ltd Getting Started Software Installation System Requirements The GasClam software needs 30MB free space on the hard disk for installation. The programme will run on the following platforms: - Windows 98 - Windows 98 Second Edition - Windows 2000 service pack 3...
  • Page 12 The battery compartment is accessed by removing the 4 screws from the battery compartment lid, see diagram. To remove the batteries tilt the GasClam until they fall out. Replace with the stipulated batteries positive terminal facing down. Take care when...

  • Page 13: Software

    Software Connecting The GasClam is connected to a computer using the supplied cable via the communication port on top of the GasClam and a serial port. If the computer does not have a serial port use a standard USB/Serial converter.

  • Page 14: Main Screen

    Red: Replace batteries immediately. *The voltage in the battery will decrease when the GasClam is sampling due to a load on the batteries, this is the voltage that should be used to assess battery condition (This is also the voltage that is logged).
  • Page 15 After starting the GasClam through the software wait until the first cycle is complete. The last readings stored will be updated and these values can be used to check that the GasClam is functioning correctly. Also this will remind the user that the GasClam has been started before leaving it for a period of unmanned data collection.

  • Page 16: Errors

    Gasclam Ion Science Ltd Software Errors If the GasClam is not functioning correctly an error message will be displayed at the top of the Software home screen, see below. Page 15 of 37...
  • Page 17 Ion Science Ltd Software Different errors require different solutions, these are summarised below; Error Reason Solution GasClam will run but batteries need to Low Battery Battery voltage is below 1.8V for 10s be changed The GasClam will not sample, batteries Flat Battery Battery voltage is below 1.8V for 60s...
  • Page 18 If the Yes button is clicked the following appears: The GasClam will turn off after the communication cable is disconnected, until then the main screen will appear as below: The GasClam will turn back on when the data cable is attached again.

  • Page 19: Setup

    Device ID The user can specify the name of the GasClam in the Device ID box. This is useful if there is multiple GasClam on a site as the borehole number can be allocated to the GasClam. This information is used to create a filename when the data is downloaded.

  • Page 20: Venting

    Open after every – The vent opens and stays open for user defined periods. If the GasClam is to be located in a wet area and the vent blank is installed tick the vent plug inserted box. Water height The GasClam can measure the water level in the borehole using an optional pressure transducer. To enable the water level pressure transducer the „water level enabled‟...

  • Page 21: Unit Date And Time

    Write Settings to GasClam To activate a change in the setup up menu the „write settings to GasClam‟ button must be clicked. If this is successful a message saying „Settings written successfully‟ appear. Click OK to continue. Erasing Data Memory To erase all the data from the flash memory left click the Erase memory button.

  • Page 22: Downloading

    Software Downloading To download the GasClam left click the „Download‟ button. This opens a standard Window‟s „save as‟ window. The default file name is the device ID followed by the time and date. After choosing the file name and location the download begins when save is clicked, the length of the download will depend upon the amount of data.

  • Page 23: Viewing Data

    Gasclam Ion Science Ltd Software Viewing Data The data viewer is accessed via the „View Data‟ navigation button on the main screen. Selecting file for display To open a file click either the „…‟ or the open button, this allows you to browse through your computers folders.

  • Page 24: Sampling Data

    Gasclam Ion Science Ltd Software Sampling data To display the sampled data click the „Sampling-data‟ button. The following parameters are displayed, see example below. Date: in the format dd/mm/yyyy hh:mm %: Methane, % v/v %: Carbon dioxide, % v/v CO: Carbon Monoxide, ppm...

  • Page 25: Selecting Data Channel

    Gasclam Ion Science Ltd Software To view the data in graphical form click the Graph/Data view toggle button. Graph/Data view toggle button This opens the Graph view window, shown on next page. Selecting data channel To select a data channel click the desired parameter from the „Data Channel‟ box, see below. Multiple parameters can be displayed by clicking more parameters.

  • Page 26: Displayed Multiple Parameters

    Gasclam Ion Science Ltd Software Displayed multiple parameters Page 25 of 37...
  • Page 27 Gasclam Ion Science Ltd Software Import data into External Spreadsheet Data is provided as a CSV file and can be imported into various spreadsheets for manipulation. This is normally done using the import function and selecting delimited and then selecting comma as the separator.

  • Page 28: Start-Stop Data

    Gasclam Ion Science Ltd Software Infograph All the values of the parameters at any particular time can be displayed by using the info graph window. This is turned on by clicking the „view value‟ box. These values will update as the cursor is dragged over the graph.

  • Page 29: Calibration Data

    Gasclam Ion Science Ltd Software Note. If the GasClam has stopped due to low battery a note indicating this will be left in the code column. Calibration Data In this section the calibration date and constants are displayed. Error Messages...

  • Page 30: Bump Test

    Bump Test You can check the performance of the sensors by running a bump test on your GasClam. During a bump test a known concentration of gas is pumped through the GasClam and the value measured is displayed. If the measured concentration is within the tolerance of the sensor the bump test is passed and indicated by a tick, if it is outside this range the bump test is failed and indicated by a cross.

  • Page 31: Other Test

    Gasclam Ion Science Ltd Other tests This section is for service centres. Page 30 of 37...
  • Page 32 Stuart Wells (http://wellservices.stuartgroup.ltd.uk/) and should be installed following the diagram below: It is important to have the stand pipe a maximum of 3 cm above the base of the headworks, this will ensure the GasClam will fit under the lid of the cover. The headworks must be concentric to the standpipe for the GasClam to be housed correctly.

  • Page 33: Service And Calibration

    Moisture stripping filter: It is recommended that the moisture filter is replaced every time the GasClam is visited. It is accessed by unscrewing the bottom section of the GasClam. This is done by holding the knurl on the middle section and gripping the knurls on the top section and turning, see below.
  • Page 34 Battery Cover Bolt 25062 Charger NiMH ECH 1.1 25038 Battery Cover (complete) A-25066 O-Ring for filter section (near base of GasClam) Pack of 5 O-Ring for filter section (upper O-ring) and battery A -25067 compartment, pack of 5 A-25064 Snorkel...
  • Page 35 Gasclam Ion Science Ltd Service and Calibration Spare parts for users Page 34 of 37...

  • Page 36: Technical Specification

    Gasclam Ion Science Ltd Technical Specification Sensor Method/type Range Resolution Accuracy Linearity 1% of measuring range above Infrared 0-100 % ± 2% FSD +/- 2% FSD or 10% reading 50%, 0.5% below 50%. 1% of measuring range above Infrared 0-100 % ±...

  • Page 37: Update Log

    1.3 GasClam v1.3 Extra sections added for 5 15/06/09 07.09.96 5.4.25 chamber GasClam. Section how to protect the GasClam from water. Moisture stripping filter instructions updated. Intallation section added Updated to version GasClam v1.4 Manual has been completely 27/07/09 07.09.96...
  • Page 38 Gasclam Ion Science Ltd Page 37 of 37...
  • Page 39 Thank you for reading this data sheet. For pricing or for further information, please contact us at our UK Office, using the details below. UK Office Keison Products, P.O. Box 2124, Chelmsford, Essex, CM1 3UP, England. Tel: +44 (0)330 088 0560 Fax: +44 (0)1245 808399 Email: sales@keison.co.uk...
