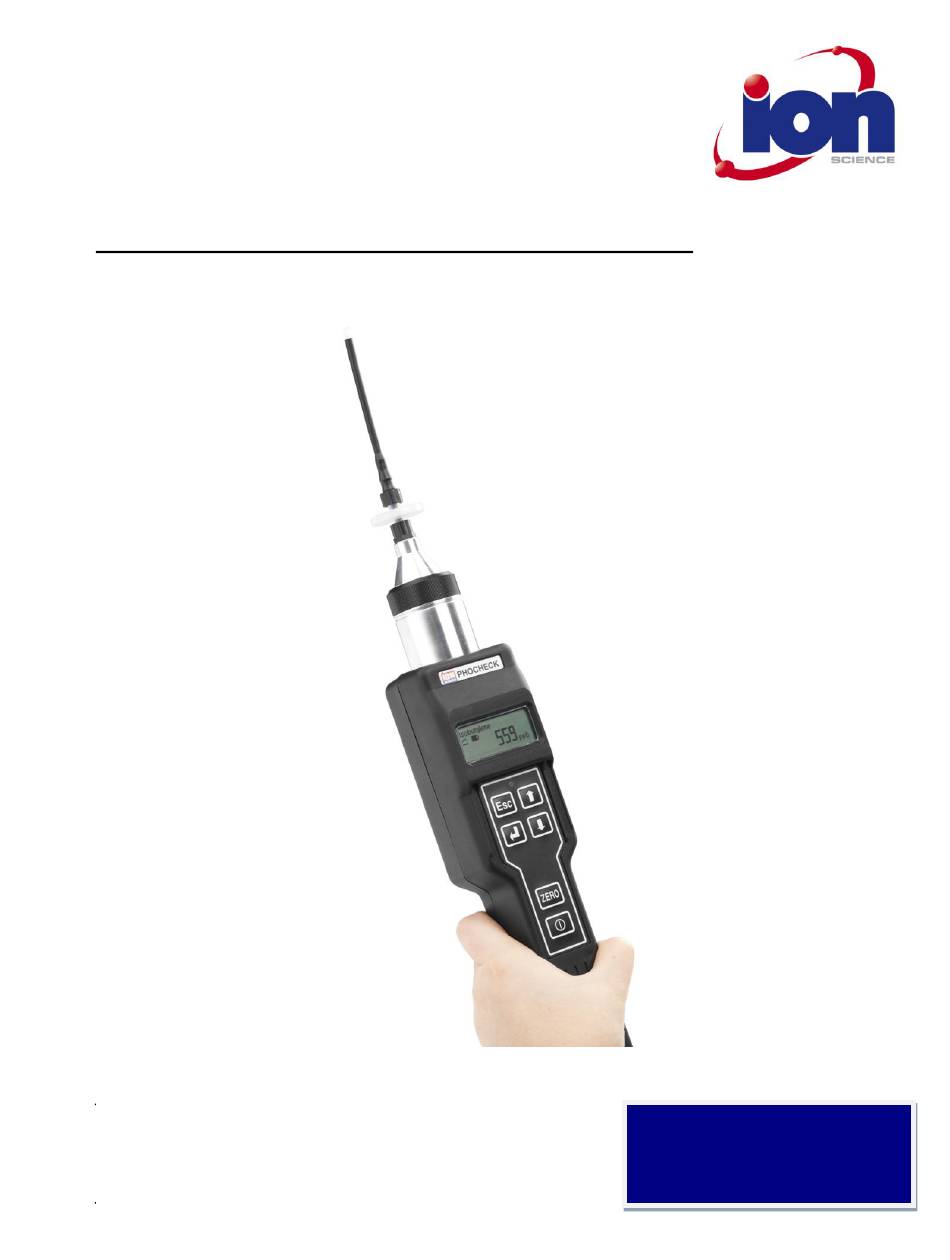

- Page 1 PhoCheck+ Instrument User Manual V2.5 PhoCheck+ 1000Ex, PhoCheck+ 2000Ex, PhoCheck+ 3000Ex, PhoCheck+ 5000Ex Register your instrument online to receive your Extended 2 Year Warranty. See page 38 for details. PhoCheck+ Instrument User Manual part number: 845221...
-
Page 2: Declaration Of Conformity
PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Page 1 of 41... - Page 3 Potentially Explosive Atmospheres – Application of Quality Systems On behalf of Ion Science Ltd, I declare that, on the date this product accompanied by this declaration is placed on the market, the product conforms to all technical and regulatory requirements of the above listed directives.
-
Page 4: Table Of Contents
Page Declaration of Conformity . Statements Responsibility for use Warnings Caution . Quality Assurance Disposal Calibration Facility Ion Science Contact Details Introduction to PhoCheck+. Getting Started Instrument Functions Function Locations How the PhoCheck+ Menu Works Quick Reference. 10-11 Instrument Display... -
Page 5: Introduction To Phocheck
PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd ________________________________________ Introduction to PhoCheck+_ PhoCheck+ is a portable gas detector, suitable for the detection of a large range of Volatile Organic Compounds (VOC's), which are dangerous from both a poisoning and explosive perspective. Total VOC‟s are detected using PID (Photo Ionisation Detection) technology. -
Page 6: Getting Started
28. 3. Selecting a gas from the internal gas table PhoCheck+ instruments leave Ion Science pre-set for gas type TVOC (total volatile organic compounds). Instruments are factory calibrated against isobutylene and all response factors are equivalent to this. By changing the gas from the gas table all readings will be given using that gases response factor. -
Page 7: Instrument Functions
PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Instrument Functions Keypad function descriptions ON/OFF To switch the PhoCheck+ instrument ON - Press the ON/OFF key. To switch the PhoCheck+ instrument OFF - Ensure you are on the „DISPLAY/FUNCTION SELECTION SCREEN‟... -
Page 8: Function Locations
PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Instrument Functions _____ Function locations Display/Function Selection (P 12) Application mode - View Data (P 14) H & S or Survey (P 19) Zone Maintenance (P 15) Data Log Memory Alarm... -
Page 9: How The Phocheck+ Menu Works
PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Instrument Functions _____ How the PhoCheck+ Menu Works Once in the function menu with the function-symbol you require on the screen press the ENTER key to select it. (See Figure 1.) -
Page 10: Quick Reference
PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Quick Reference _____ This quick reference indicates which functions are relevant to which instruments. Display/Function Selection (Page 12) PhoCheck+1000, 2000, 3000, & 5000 Allows the user to view detected VOC levels in either graph or number format and to adjust the instrument functions and parameters. - Page 11 PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Quick Reference _____ Back-light (Page 18) PhoCheck+1000, 2000, 3000 & 5000 Allows the selection of back-light options. Date / Time (Page 18) PhoCheck+2000, 3000 & 5000 Allows the adjustment of the date and time.
-
Page 12: Instrument Display
PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Instrument Display Display/Function Selection Screen The DISPLAY/FUNCTION SELECTION SCREEN or Top Menu is found by repeatedly pressing the ESCAPE (Escape) key. The DISPLAY/FUNCTION SCREEN allows the user to switch between the graphical readings, the digital readings and the Tools Menu. -
Page 13: Graphical Screen
PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Instrument Displays _____ Alarm arrows Upper and lower alarm levels The arrows represent the importance level of the alarm. The single arrow represents the lower alarm and the two arrows represent the upper alarm. -
Page 14: Instrument Menu
Stored data can be viewed on the PhoCheck+ instrument or it can be downloaded to a PC for analysis and to be archived. Ion Science recommends downloading saved readings once a week. In some applications readings need to be recorded in many different locations leading to many hundreds of stored files. -
Page 15: Zone Maintenance
PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Instrument Menu _____ Deleting a File (PhoCheck+ 2000, 3000 & 5000) Zone File Should you wish to delete a File, select the Zone and file to be deleted Delete as if you were about to view the data. Now select the delete symbol (Trash can) in the View Data screen. -
Page 16: Alarm
Factory Custom General description Due to the linear output of the Ion Science PID detector , PhoCheck+ instruments only require a two-point calibration. The PhoCheck+ scales its linear output across a ZERO level (clean air reference) and the SPAN (a user defined gas concentration). - Page 17 PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Instrument Menu _____ Calibration (continued) Custom calibration For increased accuracy you can perform a Custom Calibration. You will need a cylinder of calibration gas and a regulator. 100ppm Isobutylene calibration gas at a flow rate above 250ml/min. PhoCheck+ allows you to custom calibrate using any gas from the Gas Table and any concentration from 10ppm.
-
Page 18: Back-Light
The 12/24 hour time format is also adjustable. Ion Science recommends that you set your date and time before using your instrument for the first time. This menu options is also available on the IONpc software. -
Page 19: Unit Selector
PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Instrument Menu Unit Selector (PhoCheck+1000, 2000, 3000 & 5000) The PhoCheck+ photoionisation detector can be selected to measure VOC's in either ppm (Parts per million, by volume), ppb (Parts per billion) or mg/m (Milligrams per cubic meter). -
Page 20: Pc Requirement
PhoCheck+ to a PC for the first time, confirm that the PC‟s IRDA works correctly with another devise. Installation of IonPC Software Insert Ion Science software CD into your CD rom drive The CD will automatically start up Click on the Download Software button The IonPC setup wizard will start. -
Page 21: Downloading Data
PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd IonPC Software IonPC software has many features allowing the transfer for data and function specifications to and from the instrument and the PC. Downloading data logged readings PhoCheck+ should always be presented to the IRDA port before the IonPC software is run. -
Page 22: Calibration
PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd IonPC Software File Allows the printing of files downloaded from your PhoCheck+ instrument. Calibration Refers to the CUSTOM calibration of PhoCheck+. Enables the download of calibration data from the instrument to a PC, the... -
Page 23: Menu Set-Up And Settings
PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd IonPC Software Gas Table (including setting alarm levels) Select a gas table stored in the PhoCheck+ directory. You are able to modify this table and then download it to your instrument. If you wish to add new gases to the table ensure you use the next available line, leaving no spaces as shown below. -
Page 24: Ionpc Software
PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd IonPC Software Settings Within this tab there are a number of additional features including the clock (24 hr or 12 hr), sound controls on signal, confidence (a beep sounds every 15 seconds), on key press and on alarm. - Page 25 PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd IonPC Software Backlight Gives you the option of turning the back light on or off permanently or setting it on a timer after every key press. Clock Set the instruments clock and date for the purposes of data logging.
- Page 26 PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd IonPC Software Calibration The calibration settings can also be adjusted under the Menu Settings and it is the same layout as described on page 16. Once you have selected all of your settings you can either choose to APPLY them, which will download the information straight to the instrument and leave the screen open, or select OK, and they will be transferred to the instrument and the screen will close automatically.
-
Page 27: Software Disclaimers
Science Ltd discretion, to either (a) return of payment as evidenced by a copy of the Receipt, or (b) replacement of the disk that does not meet Ion Science Ltd limited warranty and which is returned to Ion Science Ltd with a copy of the Receipt. If failure of the disk has resulted from accident, abuse, or misapplication, Ion Science Ltd will have no responsibility to either replace the disk or refund payment. -
Page 28: Batteries
Ion Science Ltd Batteries Note: Ion Science recommends keeping your PhoCheck+ on charge at all times when not in use, as batteries can loose power over time. Loss of battery power can result in the instrument‟s charge indicator showing a NON-CHARGING status when trying to charge the unit. If this occurs, leave the charger connected for two minutes, then remove and reconnect the charger as soon the timer symbol disappears. - Page 29 PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Batteries Replacement of Non-rechargeable batteries 1. Ensure the PhoCheck+ is switched Off. 2. Using the battery cover removal tool provided, remove the battery cover at the rear of the instrument casing.
-
Page 30: Diagnostics
PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Diagnostics Basic faults or diagnostics are presented as symbols with a more detailed description of the fault indicated by the number in the top right hand corner of the display. Should a fault occur correct the issue and then press ENTER or ESC to clear the fault message. - Page 31 PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Diagnostics Health & Safety When in Health & Safety mode the selected gas has no STEL or TWA alarm values. This provides a warning in Health & Safety mode that the change you are making could effect the ongoing calculations.
-
Page 32: Maintenance
PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Maintenance Blowing out the PID Cell will fix 99% of maintenance problems When using the PID instrument in conditions of high ambient humidity, the PID may show unexpected readings appearing to increase. This occurs due to dust or other small particles within the detector becoming hydrated with humidity. - Page 33 The vial of cleaning compound contains Aluminium Oxide as a very fine power (CAS Number 1344-28-1). A full material safety data sheet MSDS is available on request from Ion science ltd. The key issues are listed below: Hazard identification: ...
-
Page 34: Accessories
PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Accessories Ion Science has developed an exclusive range of high quality accessories to compliment the PhoCheck+. Please find a list of accessories below. For the full range, contact Ion Science. Part Number... -
Page 35: Protective/Decontamination Cover
Protective / Decontamination Cover Description This unique accessory enhances the base intrinsically safe approval of Ion Science instruments, including FirstCheck and PhoCheck, from category 2 (Zone 1) to category 1 (Zone 0) classification. The cover also increases instrument's ingress protection rating to IP66 allowing the instruments to be used in applications where the instruments are likely to get wet such as arson investigation, emergency response and in heavy rainfall. - Page 36 PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Protective/Decontamination Cover Fitting Instructions 1. Insert instrument into the IS protective cover ensuring that the probe tip exits through the small slit at the top of the cover and that the cover labelling and stickers are on the reverse of the instrument.
-
Page 37: Upgrade Options
3000 PhoCheck+ 5000 Contact your local Ion Science distributor for pricing. The upgrade process is easy and the instrument does not need to be returned to the distributor or manufacturer. After ordering the upgrade for your instrument a code will be sent to you by e-mail. Use the IonPC software to enter the code and your instrument instantly becomes the new version. -
Page 38: Instrument Warranty And Service
PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Technical Specifications _____ Detector Range Response Time* PID (VOC detector) 1 ppb - 10,000 ppm (5000Ex) T90 < 1 second 0.1 ppm – 10,000 ppm (3000Ex) 0.1 ppm – 4,000 ppm (1000Ex and 2000Ex) - Page 39 PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Technical Specifications Expected lifetime of parts Batteries On the condition of normal use battery capacity will be reduced to approximately 70% after 250 full battery cycles or 1 year (whichever comes first).
- Page 40 PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Manual Version Amendment Date Updated Instrument Firmware PC Software PhoCheck+ V1.6 Ion Science recommends V1.24 keeping your PhoCheck fully charged at all times, in some circumstances batteries can loose power overtime while not in use.
- Page 41 PhoCheck+ 1000, 2000, 3000 & 5000 Ex Ion Science Ltd Page 42 of 41...
