Electrolux ICON
Under-Counter Refrigerator Drawers
E24RD50QS professional series
Under-Counter Refrigerator Drawers Specifications
Product Weight – 165 Lbs.
•
Voltage Rating –120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = 0.16 kW
•
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
Amps @ 120 Volts = 1.5 Amps
•
Electrical cable supplied.
•
Always consult local and national electric codes.
•
Unit is designed for built-in, under-counter installation only with use of
•
Anti-Tip Kit and can NOT be used in freestanding installation.
Built-in, under-counter installation does not require additional airspace
•
for top, sides or rear of unit.
Proper built-in, under-counter installation requires that both electrical
•
outlet and plug be completely recessed to ensure unit will fit flush
against rear wall.
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxicon.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxicon.ca
E24RD50QS 07/14

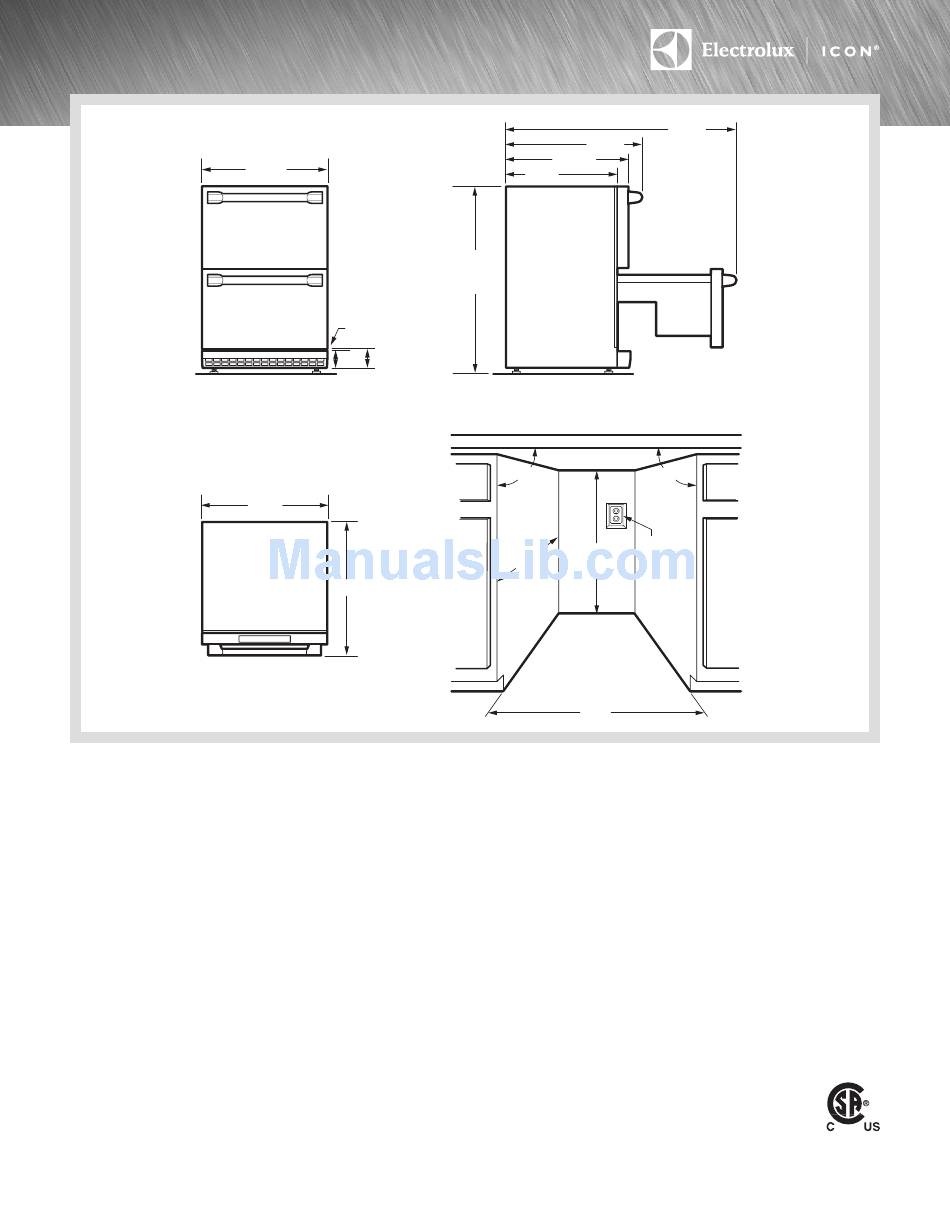

Front
23
/
"
7
8
Power cord
location (right
bottom rear)
2
/
" 3
/
"
3
11
4
32
Top
23
/
"
7
8
26
/
"
3
8
© 2014 Electrolux Home Products, Inc.
Left
26
/
"
3
8
23
23
/
"
32
21
/
"
1
2
33
/
"
3
4
Adjustable
to 34
3
/
"
4
90°
34"
21
/
"
3
4
min.
min.
*Proper built-in,
under-counter
installation requires that
both electrical outlet & plug
be completely recessed to ensure
unit will fit flush against rear wall
24
/
"
1
8
To allow for ease of installation and removal, it is recommended that
•
cabinet rough opening dimensions be increased by at least 1/4" over
product's dimensions.
For proper ventilation, unit can NOT be installed behind closed doors; front
•
grille MUST remain unobstructed.
Must be positioned on flat, level surface, capable of supporting entire
•
weight when fully loaded.
Leveling legs supplied to adjust height and level unit.
•
Do not position unit near any heat source to ensure optimum performance.
•
Allow 14" minimum for handle clearance with drawers fully extended.
•
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
39
/
"
5
32
Drawers fully
extended
90°
Recessed
electrical
outlet*
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
