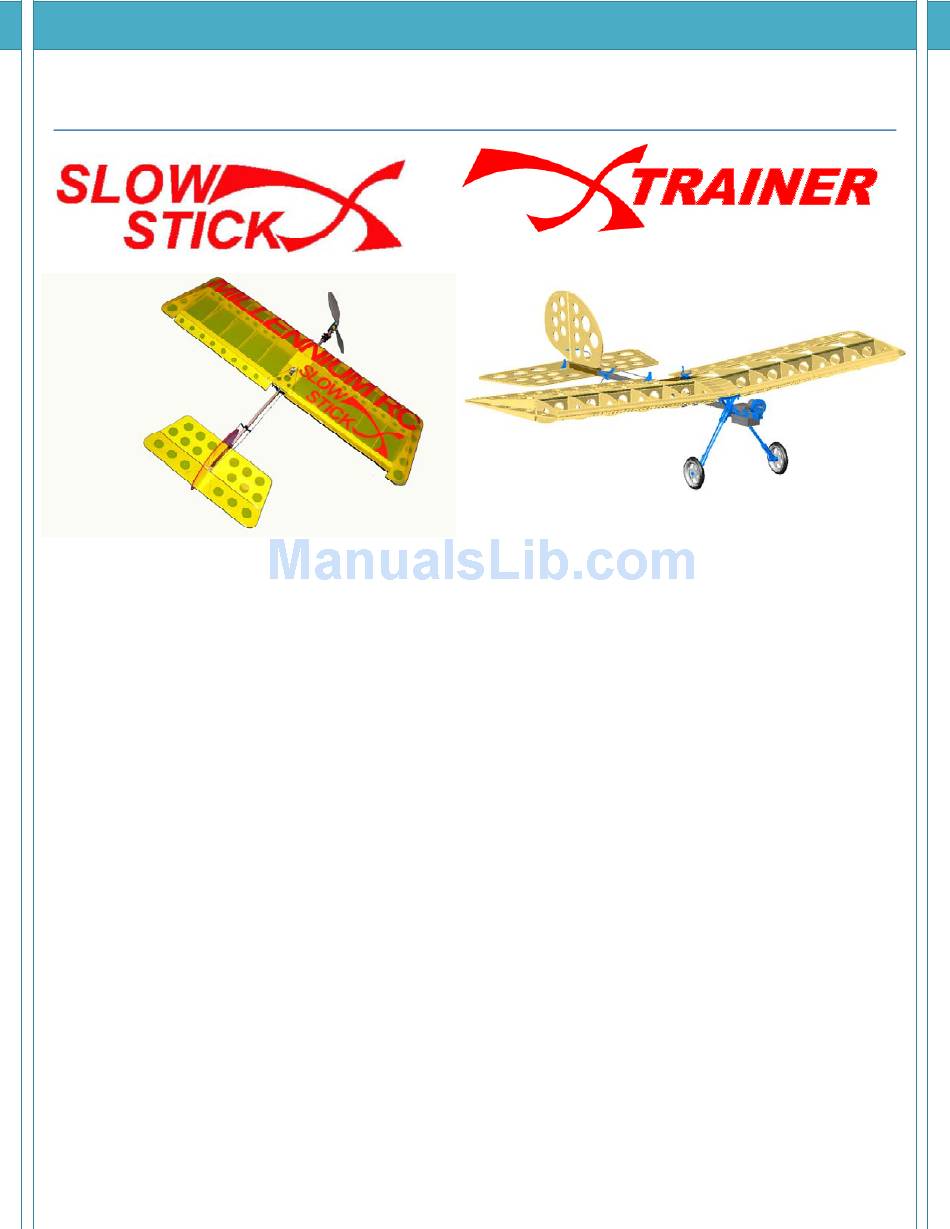

Millennium RC presents... Build Kit

















Wing span:  Approx. 42"
Wing Area:  504 sq. in.
Wing Loading:  6.71 oz/ sq. ft.


Introduction:
The Slow Stick X and X-Trainer airplanes are available either as a "short kit" upgrade to the GWS Slow Stick
Electric ARF Park Flyer Airplane Kit ™ or as a complete kit which includes all of the fuselage components.
The "short" kit replaces the original Styrofoam wing and tail surfaces of the Slow Stick to a more robust balsa-
constructed design, complete with ailerons and a full symmetrical wing, allowing the Slow Stick to become a
fully aerobatic model aircraft. This wing and tail are designed to easily attach to your existing stick fuselage.
This build kit can be built either as a Slow Stick X (with the straight wing) or as the X-Trainer (with a
dihedral wing). The Slow Stick X is also available as a pre-built and covered ARF.
Adult supervision recommended for children 15 and under. R/C Airplanes should be flown following safety
guidelines provided by the AMA (Academy of Model Aeronautics).
CAUTION: This is not a toy!
Recommendations:
1. Read through each step before starting assembly.
2. After removing all the pieces from packaging, inspect to make sure there are no broken or missing parts.
3. Check off each completed step to help keep from losing your place.
4. Cover the work table with plastic wrap to protect from glue.

™





Advertisement

loading
Need help?

Need help?

Do you have a question about the slow stick x and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Millenium slow stick x

Summary of Contents for Millenium slow stick x

  • Page 1 This wing and tail are designed to easily attach to your existing stick fuselage. This build kit can be built either as a Slow Stick X (with the straight wing) or as the X-Trainer (with a dihedral wing).

  • Page 2: Additional Items Required

    Slow Stick X™ or X-Trainer™ Wing/Tail Build Kit Assembly Instructions Rev. 12 List of Provided “Short Kit” Parts: Additional Items Required: 1. GWS Slow Stick Electric ARF Park Flyer Airplane All laser-cut balsa and plywood parts needed to Kit ™ (used or new) complete the wing/tail sections.
  • Page 3 DO NOT GLUE UNTIL INSTRUCTED TO DO SO! These instructions have been adapted to include steps to build either the Slow Stick X (straight wing) or the X-Trainer (dihedral wing). Steps which pertain only to the X-Trainer will be labeled as such.
  • Page 4 Figure 6 (SSX) Figure 4 (X-Trainer) 5. Install leading edge W2 (Fig. 5) Figure 6 (X-Trainer) Figure 5 (SSX) Figure 7 7. Bevel both sides of the trailing edge crutch before installing. Do not cut tabs until after the trailing edge is beveled.
  • Page 5 From this point on, parts are glued, as installed. 11. Install 9/16” strips on leading edge top and bottom (Fig. 10). Sand square the leading edge so that you have a flat surface flush with Part W2 (Fig. 10) From 1/8” balsa marked “Leading Edge”, make two 19”...
  • Page 6 Figure 15 16. Remove parts W5- W5-A and assemble as shown in (Figure 16a) and sand break-aways until smooth. Figure 12 (X-Trainer) Install wing tips W5, along with braces W9 and W10. (Fig. 16b) 13. Install ¾” x 1/16” strips on trailing edge top and bottom (Fig.
  • Page 7 19. Join tail surface pieces as shown in Fig. 19. Figure 17 (SSX) Figure 19 20. Sand all tail surfaces, round all edges, and taper leading edges of all control surfaces, including ailerons. (Fig. 20) Cover with light model covering. Assembly of the control hinges Hinges are made from hinge tape or 3M Clear Figure 17 (X-Trainer)
  • Page 8 2. Now, take the elevator. You will see that the elevator has 6. Repeat the steps 1. thru 5 for the rudder. a ‘beveled’ edge. This is important in creating the hinge. Ensure that the beveled edge is pointing up, and while 7.
  • Page 9 Figure 23 8. Flip the wing over so top is up. Cut out hole for servo in center of wing. Using a sharp hobby knife or razor, cut through the covering and score the break-a-way on both sides until the square comes out easily. 9.

  • Page 10: Final Assembly

    Fuselage Assembly (not included in “short kit”) 1. Use the existing GWS parts from your GWS Slow Stick™ or use the parts from our X-Fuse set. 7. Feed the long wire push rod through the push rod guide and through the guide holes in the rear wing saddle, so that the “Z-bend”...
  • Page 11 Balancing & final fuselage assembly   Balancing the aircraft: The center of gravity for this 5. Once balanced, without moving any of the black wing is the main spar. Do NOT add weight to balance parts, VERY CAREFULLY remove the wing. the aircraft.
  • Page 12 For updates and tips, visit the plant. Climb to a higher altitude and adjust trims as Slow Stick X or X-Trainer Build Thread on RC Groups: needed. When landing, be sure to land softly, as the www.rcgroups.com/forums/showthread.php?t=646592 original GWS landing gear is not extremely rigid.
