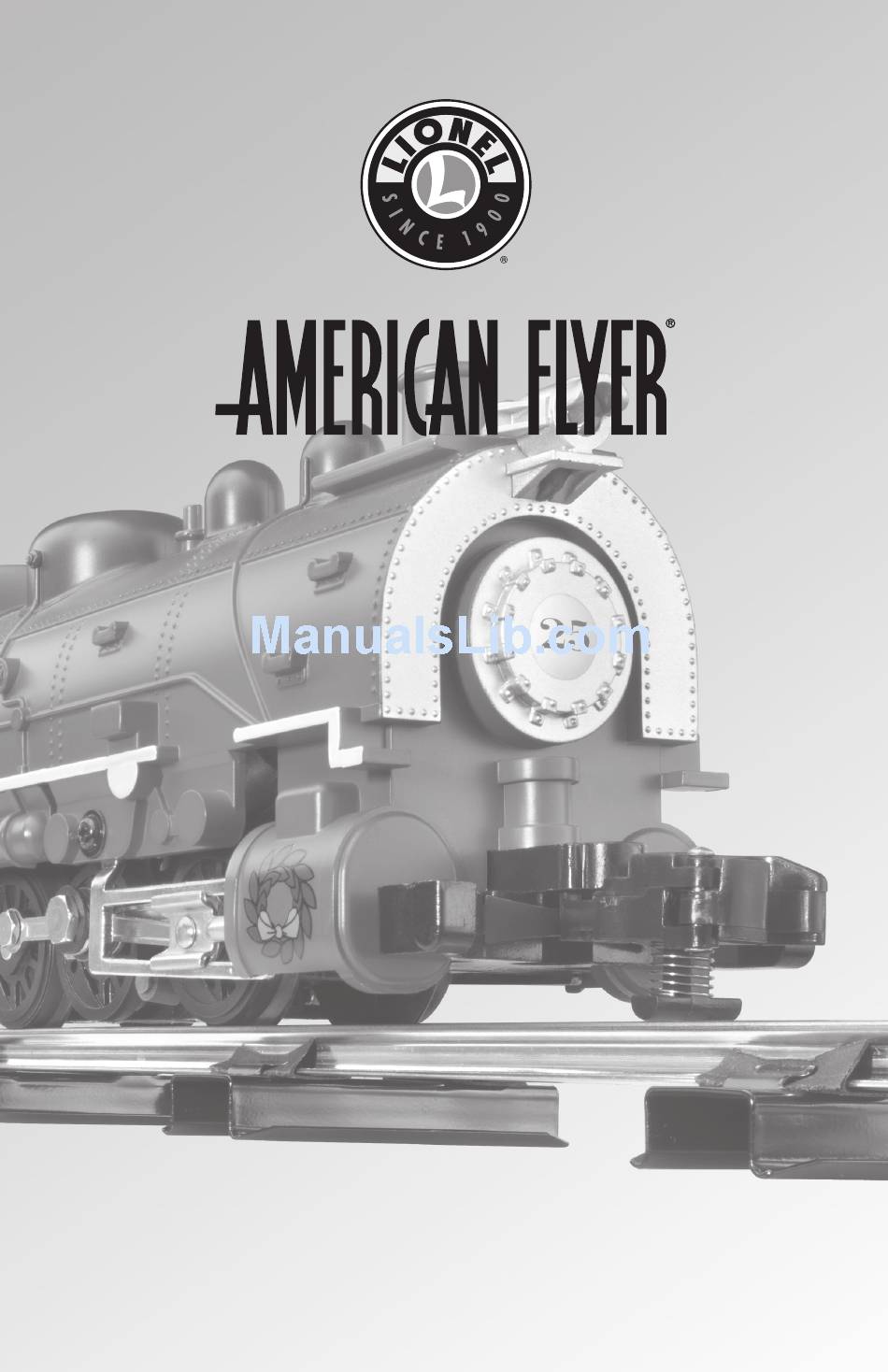

74-9621-250
6/09
Ready-to-Run
Christmas Set
Owner's Manual
Cauti o n—ElECtri C toy
not rECommEndEd for ChildrEn undEr fourtEEn yEars of agE. as
wi t h all ElECtri C produCts, prECauti o ns should bE obsErvEd duri n g
handli n g and usE to prEvEnt ElECtri C shoCk.
TRanSfORMeR RaTingS—i n put: 120 vaC; 60 hz only.
aC output: 18 v; 30 va

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the american flyer and is the answer not in the manual?

Questions and answers

Related Manuals for Lionel american flyer

Summary of Contents for Lionel american flyer

  • Page 1 74-9621-250 6/09 Ready-to-Run Christmas Set Owner’s Manual Cauti o n—ElECtri C toy not rECommEndEd for ChildrEn undEr fourtEEn yEars of agE. as wi t h all ElECtri C produCts, prECauti o ns should bE obsErvEd duri n g handli n g and usE to prEvEnt ElECtri C shoCk. TRanSfORMeR RaTingS—i n put: 120 vaC;...
  • Page 2 PowerMax Transformer, a huge loop of easy-to-assemble American Flyer track, a string of detailed cars, and a powerful American Flyer locomotive. Have fun growing with this complete train set! Start with the set components, then follow your imagination into your own miniature world.

  • Page 3: Fcc Statement

    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel...

  • Page 4: Table Of Contents

    Table of contents Creating your layout Operating your PowerMax Transformer safely Building your Lionel layout Joining the American Flyer track sections Wiring your PowerMax Transformer Running your train Running your train set with your transformer Adding smoke fluid to your locomotive’s smoke stack Using your locomotive’s couplers...

  • Page 5: Creating Your Layout Operating Your Powermax Transformer Safely

    • Parents should periodically inspect this product for potential hazards and, if necessary, have them repaired by an authorized Lionel Service Center. In the event that such a condi- tion exists, the transformer should not be used until it has been properly repaired.

  • Page 6: Building Your Lionel Layout

    By adding more American Flyer track sections, you can create an endless number of excit- ing track arrangements for more fun, action, and variety. The railroad empire of your dreams can quickly become a reality! Figure 1.

  • Page 7: Wiring Your Powermax Transformer

    • Track connections (or Lockon connections) must be made with 18-gauge wire or heavier. Larger layouts require a minimum of 16-gauge wire. 1. Attach a Lionel Lockon to your track. As illustrated in Figure 3, slide the bottom edge of the outside rail into the metal lip on the Lockon.

  • Page 8: Wiring Your Powermax Transformer

    Creating your layout Wiring your PowerMax Transformer (continued) 2. Attach one wire to the Lockon spring clip terminal labeled “1” and connect it to the power terminal labeled “A”. All Controller connections are illus- trated in Figure 4. To attach the wire to the Lockon, press down on the top of the terminal clip so that a metal loop is formed.

  • Page 9: Running Your Train Running Your Train Set With Your Transformer

    The curves must have a radius of at least 20”. Power up your locomotive with your transformer. Your locomotive is designed to operate on 6-18 volts alternating cur- rent. Virtually all American Flyer or Lionel alternating-current transformers are suitable. Do not power your locomotive with direct current (DC).

  • Page 10: Adding Smoke Fluid To Your Locomotive's Smoke Stack

    The smoke generator requires the periodic addition of Lionel smoke fluid in order to func- tion. Pierce the tube end with a pin, then add four to eight drops of fluid directly into the locomotive’s stack.

  • Page 11: Experiencing The Features Of The Powermax Transformer

    To correct this problem, simply turn off the PowerMax Transformer, then turn it back on. The PowerMax Transformer may cause random whistles in the Lionel Mighty note! ™...
  • Page 12 Whistle/Horn activates the whistle or horn sound effect in your lionel locomotives. press Throttle Controls your locomotive’s speed. throw the whistlE/horn to begin the sound; release the button to end it.

  • Page 13: Locking Your Locomotive Into A Single Operational State

    Running your train Locking your locomotive into a single operational state o select a single operational state for your locomotive (for example, forward only), you can deactivate the reverse unit’s sequencing function with the DIRECTION CONTROL switch. Get your locomotive moving in the desired direction, then slow it down without stopping. Set the DIRECTION CONTROL switch to OFF.

  • Page 14: Powermax Transformer Operation Powering Your Layout With The Powermax Transformer

    PowerMax Transformer operation Powering your layout with the PowerMax Transformer our PowerMax Transformer provides a total output of 1.8 amps. Also, available voltage depends on how much load is on the output. Generally, track voltage is 0-16 volts (AC). You may momentarily approach or exceed the 1.8 amp limit of the PowerMax Transformer when pulling illuminated cars, or fighting over grades with heavy loads.

  • Page 15: Troubleshooting

    PowerMax Transformer operation Troubleshooting No lights or operation Be sure PowerMax Transformer is plugged in. Train runs, but WHISTLE/HORN, BELL, and DIRECTION buttons do not work Check track connections. The track must be connected to the “A” and “U” terminals on the Transformer.

  • Page 16: Maintaining And Servicing Your Set Lubricating Your Locomotive

    We recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your Lionel dealer. Two basic rules to keep in mind: never over-lubricate (a small amount will do), and avoid getting grease or oil on the locomotive’s wheels or your track.

  • Page 17: Replacing The Traction Tires

    Maintaining and servicing your set Replacing the traction tires our locomotive is equipped with two traction tires (Lionel part no. 640-8039-206). During the course of normal operations, the traction tires may become worn out. To replace the traction tires, use a 3/16” nut driver to remove the drive rod nut. Slip off the worn tire and position the replacement tire around the wheel.

  • Page 18: Replacing Your Caboose's Lamp

    Maintaining and servicing your set Replacing your caboose's lamp our Square Window Caboose is illuminated by one lamp, Lionel part no. 600-0057-300. During the course of normal operations, the lamp may require replacement. Follow these steps and refer to Figure 9 as you replace the lamp.

  • Page 19: Operating Your Christmas Music Refrigerator Car

    Maintaining and servicing your set Operating your Christmas Music Refrigerator Car our Christmas Music Refrigerator Car requires one nine-volt alkaline battery. To install the battery (not included), simply pull away the sides of the body and lift it off the frame. Attach the battery harness to the battery, then slide the battery into the holder.

  • Page 20: Limited Warranty/Lionel Service

    (requires proof of purchase from the Lionel Authorized Retailer* it was originally purchased). Any products on which warranty service is sought must be sent freight or postage prepaid (Lionel will refuse any package when postage is due). Transportation and shipping charges are not covered as part of this warranty.
