AGPtek M07 Manual
Hide thumbs Also See for M07:

Advertisement

Quick Links

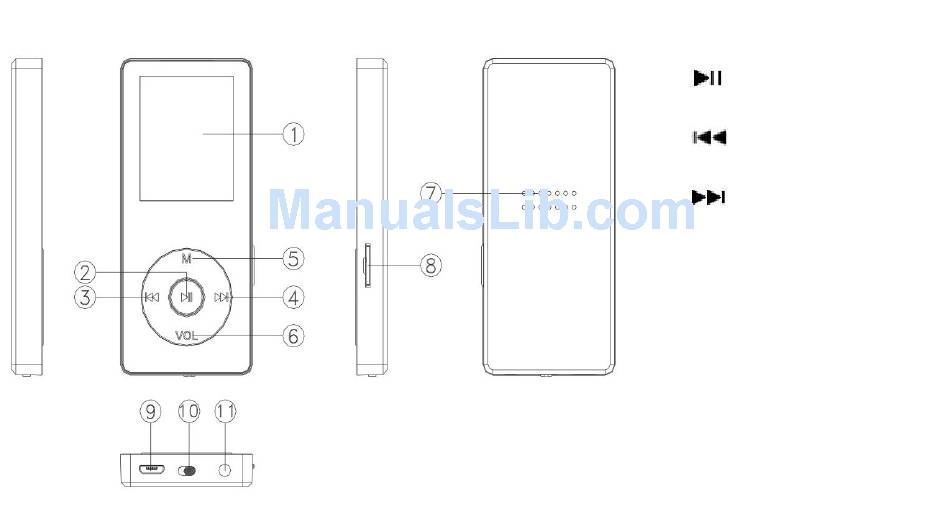

Parts and controls

1. Display screen
2. "
":Play/Pause/Select
ion button
3. "
": Previous/Fast
backward
4. "
": Next/Fast
forward
5. "M": Menu
button/VOL+ button
6. "VOL": Volume/Return
button /VOL- button
7. Speaker hole
8. TF card slot
9. USB port
10. Power on/off button
11. Earphone port

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M07 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AGPtek M07

  • Page 1 Parts and controls 1. Display screen 2. “ ”:Play/Pause/Select ion button 3. “ ”: Previous/Fast backward 4. “ ”: Next/Fast forward 5. “M”: Menu button/VOL+ button 6. “VOL”: Volume/Return button /VOL- button 7. Speaker hole 8. TF card slot 9. USB port 10.
  • Page 2 Charge the Player Use 5V/300mAh charger for charging. Plug one end of the micro USB cable into the USB port of a computer, the other end to the port on your device. While it is fully charged, disconnect the cable from your device by pulling it straight outward.
  • Page 3 Note: 1) Please put the power button to “Off” position if you won’t use it for a long time. 2)The player will power off automatically if inactive and no applications operate on backstage for 1 min. And it will still work on backstage for 30 seconds under “screensaver”...
  • Page 4 While it’s on the main interface, press button “ ” to enter. Submenu While it’s on music playing interface, press the button “M” to access to the submenu. Then a related list will show, including “Home”, “Shuffle”, “Repeat”, “Bookmarks”, “Play music from…”, “Equalizer”, “Variable Speed Playback”, “Sleep timer”, “Delete”, “Add to playlist”...
  • Page 5 Rewind/Forward/VOL While it’s on music playing interface Hold the button “ ” to fast forward, short press to next music file; hold the button “ ” to rewind, short press to the previous song files. Tap the button “ ” for playing/pause.
  • Page 6 mark, Page select. Recordings There are 5 options available for you: Start voice recording, Storage, Recordings library, Record format, Record settings. Record format: MP3/WAV/ACT Rec Record settings > “VOR(Voice Operated Recording)” Settings There are 10 different items for you to choose in this section, including: Play mode, Sound settings, Sleep timer, Display settings, Date and time, Language, Information, Format device, Factory settings, Create playlist.
  • Page 7 Please check whether the battery has been run out, maybe you can connect the player with computer and try again after charging. ● Can’t hear the sound -Please check if the volume is set to zero -Check that the headset is inserted correctly. ●...
  • Page 8 Screen 1.8" OLED screen Size 94*38*9mm, net weight: 79.2g Capacity 8 GB; support up to 32 GB micro SD card(SD card not included) Case Full zinc alloy case Playing time 12 hours by earphone, 3.5 hours by loudspeaker Charging time 1.5 hours Standby time 520 days...
