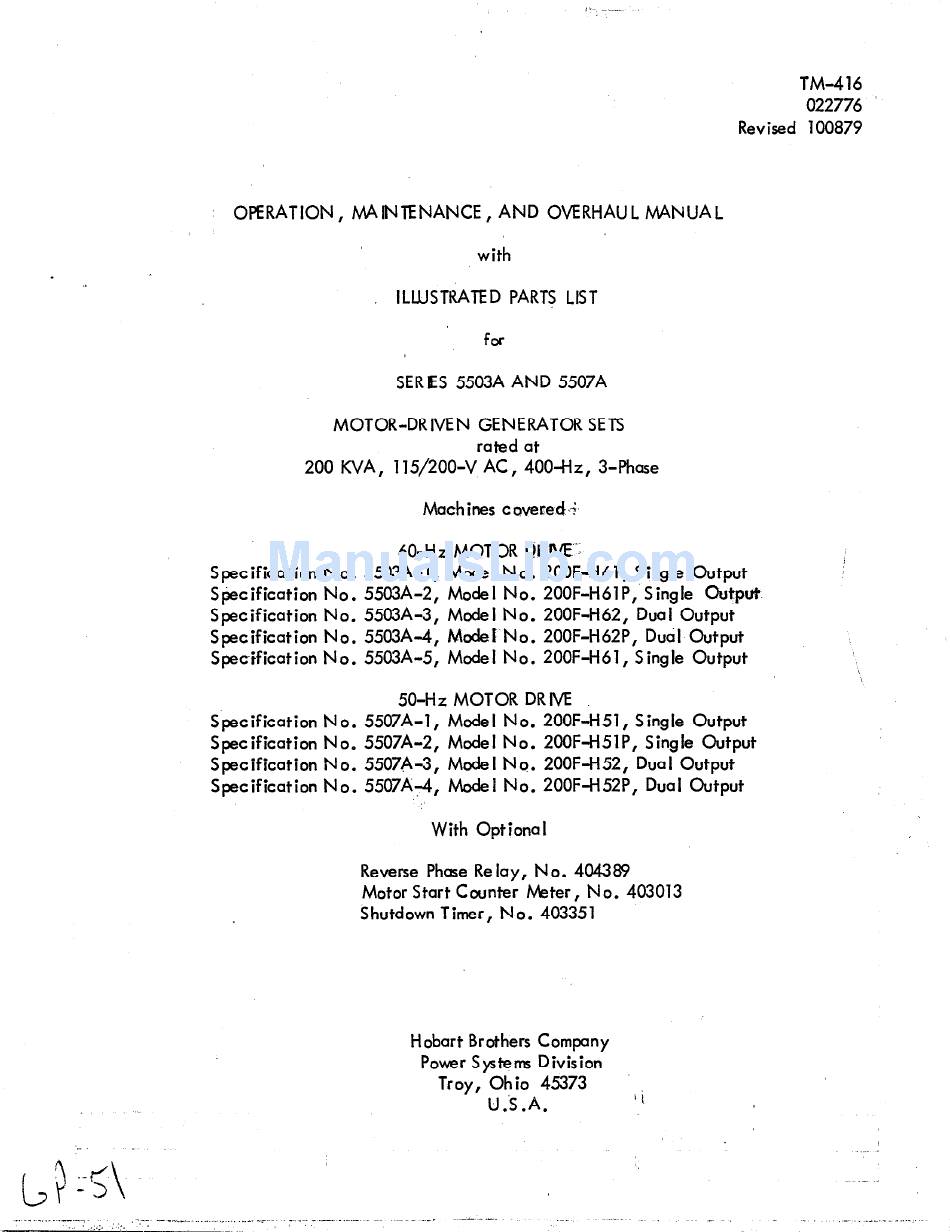

Hobart TM416 Operation And Maintenance Instruction Manual

TM-416
022776
Revised 100879
OPERATION, MAINTENANCE, AND OVERHAULMANUAL
with
. ILLUSTRATED PARTS LIST
for
SERIES 5503A AND 5507A
MOTOR-DRIVEN GENERATOR SETS
rated at
200 KVA, 115/200-V AC, 4OO+lz, 3-Phase
Machines c avered.+
60-Hz MOTOR DKIVE-;
Specification No. 5503A-1, Model No. 200F-H61, Single Output
Specification No. 5503A-2, Model No. 200F-H61P, Single Output.
Specification No. 5503A-3, Model No. 200F-H62, Dual Output
Specification No. 5503A-4, Model No. 200F-H62P, Dual Output
Specification No. 5503A-5, Model No. 2OOF-H61, Single Output
5031~ MOTOR DRIVE
Specification No. 5507A-1, Model No. 200F-H51, Single Output
Specification No. 5507A-2, Model No. 2OOF-H51P, Single Output
Specification No. 5507A-3, Made1 Na. 2OOF-H52, Dual Output
Specification No. 5507A-4, Model No. 2OOF-H52P, Dual Output
.'
With Opt iona I
Reverse Phase Re lay, No. 404389
Motor Start Counter kter, No. 403013
Shutdown Timer, No. 403351
Hobart Brothers Company
Power Systems Division
Troy, Ohio 45373
U.S.A.
Ii
