Blood glucose monitoring system
ENG
User's GUide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MICRO and is the answer not in the manual?

Questions and answers

Related Manuals for 2in1 MICRO

Summary of Contents for 2in1 MICRO

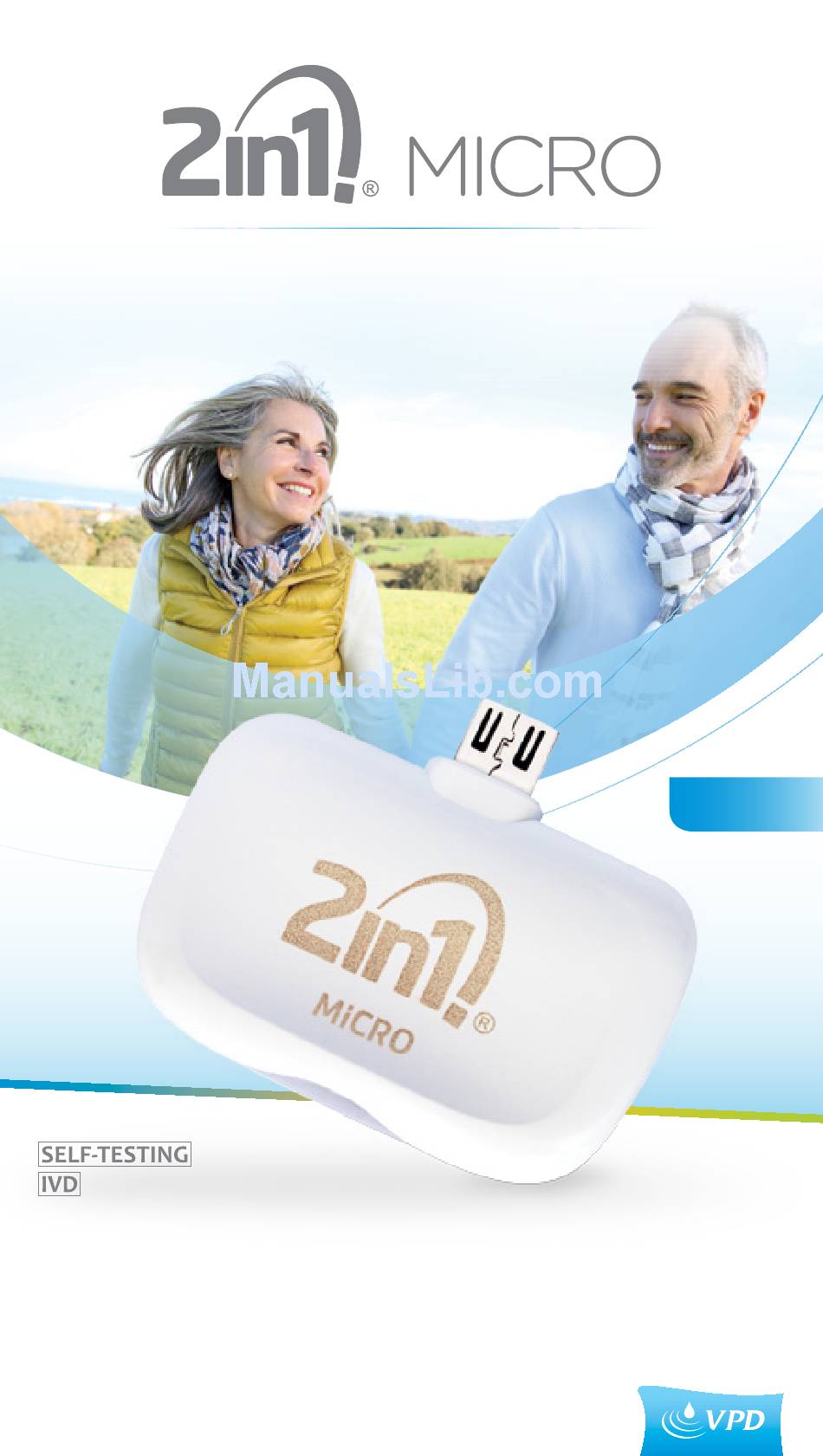

  • Page 1 Blood glucose monitoring system User’s GUide...
  • Page 2 Thank you for choosing the 2in1. MICRO System. Please read this User’s Guide carefully before using to ensure correct use. Please keep this User’s Guide for your future reference.
  • Page 3 2in1. MICRO System combined with a Features smart phone can be used to measure blood glucose anywhere and anytime. 2in1. MICRO system is easy and The 2in1. MICRO System uses the intuitive with smart phone. operation system of your Android...

  • Page 4: Table Of Contents

    Table of Contents Before starting Before Starting Symbols About 2in1. MICRO System Caution, see instructions for use Name and Funtion of the Parts Single use only Cautions Expiration date Installing the Application Serial number Obtaining Blood Drop Lot number About Alternate Site Testing...

  • Page 5: Before Starting

    The 2in1. MICRO System is for self testing glucose concentration in the sample outside the body (in vitro diagnostic is calculated based on the electrical useonly) by people with diabetes current and displayed.

  • Page 6: About 2In1. Micro System

    2in1. MICRO System includes: 2in1. MICRO meter 1. 2in1. MICRO Meter 2. Carrying Case 3. Lancing Device 4. 2in1. Blood Glucose Test Strips 5. Lancets Documents in your system include this USER’S GUIDE and QUICK GUIDE.If any items are missing, call your local distributor.
  • Page 7 Names and Functions of the Parts Names and Functions of the Parts 2in1. Test Strips Lancing Device Adjustable cap Clear AST cap Lancet ejector Sample Tip Apply the blood sample to the end of the test strip. Release button Electrodes...

  • Page 8: Cautions

    • Do not use the 2in1. MICRO system for any purpose other than blood glucose testing. • Before using the 2in1. MICRO system, read all instructions in this User’s guide and the test strip insert...
  • Page 9 Cautions Cautions Cautions for Test Strip • With clean, dry hands, you may touch the test strip anywhere when removing it from the vial or • Store the test strip in a cool, dry inserting it into the meter. place between 2° and 32°C (36° •...

  • Page 10: Installing The Application

    Cautions installing the Application • Avoid the meter being exposed to high temperature, high humidity, The 2in1. MICRO system may only be rain and/or dust when using or used with the 2in1. MICRO application. storing the meter. • If your meter has been exposed to The 2in1.

  • Page 11: Obtaining Blood Drop

    Obtaining Blood Drop Obtaining Blood drop STEP 3 STEP 1 Wash your hands carefully with warm While holding the lancet carrier, insert a new sterile lancet into the bottom of water to increase the circulation of lancet carrier. the blood into the fingers. Dry hands thoroughly until the finger to be pricked is completely dry.
  • Page 12 Obtaining Blood Drop Obtaining Blood Drop STEP 7 Set the proper depth of penetration by STEP 5 rotating the cap of lancing device. 1-2 Put the cap of the lancing device back for soft or thin skin, 3 for average skin, on and turn it clockwise.

  • Page 13: About Alternate Site Testing

    Obtaining Blood Drop About Alternate site Testing CAUTION The 2in1. MICRO meter lets you To reduce the chance of infection: obtain a blood sample from your • Make sure to wash the puncture Upper arm, Forearm, Hand, Thigh or site with soap and water before Calf.
  • Page 14 About Alternate Site Testing About Alternate Site Testing CAUTION Obtaining a blood sample from alternate sites is different than getting a sample from fingertips. Do not test on alternate sites: • When you think your blood glucose level is changing rapidly, such as within two hours of exercise, a rapidacting insulin injection or insulin pump bolus or...

  • Page 15: Testing Your Blood Glucose

    About Alternate Site Testing Testing Your Blood Glucose STEP 1 Tap the 2in1. MICRO icon on your smartphone to open the application. If the 2in1. MICRO application is not installed, install the application (See page 19). Place the lancing device on the skin...
  • Page 16 Testing Your Blood Glucose Testing Your Blood Glucose STEP 2 STEP 3 Plug the 2in1. MICRO meter into the Hold the test strip with electrode end USB jack of your smart phone. The facing up. Insert the electrode end of...
  • Page 17 Testing Your Blood Glucose Testing Your Blood Glucose STEP 5 STEP 4 Bring tip of the test strip to lightly “Apply Sample” will appear letting you touch the drop of blood. Blood is know the meter is ready to test. To automatically pulled into the test strip.
  • Page 18 Testing Your Blood Glucose Testing Your Blood Glucose IMPORTANT STEP 6 The application will now show counting progress during 5 seconds. The volume of blood sample must beat least 0.5 microliter (real size ” “). STEP 7 Your blood glucose test result is shown on the display screen and automatically stored in your smart phone.
  • Page 19 Testing Your Blood Glucose Testing Your Blood Glucose CAUTION CAUTION • If your test is above 600 mg/ Used test strips dL (33.3 mmol/L), “HIGH” will and lancets appear on the display screen. maybe considered • If your test result is lower than 10 biohazardous waste mg/dL (0.6 mmol/L), “LOW”...
  • Page 20 Testing Your Blood Glucose Testing Your Blood Glucose Range of expected results Blood glucose levels will vary 2in1. control solution contains a known dependingon food intake, medication amount of glucose and is used to dosages, health, stress or exercise. check that the meter and the test Consult your healthcare professional strips are working properly.

  • Page 21: Control Solution Testing

    Control Solution Testing Control Solution Testing STEP 1 Tap the 2in1. MICRO icon on your smart phone to open the application. If the 2in1. MICRO application is not installed, install the application (See page 19). STEP 2 Plug the 2in1. MICRO meter into the USB jack of your smart phone.
  • Page 22 Control Solution Testing Control Solution Testing STEP 3 STEP 4 Hold the test strip with electrode end “Apply Sample” will appear letting you facing up. Insert the electrode end of know the meter is ready to test. Slide the test strip into the meter as far as it the screen, and the picture of control will go using gentle pressure.
  • Page 23 Control Solution Testing Control Solution Testing STEP 6 The application will now show counting progress during 5 seconds. STEP 7 Your control solution test result is show non the display screen and automatically stored in your smart phone. STEP 5 Shake the control solution vial and remove the cap.
  • Page 24 Control Solution Testing Control Solution Testing Out of range results may be caused by: • not following the instructions on this Control Test Range USER’S GUIDE, 80-120mg/dL • expired, contaminated or watereddown control solution, • expired or damaged test strip, •...

  • Page 25: Reviewing Results

    Reviewing Results reviewing results The test results measured by 2in1. MICRO system are stored in the smart phone. You can review your test results whether or not your 2in1. MICRO meter is connected to the smart phone. STEP 2 Touching each of these results on a list shows a detailed information of that result.

  • Page 26: Troubleshooting

    Meter does not enter the test mode after inserting 2in1. test strip. Meter does not enter the test mode Probable cause What to do after inserting 2in1. MICRO meter. Insert the test strip Probable cause What to do Test strip is inserted...

  • Page 27: Caring For System

    Caring for System Caring for system CAUTION Storing your system • Do not use the strips or control solution after the expiration Store your meter, strips and control date printed on the vial or the solution in your carrying case after discard date (date first opened each use.

  • Page 28: Performance Characteristics

    To clean your meter, wipe the outside with a soft cloth dampened with water and mild detergent. Do not use alcohol The accuracy of the 2in1. MICRO or another solvent to clean your meter. Blood Glucose Monitoring System was Do not get any liquids, dirt, dust,...

  • Page 29: Specifications

    Performance Characteristics specifications Regression statistics Model PG110 (2in1. MICRO Slope 0.987 Blood Glucose Intercept 0.469 mg/dL Monitoring System) 0.989 Test Method Electrochemical No. of samples sensor Calibration Method Plasma Range tested 35.6~422.4 mg/dL Sample Whole blood, Within run precision capillary (100 venous blood tests per glucose level) 0.5 μL...
  • Page 30 The meter has been tested for VPD, Bled, d.o.o. warrants that your immunity to electro static discharge 2in1. MICRO meter will be free of as specified in IEC 61000-4-2. The defects in materials and workmanship meter has been tested for immunity...
  • Page 31 Bled, d.o.o. Pot na Lisice 4, 4260 Bled Slovenia, EU tel.: +386 4 574 50 70 fax: +386 4 574 50 71 email: info@vpd.si web: www.2in1.si PRiNTEd iN SLOvENiA Edition date and last revision date: 2IN1. MICRO_ED2016_REV01_EN...
