Please read and follow all of the instructions & safety precautions detailed below prior to using this product. Failure to
Do not expose this product to heat sources (including open flame or direct sunlight)
Do not expose this product to water or liquids. If liquid enters the product, immediately unplug the product from
any connected power sources or devices.
Do not disassemble or modify the product
Avoid dropping this product (or any other heavy impact which might damage the internal circuit)
In the unlikely event of any abnormalities (such as strange odor, overheating, leaking, color change,
etc.),discontinue use immediately.
Avoid cleaning this product using liquids or chemical substances (use dry cloth only)
Only use attachments/accessories specified by the manufacturer
Dispose of this item properly (do not dispose of it in trash receptacles and do not attempt to incinerate it)
Do not leave this product unattended while it is in use or while it is being charged
This product is not a toy: KEEP AWAY FROM CHILDREN
Do not use this product while it is being charged

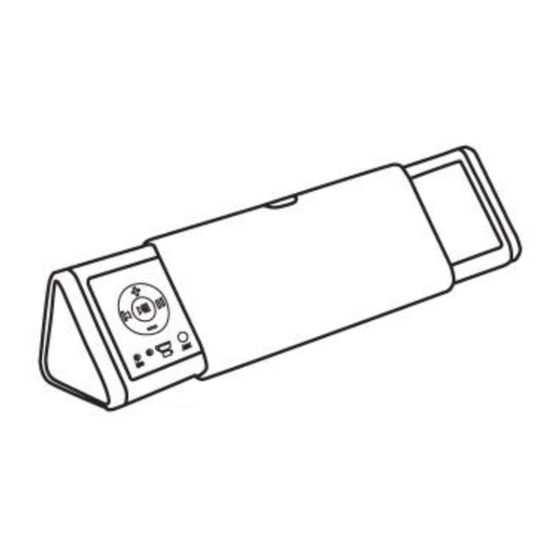

The T1016 Summit is a modern Bluetooth audio device with a "hydraulic" speaker function & stereo sound output.
T1016 Summit Specifications
Battery Type: Lithium Polymer
Battery Duration/Lifespan: 400 times
Capacity: 1,100 mAh
Power Input & Current: 3.7V/1A
Sound Output: 3W x 2 speakers
Sensitivity: 60 dB (per speaker)
Frequency Response: 100 Hz - 20K Hz
Distortion Rate: 10% 1KHz @ 0dB
Bluetooth Version: V3.0 + EDR
Range of Bluetooth Communication: 10 M
Charge Time (0-100%): 3.5 hrs
Playback Time: up to 10 hrs
Accessories: Micro USB/USB charging cable, 3.5mm audio cable & a travel pouch
Product Size: 160mm (W) x 72mm (D) x 67mm (H) ** 258mm (W) when open
Net Weight: 335g
do so may result in serious personal injury and / or property damage.
WARNING
Safety Precautions
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the T1016 and is the answer not in the manual?

Questions and answers

Summary of Contents for Spector&Co T1016

  • Page 1 This product is not a toy: KEEP AWAY FROM CHILDREN Do not use this product while it is being charged The T1016 Summit is a modern Bluetooth audio device with a “hydraulic” speaker function & stereo sound output. T1016 Summit Specifications...
  • Page 2 T1016 Summit Product Map Operation 1. To turn on the T1016 Summit, first press the button at the top (center) of the unit – the speaker will elongate (hydraulic function) & will automatically be ready for Bluetooth pairing 2. To turn off the speaker, push on both sides of the speaker to until it locks back into place Bluetooth Mode 1.
  • Page 3 6. Charging the T1016 Summit a. Insert the micro USB tip of the charging cable into the speaker & connect USB output to a power source b. Red LED light indicates the speaker is in charging mode. LED light will turn BLUE when speaker is fully...
  • Page 4 Ce produit n’est pas un jouet: LE GARDER HORS DE LA PORTÉE DES ENFANTS. Ne pas utiliser le produit lorsqu’il est en cours de chargement. Le Summit T1016 est un dispositif audio Bluetooth moderne doté d’une fonction « hydraulique » dans le haut-parleur et d’une sortie de son stéréo.
  • Page 5 NOTE : Après terminer l’appel le T1016 retournera à son statut précédent. En mode AUX 4. Connecter le câble de 3.5mm de la prise audio au T1016 et au dispositif audio NOTE : la lumière LED bleue continuera à clignoter en mode AUX.
  • Page 6 6. Contrôle du volume : peut s’effectuer depuis le haut-parleur ou directement du dispositif audio. NOTE : Après terminer l’appel le T1016 retournera à son statut précédent. 6. Chargement du Summit T1016 Insérez l’extrémité micro USB du câble de chargement dans le haut-parleur et connectez la sortie USB à une source d’énergie.
  • Page 7 Este producto no es un juguete: MANTENERLO FUERA DEL ALCANCE DE LOS NIÑOS. No utilizar el producto mientras se está cargando. El Summit T1016 es un dispositivo audio Bluetooth moderno con función “hidráulica” en el parlante y con salida de soniso estéreo.
  • Page 8 NOTA: Después de terminar la llamada el T1016 volverá a su estatus anterior. En modo AUX 7. Conectar el cable de 3.5mm de la toma audio al T1016 y al dispositivo audio NOTA: la luz LED azul seguirá parpadeando en modo AUX.
  • Page 9 9. Control del volumen: puede hacerse desde el parlante o directamente desde el dispositivo audio. NOTA: Después de terminar la llamada el T1016 volverá a su estatus anterior. 6. Para cargar el Summit T1016 Insertar la extremidad micro USB del cable de carga en el parlante y conectar la salida USB a una fuente de energía.
