Philips Consumer Lifestyle
Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
- Colour
- Power consumption
- Maximum Air displacement : 39 l/s
- Vacuum
- Duststorage capacity
- Cord length
- Fiter system
- Net weight
Published by Philips Consumer Lifestyle
09/03
: Pearl Beige/Vivid Green
: 1250 W (IEC) 230 V
: 28 kPa
: 3 L
: 8 m
: Classic S-Baglong
performance
: 3 layer permanent motor
protection filter
: Ultra clean air washable
HEPA13 exhaust filter
: 7.5 kg
Printed in the Netherlands

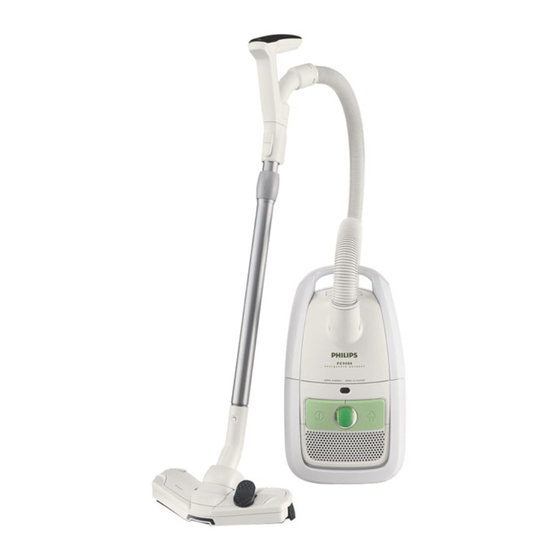

Vacuum cleaner
ACCESSORIES
- Nozzle
: Tri-Active all purpose nozzle
- Additional Nozzle
: Super Parquet nozzle
- Tubes
: Metal lacquered telescopic tube
- Handgrip
: Ergonomic handgrip
- Accessories
: Brush, crevice nozzle and
small nozzle
- Accessory storage
: Active accessory holder in tube
- Coupling
: Button coupling
OPTIONAL (accessories)
- FC8021 : S-bag Classic
- FC8022 : S-bag Clinic
- FC8023 : S-bag Anti-Odour
- FC8038 : Ultra clean air washable HEPA13 exhaust filter
© Copyright reserved
FC9088
Subject to modification
Advertisement
Table of Contents
Related Manuals for Philips FC9088
Summary of Contents for Philips FC9088
-
Page 1: Vacuum Cleaner
- FC8038 : Ultra clean air washable HEPA13 exhaust filter : 3 layer permanent motor protection filter : Ultra clean air washable HEPA13 exhaust filter - Net weight : 7.5 kg Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification 09/03... - Page 2 DISASSEMBLY- AND RE-ASSEMBLY ADVISE FC9088 - To open the appliance, first remove the exhaust filter cover - To be able to remove the upper housing the cord outlet and filter. must be removed using a screwdriver in the lower section (see picture).
- Page 3 Description Service code Description 4222 459 45586 Hinge pin 4222 459 45607 Silencer 4 4222 459 45637 Dustcover assy FC9088 Beige 4222 459 45608 Motor bracket 4222 459 45583 Dustbag detector incl. spring 4322 001 73450 Buffer back 4222 459 45578...
- Page 4 EXPLODED VIEW FC9088...
- Page 5 EXPLODED VIEW FC9088 Black Black White Brown...
- Page 6 EXPLODED VIEW FC9088 39, 40 Black Black Brown White...
- Page 7 EXPLODED VIEW FC9088 Europe Ø 4.8mm Swiss...
