DCE 5204AV-MR/K User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VDSL Router
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5204AV-MR/K and is the answer not in the manual?

Questions and answers

Related Manuals for DCE 5204AV-MR/K

Summary of Contents for DCE 5204AV-MR/K

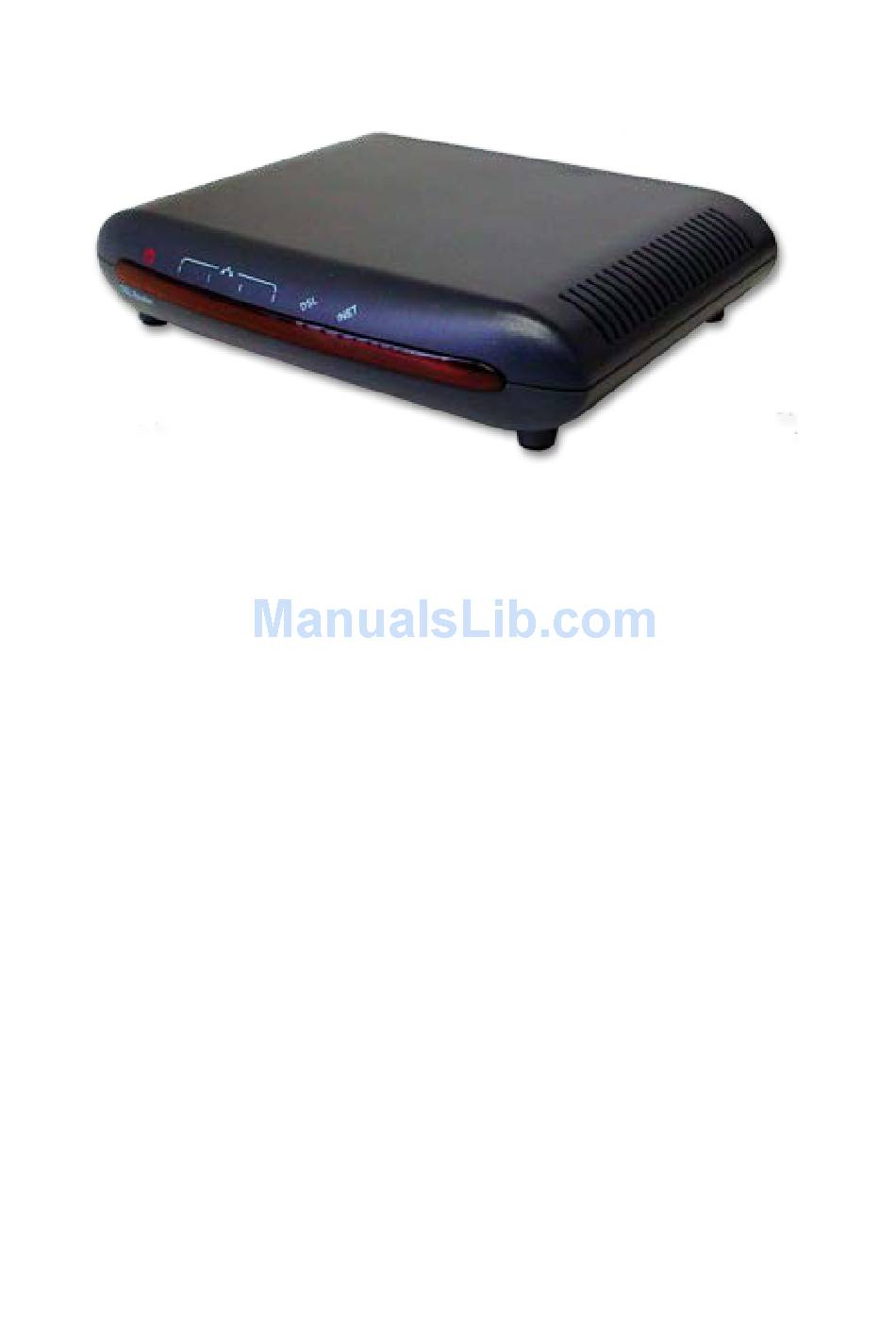

  • Page 1 VDSL Router User Manual...
  • Page 2 VDSL2 Router User Manual NOTICE This document contains proprietary information protected by copyright, and this Manual and all the accompanying hardware, software, and documentation are copyrighted. All rights are reserved. No part of this document may be photocopied or reproduced by mechanical, electronic, or other means in any form.

  • Page 3: Table Of Contents

    VDSL2 Router User Manual Content OVERVIEW ..........................2 ........................... 2 EATURES ......................4 ACKET ONTENTS ..................... 4 YSTEM EQUIREMENTS ......................5 ACTORY EFAULTS ....................5 ARNINGS AND AUTIONS 2 HARDWARE DESCRIPTION ....................6 HARDWARE INSTALLATION ....................8 PC CONFIGURATION GUIDE ..................... 9 PC C 95, 98, ME, XP ...........

  • Page 4: Overview

    VDSL2 Router User Manual 1 Overview Thank you for choosing our product. The is a VDSL router combining a VDSL modem a 4-port switch in one unit, bringing high-speed Internet connection to a home or office. Features 1.1.1 Data Rate ...
  • Page 5 VDSL2 Router User Manual  IGMP Proxy  Simple Network Time Protocol (SNTP)  VPN pass-through (IPSec/PPTP/L2TP)  Parent control 1.1.4 ATM Capabilities  RFC 1483 Multi-protocol over ATM “Bridged Ethernet” compliant  RFC 2364 PPP over ATM compliant  RFC 2516 PPP over Ethernet compliant ...

  • Page 6: Packet Contents

    VDSL2 Router User Manual  Firmware upgradeable for future feature enhancement 1.1.7 Operating System Support  WINDOWS 98  WINDOWS 98 SE  WINDOWS ME  WINDOWS 2000 WINDOWS XP   WINDOWS VISTA  WINDOWS 7  Macintosh  LINUX 1.1.8 Environmental...

  • Page 7: Factory Defaults

    VDSL2 Router User Manual  One or more computers, each contains an Ethernet 10/100M Base-T network interface card (NIC).  A hub or switch, if you are connecting the device to more than one computer.  For system configuration using the supplied web-based program: A web browser such as Internet Explorer v5.0 or later, or Netscape v4.7 or later.

  • Page 8: Hardware Description

    VDSL2 Router User Manual 2 Hardware Description Front Panel Color Function On: Power on POWER Green Off: No power On: ETH link established and active via ETH port ETH1,2,3,4 Green Blinking: DSL data activity occurs Off: No ETH link via ETH port On: DSL link established and active Green Quick Blinking: DSL is trying to establish a connection...
  • Page 9 VDSL2 Router User Manual Rear panel Port Function Connect the device to an DSL telephone jack or splitter using a RJ-11 telephone cable ETH1,2,3,4 Connect the device to your PC's Ethernet port, or to the uplink port on your hub/switch, using a RJ-45 cable RESET Push it once to restore to factory settings ON/OFF...

  • Page 10: Hardware Installation

    VDSL2 Router User Manual 3 Hardware Installation This chapter shows you how to connect Router. Meanwhile, it introduces the appropriate environment for the Router and installation instructions. Using a telephone line to connect the DSL port of ROUTER to the MODEM port of the splitter, and using a other telephone line connect your telephone to the PHONE port of the splitter, then connect the wall phone jack to the LINE port of the splitter.

  • Page 11: Pc Configuration Guide

    VDSL2 Router User Manual PC Configuration Guide Local PC Configuration in Windows 95, 98, ME, XP 1. In the Windows task bar, click the “Start” button, point to “Settings”, and then click “Control Panel”. 2. Double-click the “Network” icon. 3. On the “Configuration” tab, select the TCP/IP network associated with your network card and then click “Properties”.

  • Page 12: Web-Based Management Guide

    VDSL2 Router User Manual 5 Web-based Management Guide In order to use the web-based management software it will be necessary to use a computer that occupies the same subnet as the Router. The simplest way to do this for many users will be to use DHCP server that is enabled by default on the Router.
  • Page 13 VDSL2 Router User Manual 3. Click WAN Service from the left menu. 4. Click Add to select a layer 2 interface for this service and then click Next. 5. Choose WAN service type, just choose PPPoE for example here. You can enter your own service description here if you want and then click Next.
  • Page 14 VDSL2 Router User Manual 6. Input PPP Username & PPP Password and then click Next. The user interface allows a maximum of 256 characters in the user name and a maximum of 32 characters in the password. PPPoE service name can be blank unless your Internet Service Provider gives you a value to enter.
  • Page 15 VDSL2 Router User Manual Authentication method is default to Auto. It is recommended that you leave the Authentication method in Auto, however, you may select PAP or CHAP if necessary. The default value for MTU (Maximum Transmission Unit) is 1500 for PPPoA and 1492 for PPPoE.
  • Page 16 VDSL2 Router User Manual 8. Get DNS server information from the selected WAN interface or enter static DNS server IP addresses. If only a single PVC with IPoA or static MER protocol is configured, you must enter static DNS server IP addresses. 9.
  • Page 17 VDSL2 Router User Manual 5.2.2 VDSL Setup From home page, you can find Advanced Setup option on the left router configuration page. 1. From Layer2 Interface, click PTM Interface. you can set it up according to the following steps. You Choose Add, or Remove to configure DSL PTM interfaces.
  • Page 18 VDSL2 Router User Manual 5. Choose WAN service type, just choose PPPoE for example here. You can enter your own service description here if you want and then click Next. 6. Input PPP Username & PPP Password and then click Next. The user interface allows a maximum of 256 characters in the user name and a maximum of 32 characters in the password.
  • Page 19 VDSL2 Router User Manual PPPoE service name can be blank unless your Internet Service Provider gives you a value to enter. Authentication method is default to Auto. It is recommended that you leave the Authentication method in Auto, however, you may select PAP or CHAP if necessary.
  • Page 20 VDSL2 Router User Manual 7. Select a preferred wan interface as the system default gateway. 8. Get DNS server information from the selected WAN interface or enter static DNS server IP addresses. If only a single PVC with IPoA or static MER protocol is configured, you must enter static DNS server IP addresses.
  • Page 21 VDSL2 Router User Manual 5.2.3 Router Mode Setup 1. From Advanced Setup, click Layer2 Interface and select ETH Interface. Before you configure ETH WAN interface, you’d better remove all PVC settings from ATM interface. 2. Click Add and you’ll see the following screen. 3.
  • Page 22 VDSL2 Router User Manual From Advanced Setup, click WAN Service to configure a WAN service over the interface you selected. 6. Click Add and you’ll see the following screen. 7. Click Next and you’ll see the following screen. Select PPPoE as WAN service type for example.
  • Page 23 VDSL2 Router User Manual 8. Enter the user name and password that your ISP has provided to you. Click Next.
  • Page 24 VDSL2 Router User Manual PPPoE service name can be blank unless your Internet Service Provider gives you a value to enter. Authentication method is default to Auto. It is recommended that you leave the Authentication method in Auto, however, you may select PAP or CHAP if necessary.
  • Page 25 VDSL2 Router User Manual 10. Get DNS server information from the selected WAN interface or enter static DNS server IP addresses. Click Next. 11. Make sure that the settings below match the settings provided by your ISP. Click on the Apply/Save button to save your configurations and reboot the ADSL router.
  • Page 26 VDSL2 Router User Manual 5.2.4 LAN Settings From LAN, Configure the DSL Router’s IP Address and Subnet Mask for LAN interface. In this page, you can use DHCP (Dynamic Host Configuration Protocol) to control the assignment of IP addresses on your local network (LAN only). Item Description This is the IP address that other devices on your local network...
  • Page 27 VDSL2 Router User Manual IGMP Snooping is a method that actually “snoops” or inspects IGMP traffic on a switch. When enabled, the switch will watch for Enable IGMP IGMP messages passed between a host and a router, and will snooping add the necessary ports to its multicast table, ensuring that only the ports that require a given multicast stream actually receive it.

  • Page 28: Appendix: Frequent Asked Questions

    VDSL2 Router User Manual Appendix: Frequent Asked Questions Q: None of the LEDs are on when you power on the ADSL router? A: Please make sure what you use is the power adaptor attached with the ADSL router package and checks the connection between the AC power and ADSL router.
  • Page 29 VDSL2 Router User Manual Q: PC cannot browse Internet web page? A: Please make sure DNS server appointed to the PC is correct. You can use ping application program to test whether the PC can connect to the DNS server of the ADSL operator.
