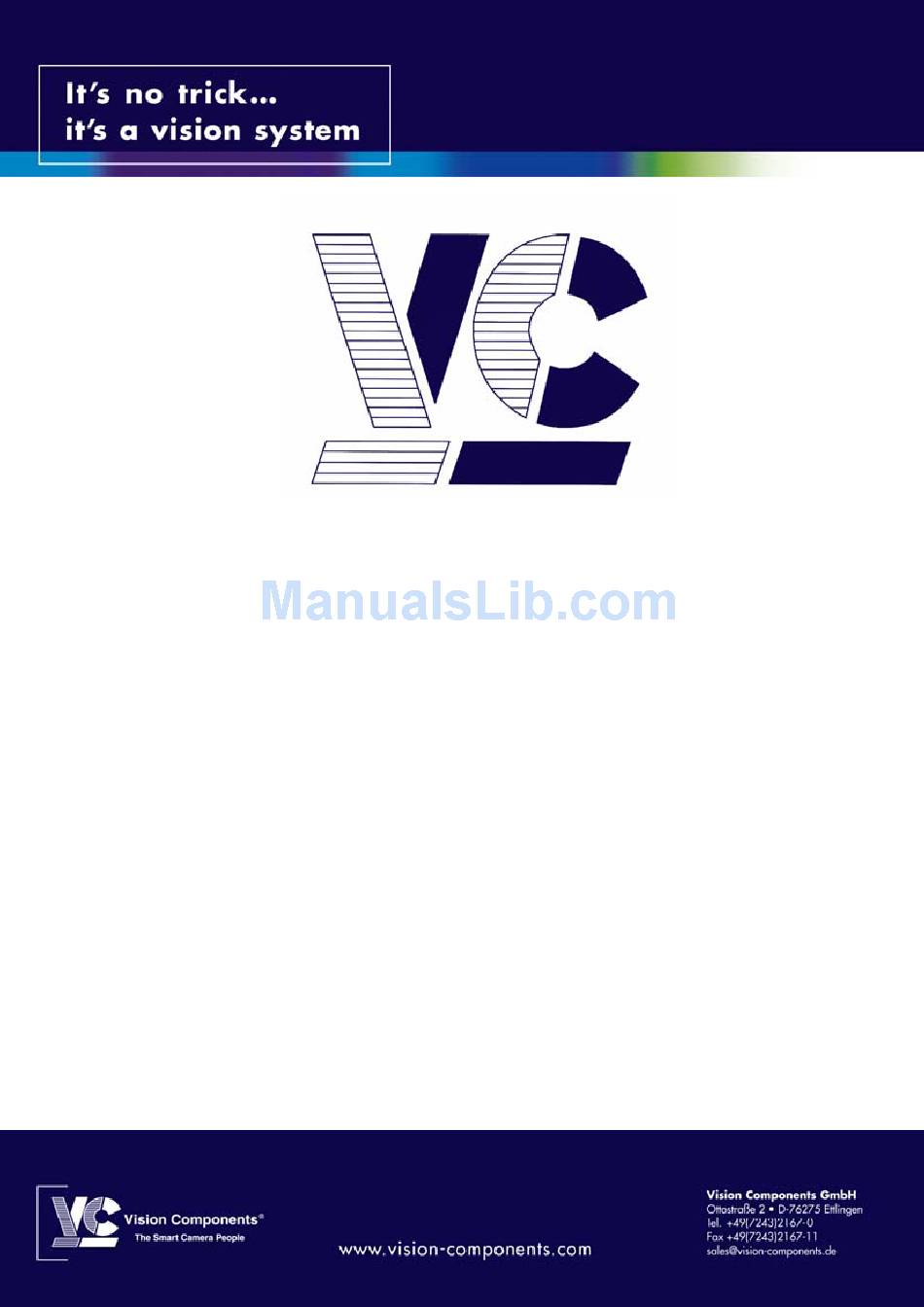

Vision
®
Components
The Smart Camera People
VC20XX Operating Manual
Hardware Specifications and special Software Functions of
VC20XX Smart Cameras
Revision 2.2 October 2007
Document name: VC20XX_HW.pdf
© Vision Components GmbH Ettlingen,
Germany

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VC20 series and is the answer not in the manual?

Questions and answers

Related Manuals for VC VC20 series

Summary of Contents for VC VC20 series

  • Page 1 Vision ® Components The Smart Camera People VC20XX Operating Manual Hardware Specifications and special Software Functions of VC20XX Smart Cameras Revision 2.2 October 2007 Document name: VC20XX_HW.pdf © Vision Components GmbH Ettlingen, Germany...
  • Page 2 VC20XX cameras can be used for this camera. Further References under “Support + Download” on www.vision-components.com: „Support News“ – for up to date information on VC Software and Documentation. „Knowledge Base / FAQ“ - searchable Database with latest software developments, frequently asked questions and demo programs.

  • Page 3: Table Of Contents

    VC20XX Operating Manual Table of Contents 1 General Information Overview Camera Types 2 Basic Structure 3 Boards Sensor Boards 3.1.1 C6SEN084 3.1.2 C6SEN204 3.1.3 C6SEN205 3.1.4 C6SEN311 3.1.5 C6SEN415 CPU Board DAC Board Power Board 4 PLC I/O Signals Input Signals Output Signals Trigger input and trigger output 5 Pin Assignments Camera Interfaces...
  • Page 4 Connecting a compatible PC with a 9-pin D sub plug Connecting the Ethernet Cable Connecting the VC keypad Connecting the external trigger Connecting the external trigger and the VC keypad 9 Programming Appendix A: Blockdiagram VC20XX Smart Cameras Appendix B: Housing Dimensions VC20XX Smart Cameras...

  • Page 5: General Information

    VC20XX Operating Manual 1 General Information The VC20xx Series smart cameras are compact, light-weight black-and-white or color video cameras with video memory and an image processor. They integrate a high-resolution CCD sensor with one of the fastest 32 bit image-processing signal processors (TMS320C6211).

  • Page 6: Overview Camera Types

    VC20XX Operating Manual 1.1 Overview Camera Types All VC20XX Cameras contain the following features: 16 MB SDRAM 2 MB Flash Eprom 8 bit overlay (translucent overlay possible) integrated 4 Digital Inputs, 4 Digital Outputs, 24V Texas Instruments CPU TMS 320C62XX; 1200MIPS Low speed shutter up to 10 seconds Programmable gain and offset 24V Power Supply...
  • Page 7 VC20XX Operating Manual VC2038 VC2065 V2065C VC2066 VC2068 VC20XX SELECTION VC2028 VC2048E TABLE VC2038E VC2065E VC2065CE VC2066E VC2068E integrated Fast Trigger contact (external contact) High speed shutter down to 33 microseconds High speed shutter down to 9 or 10 microseconds High speed shutter down to 5 microseconds RS232 up to 115.200 Baud...

  • Page 8: Basic Structure

    VC20XX Operating Manual 2 Basic Structure The image is formed by a high-resolution progressive scan CCD sensor. One or two channels of video output are digitized. An input lookup-table is available for basic pixel-preprocessing. The image is stored in SDRAM memory using one of the 16 DMA channels (EDMA). The video and graphics display on the monitor is performed in a very similar way: Data is stored in the main SDRAM memory, either due to a previous video capture or to computing by the DSP.

  • Page 9: Boards

    VC20XX Operating Manual 3 Boards The electronic circuitry of the camera contains four printed curcuit boards (PCB). The following presents an overview of the boards: Description Designation Function Sensor boards C6SEN084, C6SEN204 CCD sensor, driver & controller, digitization of the video signal, black- C6SEN205, C6SEN311 and-white and color versions C6SEN415...

  • Page 10: C6Sen084

    VC20XX Operating Manual 3.1.1 C6SEN084 This board takes the picture. It is used in the VC2028, VC2038 and VC2038/E The CCD sensor 1/3" SONY ICX424AL (B/W) is used. The board controls the CCD sensor and processes the analog signal. The progressive scan type CCD sensor used is ideally suited for industrial machine vision tasks. In contrast to the conventional technique it provides the following features: •...

  • Page 11: C6Sen205

    VC20XX Operating Manual For the exact setting of the configuration, refer to the description of the configuration program in the software documentation. 3.1.3 C6SEN205 This board takes the picture. It is used in the VC2068 and VC2068/E The CCD sensor ICX205AL (B/W) is used. The board controls the CCD sensor and processes the analog signal.

  • Page 12: C6Sen415

    VC20XX Operating Manual The diverse features of this board (high-speed and low-speed shutter, external trigger, etc.) are configured via software. For the exact setting of the configuration, refer to the description of the configuration program in the software documentation. 3.1.5 C6SEN415 This board takes the picture.

  • Page 13: Dac Board

    2 independent LUTs for graphics and overlay, 8bit overlay mask register • 3x8bit video D/A (SVGA output) • UART and driver for RS232 (Ethernet versions : Ethernet PHY) • UART receiver for VC Keypad (9600 baud) • Trigger In/Out signals • PLC communication interface •...

  • Page 14: Power Board

    VC20XX Operating Manual The technical specifications for the SVGA output signals : Horizontal frequency: 45.072 kHz VBP: 32 lines Vertical frequency: 67.68 Hz VFP: 46 lines Resolution SVGA: 600x800 HSYNC width: 120 pixels Resolution eff. hor.: HBP: 94 pixels Resolution eff. ver.: HFP: 74 pixels VSYNC width:...

  • Page 15: Plc I/O Signals

    VC20XX Operating Manual 4 PLC I/O Signals The camera has four optically decoupled inputs and four decoupled outputs for controlling machines and processes. An I/O processor is responsible for the handling of the PLC I/O signals. The PLC-compatible inputs (24-V level, the positive signal is connected) include input protection circuits.

  • Page 16: Output Signals

    VC20XX Operating Manual 4.2 Output Signals Operating voltage: 24 V +/- 20%, external source Absolute maximum voltage: voltages greater than 40 V can destroy the outputs Type: galvanically separated by MOSFET optocouplers Switching voltage: positive switching Current: max. 400 mA per output Absolute maximum current: total currents greater than 1000 mA can destroy plugs and cables...
  • Page 17 VC20XX Operating Manual Technical data of trigger output: output voltage: max. 7V output current: max. 50mA pull-up resistor: none, external resistor required © 1996-2007 Vision Components GmbH Ettlingen, Germany VC20XX_HW.pdf...

  • Page 18: Pin Assignments Camera Interfaces

    VC20XX Operating Manual Pin Assignments Camera Interfaces The cameras have four connectors on the rear side: RS232(V24) or HR10A-7R-6PB 6-pin Hirose plug pin contact 100MBd Ethernet Trigger / Keypad HR10A-7R-6SB 6-pin Hirose plug jack contact SXGA/SVGA/Video HR10A-10R-10SB 10-pin Hirose plug jack contact DC IN/PLC-I/O HR10A-10R-12PB 12-pin Hirose plug pin contact...

  • Page 19: Pin Assignment For The Rs232 (V24)

    VC20XX Operating Manual 5.3 Pin Assignment for the RS232 (V24) Rear view: (pin) Signal V24 RTS V24 TxD V24 GND NC V24 V24 CTS 5.4 Pin Assignment LAN/Ethernet Rear view: (pin) Signal 5.5 Pin Assignment for the XGA/SVGA Video Output rear view (jack): Signal G GND...

  • Page 20: Technical Specifications Vc20Xx Smart Cameras

    VC20XX Operating Manual 6 Technical Specifications VC20XX Smart Cameras Technical Specifications VC2028 Technical Specifications VC2038 Technical Specifications VC2038/E Technical Specifications VC2048/E Technical Specifications VC2065 TechnicalSpecifications VC2065/E Technical Specifications VC2065/C Technical Specifications VC2065/EC Technical Specifications VC2066 Technical Specifications VC2066/E Technical Specifications VC2068 Technical Specifications VC2068/E 6.1 Technical Specifications VC2028 Sensor:...

  • Page 21: Technical Specifications Vc2038

    VC20XX Operating Manual 6.2 Technical Specifications VC2038 Sensor: 1/3" SONY ICX424AL eff. no. of pixels: 640(H) x 480(V) Pixel size: 7.4(H) x 7.4(V) µm Chip size: 5.79(H) x 4.89(V) mm High-speed shutter: 30,80,... microseconds in steps of 50 microseconds (full- frame shutter) Low-speed shutter: up to 20 sec.

  • Page 22: Technical Specifications Vc2038/E

    VC20XX Operating Manual 6.3 Technical Specifications VC2038/E Sensor: 1/3" SONY ICX424AL eff. no. of pixels: 640(H) x 480(V) Pixel size: 7.4(H) x 7.4(V) µm Chip size: 5.79(H) x 4.89(V) mm High-speed shutter: 30,80,... microseconds in steps of 50 microseconds (full- frame shutter) Low-speed shutter: up to 20 sec.

  • Page 23: Technical Specifications Vc2048/E

    VC20XX Operating Manual 6.4 Technical Specifications VC2048/E Sensor: 1/2" KODAK KAI-0330D eff. no. of pixels: 640(H) x 480(V) Pixel size: 9(H) x 9(V) µm Chip size: 7.3(H) x 5.52(V) mm High-speed shutter: 18,36,72, microseconds in steps of 36 microseconds (full- frame shutter) Low-speed shutter: up to 20 sec.

  • Page 24: Technical Specifications Vc2065

    VC20XX Operating Manual 6.5 Technical Specifications VC2065 Sensor: 1/2" SONY ICX415AL eff. no. of pixels: 782(H) x 582(V) Pixel size: 8.3(H) x 8.3(V) µm Chip size: 7.48(H) x 6.15(V) mm High-speed shutter: 5,10,15,20, microseconds in steps of 40 microseconds (full-frame shutter) Low-speed shutter: up to 20 sec.

  • Page 25: Technical Specifications Vc2065/C

    VC20XX Operating Manual 6.6 Technical Specifications VC2065/C Sensor: 1/2" SONY ICX415AK color sensor eff. no. of pixels: 782(H) x 582(V) Pixel size: 8.3(H) x 8.3(V) µm Chip size: 7.48(H) x 6.15(V) mm High-speed shutter: 5,10,15,20, microseconds in steps of 40 microseconds (full-frame shutter) Low-speed shutter: up to 20 sec.

  • Page 26: Technical Specifications Vc2065/E

    VC20XX Operating Manual Technical Specifications VC2065/E Sensor: 1/2" SONY ICX415AL eff. no. of pixels: 782(H) x 582(V) Pixel size: 8.3(H) x 8.3(V) µm Chip size: 7.48(H) x 6.15(V) mm High-speed shutter: 5,10,15,20, microseconds in steps of 40 microseconds (full-frame shutter) Low-speed shutter: up to 20 sec.

  • Page 27: Technical Specifications Vc2065/Ec

    VC20XX Operating Manual 6.8 Technical Specifications VC2065/EC Sensor: 1/2" SONY ICX415AK color sensor eff. no. of pixels: 782(H) x 582(V) Pixel size: 8.3(H) x 8.3(V) µm Chip size: 7.48(H) x 6.15(V) mm High-speed shutter: 5,10,15,20, microseconds in steps of 40 microseconds (full-frame shutter) Low-speed shutter: up to 20 sec.

  • Page 28: Technical Specifications Vc2066

    VC20XX Operating Manual 6.9 Technical Specifications VC2066 Sensor: 1/3" SONY ICX204AL eff. no. of pixels: 1024(H) x 768(V) Pixel size: 4.65(H) x 4.65(V) µm Chip size: 5.8(H) x 4.92(V) mm High-speed shutter: 10,20,30,45 µsec, then steps of 78 µsec (full-frame shutter) Low-speed shutter: up to 20 sec.

  • Page 29: Technical Specifications Vc2066/E

    VC20XX Operating Manual 6.10 Technical Specifications VC2066/E Sensor: 1/3" SONY ICX204AL eff. no. of pixels: 1024(H) x 768(V) Pixel size: 4.65(H) x 4.65(V) µm Chip size: 5.8(H) x 4.92(V) mm High-speed shutter: 10,20,30,45 microseconds, longer in steps of 78 microseconds (full-frame shutter) Low-speed shutter: up to 20 sec.

  • Page 30: Technical Specifications Vc2068

    VC20XX Operating Manual 6.11 Technical Specifications VC2068 Sensor: 1/2" SONY ICX205AL eff. no. of pixels: 1280(H) x 1024(V) Pixel size: 4.65(H) x 4.65(V) µm Chip size: 7.60mm (H) 6.20mm (V) High-speed shutter: 9,17,26,33, .. µsec, then steps of 69 µsec (full-frame shutter) Low-speed shutter: up to 20 sec.

  • Page 31: Technical Specifications Vc2068/E

    VC20XX Operating Manual 6.12 Technical Specifications VC2068/E Sensor: 1/2" SONY ICX205AL eff. no. of pixels: 1280(H) x 1024(V) Pixel size: 4.65(H) x 4.65(V) µm Chip size: 7.60mm (H) 6.20mm (V) High-speed shutter: 9,17,26,33, .. µsec, then steps of 69 µsec (full-frame shutter) Low-speed shutter: up to 20 sec.

  • Page 32: Accessories

    Power adapter for rail mounting • VC Keypad C6 • Y-cable Please refer to the VC website for the correct order numbers under: “Products -> Hardware -> VC20XX Smart Cameras -> Accessories VC20XX Smart Cameras” 7.1 Trigger Cable Signal Pin Nr.

  • Page 33: Vc20Xx Operating Manual

    VC20XX Operating Manual 7.3 Ethernet patch cable Signal Pin (to cam.) Pin (to PC) Cable Color Cable Color 20m patch cable 10m patch cable yellow white/pink orange pink white/green white/green green green 7.4 Power / PLC Cable Equipped on one end with a Hirose plug jack, length 5m, 10m or 25m 7.5 SVGA Monitor Cable Signal Pin No.

  • Page 34: Power Adapter

    Output Voltage DC 24V +/-5%, max. 300 mA (7.5 W) Equipped with connecting clamps for AC input and 24V output, CE certified 7.8 VC Keypad C6 VC Keypad includes the following keys: 4 cursor keys, Esc, Return, F1, F2 keys TTL version, 3m cable equipped with 6 pin Hirose connector.

  • Page 35: Connecting The Camera

    Connecting the VC keypad • Connecting the external trigger Also consult the “VC20XX Installation Manual” available on the VC Website under: “Support -> Customer Download Area -> Getting Started VC20XX Smart Cameras …” 8.1 Connecting the camera power Power must be connected to the 12pin I/O connector. Note, that the voltage is 24V.

  • Page 36: Shutdown Function For Vc20Xx Smart Cameras

    VC20XX Operating Manual 8.1.2 Shutdown Function for VC20XX Smart Cameras VC20XX Smart Cameras incorporate a circuit to detect and protocol power failures. If the PLC output power supply (12-24V PLC, Pin 1 and 9) of the cameras is interrupted, the system variable “POWFAIL”...

  • Page 37: Connecting The Rs232 Interface

    8.4 Connecting the VC keypad The VC keypad C6 can be connected directly to the Trigger/Keypad ("Trig.") Plug. Please order the 5V version (VC keypad C6) of the keypad. For details see : VC Keypad C6 The RS232 version of the keypad is NOT compatible ©...

  • Page 38: Connecting The External Trigger

    VC20XX Operating Manual see Connecting the external trigger and the VC keypad 8.5 Connecting the external trigger Connect the external trigger input/output directly to the Trigger/Keypad ("Trig.") Plug. Please order "Trigger cable C6". Lengths available are 5m, 10m and 25m...

  • Page 39: Programming

    The following libraries and aids are also available: Real-time operating system for VC cameras with control of video I/O signals, control of serial interface and of PLC I/O signals, file management system for flash EPROM and Multi Media Card.

  • Page 40: Appendix A: Blockdiagram Vc20Xx Smart Cameras

    VC20XX Operating Manual Appendix A: Blockdiagram VC20XX Smart Cameras © 1996-2007 Vision Components GmbH Ettlingen, Germany VC20XX_HW.pdf...

  • Page 41: Appendix B: Housing Dimensions Vc20Xx Smart Cameras

    VC20XX Operating Manual Appendix B: Housing Dimensions VC20XX Smart Cameras The housing of the VC2048 has 15mm deep cooling fins left and right of the camera body, making it 80mm wide. © 1996-2007 Vision Components GmbH Ettlingen, Germany VC20XX_HW.pdf...

  • Page 42: Appendix E: Drawing Camera Head Vc40Xx

    VC20XX Operating Manual Appendix E: Drawing Camera Head VC40XX © 1996-2007 Vision Components GmbH Ettlingen, Germany VC20XX_HW.pdf...

  • Page 43: Appendix C: Spectral Transmission Of Ir Filter

    VC20XX Operating Manual Appendix C: Spectral Transmission of IR Filter Note: This IR cut filter is incorporated in every VC20XX camera. The IR filter can be removed if required without loosing Vision Component’s manufacturers warranty. In this case, special care must be taken not to damage the CCD sensor. If the camera is used without IR filter it is important to replace it by a clear glass filter of the same size.

  • Page 44: Appendix D: Ce Compliance Of Vc20Xx Smart Cameras

    Unfortunately, it is not possible to limit the question of electromagnetic compatibility to just one device or component. The entire system must always be considered. Thus, the accessories such as cables, power supplies, etc., play a significant role for the VC series cameras.
  • Page 45 VC20XX Operating Manual for the manufacturer Vision Components Ottostr. 2 76275 Ettlingen Karlsruhe, 01.11.2003 .......... (legal signature) Enclosures: schematic diagrams mechanical drawings (outside dimensions) Records of tests conducted by the certified test laboratory © 1996-2007 Vision Components GmbH Ettlingen, Germany VC20XX_HW.pdf...
  • Page 46 Overview Serial Interface Connection Plug Assignment Camera Power strcuture Ethernet Cable basic External trigger SVGA External trigger AND keypad Plug Assignment VC Keypad technical specifications CPU Board overview DAC Board Technical Specifications I/O-Plug VC2028 Plug Assignment VC2038 Input Signals VC2038/E...
  • Page 47 VC20XX Operating Manual Trigger Technical Specifications Input VC2066 Output Technical Specifications Plug Assignment VC2066/E VC2028 Technical Specifications Technical Specifications VC2068 VC2038 Technical Specifications Technical Specifications VC2068/E VC2038/E Technical Specifications Technical Specifications Video Output VC2048/E Plug Assignment Technical Specifications Y-cable VC2065/EC Y-Cable ©...
  • Page 48 Trade Show dates VC Publications Sign in for free VC Seminars VC Network Description of Partner Companies Application Overview Party Hard- and SW Products for VC Smart Cameras Products Product Overview: VC Smart Camera Overview VC44XX High End Camera Series...
