Single Surface Units: (Lr, Rr Element) - LG LSE4613ST Service Manual

Components
Single surface units:
Left Rear (LR)
and
Right Rear(RR)
Element

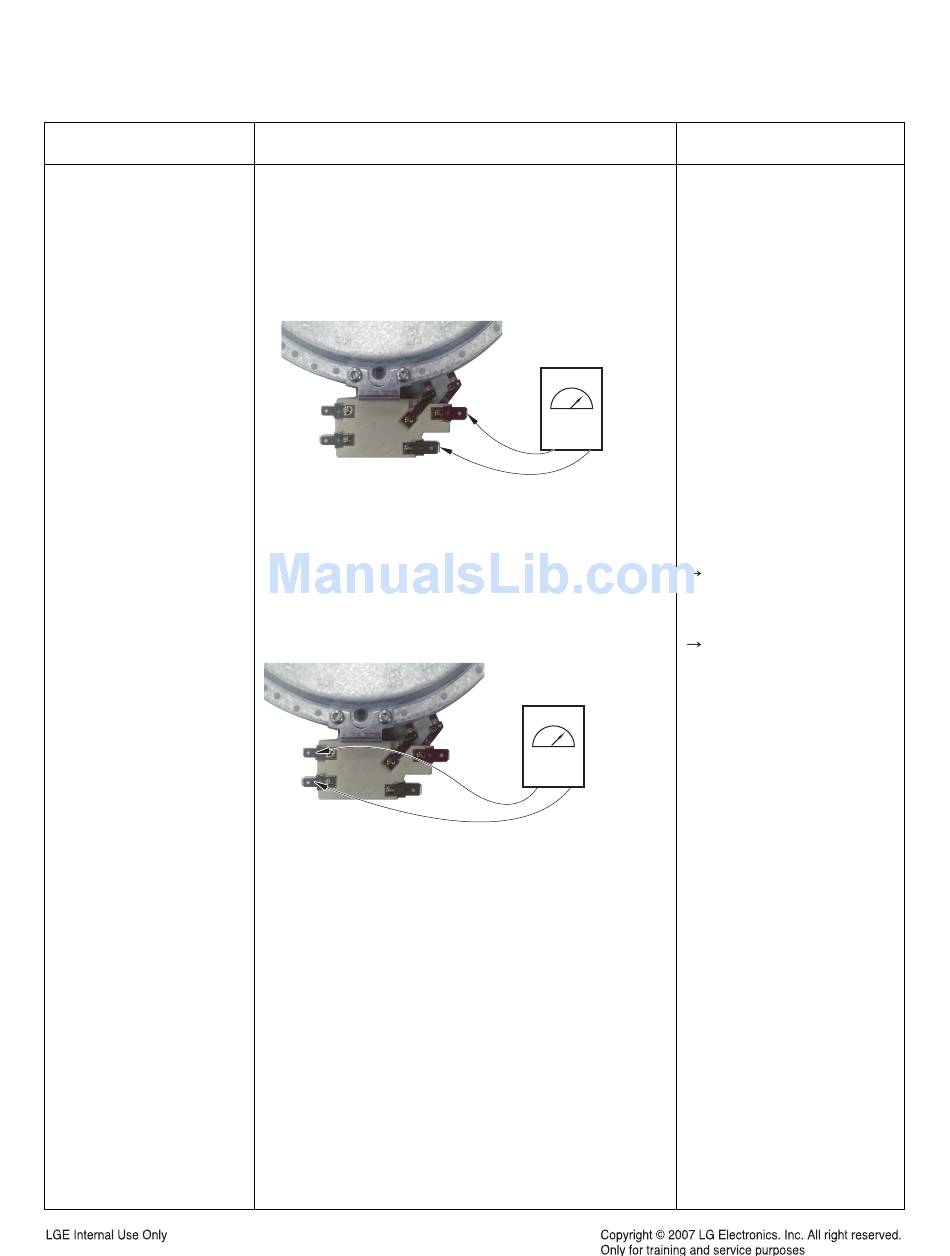

Test procedures
1. Refer to page 3-7 for the servicing procedure
2. Set the Multiple meter scale to the R x 1
3. Disconnect wires from cook-top elements
4. Touch the ohmmeter test leads to the element
terminal 1A and 2A.
The meter should indicate 46 Ω ± 10%
2A
5. Touch the ohmmeter test leads to limiter
terminals 1B and 2B.
With the temperature below 150˚F, the meter
should indicate an open circuit(infinite).
With the temperature above 150˚F, the meter
should indicate continuity (0Ω).
1B
2B
Element Element
terminal terminal
1A
4-7
Results
Normal: Approximately 46 Ω,
If not replace
Below 150˚F
open circuit(infinite).
Above 150˚F
continuity (0 Ω)
