BARIONET
100
Quick Install Guide
Version 2.0
IP Automation Controller with Modbus / TCP and SNMP Support
Package contents
a

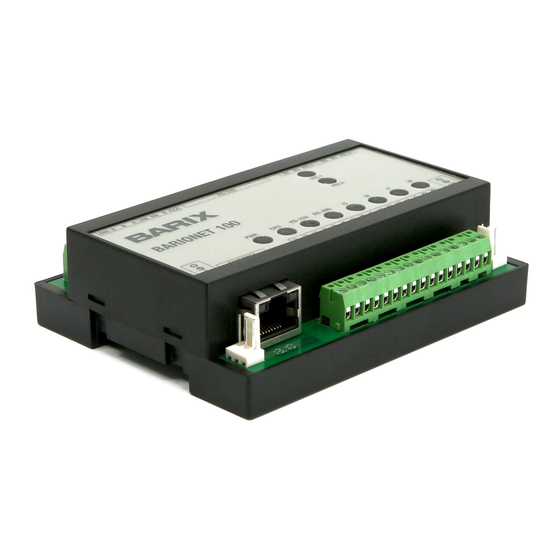

Barionet 100
b
3wire bus cable
Mounting, Wiring and Setup
Slide the device upwards onto the DIN rail. Push it up and towards the rail
until it snaps onto the upper rail edge. For wiring information please refer
to the second page. Before powering the device please read the user
manual available on www.barix.com.
Firmware
This device comes preloaded with standard firmware.
Alternative firmware can be downloaded from www.barix.com.
Support
For support please contact your local dealer or visit www.barix.com.
© Barix AG 3/2013, all rights reserved. All information is subject to change without notice. All mentioned trademarks belong
to their respective owners and are used for reference only. Barix, Exstreamer and SonicIP are trademarks of Barix AG, Switzerland,
and are registered in certain countries.
