3. Starting the camera

• Remove the lens cap
• Switch the unit on by pressing the On/Off button for at least
3 seconds until the display switches on.
• A thermal image will appear on the screen
• The clicking noise is due to the frequent calibration of the
infrared detector.
SKF logo
Operating
status
Hot
spot (H)
and cold
spot (C)
Area
Global
emissivity
Measurement

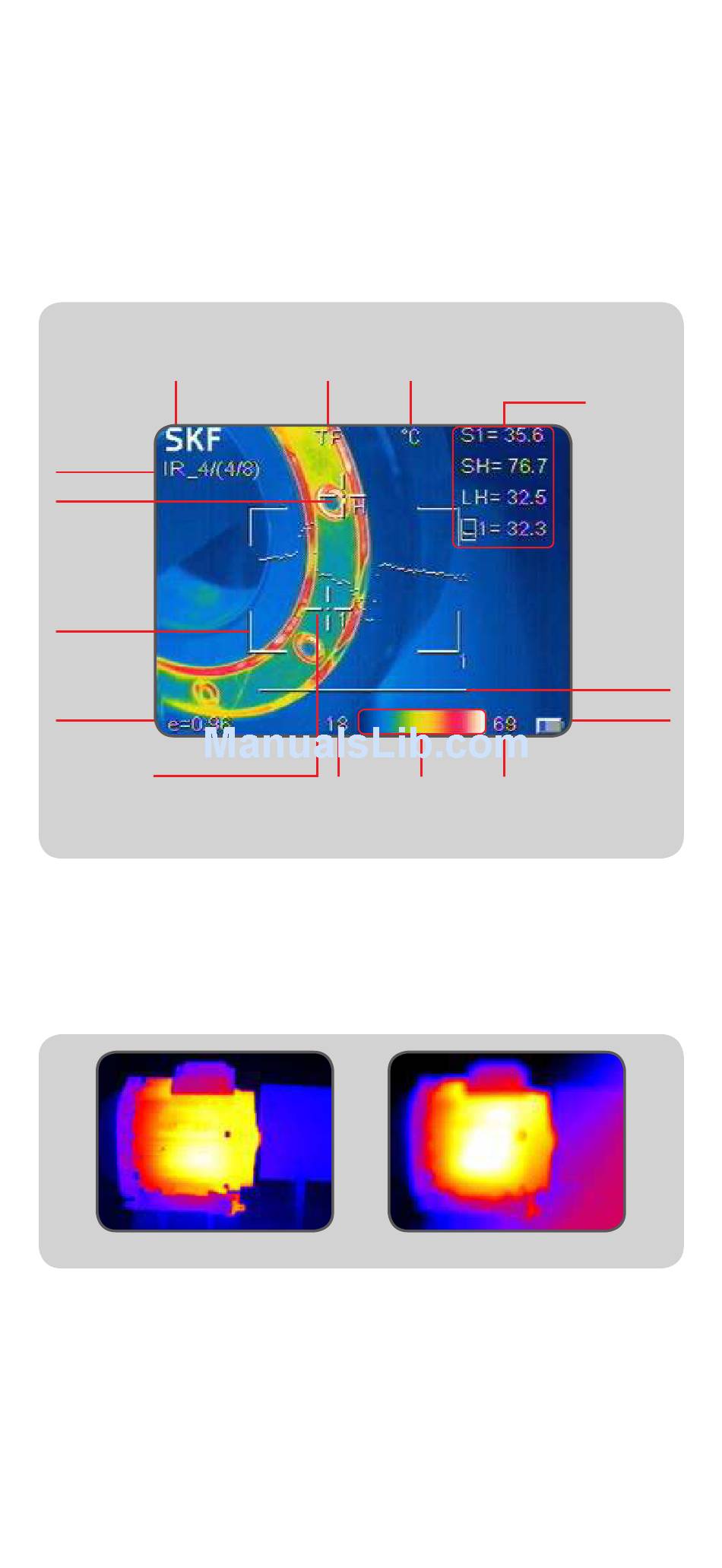

Screen elements
Focus
Adjust the focus by gently rotating the lens in front of the
camera clockwise and anti-clockwise.
SKF TKTI 21 & 31
Memory
card symbol
Span and
cursors Level
Focused
Temperature
unit (°C, °F, K)
Colour Span and
palette Level
Not focused
Temperature
readings
Line
Battery
status
