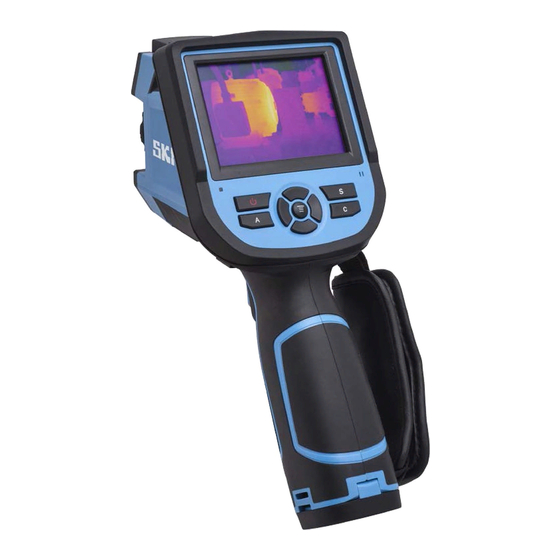

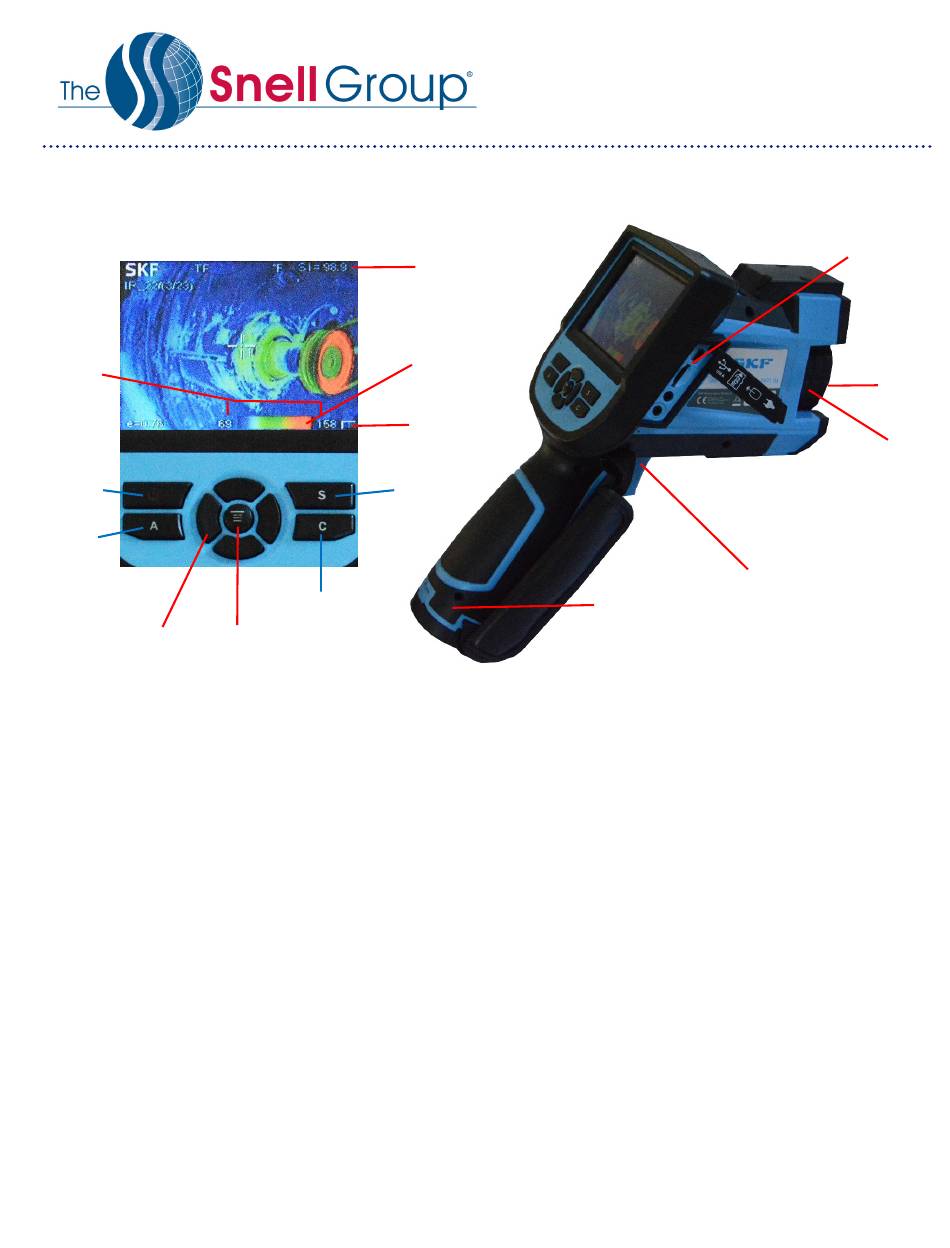

Span & Level
Indicator
POWER
LEVEL/SPAN
/COLOR
Directional
Arrows
1. MEMORY:
Flip open the rubber dust & water cover toward the right side of the camera and install a SD memory
card. The camera will not save and store images without this memory card installed.
2. POWER:
Insert a fully charged battery into the base of the camera's hand grip.
3. START:
Open the lens cap by pinching the buttons on the lens cap. Now press and hold the Power button (upper
left keypad) for 2 to 3 seconds until you see activity on the display. Note: To turn the camera off, press and hold this
button again.
4. FOCUS:
Rotate the manual focusing ring either clockwise (focuses closer) or counter-clockwise (focuses farther).
5. AUTO ADJUST (Level and Span):
Span continuously adjusts automatically).
MANUAL ADJUST (Level and Span):
6.
highlight Level/Span and highlight L/S? and push the On/Off/Menu button. You will notice the top and bottom
number will be highlighted and can now be adjusted. To adjust the span, use the ►◄ buttons. Using the left button
will narrow the span and the right button expands the span. To adjust level, use the ▲▼ buttons. The up button
raises the level to higher temperatures and the down button lowers the level to lower temperatures. When the
camera is in Manual Mode, there will be an L/S displayed in the upper left corner of the LCD screen.
Note: the highlighting and ability to change level and span will time out in a few seconds of inactivity. To reactive/re-
highlight them, merely push the A button. Then use the directional arrows to adjust Level and Span.
© 2017 The Snell Group / 322 N. Main St. / Suite 8 / Barre, VT 05641 / 800.636.9820
IR/VISUAL
/CLEAR
On/Off
Menu
By default, when you turn the camera on, it is in the Auto Mode (Level and
QuickStart:
Spot Temp.
Color Palette
Battery Life
SAVE
To manually adjust Level and Span, press the On/Off/Menu, then
SKF TKTI-21 / TKTI-31
Trigger
Battery
/
www.thesnellgroup.com
SKF TKTI‐21 / TKTI‐31 Page 1
SD Memory
Card/USB
/Mini Video
/12v DC
Lens
Cover
Focusing
Ring
