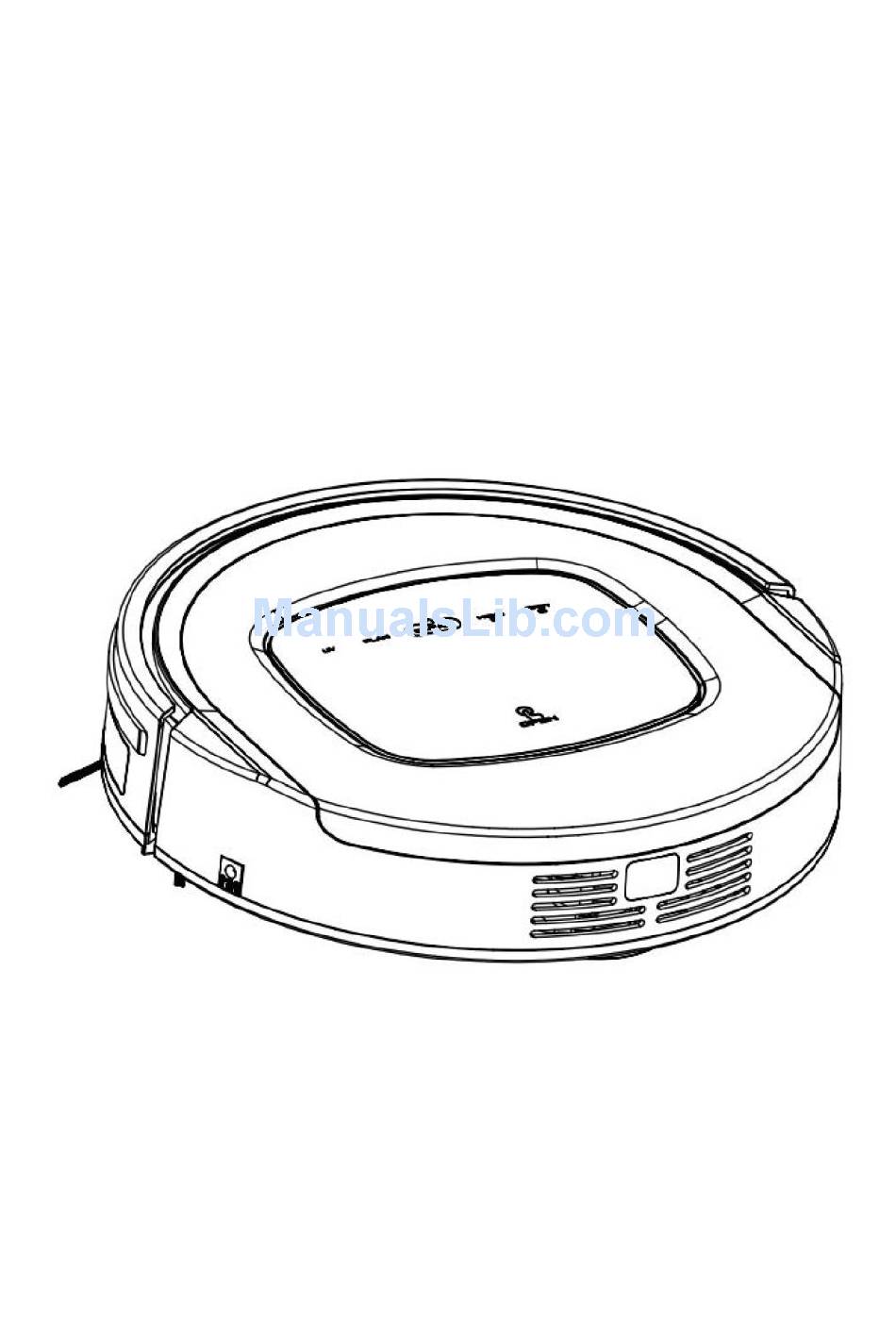

- Page 1 MONOPRICE MP Intelligent Robot Vacuum with Drop Sensing P/N 16385 User's Manual...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ..........................4 INTRODUCTION ....................................... 5 FEATURES ........................................5 PACKAGE CONTENTS ..................................5 PRODUCT OVERVIEW ..................................6 Vacuum ........................................6 Charging Station ....................................7 Remote Control ....................................7 Main Panel ......................................8 OPERATING MODES .....................................9 Normal Cleaning Mode ................................9 Spot Cleaning Mode ..................................9 Edge Cleaning Mode ..................................9 Schedule Mode .................................... - Page 3 Sensors and Wheels ..................................17 Charging Contacts ..................................18 Suction Passage and Dust Sensor ..........................18 BATTERY REMOVAL ..................................18 AUDIO PROMPTS ....................................19 TROUBLESHOOTING ..................................20 TECHNICAL SUPPORT ..................................25 SPECIFICATIONS ....................................25 REGULATORY COMPLIANCE ..............................26 Notice for FCC ....................................26 Radio Notice for FCC .................................
-
Page 4: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... -
Page 5: Introduction
Includes infrared remote control PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x Vacuum... -
Page 6: Product Overview
PRODUCT OVERVIEW Vacuum... -
Page 7: Charging Station
Charging Station Remote Control 1. Clean Button (on/off): With the vacuum in Standby mode, press the Clean button to start or stop cleaning. 2. Directional Buttons: While cleaning is in progress, press the directional buttons to alter the vacuum's path. The left and right buttons will cause the vacuum to turn in those directions, the forward button will cause the vacuum to move forward and the back button... -
Page 8: Main Panel
Main Panel 1. LED Display: The LED display shows the time setting, charging status, and error codes. 2. Clean Button: When the vacuum is in Sleep mode, press the Clean button to put it into Standby mode. When it is in Standby mode, press the button once to start automatic cleaning. -
Page 9: Operating Modes
OPERATING MODES Normal Cleaning Mode The Normal cleaning mode is an automatic mode in which the vacuum automatically switches between the three types of cleaning paths. Normally, when in a room with few obstacles, it will clean the floor using an S-shaped path, as shown in the diagram. -
Page 10: Schedule Mode
Schedule Mode Once a cleaning schedule time has been set, the vacuum will automatically start cleaning in Normal cleaning mode at the scheduled time. SETUP AND CHARGING 1. Position the Charging Station against a wall near an AC outlet and with at least 1 meter (3 feet) of space on each side and 2 meters (6 feet) of space to the front. -
Page 11: Operation
Notes: Fully charge the battery for 12 hours prior to first use. Charge the battery for 12 hours at least once every three months. If the vacuum will go unused for more than three months or for any long period of time, charge the battery for 12 hours, then flip the Power Switch to the OFF position and store it in a cool, dry place. -
Page 12: Cleaning
When the vacuum is in Sleep mode, press the Clean button once to enter Standby mode. When the vacuum is in Standby mode, press and hold the Clean button for about three seconds to enter Sleep mode. When the vacuum is in Standby mode, it will automatically enter Sleep mode if no buttons are pressed for 60 seconds. -
Page 13: Scheduling
SCHEDULING Setting the Clock Prior to scheduling, the vacuum's clock should be set to the current time. Perform the following steps to set the clock. 1. Ensure that the vacuum is in Standby mode or is charging. If it is in Sleep mode, press the Clean button on the vacuum to enter Standby mode. -
Page 14: Clearing The Schedule Time
currently set scheduled time or 00:00 if no scheduled time is set. The hour value will be flashing. 4. Press the Home button on the vacuum to increase the hour value or press the Spot button on the vacuum to decrease it. 5. -
Page 15: Maintenance
MAINTENANCE Side Brushes Periodically remove the side brushes to clean them and to remove any hair or other debris from around the brush post. Replace the side brushes if they become damaged. Replace the side brushes at least once every 12 months. ... - Page 16 4. Remove the HEPA filter from the side of the dust bin. 5. Open the dust bin lid and remove the primary filter. 6. Empty the dust bin. 7. Wash the dust bin and primary filter. Allow the dust bin and filter to fully dry before reassembly. 8.
-
Page 17: Sensors And Wheels
9. Reinstall the primary filter, then close the dust bin lid. 10. Reinstall the HEPA filter in the side of the dust bin, then reinstall the dust bin into the vacuum and close the lid. Notes: Wash the HEPA filter after 15-30 days of use. ... -
Page 18: Charging Contacts
Charging Contacts Periodically wipe the charging contacts on the vacuum and Charging Station with a clean, dry cloth. Suction Passage and Dust Sensor Remove the dust bin from the vacuum. Using a clean, dry cloth, clean the suction passage and dust sensor. -
Page 19: Audio Prompts
AUDIO PROMPTS The following table lists all the audio prompts, the condition they represent, and the corrective action to take, if applicable. Condition/Action Audio Prompt The Home button has been pressed "Please wait" The battery level is low "Please charge" When charging is started "Start charging"... -
Page 20: Troubleshooting
TROUBLESHOOTING If a fault occurs, the vacuum will display an error code on the LED display. Error Code Cause Solution AUBF Suction passage blocked Clean suction passage Dust bin missing or improperly AUBN Properly install the dust bin installed E1XX Left collision switch fault E2XX Right collision switch fault... - Page 21 Left and right wheels are off the EEXX ground and right collision switch Put the vacuum on solid ground fault and check the sensitivity of the Left and right wheels are off the front bumper EFXX ground and left and right collision switch faults Left anti-drop sensor detects an EXX1...
- Page 22 Left and front anti-drop sensors detect an open space and the EXXB front bumper right infrared sensor detects an obstacle Right anti-drop sensor detects an EXXC open space and the front bumper infrared sensor detects an obstacle Left and right anti-drop sensors detect an open space and the EXXD Clean the front bumper sensor and...
- Page 23 Front bumper left, middle, and EX7X right infrared sensors detect an obstacle Front bumper wall detection EX8X infrared sensor detects an obstacle Front bumper wall detection and EX9X left infrared sensors detect an obstacle Front bumper wall detection and EXAX middle infrared sensors detect an obstacle Front bumper wall detection and...
- Page 24 L0X4 Left side brush is overloaded Left wheel and left side brush are L0X5 overloaded Right wheel and left side brush are L0X6 overloaded Left and right wheels and left side L0X7 brush are overloaded L0X8 Right side brush is overloaded Left wheel and right side brush are L0X9 overloaded...
-
Page 25: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 26: Regulatory Compliance
Modifying the equipment without Monoprice’s authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense. -
Page 27: Radio Notice For Fcc
This FCC Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Monoprice, including the use of non-approved antennas, could void the user's authority to operate this device.
