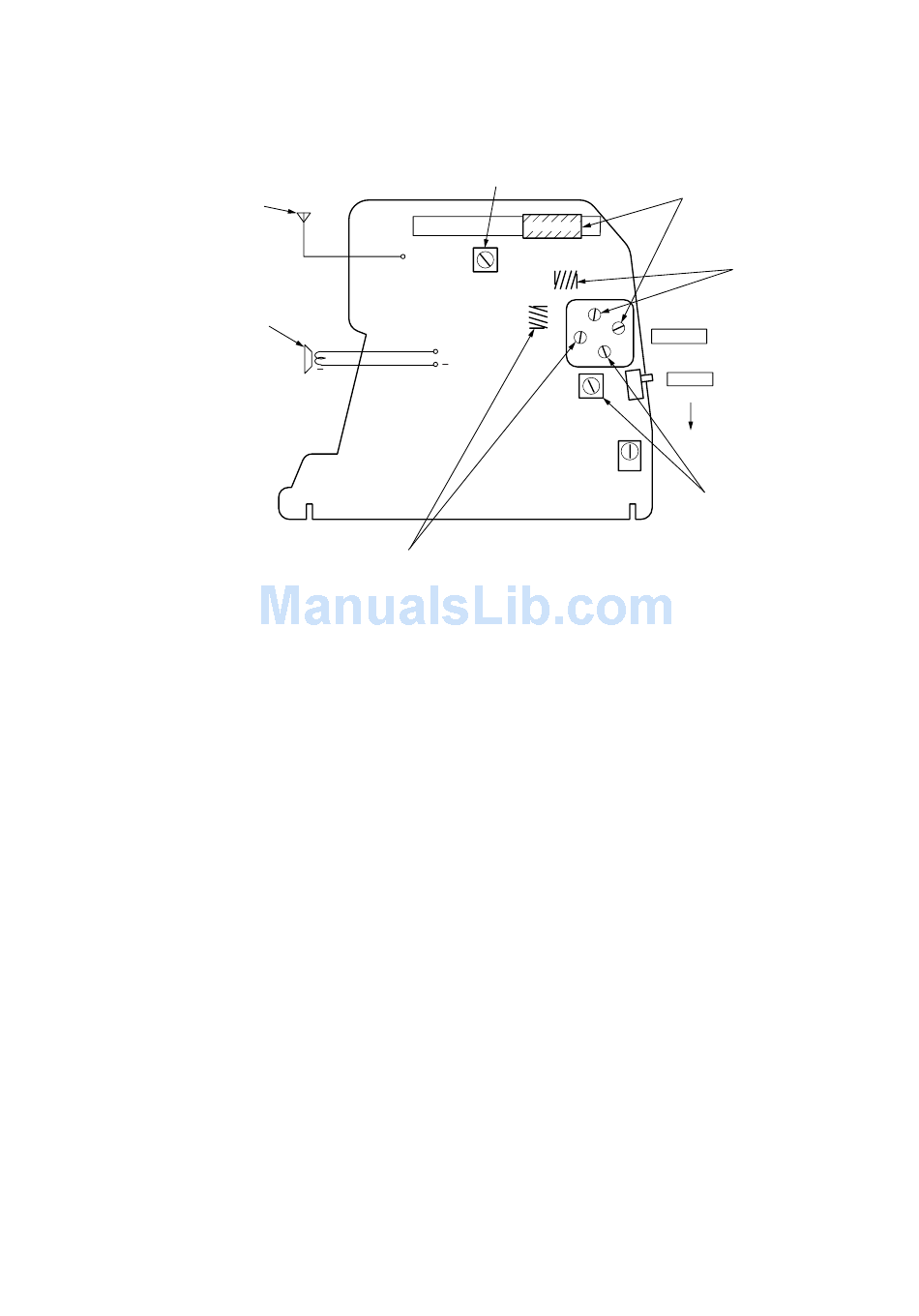

Adjustment Location:
FM
LEAD WIRE
ANTENNA
SP1
(SPEAKER)
+
+
SP1
L2, CT6
FM FREQUENCY
COVERAGE ADJ
T1
AM IF
ADJ
L4
L1
T1
CT5
L2
CT3
CT6
CT4
L3
RV1
ICF-C112
L4, CT3
AM
TRACKING
ADJ
L1, CT5
FM
TRACKING
ADJ
CV1
TUNING
S1
BAND
FM
AM
L3, CT4
AM FREQUENCY
COVERAGE ADJ
