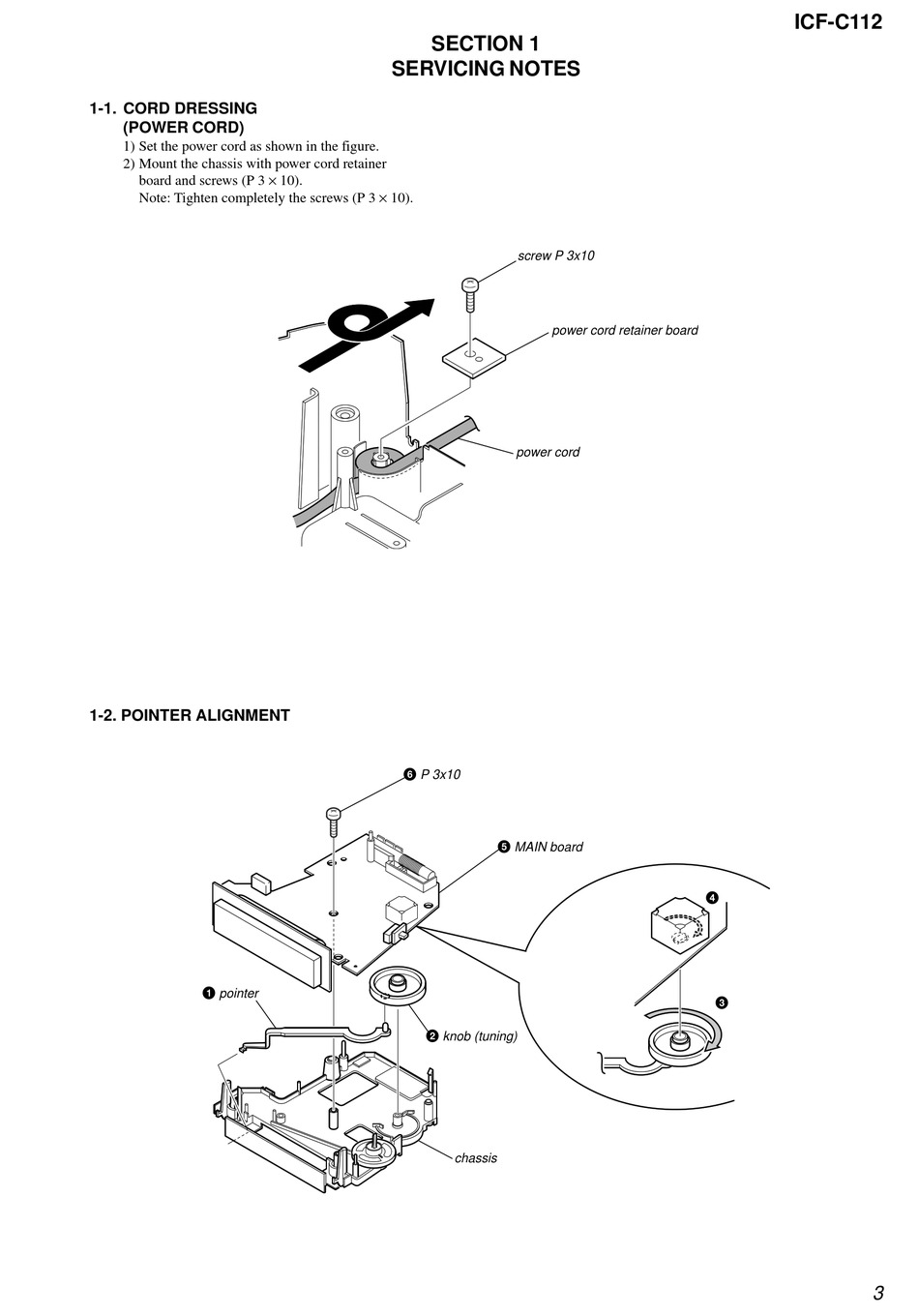

1-1. CORD DRESSING
(POWER CORD)
1) Set the power cord as shown in the figure.
2) Mount the chassis with power cord retainer
board and screws (P 3 × 10).
Note: Tighten completely the screws (P 3 × 10).
1-2. POINTER ALIGNMENT
1 pointer
SECTION 1
SERVICING NOTES
screw P 3x10
power cord retainer board
power cord
6 P 3x10
5 MAIN board
2 knob (tuning)
chassis
ICF-C112
4
3
3
