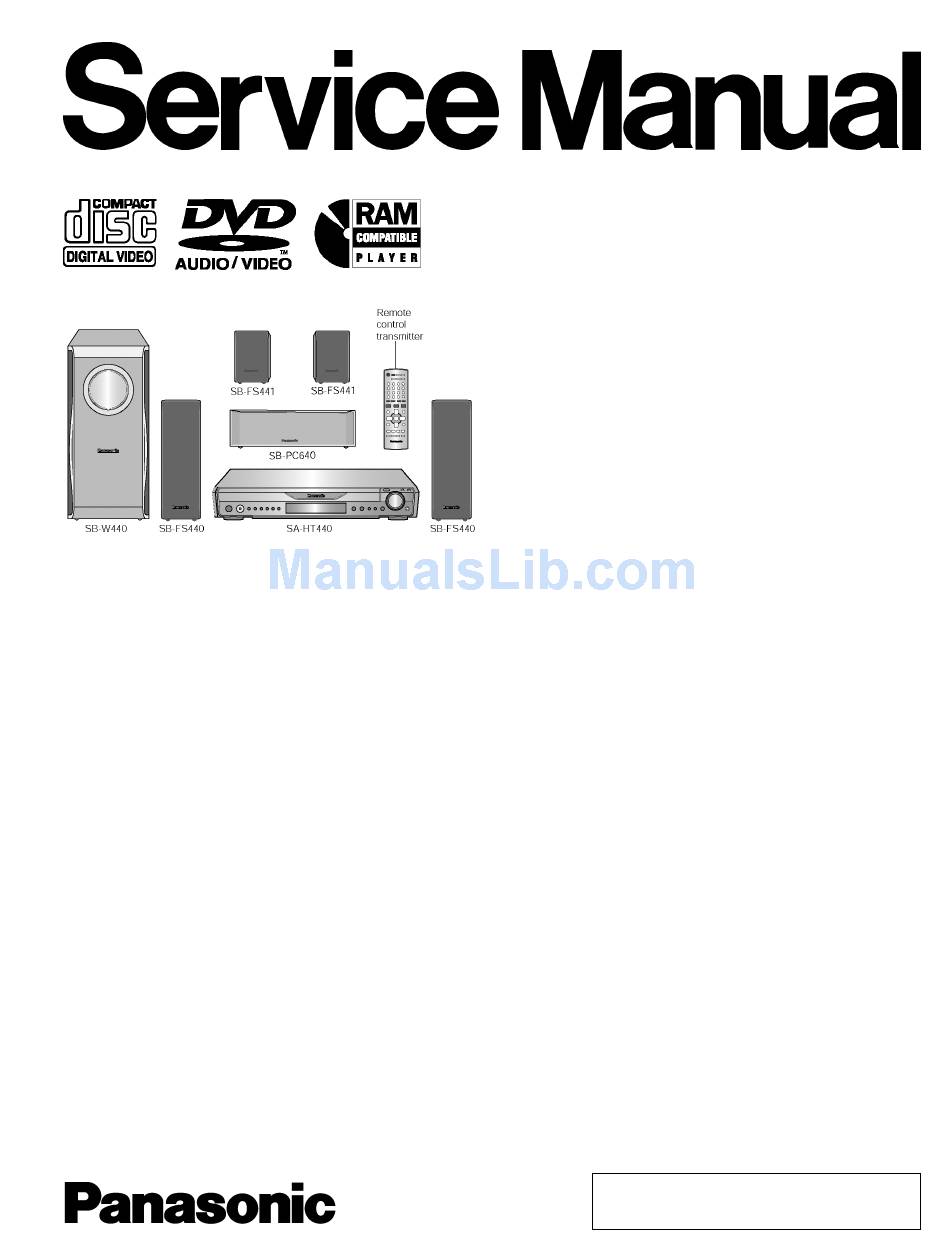

SA-HT440P / SA-HT440PC CONTENTS Page Page 1 Safety Precautions 12.1. Checking & Repair Main P.C.B., Power P.C.B., FL and 1.1. GENERAL GUIDELINES Head phone P.C.B. 1.2. Before Repair and Adjustment 12.2. Checking & Repair DVD Module P.C.B 1.3. Protection Circuitry...
Page 4
SA-HT440P / SA-HT440PC 24.1. Component Parts List...
SA-HT440P / SA-HT440PC 1 Safety Precautions 1.1. GENERAL GUIDELINES 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.
SA-HT440P / SA-HT440PC 1.2.1. Caution for fuse replacement 1.3. Protection Circuitry The protection circuitry may have operated if either of the following conditions are noticed: · No sound is heard when the power is turned on. · Sound stops during a performance.
SA-HT440P / SA-HT440PC 3 Precaution of Laser Diode CAUTION: This unit utilizes a class 1 laser. Invisible laser radiation is emitted from the optical pickup lens. Wavelength: 662nm(DVD)/785nm(CD). Maximum output radiation power from pickup: 100µW/VDE When the unit is turned on: 1.
SA-HT440P / SA-HT440PC 5 Handling Precautions for Traverse Unit The laser diode in the optical pickup unit may break down due to static electricity of clothes or human body. Special care must be taken avoid caution to electrostatic breakdown when servicing and handling the laser diode.
SA-HT440P / SA-HT440PC 7 Operation Procedures 7.1. Operating instructions 7.1.1. Remote Control Key Buttons Operations Television operations Adjust the television volume Turn the unit on/off Select the source DVD/CD, FM/AM, AUX/FRONT Change the television's video input mode MUSIC P./REAR MUSIC P.
Page 13
SA-HT440P / SA-HT440PC 7.1.2. Main Unit Key Buttons Operations (SA-HT440) Standby/on switch [POWER Press to switch the unit from on to standby mode OPEN/CLOSE or vice versa. In standby mode, the unit is still Open/Close the disc drawer consuming a small amount of power.
Page 14
SA-HT440P / SA-HT440PC 7.1.3. Wireless Surround Speaker Key Buttons Operations (SE-FX60) Power indicator [AC IN] This indicator lights when the unit is pluggged into the AC outlet. Lighting Ring AC IN The light goes out when the unit is in standby mode.
Recorded with devices using Version 1.1 of the Video Recording Format (a unified video recording standard), such as DVD video recorders, DVD video cameras, personal computers, etc. JPEG Recorded with Panasonic SD multi cameras or DVD video recorders using the DCF (Design rule for Camera File System) Standard Version 1.0. DVD-R...
SA-HT440P / SA-HT440PC 8 New Features 8.1. Using of Receiver Unit (SH-FX60 / SH-FX80) · This model can be equipped with the digital transmitter and receiver to enjoy surround sound wirelessly. 8.1.1. Below is tips on using the digital receiver (SE-FX60)
Page 18
SA-HT440P / SA-HT440PC 8.1.2. Tips on using digital transmitter (SH-FX60T)
Page 19
SA-HT440P / SA-HT440PC 8.1.3. Below is tips on using digital receiver (SB-FX80)
Page 20
SA-HT440P / SA-HT440PC 8.1.4. Tips on using digital transmitter (SH-FX80T)
SA-HT440P / SA-HT440PC 9 Self-Diagnosis and special mode setting 9.1. Service Mode Summary Table The service modes can be activated by pressing various button combination on the player and remote control unit. Below is the summary of major checking: Player buttons...
Page 22
SA-HT440P / SA-HT440PC Item Key Operation FL Display Mode Name Description Front Key Jitter check Jitter check In STOP (no disc) mode, Jitter rate is measured and displayed. press STOP button on the Measurement is repeatedly done in player, and "5" button on the cycle of one second.
Page 23
SA-HT440P / SA-HT440PC Item Key Operation FL Display Mode Name Description Front Key Micro-processor Micro-processor firmware version In STOP (no disc) display & EEPROM checksum display. firmware version mode, press STOP button display & on the player, and "7" EEPROM...
Page 24
SA-HT440P / SA-HT440PC Item Key Operation FL Display Mode Name Description Front Key In STOP (no disc) Timer 1 check Timer 1 check mode, press STOP button Laser operation timer Operation time is on the player, and " " measured separately for DVD laser button on the remote and CD laser.
SA-HT440P / SA-HT440PC 9.3. DVD Self Diagnostic Function-Error Code Error Diagnosis Contents Description of error Automatic FL Display Remarks Code Focus servo error Focus coil NG (OPU unit abnormal) Press [ n STOP] on main unit for next error. Tray loading error /...
Page 27
SA-HT440P / SA-HT440PC Error Diagnosis Contents Description of error Automatic FL Display Remarks Code F600 Access failure to Operation stopped because navigation Press [ n STOP] on main management information data is not accessible caused by the unit for next error...
SA-HT440P / SA-HT440PC Error Diagnosis Contents Description of error Automatic FL Display Remarks Code F893 FLASH ROM IC problem FLASH ROM IC installed is not operating Press [ n STOP] on main properly (Neccessary replacement of unit for next error...
SA-HT440P / SA-HT440PC power cable from power outlet does not cancel the lock.) 9.5. Service Precautions 9.5.1. Recovery after the DVD player is repaired · When the FLASH ROM IC or HDMI module P.C.B. is replaced, carry out the recovery processing to optimize the drive.
SA-HT440P / SA-HT440PC 10 Assembling and Disassembling “ATTENTION SERVICER” Be careful when disassembling and servicing. Some chassis components may have sharp edges. Special Note: 1. This section describes the disassembly procedures for all the major printed circuit boards and main components.
SA-HT440P / SA-HT440PC 10.3. Disassembling the Top Cabinet Step 1 Remove 7 screws. Step 2 Remove the top cabinet in the direction of arrow. 10.4. Disassembling the Front Panel Step 5 Detach the FFC cables from connectors (CN5705, Assembly CN5707 & CN2013).
SA-HT440P / SA-HT440PC Note: Refer to the diagrams of Power P.C.B. (Section 19.3) for location of the parts. 10.10. Disassembling the AC Inlet, 10.12. Disassembly of Digital Amp IC Power & Sub power P.C.B (IC5400) · Follow the (Step 1) to (Step 4) of Item 10.6.
SA-HT440P / SA-HT440PC Step 1 Remove the 2 screws. Step 2 Remove the tray base guide (L) and tray guide (R) in the direction of arrow. Note: Refer to the diagrams of Power P.C.B. (Section 19.3) for 10.16. Disassembly of the Rotary location of the parts.
SA-HT440P / SA-HT440PC Step 2 Release claw of open lock gear, remove open lock gear in the direction of arrow. Step 2 Release 4 claws at Tray Motor P.C.B. and Sensor 10.16.2. Disassembly of the Close Lock P.C.B. Gear 10.17. Disassembly of the Traverse ·...
Page 38
SA-HT440P / SA-HT440PC Step 2 Flip the base mecha. Step 2 Remove Loading Motor P.C.B. 10.17.3. Disassembly of the Drive Gear (A) & (B) Step 1 Release the claw in the direction of arrow (1), and then push drive gear shaft up.
Page 39
SA-HT440P / SA-HT440PC 10.17.4. Disassembly of Fixed Plate, Magnet and Clamper Release 3 claws in the direction of arrow. 10.17.6. Disassembly of the Slide Plate (L) & (R) and Change Lever Step 1 Press the claw and push the Slide Plate (L) up.
SA-HT440P / SA-HT440PC Step 3 Push tray assembly to the direction of arrow shown. 10.18. Assembly of Tray Assembly Step 1 Rotate cam gear anti-clockwise. Align at position (C) as marking on gear with arrow. Step 2 Make sure drive gear (A) at vertical position.
SA-HT440P / SA-HT440PC 11 Service Fixture and Tools Prepare service tools before proccess service position. Service Tools Loading Motor P.C.B. - Main REEX0633 (11 pin) P.C.B. Sensor P.C.B. - Power P.C.B. REEX0465 (11 pin) 12 Service Positions 12.1. Checking & Repair Main 12.2.
SA-HT440P / SA-HT440PC 13 Measurements and Adjustments 13.1. Service Tools and Equipment Application Name Number Tilt adjustment DVD test disc DVDT-S20 [SPG] TORX screw driver (T6) Available on sales route. (T6) or RFKZ0185 [SPG] Others Grease RFKXPG641 [SPG] Confirmation CD test disc...
SA-HT440P / SA-HT440PC 14 Voltage and Waveform Chart 14.1. DVD Module P.C.B. Re f No. IC8001 MODE CD P LAY IC8001 Re f No. MODE CD P LAY IC8001 Re f No. MODE CD P LAY IC8001 Re f No.
SA-HT440P / SA-HT440PC 14.2. Main P.C.B. IC2001 Re f No. MODE CD P LAY S TANDBY IC2001 Re f No. MODE CD P LAY S TANDBY Re f No. IC2001 MODE CD P LAY S TANDBY IC2001 Re f No.
SA-HT440P / SA-HT440PC 14.5. Loading P.C.B., Tray Motor P.C.B., Sensor P.C.B. Loading Motor P.C.B. Q9001 Re f No. MODE CD P LAY S TANDBY Tray Motor P.C.B. Q9101 Q9102 Re f No. MODE CD P LAY S TANDBY -0.2 Sensor P.C.B.
SA-HT440P / SA-HT440PC 16 Wiring Connection Diagram TO FAN JK6802 TO FAN UNIT H6901 UNIT FL P.C.B. 1 2 3 CN6902 CN5714 RED BLK MUSIC PORT CN5711 VOLUME 1 2 3 CN5704 CN5706 VR6800 P5701 JK6801 CN6901 AC-INLET P.C.B. POWER P.C.B.
SA-HT440P / SA-HT440PC 17 Block Diagram IC8001 IC8251 MN2DS0003APH C0GBG0000048 OPTICAL PICK UP UNIT DV2.1 LSI TRACKING COIL/FOCUS COIL/TRAVERSE/SPINDLE MOTOR DRIVE PHOTO DETECTOR VIN1 VOL4+ VIN2 TRAVERSE VIN3 HEAD MOTOR VIN4 LEVEL VOL4- SHIFT VIN8 BIAS1 VIN7 VHALF VIN6 OPIN+...
Page 56
SA-HT440P / SA-HT440PC IC8051 IC8001 IC8421 C3ABPG000133 MN2DS0003APH C0FBBK000050 64M SDRAM DV2.1 LSI AUDIO DAC OUTPUT AMP AND V OUT7 DVD MIX L LOW-PASS FILTER SRCK LRCK MEMORY MEMORY LRCK ADDRESS ADDRESS DATA2 V OUT8 DVD MIX R OUTPUT AMP AND...
Page 57
SA-HT440P / SA-HT440PC TUNER PACK AM ANT FM ANT MIXER IF AMP COIL COIL RF AMP IC2801 C9ZB00000461 BUFFER VIDEO BUFFER (FM) BIAS Y/PY/G CY IN 12 MHz CY OUT JK2001 Y(RED) CLAMP CY SAG TUN L CB/PB/B CB IN...
Page 59
SA-HT440P / SA-HT440PC IC5200 IC5000 C1BA00000407 C1BA00000407 AUDIO DIGITAL POWER AMP AUDIO DIGITAL POWER AMP BOOT1 BOOT1 IN1M RELEASE1 CENTER IN1M RELEASE1 DRIVER DRIVER INPUT INPUT HIGH HIGH SWITCH1 FRONT L MODULATOR SWITCH1 IN1P STAGE MODULATOR IN1P STAGE CONTROL CONTROL...
Page 60
SA-HT440P / SA-HT440PC IC2906 IC2105-(1) C0JBAR000326 F-MORT-LCH JK6802 C0ABCB000088 MPORT MUSICPORT AMP MUSIC PORT SELECTOR 1(12) 2(6) 3(12) 4(5) 14(13) 1(14) 3(10) 2(13) CTRL CN2003 ROLE CHG MASTER/SLAVE WIRELSS RCH WIRELSS LCH RF PCONT VM MUTE WIRELSS RF LINK LINK...
Page 61
SA-HT440P / SA-HT440PC SIGNAL LINES IC5721 C0DABYY00002 T5721 SWITCHING REGULATOR : MAIN SIGNAL LINE : AM SIGNAL LINE : DVD AUDIO SIGNAL LINE : FM SIGNA L LINE : AM OSC SIGNAL LINE : DVD VIDEO SIGNAL LINE Q5706,D5713 : FM OSC SIGNA...
SA-HT440P / SA-HT440PC 18 Schematic Diagram · This schematic diagram may be modified at any time with the development of new technology. Notes: S6801: Play and memory switch ( Memory). S6802: R. skip, search and Tuning switch / TUNING S6803: F.
SA-HT440P / SA-HT440PC 18.2. (B) Main Circuit SCHEMATIC DIAGRAM-5 MAIN CIRCUIT :MAIN SIGNAL LINE :MUSIC PORT SIGNAL LINE :FM/AM SIGNAL LINE :DVD(VIDEO) SIGNAL LINE :AUX SIGNAL LINE :+B SIGNAL LINE :-B SIGNAL LINE CN2001 STATUS DVD_STA DVD_CMD DSPCLK DVD_CK R2296...
Page 71
SA-HT440P / SA-HT440PC SCHEMATIC DIAGRAM-7 MAIN CIRCUIT : AUX SIGNAL LINE : MUSIC PORT SIGNAL LINE : MAIN SIGNAL LINE : FM/AM SIGNAL LINE :+B SIGNAL LINE :-B SIGNAL LINE C2024 220P C2023 220P C2028 C2027 0.1 R2090 C2026 16V10...
Page 72
SA-HT440P / SA-HT440PC SCHEMATIC DIAGRAM-8 MAIN CIRCUIT : MAIN SIGNAL LINE :+B SIGNAL LINE :-B SIGNAL LINE R2188 FLFIN C2177 R2175 R2176 R2177 R2179 R2193 50V 1 5.6K HP-LCH C2194 C2178 C2179 R2178 R2180 1800P 100P Q2101 B1GFGCAA0001 MUTING C2170...
Page 73
SA-HT440P / SA-HT440PC SCHEMATIC DIAGRAM-9 MAIN CIRCUIT : MUSIC PORT SIGNAL LINE : MAIN SIGNAL LINE :+B SIGNAL LINE :-B SIGNAL LINE C2324 2700P IC2902 C0DAZYY00001 CN2011 C2183 50V3.3 R2185 10K FRONT L +9V REGULATOR FLOUT M+9V AGND C2283 50V3.3...
Page 77
SA-HT440P / SA-HT440PC SCHEMATIC DIAGRAM-12 POWER(SMPS) CIRCUIT :+B SIGNAL LINE :-B SIGNAL LINE Q5740 Q5741 B1BACG000048 B1ABCF000011 FAN MOTOR DRIVE FAN MOTOR DRIVE C5770 0.01 Q5742 D5707 D5705 B0BC035A0007 R5770 B1ABCF000011 B0EAMM000057 R5707 R5706 D5711 FAN MOTOR DRIVE B0HBSM000043 R5756...
Page 78
SA-HT440P / SA-HT440PC SCHEMATIC DIAGRAM-13 POWER(SMPS) CIRCUIT AC-INLET CIRCUIT SUB POWER CIRCUIT :+B SIGNAL LINE :-B SIGNAL LINE D5701 L5701 B0FBAR000018 6.3A ELF15N050A P5701 AC120V ZA5702 ZA5701 EYF52BCY EYF52BCY CN5709 CN5707 60Hz STBY_LED STBY_LED CN5712 DZ5701 KEY1 KEY1 0.22 DGND...
SA-HT440P / SA-HT440PC 18.4. (D) FL and Headphone Circuit SCHEMATIC DIAGRAM-14 FL CIRCUIT HEADPHONE CIRCUIT MUSIC PORT SIGNAL LINE : MAIN SIGNAL LINE :+B SIGNAL LINE :-B SIGNAL LINE FL6901 A2BD00000160 FL DISPLAY CN6901 DGND KEY2 41 42 43 2 3 4 5 6 7 8 9 10 11...
SA-HT440P / SA-HT440PC 20 Basic Troubleshooting Guide 20.1. Basic Troubleshooting Guide for DVD Module 20.1.1. Firmware and Key Download Problems Checking Points Checking components 1) Firmware downloading a) Check supply voltages on ICs pins IC8111, IC8651, IC8001, IC8051, IC8151 fails...
Page 88
SA-HT440P / SA-HT440PC 20.1.2. Initialisation and playability Checking Points Problems Checking components a) Check supply voltages (3.3V and 1.2V) IC8111, IC8151 1) No DVD logo screen saver b) Check video signals especially Luminance,Y signal LB8301, R8321, R8322 c) Check SDRAM, EEPROM and Flash ROM for solder IC8051, IC8611, IC8651 short.
SA-HT440P / SA-HT440PC 20.2. Basic Troubleshooting Guide for Traverse Unit Checking Points Checking components Problems a) Check SDRAM addresand data bus, IC8051 1) Distorted picture or CLK and other control signals waveform abnormal sound is heard during initialisation b) Check video signals...
SA-HT440P / SA-HT440PC 22 Terminal Function of ICs 22.1. IC2001 (MN101C49GHG): Terminal Function Name Micro-processor IC ASP_CK ASP clock (R2S15203FP) MUTE_HP Headphone mute Terminal Function MP_SEL Select front MPort or rear MPort Name (SELECT_ A) AVSS Power supply for A/D converter (GND)
SA-HT440P / SA-HT440PC 24 Replacement Parts List Notes: *Important safety notice: Components identified by mark have special characteristics important for safety purpose. Furthermore, special parts which have purposes of fire-retardant (resistors), high-quality sound (capacitors), low-noise (resistors), etc. are used. When replacing any of components, be sure to use only manufacture’s specified parts shown in the parts list.
SA-HT440P / SA-HT440PC 24.1. Component Parts List Ref. Part No. Part Name & Description Remarks RMM0254-2 SLIDE PLATE R Ref. Part No. Part Name & Description Remarks RMB0842 TRAY SPRING RME0384 CLOSE LOCK GEAR SPRING CABINET AND CHASSIS RMF0324-1 BLOCK SHEET...
Page 101
SA-HT440P / SA-HT440PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks IC2904 C0CAADE00007 IC +5V REGULATOR Q8552 2SB09700RL TRANSISTOR IC2906 C0JBAR000326 IC MPORT SELECTOR Q8560 2SD1819A0L TRANSISTOR IC2907 C0CBADG00023 IC+5V REGULATOR (DVD)
Page 102
SA-HT440P / SA-HT440PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks D8550 MA2J11100L DIODE CN5050 K1MN17BA0005 17P CONNECTOR D8571 MA2J72800L DIODE CN5701 K1KA13BA0062 13P CONNECTOR CN5702 K1MN11AA0003 11P CONNECTOR DZ5701 ERZV10V511CS ZENER...
Page 103
SA-HT440P / SA-HT440PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks L6101 J0JBC0000019 CHIP INDUCTOR L6102 G0C330KA0065 COIL ACCESSORIES L6201 J0JBC0000019 CHIP INDUCTOR L6202 G0C330KA0065 COIL N2QAYZ000001 REMOTE CONTROL L6801 J0JBC0000019 CHIP INDUCTOR...
Page 104
SA-HT440P / SA-HT440PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R2068 ERJ3GEYJ563V 56K 1/16W R2285 ERJ3GEYJ103V 10K 1/16W R2069 ERJ3GEYJ473V 47K 1/16W R2288 ERJ3GEYJ123V 12K 1/16W R2070 ERJ3GEYJ473V 47K 1/16W R2289 ERJ3GEYJ562V 5.6K 1/16W...
Page 105
SA-HT440P / SA-HT440PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R2914 ERJ3GEYJ392V 3.9K 1/16W R5034 ERJ3GEYJ562V 5.6K 1/16W R2915 ERJ3GEYJ272V 2.7K 1/16W R5035 ERJ3GEYJ562V 5.6K 1/16W R2918 ERJ3GEYJ103V 10K 1/16W R5036 ERJ3GEYJ562V 5.6K 1/16W...
Page 106
SA-HT440P / SA-HT440PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R5737 ERJ3GEYJ100V 10 1/16W R6960 ERJ3GEYJ222V 2.2K 1/16W R5739 ERDS1FVJ821T 820 1/2W R8011 ERJ2GEJ220X 22 2W R5750 ERJ3GEYJ331V 330 1/16W R8021...
Page 107
SA-HT440P / SA-HT440PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks W2122 ERJ3GEY0R00V CHIP JUMPER RX8011 D1H88204A024 CHIP RESISTOR W2123 ERJ3GEY0R00V CHIP JUMPER RX8012 D1H88204A024 CHIP RESISTOR W2124 ERJ3GEY0R00V CHIP JUMPER RX8013...
Page 108
SA-HT440P / SA-HT440PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C2177 ECEA1HKS010I 1 50V C2506 ECEA1HKS010B 1 50V C2178 ECJ1VC1H101J 100P 50V C2507 ECJ1VB1H471K 470P 50V C2179 ECJ1VC1H470J 47P 50V C2509...
Page 109
SA-HT440P / SA-HT440PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C2930 ECJ1VB1A105K 1 10V C5137 ECJ1VB1H103K 0.01 50V C2931 ECA0JAK221XB 220 6.3V C5200 ECJ1VB1H104K 0.1 50V C2932 ECEA1CKA101B 100 16V C5201 ECJ1VB1H153K 0.015 50V...
Page 110
SA-HT440P / SA-HT440PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C5409 ECJ3YB2A104K 0.1 100V C5794 ECA1CAK330XB 33 16V C5410 ECJ3YB2A104K 0.1 100V C5795 ECJ1VB1H104K 0.1 50V C5411 ECJ2VC2A221J 220P 100V C5796...
Page 111
SA-HT440P / SA-HT440PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C8202 F2G0J101A066 100P 6.3V C8606 ECJ0EF1C104Z 0.1 16V C8203 ECJ0EF1C104Z 0.1 16V C8607 ECJ0EB0J224K 0.22 6.3V C8204 ECJ0EF1C104Z 0.1 16V C8611 ECJ0EF1C104Z 0.1 16V...
