Summary of Contents for PCB Piezotronics 682B03

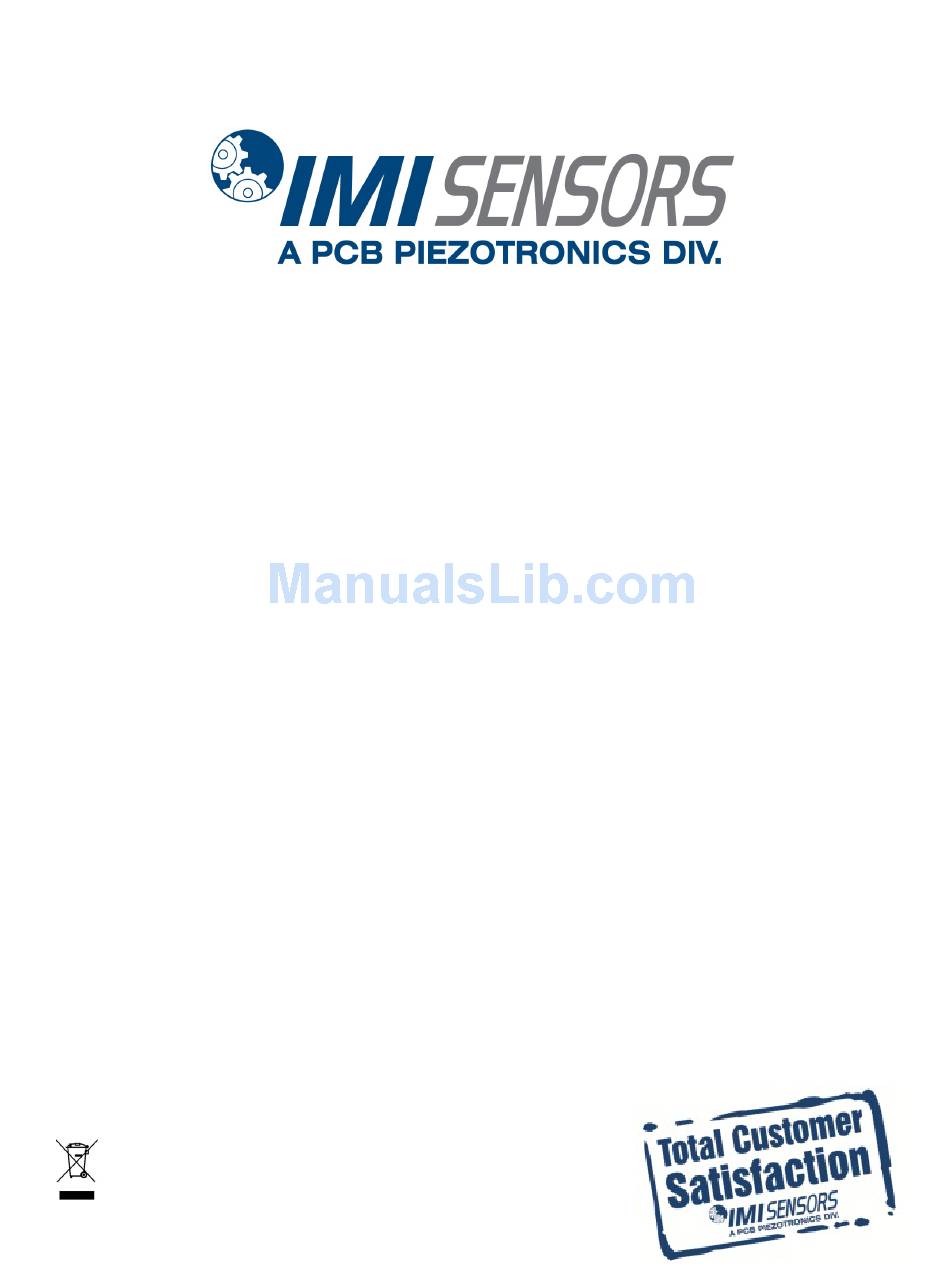

- Page 1 Model 682B03 ICP® Vibration Transmitter Installation and Operating Manual For assistance with the operation of this product, contact PCB Piezotronics, Inc. Toll-free: 800-959-4464 24-hour SensorLine: 716-684-0001 Fax: 716-684-3823 E-mail: imi@pcb.com Web: www.imi-sensors.com...
- Page 2 Returning Equipment – Following the equipment to PCB Piezotronics for these procedures will insure that your repair. User servicing or repair is not returned materials are handled in the recommended and, if attempted, may most expedient manner.
- Page 3 PCB Piezotronics, Inc. Warranty – All equipment and repair 3425 Walden Ave. services provided by PCB Piezotronics, Depew, NY 14043 USA Inc. are covered by a limited warranty Toll-free: (800) 828-8840 against defective...
- Page 4 ® 682 Series 4-20mA Din Rail ICP Signal Conditioner Operating Guide with Enclosed Warranty Information 3425 Walden Avenue, Depew, New York 14043-2495 Phone (716) 684-0003 Fax (716) 684-3823 Toll Free Line 1-800-959-4IMI MANUAL NUMBER: 40535 MANUAL REVISION: B ECN NUMBER: 40321...
-
Page 5: Table Of Contents
Table of Contents Introduction........................Page 3 General Features Installation and Wiring ..................... Page 6 Configuring the 682BX3 ....................Page 10 ESD Sensitivity......................Page 13 Ordering Information ..................... Page 14 Warranty/Servicing Warranty, Service & Return Procedure ................. Page 15 Customer Service......................Page 16 PAGE 2... -
Page 6: Introduction
Introduction ® 682 Series is a 4-20mA Din Rail Signal Conditioner designed to interface with IMI Sensor’s ICP Accelerometer. Acceleration, Velocity, or Displacement can be converted to a 4-20mA signal by simple DIP Switch selection internal to the Din Rail enclosure. An additional standard feature of the 682 Series is the ability to convert the temperature output from an accelerometer (when equipped) to 4-20mA. -
Page 7: Installation And Wiring
Installation and Wiring Installation 682 Series is designed to be mounted on a 35mm Din Rail. Do not install in a harsh area where it can be exposed to cleaning fluids or machine oils. IMI Sensors recommends mounting the 682BX3 in a type NEMA 4 enclosure to protect the electronics from contamination. - Page 8 Connector and Pinout Diagram 682 Series uses plug-in type screw terminal connectors for all input and output connections. Strip off 8mm of insulation from the connection wire ends. Using a screwdriver, remove the terminal block from the enclosure in either the up or down direction, terminate the wire in the correct location. Do not exceed a torque of 0.5Nm.
- Page 9 Pin Descriptions: DC Power – Pins 1 to 3: Pin 1 +Power Pin 2 -Power/Common Pin 3 Earth Ground ® Accelerometer – Pins 4 to 6: Pin 4 Shield ® Pin 5 + ICP Accelerometer ® Pin 6 - ICP Accelerometer Temperature Sensor –...
- Page 10 Typical Wiring Diagram 682 Series Signal Power Conditioner Supply To Maintain Conformance, Earth Ground, Power Supply Common, and I/O Shields must be connected together. PAGE 7...
-
Page 11: Configuring The 682Bx3
Note: If using the 682 Power Supply, mount the 682 Signal Conditioner to the left of the power supply with a recommended minimum separation distance of 4” where applicable. Configuring the 682 Series Internal PC Board Diagram The Internal PC Board Diagram shows the location of the internal DIP Switch, Filter Modules, and Sensor Power Select Jumper. - Page 12 S12: Off = 0-5Vdc Output, On = 0-10Vdc Output Internal DIP Switch Setting ® The Internal DIP Switch of the 682 Series must be configured for the Full Scale Output of the ICP Sensor connected to it. This is accomplished by removing the front cover and sliding the PC Board out of the Signal Conditioner.
- Page 13 Sensor Power Jumper Configuration: 682 Series Signal Conditioner PAGE 10...
-
Page 14: Esd Sensitivity
Warning 2 – ESD sensitivity This equipment is designed with user safety in mind; however, the protection provided by the equipment may be impaired if the equipment is used in a manner not specified by PCB Piezotronics, Inc. Caution 1 – ESD sensitivity Cables can kill your equipment. -
Page 15: Ordering Information
therefore be done ONLY at an ESD-safe work area. Many products have ESD protection, but the level of protection may be exceeded by extremely high voltage. Ordering Information IMI Part Number: 682A X 3 Frequency Response/Isolation* 3Hz to 10kHz (Standard) 3Hz to 1kHz 10Hz to 10kHz 10Hz to 1kHz... -
Page 16: Warranty, Service & Return Procedure
Warranty IMI instrumentation is warranted against defective material and workmanship for 1 year unless otherwise expressly specified. Damage to instruments caused by incorrect power or misapplication, is not covered by warranty. If there are any questions regarding power, intended application, or general usage, please consult with your local sales contact or distributor. -
Page 17: Customer Service
Customer Service IMI, a division of PCB Piezotronics, guarantees Total Customer Satisfaction. If, at any time, for any reason, you are not completely satisfied with any IMI product, IMI will repair, replace, or exchange it at no charge. You may also choose, within the warranty period, to have your purchase price refunded. - Page 18 Model Number Revision A ® VIBRATION TRANSMITTER 682B03 ECN #: 32835 Performance ENGLISH Optional Versions (Optional versions have identical specifications and accessories as listed Channels for standard model except where noted below. More than one option maybe used.) Input Signal (Vibration) ±100 mV/g...
- Page 19 Size (Height x Width x Depth) 3.9 in x 0.9 in x 4.5 99 mm x 22.5 mm x 114.5 mm Weight (Maximum) 6.4 oz Screw Terminal Wire Size 24-14 AWG 24-14 AWG Din Rail Mount 1.38 in 35 mm Status Indicator (Power "on") Green LED Green LED...
