X 5C

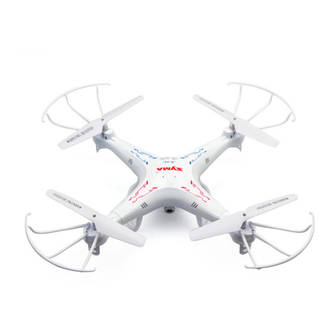

4CH 2.4G REMOTE CONTROL QUADCOPTER
INSTRUCTION MANUAL
1
IMPLEMENT STANDARD: GB/T26701-2011
Key features of quadcopter
Four-axis struture makes the quadcopter more flexible and rapid when
flying. It is wind-resistant and can be flown indoor or outdoor.
Built-in 6 axis gyroscope for precise hovering in the sky.
Simple modular design makes changing parts easy.
With 360º 3D eversion and throwing flight function.
The materials and specification mentioned in this instruction manual or the parts
inside this package are for reference only.Any updated or changed please refer to
our website: www.symatoys.com
AGES 14+
Advertisement
Table of Contents
Related Manuals for SYMA GB/T26701-2011
Summary of Contents for SYMA GB/T26701-2011
- Page 1 AGES 14+ X 5C 4CH 2.4G REMOTE CONTROL QUADCOPTER INSTRUCTION MANUAL IMPLEMENT STANDARD: GB/T26701-2011 Key features of quadcopter Four-axis struture makes the quadcopter more flexible and rapid when flying. It is wind-resistant and can be flown indoor or outdoor. Built-in 6 axis gyroscope for precise hovering in the sky.
- Page 2 PREFACE Dear Customers: Thank you for purchasing our flying model.Please read this instruction manual carefully in order to master the skill more quickly and operate this product more safely.In the mean time,please well keep the original of this instruction manual for future reference. CONTENTS ＵＳＢ Ｃｈａｒｇｉｎｇ Ｃａｂｌｅ...
- Page 3 GET TO KNOW YOUR TRANSMITTER Introduction of transmitter Antenna Indicator High/Low speed switch 3D Eversion/photo and video (this function for item no. X5C) Left control Right control lever lever (Accelerator) Forward and Hover up and backward down trimmer trimmer Left Fine -tuning(Mode 1) Mode switch Sideward Fine-tuning (Mode 2) Sideward Fine-tuning (Mode 1)
- Page 4 01.Sideward Fine-tuning :Power-on start in the centering.(Be turn Left/Right Fine -tuning in Mode2) 02.Forward/Backward fine-tuning:Power-on start in the middle. 03.Turn Left/Right fine-tuning:Power-on start in centering.(Be Sidewoard Fly Fine -tuning in Mode2) 04.Throttle lever fine-tuning：Power-on start in middle. 05.Throttle show:Power-on start in lowest level.(Left and Right throttle shows at one time) 06.Forward shows:Power-on start in the lowest level.(At the center spuare) 07.Backward shows:Power-on start in the lowest level.(At the center spuare)
- Page 5 CAUTIONS: 1.When the indicator of transmitter keep light on but the indicator of quadcopter is blinking slowly, it means signal matching was not successful. Please turn off the power both of transmitter and quadcopter than restart the transmitter and quadcopter. 2.If the quadcopter is till flying to on side dramatically or spinning while hovering, please switch off the power of both the quadcopter and transmitter and then repeat the pre-flying steps.
