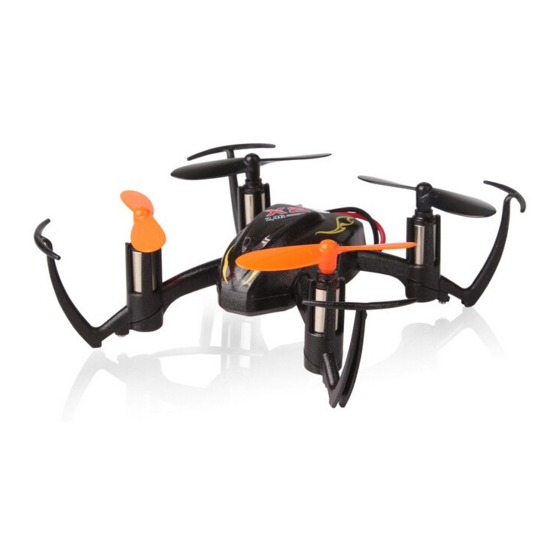

2.4G 4 CH REMOTE CONTROL QUADCOPTER
INSTRUCTION MANUAL
1
IMPLEMENT STANDARD: GB/T26701-2011
Main characteristics
Four-axis structure is applied,which makes the quadcopter more flexible
and rapid when flying.It has the characteristics of wind-resistant and can
be flied indoor or outdoor.
Built-in gyroscope stabilizer can ensure accurte positing in the air.
Modular design structure is applied, more simple for assembly and
convenient for maintenance.
360 degree 3D stunt & tumbling function.
All material, dimensions and spare parts included in this instruction are for reference
only. The company is not responsible for any changes printed parts and notify
consumer. Any updated or changed please refer to our website www.symatoys.com.
2
EVERSION
Advertisement
Table of Contents
Related Manuals for SYMA X2
Summary of Contents for SYMA X2
- Page 1 2.4G 4 CH REMOTE CONTROL QUADCOPTER EVERSION INSTRUCTION MANUAL IMPLEMENT STANDARD: GB/T26701-2011 Main characteristics Four-axis structure is applied,which makes the quadcopter more flexible and rapid when flying.It has the characteristics of wind-resistant and can be flied indoor or outdoor. Built-in gyroscope stabilizer can ensure accurte positing in the air. Modular design structure is applied, more simple for assembly and convenient for maintenance.
-
Page 2: Important Instruction
PREFACE IMPORTANT INSTRUCTION SAFETY & CAUTIONS... - Page 3 ABOUT CONTENTS Ｐｒｏｄｕｃｔ ｉｎｃｌｕｄｅｄ ｆｏｌｌｏｗｉｎｇ ｃｏｎｔｅｎｔｓ： Ｑｕａｄｃｏｐｔｅｒ ２．４Ｇ Ｒｅｍｏｔｅ ｃｏｎｔｒｏｌｌｅｒ ＵＳＢ ｃｈａｒｇｉｎｇ ｗｉｒｅ Ｉｎｓｔｒｕｃｔｉｏｎ ｍａｎｕａｌ Ｓｃｒｅｗｄｒｉｖｅｒ Ｂｌａｄｅ（４ ｐｉｅｃｅｓ） GET TO KNOW YOUR TRANSMITTER Ｈｉｇｈ／Ｌｏｗ Ｂａｔｔｅｒｙ ｃｏｖｅｒ ｓｐｅｅｄ ｓｗｉｔｃｈ ＯＮ／ＯＦＦ ｐｏｗｅｒ ａｎｄ ｉｎｄｉｃａｔｏｒ ３Ｄ Ｅｖｅｒｓｉｏｎ Ｌｅｆｔ ｃｏｎｔｒｏｌ Ｒｉｇｈｔ ｃｏｎｔｒｏｌ ｌｅｖｅｒ ｌｅｖｅｒ Ｍｏｄｅ Ｔｒｉｍｍｉｎｇ ｓｗｉｔｃｈ ＆ ｒｅｓｅｔｔｉｎｇ ４ｘ１．５Ｖ ｂａｔｔｅｒｉｅｓ Ｌｅｆｔ Ｆｉｎｅ－ｔｕｎｉｎｇ Ｒｉｇｈｔ Ｆｉｎｅ－ｔｕｎｉｎｇ READY TO FLY YOUR QUADCOPTER...
- Page 4 CAUTIONS １．Ｗｈｅｎ ｔｈｅ ｉｎｄｉｃａｔｏｒ ｏｆ ｔｈｅ ｔｒａｎｓｍｉｔｔｅｒ ａｐｐｅａｒｓ ｅｔｅｒｎａｌ ｂｒｉｇｈｔ，ｈｏｗｅｖｅｒ，ｔｈｅ ｉｎｄｉｃａｔｏｒ ｏｆ ｔｈｅ ｑｕａｄｃｏｐｔｅｒ ａｐｐｅｒｓ ｓｌｏｗ ｆｌａｓｈｉｎｇ， ｔｈｉｓ ｍｅａｎｓ ｔｈａｔ ｄｅｃｏｄｉｎｇ ｉｓ ｎｏｔ ｓｕｃｃｅｓｓｆｕｌ． Ｔｈｉｓ ｔｉｍｅ ｐｌｅａｓｅ ｄｉｓｃｏｎｎｅｃｔ ｔｈｅ ｐｏｗｅｒ ｂｏｔｈ ｏｆ ｔｈｅ ｑｕａｄ ｃｏｐｔｅｒ ａｎｄ ｔｒａｎｓｍｉｔｔｅｒ，ｔｈｅｎ ｒｅｐｅａｔ ｔｈｅ ｐｒｅ－ｆｌｙｉｎｇ ｓｔｅｐｓ． ２．Ｉｆ ｔｈｅ ｑｕａｄｃｏｐｔｅｒ ｉｓ ｔｉｌｔｉｎｇ ｔｏ ｏｎｅ ｓｉｄｅ ａｂｒｕｐｔｌｙ ｏｒ ｓｐｉｎｉｎｇ ｗｈｉｌｅ ｈｏｖｅｉｎｇ， ｐｌｅａｓｅ ｓｗｉｔｃｈ ｏｆｆ ｔｈｅ ｐｏｗｅｒ ｂｏｔｈ ｏｆ ｔｈｅ ｑｕａｄｃｏｐｔｅｒ ａｎｄ ｔｒａｎｓｍｉｔｔｅｒ ａｎｄ ｔｈｅｎ ｒｅｐｅａｔ ｔｈｅ ｐｒｅ－ｆｌｙｉｎｇ ｓｔｅｐｓ． ３．Ｗｈｅｎ ｔｈｅ ｉｎｄｉｃａｔｏｒ ｏｆ ｔｈｅ ｑｕａｄｃｏｐｔｅｒ ｋｅｅｐｓ ｆｌａｓｈｉｎｇ ｓｌｏｗｌｙ， ｉｔ ｍｅａｎｓ ｔｈａｔ ｔｈｅ ｑｕａｄ ｃｏｐｔｅｒ ｈａｓ ｅｎｔｅｒｅｄ ｉｎｔｏ ｔｈｅ ｌｏｗ ｖｏｌｔａｇｅ ｐｒｏｔｅｃｔｉｏｎ ｓｔａｔｅ．Ｔｈｉｓ ｔｉｍｅ ｙｏｕ ｎｅｅｄ ｔｏ ｃｈａｒｇｅ ｔｈｅ ｑｕａｄｃｏｐｔｅｒ． MODE SWITCH & TRIMMING RESET FUNCTION Ｍｏｄｅ ｓｗｉｔｈ ｆｕｎｃｔｉｏｎ： Ｒｅｓｅｔｔｉｎｇ ｆｕｎｃｔｉｏｎ： Ｋｅｅｐ ｐｒｅｓｓｉｎｇ ｔｈｅ ｂｕｔｔｏｎ Ａ， ｔｈｅｎ ｓｗｉｔｃｈ ｏｎ Ｋｅｅｐ ｐｒｅｓｓｉｎｇ ｔｈｅ ｂｕｔｔｏｎ Ｂ， ｔｈｅｎ ｓｗｉｔｃｈ ｏｎ ｔｈｅ ｐｏｗｅｒ ｏｆ ｔｈｅ ｔｒａｎｓｍｉｔｔｅｒ， ｙｏｕｒ ｃａｎ ｓｅｌｅｃｔ ｔｈｅ ｐｏｗｅｒ ｏｆ ｔｈｅｔｒａｎｓｍｉｔｔｅｒ． Ｅｎｔｅｒ ｉｎｔｏ ｔｈｅ Ｍｏｄｅ １ ｏｒ Ｍｏｄｅ ２． Ｔｒｉｍｍｉｎｇ ＆Ｒｅｓｅｔｔｉｎｇ Ｍｏｄｅ（Ｉｔ ｉｓ ｈｉｇｈｌｙ ｓｕｇｇｅｓｔｅｄ ｔｈａｔ ｔｈｅ ｆｒｅｓｈｍａｎ ｓｈｏｕｌｄ ｒｅｓｅｔ ｔｈｅ ｔｒｕｍｍｅｒ ｆｉｒｓｔ ｂｅｆｏｒｅ ｓｔａｒｔｉｎｇ ｔｈｅ ｆｉｒｓｔ ｆｌｉｇｈｔ．） Ｌｅｖｅｌ ｃａｌｉｂｒａｔｉｏｎ ｆｕｎｃｔｉｏｎ： Ｉｆ ｑｕａｄｃｏｐｔｅｒ ａｌｗａｙｓ ｆｌｙ ｔｏ ａ ｓｉｄｅ ｗｈｅｎ ｓｔａｒｔｉｎｇ， ｐｌｅａｓｅ ｒｅ－ｍａｔｃｈ ｓｉｇｎａｌ ａｎｄ ｐｌａｃｅ ｉｔ ｏｎ ａ ｈｏｒｉｚｏｎｔａｌ ｐｌａｎｅ． Ｔｈａｎ ｔｕｒｎ ｔｈｅ ｔｗｏ ｌｅｖｅｒｓ ｔｏ ｔｈｅ ｌｏｗｅｒ ｒｉｇｈｔ ｃｏｍｅｒ（ａｓ ｌｅｆｔ ｉｍａｇｅ） ｆｏｒ ｓｅｃｏｎｄｓ， ｗｈｅｎ ｉｎｄｉｃａｔｏｒ ｋｅｅｐ ｌｉｇｈｔ ｕｐ， ｉｔ ｆｉｎｓｈｅｓ ａｕｔｏ ｌｅｖｅｌ ｃａｌｉｂｒａｔｉｏｎ．...
- Page 5 ILLUSTRATION ON CONTROLL THE QUADCOPTER (MODE 1, DEFAULTED MODE WHEN STARTING) MODE 1...
- Page 6 ILLUSTRATION ON HOW TO CONTROL THE QUADCOPTER (MODE 2) MODE 2...
-
Page 7: Flight Control
FLIGHT CONTROL 3D EVERSION AND THROWING FLIGHT INSTRUCTIONS １．Ｗｈｅｎ ｙｏｕ ａｒｅ ｆａｍｉｌｉａｒ ｗｉｔｈ ｔｈｅ ｂａｓｉｃ ｏｐｅｒａｔｉｏｎ， ｙｏｕ ｃａｎ ｐｌａｙ ｓｏｍｅ ａｗｅｓｏｍｅ ＆ ｔｈｒｉｌｌｉｎｇ ｓｔｕｎｔ ｏｐｅｒａｔｉｏｎ． Ｆｉｒｓｔ ｏｆ ａｌｌ， ｆｌｙ ｔｈｅ ｆｏｕｒ－ａｘｉａｌ ａｉｒｃｒａｆｔ ｔｏ ｔｈｅ ｈｅｉｇｈｔ ｏｆ ａｂｏｕｔ ｏｒ ｍｏｒｅ ｔｈａｎ ３ ｍｅｔｅｒｓ， ｐｒｅｓｓ ｔｈｅ ３Ｄ Ｅｖｅｒｓｉｏｎ ｓｗｉｔｃｈ ｏｎ ｔｈｅ ｒｉｇｈｔ ａｂｏｖｅ ｏｆ ｔｈｅ ｔｒａｎｓｍｉｔｔｅｒ， ｔｈｅｎ ｒｉｇｈｔ ａｂｏｖｅ ｏｆ ｔｈｅ ｔｒａｎｓｍｉｔｔｅｒ， ａｎｄ ｐｕｓｈ ｔｈｅ ｒｉｇｈｔ ｒｕｄｄｅｒ （ｉｎ ａｎｙ ｄｉｒｅｃｔｉｏｎ） ａｔ ｔｈｅ ｓａｍｅ ｔｏｎｅ ｔｈｅｎ ｙｏｕ ｃａｎ ｍａｋｅ ３６０ ｄｅｇｒｅｅ ３Ｄ ｔｕｍｂｌｉｎｇ ｏｐｅｒａｔｉｏｎ ３ ｍｅｔｅｒｓ ｉｎ ａｎｙ ｄｉｒｅｃｔｉｏｎ ａｎｄ ｍａｋｅ ｓｕｃｃｅｓｓｉｖｅ ｔｕｍｂｌｉｎｇ ｓｔｕｎｔ ｐｅｒｆｏｒｍａｎｃｅ ａｓ ｗｅｌｌ．... -
Page 8: Battery Charging
BATTERY CHARGING Ｃａｕｔｉｏｎ： １．Ｐｌｅａｓｅ ｐｕｌｌ ｏｕｔ ｔｈｅ ｃｈａｒｇｉｎｇ ｗｉｒｅ ｂｅｆｏｒｅ ｓｈｕｔｔｉｎｇ ｄｏｗｎ ｔｈｅ ｃｏｍｐｕｔｅｒ ｗｈｅｎ ｃｈａｒｇｉｎｇ ｂｙ ｔｈｅ ｃｏｍｐｕｔｅｒ ． ２．Ｐｌｅａｓｅ ｍａｋｅ ｓｕｒｅ ｔｈｅ ｐｏｌａｒｉｔｙ ｃｏｎｎｅｃｔｉｎｇ ｉｓ ｃｏｒｒｅｃｔｌｙ ｗｈｅｎ ｃｏｎｎｅｃｔｉｎｇ ｔｈｅ ＵＳＢ ｗｉｒｅ ｔｏ ｔｈｅ ｂａｔｔｅｒｙ ，ａｎｄ ｍａｋｅ ｓｕｒｅ ｔｈｅ ｐｏｌａｒｉｔｙ ｃａｎ ｎｏｔ ｂｅ ｕｐｓｉｄｅ ｏｒ ｄｏｗｎ． Ｃｈａｒｇｉｎｇ ｔｉｍｅ： ａｂｏｕｔ ３０ ｍｉｎｕｔｅｓ ； Ｆｌｙｉｎｇ ｔｉｍｅ： ａｂｏｕｔ ５ ｍｉｎｕｔｅｓ． ... -
Page 9: Troubleshooting
TROUBLE SHOOTING Ａｌｌ ｔｈｅ ｓａｒｅ ｐａｒｔｓ ｂｅｌｏｗ ｃａｎ ｂｏｕｇｈｔ ｆｒｏｍ ｌｏｃａｌ ｄｉｓｔｒｉｂｕｔｏｒ． X2-01A X2-01B X2-02A X2-02B Upper body-Red Upper body-Black Lower body-Red Lower body-Black X2-03 X2-04 X2-05 X2-06 Blades Motor A Motor B Battery X2-08 X2-09 X2-07 Transmitter Circuit board USB charger wire... - Page 10 BREAKDOWN & DIAGRAM ０５ ０４ ０１ ０６ ０２ ０７ ０３ ０８ ０９ Ｃｏｄｅ Ｄｅｓｃｒｉｐｔｉｏｎ Ｑｕａｎｔｉｔｙ Ｃｏｄｅ Ｄｅｓｃｒｉｐｔｉｏｎ Ｑｕａｎｔｉｔｙ Ｃｏｄｅ Ｄｅｓｃｒｉｐｔｉｏｎ Ｑｕａｎｔｉｔｙ Ｕｐｐｅｒ ｂｏｄｙ Ｒｏｔａｔｉｎｇ ｂｌａｄｅ Ｂａｔｔｅｒｙ Ｒｅｃｅｉｖｅｒ ｂｏａｒｄ Ｒｅｖｅｒｓｉｎｇ ｂｌａｄｅ Ｒｅｃｅｉｖｅｒ ｍｏｔｏｒ Ｔｒａｎｓｐａｒｅｎｔ ｐｉｅｃｅ Ｌｏｗｅｒ ｂｏｄｙ Ｒｏｔａｔｉｎｇ ｍｏｔｏｒ...
-
Page 11: Main Parameter
MAIN PARAMETER ９５ｍｍ ９５ｍｍ 95mm 95mm 3.7V/150mAh 35mm -10-...
