Summary of Contents for Pandigital PI8004W01-V5.2

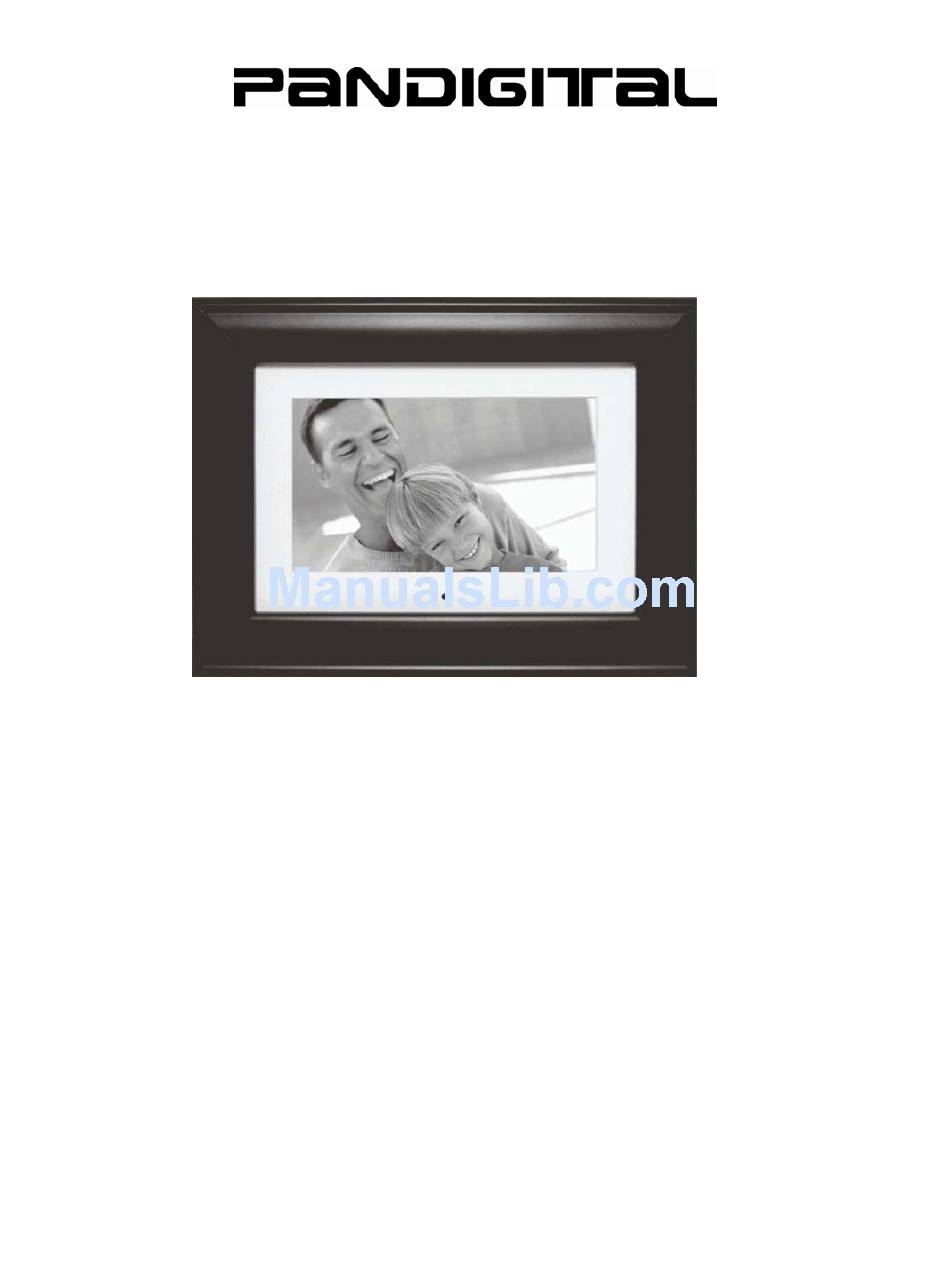

- Page 1 Digital Photo Frame User’s Guide...
- Page 2 UGPI7000W01 & PI8004W01-V5.2...
-
Page 3: Table Of Contents
What’s In the Box ... 6 Important Safety Precautions ... 7 Cleaning the Digital Photo Frame ... 7 Set Up the Digital Photo Frame (DPF) ... 8 Changing the Decorative Frame or Matt ... 9 Connecting Speakers to the Photo Frame ... 9 Control Buttons and Remote Control ... - Page 4 Set Slideshow Music Mode ... 21 Set Slideshow Transition ... 21 Set Slideshow Speed ... 22 Set Slideshow Shuffle ... 22 All Photos Slideshow ... 23 Custom Category Folder Slideshows ... 23 Assign Photos To Category Folders ... 23 Play Slideshow from Category Category Folders ... 24 Un-assign Photos from Category Folders ...
- Page 5 Connect to a Macintosh ... 37 Frequently Asked Questions ... 37 Bluetooth Setting Options ... 39 Technical Specifications ... 40 Limited Warranty ... 41 FCC Statement ... 42 ...
-
Page 6: Introduction
Welcome to the Pandigital Multimedia Digital Photo Frame (DPF). Now you can display your digital photos directly from your memory card, no computer is necessary. Simply insert a memory card into the DPF and power on. You’ll be treated to an automatic slideshow of your photos. It’s as easy as that. -
Page 7: Important Safety Precautions
Always follow these basic safety precautions when using your Multimedia Digital Photo Frame (DPF). This will reduce the risk of fire, electric shock, and injury. WARNING: Do not expose this product to rain or moisture. WARNING: Do not remove the cover. There are no user-serviceable parts inside. -
Page 8: Set Up The Digital Photo Frame (Dpf)
It is a quick and easy process to set up the DPF. 1. Plug the AC Power Adapter into the DPF and into a wall outlet. 2. Insert a memory card or USB Flash Drive into the appropriate slot. Slot 1 – Compact Flash Card Reader (8” model only) Slot 2 - Secure Digital™... -
Page 9: Changing The Decorative Frame Or Matt
Depending on the model, your Digital Photo Frame may include interchangeable decorative frames or matts. To change the frame or matt, remove screws on the back of the frame and lift the unit from the frame. After replacing either frame or matt, replace the screws and just finger-tighten. -
Page 10: Remote Control
Button Action Move the selection down or right, display the next photo or select the next file. EXIT Exit the current display, or go back a screen. SETUP Open the Onscreen Menu. Remote Control You can access all of the DPF’s features, and perform all of the functions by using the remote control. -
Page 11: The Dpf's Menu Screens
While pressing down on the ridged area of the battery cover, pull the battery tray out. Place a “CR2025” Lithium battery on the tray with the positive “+” end facing toward you Close the tray. The DPF’s Menu Screens You control the DPF’s features through the menu screens, and you can navigate the menus by using either the remote control or the buttons on the top of the DPF. -
Page 12: Dpf Functions Overview
FILE View all files on each present memory source CLOCK Calandar, date and time, alarm and schedule On/Off functions Press ◄ / ►arrows to highlight a feature, and then press ENTER to select that feature. Press EXIT to return to the previous menu. DPF Functions Overview You will use the DPF’s main Setup Menu to set most of the functions for your viewing/listening preferences. - Page 13 Display Option Setting ON (default) Slideshow Music Fade Shutter Cross Comb Mask Slideshow Brick Transition Dissolve Expansion Silk Random (default) 5 secs (default) 10 secs 30 secs Slideshow Speed 60 secs 1 hr 24 hrs ON (default) Slideshow Shuffle Optimized (default) Photo Copy Method Non-Optimized...
-
Page 14: Select Media (Memory Source)
Display Option Setting Weekdays,on/off Set ON/OFF Schedule Weekend, on/off Internal Memory SD/MMC xD-Card Select Media MS/MS-DUO Family Friends View Folder Vacation Events Others Select Media (Memory Source) The DPF has an internal memory for storing your photo, music, and video files. -
Page 15: Power Saver
On the HOME screen, press SETUP. Use ▲ / ▼ to highlight Select Media and then press ENTER. Use ▲ / ▼ to select the desired memory source, and then press ENTER. The memory source you selected will now be the source of your photo, video and music playback until you select a different source or power off the DPF. -
Page 16: Photos
You can view your photos individually or as slideshows, with or without background music. Display Image Size There are two modes for displaying your photos on the DPF: • Original = Displays photos in actual photo size, which may result in part of a photo not being visible on the screen. -
Page 17: Rotate A Photo
Note: You must use your remote control to rotate photos. 1. With a photo individually displayed, rotate it by pressing ROTATE on the remote control. The photo will be rotated by 90 degrees clockwise with each press of the ROTATE button. 2. -
Page 18: Copy Photos From Memory Card Into Internal Memory
1. On the HOME screen, press SETUP. 2. Use ▲ / ▼ to highlight Photo Copy Method, and then press ENTER. 3. Use ▲ / ▼ to highlight Optimized or Non-optimized, and then press ENTER. 4. Press EXIT to close the menu. Copy Photos from Memory Card into Internal Memory You can copy all or individual selected photos from your memory source into the DPF’s internal memory. -
Page 19: Delete Photos From The Internal Memory
Press SETUP. Use ▲ / ▼ to highlight Copy Photo, and then press ENTER. Use ▲ / ▼ to highlight Selected, and then press ENTER. Press ENTER on Yes to confirm the copy request. The photos will be copied and a message appears stating the number of photos that were copied. -
Page 20: Photo Slideshows
will appear in the upper-right corner of the thumbnail photo. Use ‘-‘ to de-select. Continue selecting all the photos you want to delete. Press SETUP. Use ▲ / ▼ to highlight Delete Photo, and then press ENTER. Use ▲ / ▼ to highlight Selected, and then press ENTER. Press ENTER on Yes to confirm the delete request. -
Page 21: Set Slideshow Music Mode
Use “+” and “-” on the remote control to adjust the volume on the DPF. Set Slideshow Music Mode You can either have slideshow background music playing or not, even if music files are present on the memory source. Note: Refer to the MUSIC section beginning on page 26 for more information on playing music files. -
Page 22: Set Slideshow Speed
2. Use ▲ / ▼ to highlight Slideshow Transition, and then press ENTER. 3. Use ▲ / ▼ to highlight the preferred effect, and then press ENTER. 4. Press EXIT twice to return to the HOME screen. Set Slideshow Speed You can set the speed at which the photos transition from one to another during a slideshow. -
Page 23: All Photos Slideshow
4. Press EXIT to return to the HOME screen. All Photos Slideshow To play a slideshow of all photos on the selected memory source: 1. On the HOME or photo thumbnails screen, press SLIDE SHOW. 2. Press EXIT to pause and EXIT again to stop the slideshow. Custom Category Folder Slideshows There are five category folders in the internal memory into which you can copy photo files for custom slideshows. -
Page 24: Play Slideshow From Category Category Folders
Note: The photos are assigned to the folder, not copied. If you delete the photo file from internal memory later, the link to the photo will also be deleted. TIP: You can also assign photos to folders while viewing individual photos or slideshows by pressing SETUP. Select Assign Photo To, and then select a folder as described in steps 4-5 above. -
Page 25: Temporary Custom Slideshow
Temporary Custom Slideshow A temporary custom slideshow is comprised of individual photos you select and display immediately without saving them in a category folder. Note: You must use your remote control to create a temporary custom slideshow. On the HOME screen, use ◄ / ► to highlight PHOTOS, and then press ENTER. -
Page 26: Activate Scheduled Slideshows
each option. 5. The Set Always OFF option allows you to toggle the Weekdays / Weekends scheduling on and off as desired. 6. When all options have been set, press EXIT to save and return to the Calendar/Clock screen. TIP: You can also schedule a slideshow from the HOME screen SETUP, and then follow steps 3-6 above. -
Page 27: Play Mp3 Files At Any Time
You can play music MP3 files located on your memory source without a slideshow being displayed at any time. This allows you to use your DPF as a personal MP3 player. 1. On the HOME screen, use ◄ / ► to highlight MUSIC, and then press ENTER. -
Page 28: Music Playback Mode
There are three playback modes that you can set in the DPF. No Repeat – play a selected music file only once. No Repeat Repeat Single – play a selected music file Repeat Single continuously until you stop it. Repeat All Repeat All –... -
Page 29: Video Playback Mode
2. On the HOME screen, use ◄ / ► to highlight VIDEO, and then press ENTER. A list of all video files found on the memory source is displayed. 3. Use ▲ / ▼ to highlight the video you want to view, and then press ENTER. -
Page 30: File
This feature offers another method for viewing or listening to available files on your selected memory cards, whether it’s audio, photo, or video files. View Contents of Selected Memory Source 1. On the HOME screen, use ◄ or ► to highlight FILE, and then press ENTER. -
Page 31: Calendar / Clock
On the FILE screen, use ▲ / ▼ to scroll through your files. Press “+” to select files you want to copy. A check mark will appear in the upper-right corner of the file name. Use ‘-‘ to de-select if needed. Continue selecting all the files you want to copy. -
Page 32: Set The Clock
Set the Clock On the Calendar/Clock screen, press SETUP. Use ▲ / ▼ to highlight Set Clock and then press ENTER. Use ◄ / ► to move between the Time and Date fields, and use ▲ / ▼ to change the value in the selected field. When the date and time are correct, press ENTER to save and return to the normal Calendar/Clock screen. -
Page 33: Start Scheduled On/Off
A small alarm clock will be displayed in the lower right corner. Depending on the alert tone you selected, (default tone) a small speaker symbol (default tone) or (music) a music note symbol will also be displayed next to the little clock. Note: At least one MP3 music file must be present in the internal memory for the alert to play music. -
Page 34: Copy Files Between Computer And Dpf
Use ▲ / ▼ to highlight your desired photo source and then press ENTER. Note: If you select a folder that does not contain photo files, the round clock will be displayed instead. If you select a folder that contains photo files, the time will be displayed under the photo slideshow. - Page 35 Each memory card present in the DPF and the built-in memory will be associated with one disk drive on your computer. IMPORTANT: If your PC is connected to Local Area Network drives, or if you have multiple drive letters already assigned to peripheral devices, you will need to manage your drive settings in Windows to free up the four drive letters immediately following your CD-ROM drive so the DPF can assign them to memory.
-
Page 36: Disconnect The Dpf From The Computer
To copy files from the memory card, select and drag them to the drive associated with the DPF’s internal memory. Similarly, to copy photos from your computer to the built-in memory, first locate the files on your computer, select the files you want to copy, and then drag and drop them to the drive associated with the DPF’s internal memory. -
Page 37: Connect To A Macintosh
Frequently Asked Questions Q: How do I set up my DPF? A: It is very simple to get your Digital Photo Frame setup. Just plug the power adapter into the DPF and into a standard wall outlet. Insert a memory card into the appropriate card slot or a or USB Flash Drive on the side of the DPF, and power it on. - Page 38 Q: I have a memory card in the DPF; why can’t I view my photos? A: A) Be sure that the memory card is one of the formats listed above and that the files on the card are JPEG images files. Some digital cameras save images in other formats.
-
Page 39: Bluetooth Setting Options
Note: Not all phones support transmitting photos to devices like a DPF. Insert USB Bluetooth Dongle into the DPF 1. Insert to the USB host port and then turn on the DPF. Check Pandigital’s website for the compatable USB Bluetooth adapters. http://www.pandigital.net 2. On the HOME screen, the Bluetooth right corner. -
Page 40: Technical Specifications
Technical Specifications 7” LCD Screen Digital Photo Frame Product Resolution 480 X 234 pixels Product 8” LCD Screen Digital Photo Frame Resolution 800X600 pixels Secure Digital™, Multi Media Card™, Compact Flash™, xD Memory Card™, Memory Stick™, Memory Card Formats Memory Stick PRO™, and USB Flash Drives. -
Page 41: Limited Warranty
LABOR: For a period of ninety (90) days from the date of purchase, if this product is found to be defective, Pandigital will repair or replace the product, at its option, at no charge. After this ninety (90) day period, labor charges will be charged on a case by case basis. -
Page 42: Fcc Statement
This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. All content included on the Pandigital website as well as Pandigital products, including preloaded demonstration images, digital media, digital cookbooks, text, graphics,...
Need help?
Do you have a question about the PI8004W01-V5.2 and is the answer not in the manual?
Questions and answers

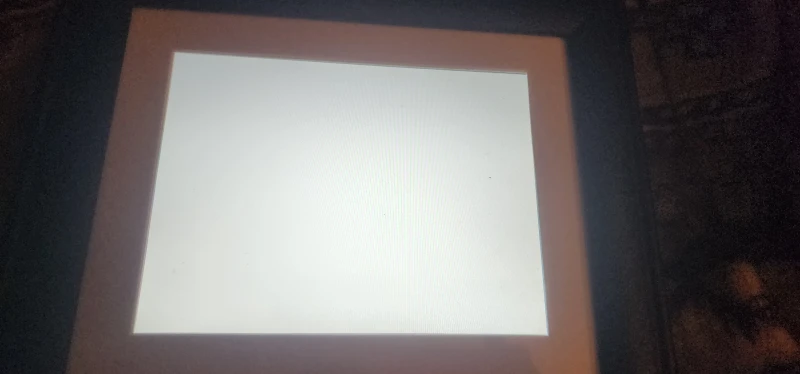

I turn on my frame and it lights up, but nothing comes up
If your Pandigital PI8004W01-V5.2 frame lights up but does not display anything, try the following steps:
1. Ensure the memory card is fully inserted into the slot.
2. Confirm the memory card format is compatible: Secure Digital™, Multi Media Card™, Compact Flash™, xD Memory Card™, Memory Stick™, Memory Stick PRO™, or USB Flash Drive.
3. Verify the image files are in JPEG format, as other formats may not be supported.
4. Power off the frame, reinsert the memory card, and power it back on.
If the issue continues, recheck that images are JPEG and the card is not corrupted.
