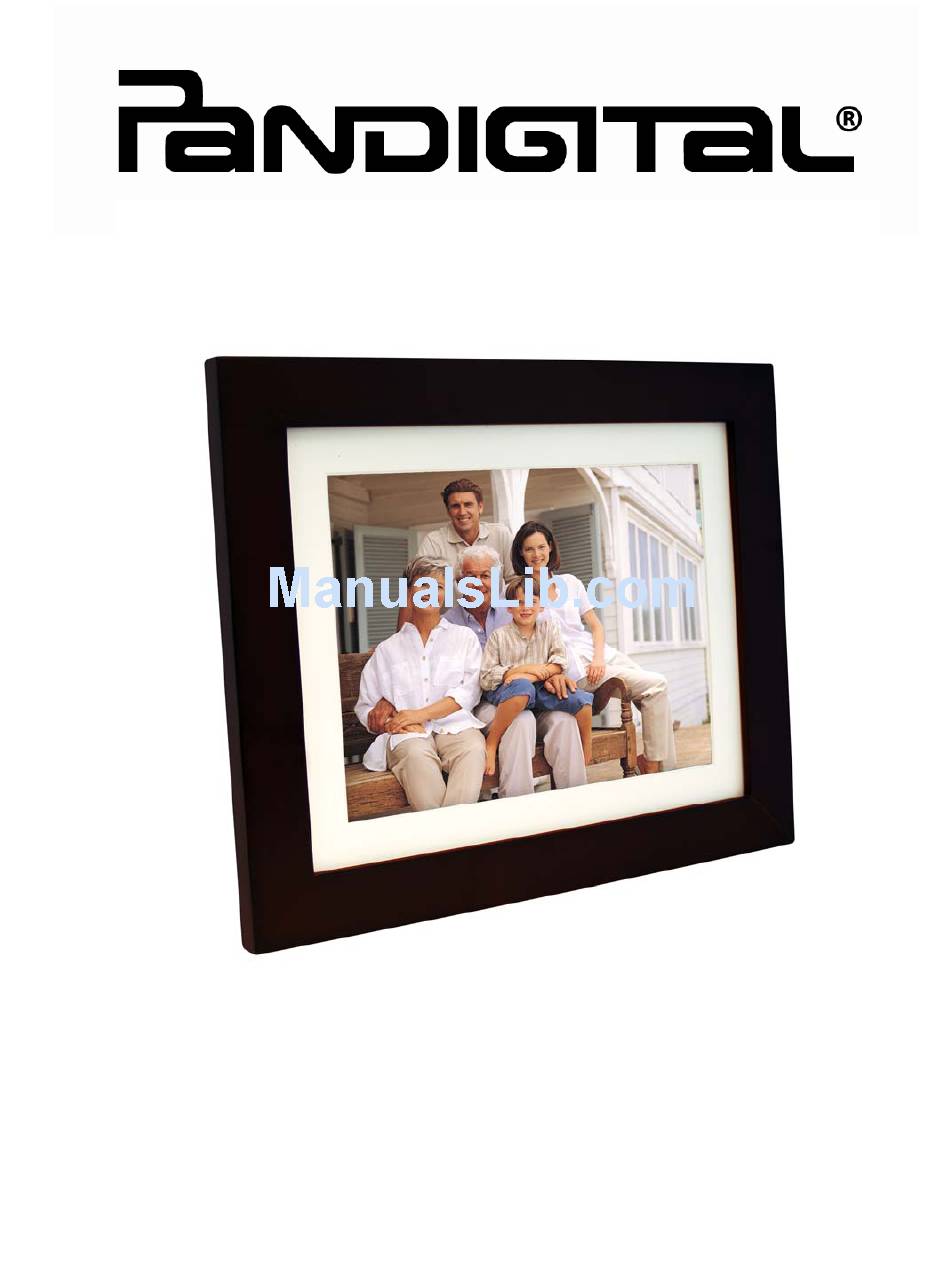

Page 1: Digital Photo Frame
Effortlessly Moving Images Out of your Camera and Into your Life Digital Photo Frame User Guide PI1002DW, PI1051DWCB... - Page 2 NOTE: If you must mail your 1-year registration, please send your name, address, phone number, model & serial number, and when & where purchased to: Pandigital, P.O. Box 2969, Dublin, CA 94568-2969 USA Note: Your frame style and features may differ from those documented in this User Guide.
-
Page 3: Table Of Contents
Table of Contents Introduction ... 5 Overview of the DPF ... 6 Remote Control ... 6 Control Buttons on DPF ... 8 Getting Started ... 9 The HOME Screen ... 9 Setup Menu Overview ... 10 About Selecting Options ... 11 Select Media Source ... - Page 4 VIDEOS ... 23 Select Media Source for Videos ... 23 Watch a Video ... 23 Video Repeat Mode ... 23 Import Video Files into Internal Memory ... 24 Delete Videos from the Internal Memory ... 24 CALENDAR/CLOCK ... 25 Select Media Source for Calendar Slideshow... 25 Set Schedule ...
-
Page 5: Introduction
Introduction Welcome to the Pandigital Multimedia Digital Photo Frame (DPF). Now you can display your digital photos directly from your memory card, no computer is necessary. DPF Key Features Simple Plug & Play Displays digital Photo files (JPEG up to 16 mega pixels) -
Page 6: Overview Of The Dpf
Overview of the DPF Power ON/OFF power jack (The memory card slots, ports, and jacks in your DPF may be different than those pictured here.) Remote Control You can access all of the DPF’s features, and perform all of the functions by using the remote control. -
Page 7: Overview Of Remote Control
Overview of Remote Control Start Slideshow Exit or go back Scroll Up Scroll Previous Play/Pause/Select object Volume adjust higher or Select object Volume - adjust lower or De-select object Store Remote Control You can avoid misplacing the remote control by safely storing it on the back of the DPF when not in use. -
Page 8: Replace The Remote Control Battery
Replace the Remote Control Battery 1. Hold the remote control with the buttons facing down. 2. Push and hold the small release tab while pulling the battery tray out. 3. Replace the “CR2025” Lithium battery on the tray with the positive (+) side facing up. Push the tray back in until it clicks into place. -
Page 9: Getting Started
Getting Started 1. Plug the AC Power Adapter into the DPF’s DC power jack and an electrical wall outlet. 2. Slide the power button on the left side of the DPF up to the ON position. 3. If prompted, select the desired language for the user interface display (varies by model). -
Page 10: Setup Menu Overview
Clock the calendar, clock, and alarm settings Recipes View pre-loaded samples recipes and cookbooks With the Pandigital Wi-Fi USB adapter (sold separately) you Wi-Fi can connect wirelessly for access to on-line photo sites (page 32) Quick access to single photo manage mode for Zooming, Edit Rotating, or Deleting currently displayed photo. -
Page 11: About Selecting Options
Select Media Source Wi-Fi Network Setup Slideshow Setup Adjust Screen Colors Optimal Image Display Photo Import Method Set Sleep Mode Reset to Factory Defaults Set Language System Upgrade About Selecting Options Throughout this User Guide, when you are instructed to ‘select’ a function option or button, unless otherwise instructed, use referenced option] Select Media Source... -
Page 12: Photos
You will also use this function to view the contents of the Folders after you assign photos to these folders HOME 1. On the Select Media Source 2. Select (sources not present will not be available). Internal Memory = Built-in flash memory SD/MMC = Secure Digital MS = Memory Stick xD = Standard flash memory card... -
Page 13: View Individual Photo During A Slideshow
2. Use Page Up/Page Down 3. To view an individual photo full screen, press highlighted photo. 4. While the photo is displayed, you can use next/previous photos. View Individual Photo during a Slideshow 1. With the desired photo displayed, press slideshow. -
Page 14: Adjust Screen Colors
Adjust Screen Colors You can adjust the four LCD color levels for optimal image viewing. 1. On the 2. Select 3. Use adjust the setting until the desired view is achieved. 4. Use Optimal Image Display You can choose the desired display mode for displaying your photos on the DPF as follows: 1. -
Page 15: Display Photo File Date/Time Stamp With Photos
Slideshow Setup 2. Select Display Current Time under Done 3. Select TIP: If the time is incorrect, refer to Set Date and Time on page 27 to set the clock. Display Photo File Date/Time Stamp with Photos Most digital cameras typically include a Date/Time stamp when saving photo files. -
Page 16: Delete Photos From Internal Memory
3. Use ‘ ’ to select the desired photos to import (‘ 4. Press 5. Press Delete Photos from Internal Memory You can delete photo files from the DPF’s internal memory, but not from an external media source (i.e., memory card, USB flash drive). Be sure you have TIP: It is recommended to make backup copies of the photos before you delete them from the DPF. -
Page 17: Slideshow Of Photos In Internal Memory
Slideshow of Photos in Internal Memory You can play a slideshow of the photos stored in the DPF’s internal memory by simply powering on the DPF (with no external media source or wireless Wi-Fi adapter inserted*) and then wait for the slideshow to automatically begin. -
Page 18: Thumbnails Screen
Assign Photos to Slideshow Folder 1. On the 2. On the through your photos. 3. To assign an individual photo: With the desired photo displayed, press To assign multiple photos: Press ‘ (‘ ‘ will deselect), and then press 4. Select folder to assign the photo Play Slideshow from Slideshow Folder 1. -
Page 19: Slideshow Background Music
Slideshow Background Music To play background music during a slideshow, simply copy at least one music MP3 file onto the same media source as your photos. The music will automatically play as the slideshow is displayed. If you have multiple MP3 files on your media source, each music file will play in succession until all have been played, and then will repeat Music Repeat Mode according to the... -
Page 20: Set Slideshow Transition
3. Use select your desired setting. 5 (default), 10, 30, 60 seconds, 1 hour, or 24 hours Done 4. Select Set Slideshow Transition You can set the transition ‘special effects’ as photos transition from one to another during a slideshow. 1. -
Page 21: Music
MUSIC Note: Music files must be standard MP3 format and not from licensed music from download services. Select Media Source for Music When you have the different media source by selecting the current media source button in the upper right corner and then select a different media source Select Media from the Playing Music Only... -
Page 22: Import Music Files Into Internal Memory
Import Music Files into Internal Memory You can import your music files from external media sources (i.e., memory card, USB flash drive) into the DPF’s internal memory. The number of music files you can import depends on file size and available memory. -
Page 23: Videos
VIDEOS The DPF supports motion JPEG AVI video files. If your movie file is not in AVI format, you may have to convert the file by using a software video converter which is easily found for purchase on the Internet. Select Media Source for Videos When you have the different media source by selecting the current media source button... -
Page 24: Import Video Files Into Internal Memory
Import Video Files into Internal Memory You can import your video files from external media sources (i.e., memory card, USB flash drive) into the DPF’s internal memory. The number of videos you can import depends on file size and available memory. -
Page 25: Calendar/Clock
TIP: If you select delete operation. Video files already deleted will not be automatically restored. CALENDAR/CLOCK Your DPF can be used as a personal desk calendar with a real-time clock and alarm, and also displays a continuous slideshow of photos on the selected media source. -
Page 26: Set Schedule
Set Schedule You can schedule the DPF to automatically go into a “stand-by” mode and resume operation according to your weekly schedule. For example, if you have your DPF on your desk at work, you may want to display the calendar/clock or play a slideshow from 8:30am to 5:30pm every weekday, and then set the DPF to remain in stand-by mode throughout the weekend. -
Page 27: Run Schedule From Slideshow
CAUTION: After you select the intervention will cancel the activation (i.e., pressing remote or control button, powering off) and the schedule will not take effect until you select this function again to re-activate. Run Schedule from Slideshow 1. Start a slideshow and press button when it appears in the lower left corner of the screen (approx 10 sec). -
Page 28: Set Alarm
Recipes The DPF’s authors such as bon appétit and Good Housekeeping (sold separately on our website http://www.pandigital.net). Sample bon appétit seasonal recipes are included with this DPF so you can experience how the recipe feature works when you purchase and install the complete seasonal cookbooks. -
Page 29: View Recipes In Cookbook
Recipes Note: The feature is accessible only when the Internal Memory is the selected media source (page 11.) You will use these instructions for the pre-loaded sample recipes as well as the complete cookbook collections. View Recipes in Cookbook HOME 1. -
Page 30: Assign Recipes To 'My Favorite Recipes
Assign Recipes to ‘My Favorite Recipes’ You can assign recipes from a main Cookbook into six food group categories for quick and easy retrieval: Salads, Entrées, Desserts names are not changeable). 1. On the Sample Recipes 2. Select seasonal cookbooks). The be displayed. -
Page 31: Copy Or Reassign Recipes From One Category To Another
Copy or Reassign Recipes from one Category to Another After you have assigned recipes into food group categories, you can reassign (move) or copy (duplicate) them from one category into another when desired. RECIPES 1. On the 2. Select the desired food group category from which you will reassign recipes. -
Page 32: Wi-Fi
2. Select the desired food group category from which you will unassign recipes. 3. On the scroll through the recipes, and then press ‘ you want to unassign. MENU 4. Press appears as the recipes are unassigned. Wi-Fi This feature allows a wireless connection with multiple online photo sharing and streaming RSS content feed websites (i.e., Windows Live FrameIt). -
Page 33: Set Up Wireless Network
= Toggles between SYM / NUM / ABC / abc screens Set up Wireless Network Note: You must have an active wireless network within range of the DPF, and the Pandigital wireless Wi-Fi USB Adapter must be connected to the DPF. (Wi-Fi adapter sold separately on our website: http://www.pandigital.net.) - Page 34 1. Insert the Pandigital wireless USB adapter into the USB Host port on the DPF. 2. On the Wi-Fi Network Setup 3. Select be displayed, similar to this example: 4. Select Scan for Available Network. The wireless networks within range will appear in the 5.
- Page 35 6. If necessary, change the ENTER on the option button multiple times to select the appropriate security type. Password 7. Select , and then use the virtual keyboard to enter Wi-Fi Password your use the ‘ABC/abc’ ‘NUM’ and ‘SYM’ keys as needed for correct characters.) Done 8.
-
Page 36: Windows Live Frameit
Windows Live FrameIt You can wirelessly connect with Windows FrameIt, an online photo sharing and streaming live RSS data feeds website for viewing live News, Weather, Traffic, Sports, and more. Connect with FrameIt 1. On the 2. Select 3. The DPF is pre-set to display the following live feeds when you initially access Windows Live FrameIt: 4. - Page 37 Get Claim Token 1 3. Select displayed, which you will need in the next step. 4. On your PC: Go to http://frameit.live.com/device/claim.aspx the Claim Token, and then click 5. On the DPF: FrameIt On the Registration Required 6. If applicable, repeat steps 3-5, selecting to connect with your second FrameIt account.
-
Page 38: Photo Sharing Websites
3. The RSS feed folders that you assigned on frameit.live.com will be displayed; the titles will appear as you highlight the folders. Press folder. Wait for the feed data to appear; the length of time it takes to appear depends on the amount of feed data contained within the selected folder. - Page 39 Establish Accounts with Photo Sharing Websites The online photo sharing websites that the DPF can access vary depending on the DPF models, and could change without notice. Follow these steps to determine which sites are available with your DPF: 1. After completing the initial wireless network setup HOME on the screen, select...
-
Page 40: Dpf To Pc - Wireless Connection
PC into the DPF’s internal memory. Note: You must have an active wireless network within range of the DPF, and the Pandigital wireless Wi-Fi USB Adapter must be connected to the DPF. (Wi-Fi adapter sold separately on our website: http://www.pandigital.net.) - Page 41 Set up Universal Plug and Play (UPnP) Server A UPnP Server must be set up on your computer before you will be able to connect the DPF to your PC wirelessly. Windows Go to Microsoft’s website for instructions on setting up and configuring your Windows UPnP Server: http://www.microsoft.com/windows/windowsmedia/knowledgecen ter/howto/mp11/sharemedia.aspx...
-
Page 42: Dpf To Pc - Usb Connection
2. A window opens listing all drives connected to your computer, similar to the following screen: 3. The internal memory (titled Pandigital) and each memory card present in the DPF will be associated with one disk drive on your computer. -
Page 43: Disconnect Dpf From Windows Pc
The following example shows a card listing several JPG images. 6. To copy files from a media source, select and drag them into the DPF’s internal memory drive (Pandigital). 7. Similarly, to copy files from your computer to the internal... -
Page 44: Disconnect Dpf From Macintosh Computer
Windows Vista 1. On the Windows System Tray, click the hardware removal icon 2. Click the corresponding with the DPF device drive. 3. When the message “This device can now be safely removed from the computer” appears, you can disconnect the USB cable from your computer. -
Page 45: Usb Flash Drive To Dpf Connection
Dongle Enabled Send Photo to DPF 1. From your Bluetooth device, search for available connection devices; Pandigital select the 2. Select the desired photo and then send to the DPF. Note: The actual procedure for sending photos to the DPF varies by mobile device manufacturer/model. -
Page 46: Set Sleep Mode
Set Sleep Mode The DPF will stay on until you power it off, however, to save power you can set it to automatically go into a sleep mode when left idle for a specific amount of time. HOME 1. On the Set Sleep Mode 2. -
Page 47: Frequently Asked Questions
Frequently Asked Questions Q: How do I set up my DPF? A: It is very simple to get your Digital Photo Frame setup. Just plug the power adapter into the DPF and into a standard wall outlet, and then power it on. A slideshow will begin displaying the images pre- loaded in the internal memory. - Page 48 Q: Which wireless Wi-Fi USB adapter can I use with my DPF, and where can I obtain one? A: Use only a Pandigital Wi-Fi adapter which is available for purchase on our website at: http://www.pandigital.net. Q: Where do I obtain a Bluetooth adapter to use with my DPF? A: You can purchase any brand of Bluetooth adapter from any retail outlet that sells them.
-
Page 49: Important Safety Precautions
Important Safety Precautions Always follow these basic safety precautions when using your Multimedia Digital Photo Frame (DPF). This will reduce the risk of fire, electric shock, and injury. WARNING: Do not expose this product to rain or moisture. Do not remove the cover. There are no user-serviceable parts inside. -
Page 50: Technical Specifications
USB2.0 Device 1GB, up to 5000 compressed images Yes (adapter not included) Yes (Pandigital Wi-Fi adapter sold separately) 2 – White and Charcoal Input: 100V - 240V AC, 50~60 HZ Output: 9V DC 2.0 A or 12V DC 1.5A (depending on model) -
Page 51: Limited Warranty
LABOR: For a period of one (1) year from the date of purchase, if this product is found to be defective, Pandigital will repair or replace the product, at its option, at no charge. After this one (1) year, labor charges will be charged on a case by case basis. -
Page 52: Fcc Statement
This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. All content included on the Pandigital website as well as Pandigital products, including pre-loaded demonstration images, digital media, digital cookbooks, text,...
