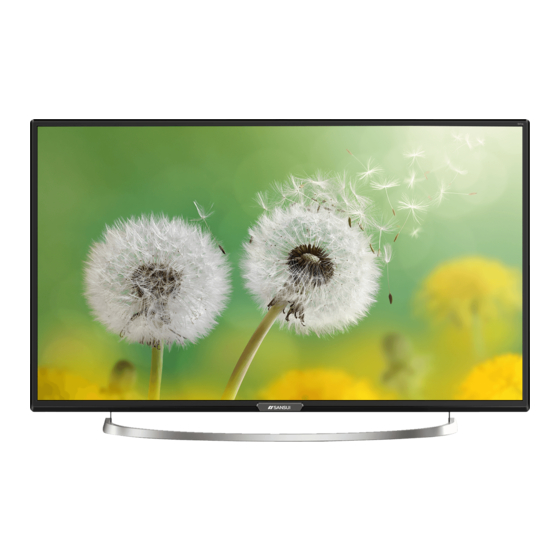

Sansui LEDTVSKQ48FH Owner's Manual
  1. Manuals
  2. Brands
  3. Sansui Manuals
  4. LED TV
  5. LEDTVSKQ48FH
  6. Owner's manual

Sansui LEDTVSKQ48FH Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

LEDTVSKQ48FH
LEDTVSKQ55FH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEDTVSKQ48FH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sansui LEDTVSKQ48FH

Summary of Contents for Sansui LEDTVSKQ48FH

  • Page 1 LEDTVSKQ48FH LEDTVSKQ55FH...

  • Page 4: Table Of Contents

    Contents Safety and warnings......................2-3 Introduction........................4 Installation........................5-9 Remote Controller......................10 TV Operation........................11-15 Trouble shooting......................16...

  • Page 5: Safety And Warnings

    SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTION 1) Read these instructions. The symbol indicates that dangerous voltages constituting a risk of electric shock are present 2) Keep these instructions. within this unit. 3) Heed all warnings. 4) Follow all instructions. The symbol indicates that there are important 5) Do not use this apparatus near water.
  • Page 6 SAFETY AND WARNINGS High voltages are used in the operation of this television Never stand on, lean on, or suddenly push the television or receiver. Do not remove the cabinet back from your set. its stand. You should pay special attention to children. Refer servicing to qualified service personnel.

  • Page 7: Introduction

    ② High luminance, wide viewing angle； Battery(AAA).......2 ③ Can store 200 TV programs； User’ s M anual.......1 ④ HDMI interface； Multi-Media player (USB); SPECIFICATIONS Viewing Picture Size (Diagonal) LEDTVSKQ48FH LEDTVSKQ55FH Resolution 1920 x 1080 16 : 9 Aspect Ratio TV System PAL/BG...

  • Page 8: Installation

    INSTALLATION Installation of Standbase Assembly Prepare to place the TV with the display side down on a flat surface. Ensure the table or desk you use provides a flat, totally clean surface, and use a soft cloth between the face of the TV and the table to protect the TV's screen.

  • Page 9: Front Panel

    INSTALLATION Key Board Instructions Front panel ① SOURCE ② MENU ③ VOL+ ④ VOL- ⑤ STANDBY 1．SOURCE： Display the input source menu. 2．MENU： Display main MENU. 3．CH+/CH- In TV mode，press“CH+”or“CH-”to change the channel up and down. In MENU mode, press “CH+”or“CH-”to select items.
  • Page 10 INSTALLATION ANTENNA Note: Aerial connections: IEC(female). Input impendance: 75 unbalanced. PC Connectivity STEPS: Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch to PC mode. 4.Power on the PC.
  • Page 11 INSTALLATION...

  • Page 12: Installation

    INSTALLATION AV Equipments for This TV provides one group of AV, one group of YPbPr for convenient connection to VCR, DVD or other video equipment. Please refer to the owner's manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows. AV OUT HDMI2 HDMI1...

  • Page 13: Remote Controller

    REMOTE CONTROLLER Standard, Mild, User, Dynamic. Standare Music Movie Sports User. Auto, 4:3, 16:9, Zoom, Panorama. Under different channels, optional scaling mode is different. Favorite program hotkey. Favorite program hotkey. Favorite program hotkey. Favorite program hotkey. Press CH+ or CH- to go to the next or previous channel. In USB mode, used as Play/Pause key.

  • Page 14: Tv Operation

    TV OPERATION 1.PICTURE MENU Picture Mode This function is used to select the preset picture settings. (Standard/Mild/User/Dynamic) Contrast These settings are used to adjust the Contrast (0-100), Brightness (0-100), Brightness Color (0-100), Sharpness (0-100), and Tint (0-100) values for fine adjustments of the picture. Color NOTE: Tint is enabled for NTSC channels only.

  • Page 15: Channel Menu

    TV OPERATION 3. CHANNEL MENU Tuning -12-...

  • Page 16: Setting Menu

    TV OPERATION 4. SETTING MENU The backlight value can be varied (0-10) This function is used to adjust Back Light brightness level of panel . TV is in Normal state when this is on, to save the power consumed by TV select power saving Ecovision modes Power Saving Off/Low/Mid/High/Audio only mode.
  • Page 17 TV OPERATION 6. USB FUNCTION You must enter the Source menu first, then choice the USB and press OK button, the USB menu will appear. Input Source YPBPR HDMI1 HDMI2 Select the media file by pressing , then the preview frame will pop up. Press the button to play the media file in full screen.
  • Page 18 TV OPERATION Multimedia (USB) file support Photo Associated parameters Resolution Compression Option Support range File type Progressive JPEG Resolution Only Support1024x768 JPEG Baseline(Standard) 15360x8640 Support Baseline has beenoptimized Support ,16color,256color, Monochromatism BMP　 Support 9600x6400 16bit,24bit,32bit Support Non-interlaced PNG　 9600x6400 Interlace Resolution Only Support 1200x800 Audio Associated...

  • Page 19: Trouble Shooting

    TROUBLE SHOOTING Trouble phenomenon Picture Audio Inspection antenna position, direction Snow Noise or connection antenna position, direction Ghost or connection Normal audio electronic equipment,car/ Interfere Noise motorcycle,fluorescent light Volume(inspect wether the mute function on the remote Normal Picture Mute control are started , or audio system are correct or not) Power cord is not inserted Power switch is not opened...
