1.
INTRODUCTION
The 801AP MX Service Tool is used to program the loop address
into MX addressable devices. (A Quick Functional Reference
Table is detailed on page 9).
The 801AP displays information and performs tests on devices.
It has a 32 character backlit LCD alphanumeric display, arranged
in 2 rows of 16 characters and four 'softkeys', F1, F2, F3 and F4.
(The display format is shown in Fig. 5).
Power for the 801AP is derived from 4 AA size nickel metal
hydride rechargeable batteries. It may be run from an unregulated
+12V dc input, ie, car cigarette lighter connection or 110/230V
ac mains adaptor, both of which will recharge the batteries as
well. The 801AP consists of the following:
MX Service Tool
Service Tool to ancillary connector lead
110 or 230V ac adaptor plus lead
4 x rechargeable AA size Nickel Metal Hydride
batteries
The 801AP is designed to be used as a desktop unit, clipped to a
trouser belt or be carried with a shoulder strap. The 801AP has
four external connections:
DC IN +12V
From car cigarette lighter or
110/230V ac mains adaptor
AUX
Ancillary connection port
© 2007 Tyco Safety Products
www.acornfiresecurity.com
801AP MX SERVICE TOOL

USER INSTRUCTIONS

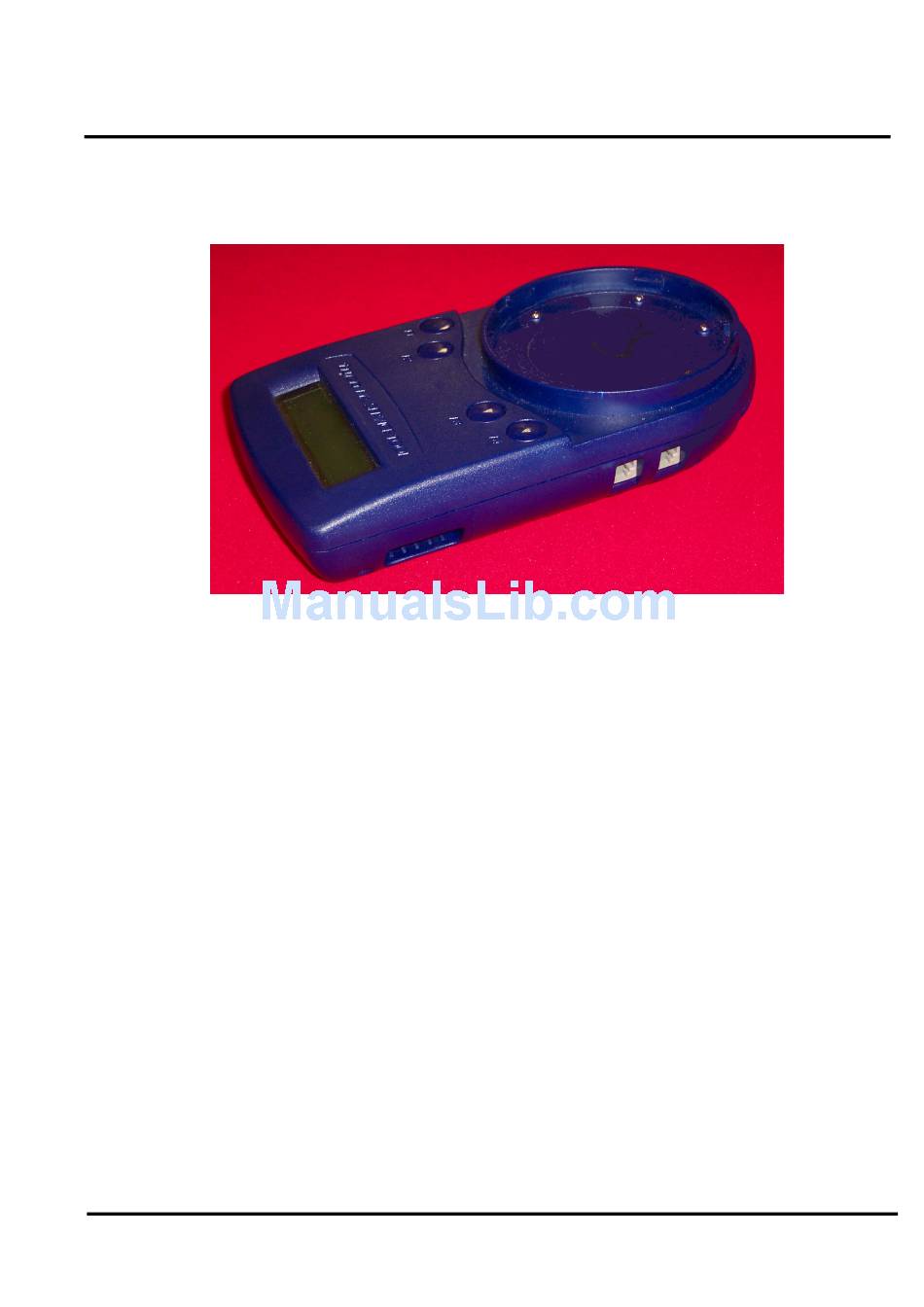

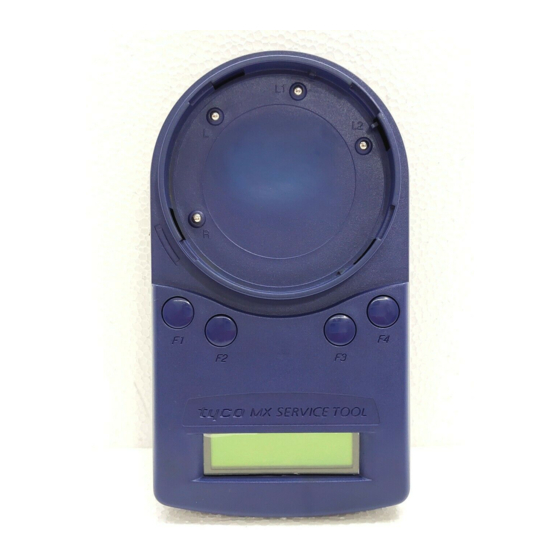

Fig. 1 801AP MX Service Tool
www.acornfiresecurity.com
EQUIPMENT:
PUBLICATION:
ISSUE No.
&
PC
PC connection port for use with
MX CONSYS (not yet available)
μP
Internal micro-processor program
download port for use with PMS -
Program Management Software.
Detectors are programmed by placing the detector onto the
801AP and turning clockwise until fully engaged.
Ancillaries are programmed via the AUX port on the 801AP.
The ancillary programming cable consists of an RJ11
connector at one end and a custom moulded connector at the
other end.
2.

TECHNICAL SPECIFICATION

2.1
MECHANICAL
Dimensions
HWD:
Weight
801AP Service Tool:
801AP Service Tool + batteries:
Materials
Top:
Bottom:
801AP
17A-05-AP
DATE:
4
8/07
48 x 200 x 112mm
0.36kg
0.5kg
FR ABS Dark Blue
FR ABS Dark Blue
PAGE 1 of 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 801AP MX and is the answer not in the manual?

Questions and answers

Summary of Contents for Tyco 801AP MX

  • Page 1: User Instructions

    Fig. 1 801AP MX Service Tool INTRODUCTION PC connection port for use with MX CONSYS (not yet available) The 801AP MX Service Tool is used to program the loop address μP Internal micro-processor program into MX addressable devices. (A Quick Functional Reference download port for use with PMS - Table is detailed on page 9).
  • Page 2: Operation

    UK at time of writing. (Check with local authorities). CAUTION: ENSURE ONLY NICKEL METAL HYDRIDE The 801AP MX Service Tool meets the requirements of the RECHARGEABLE BATTERIES ARE USED AND EU EMC Directive 89/336/EEC. FULLY CHARGED BEFORE USE. OPERATION 3.1.2...
  • Page 3 This is the start of the main menu options, which are disabled. When the ancillary lead is removed, discussed further in para. 3.5. the detector will be able to communicate. © 2007 Tyco Safety Products PAGE 3 of 10 www.acornfiresecurity.com...
  • Page 4: Button Operation

    F3 selecting ‘Dn’ (for down) • F4 selecting ‘Up’ In some cases there may be fewer options available. tyco MX SERVICE TOOL Menu Write Fig. 5 First Display Screen of the main menu ADDRESS: 4 The main menu can always be identified by the word ‘Select’...
  • Page 5 Use ‘Up’ to increase the address number 2) These are the values that the device would • transmit to the control panel. The values do ‘Dn’ to decrease it include any calibration or correction factors. © 2007 Tyco Safety Products PAGE 5 of 10 www.acornfiresecurity.com...
  • Page 6 www.acornfiresecurity.com 801AP 17A-05-AP 8/07 MEASURE TEMP Menu TEST R1: This feature measures temperature in degrees Celsius and PASS degrees Fahrenheit, but is only available on detectors which have a temperature sensing element, ie, Heat only, Optical & Heat and CO Heat detectors.
  • Page 7 An LED test may be performed on addressable devices using the digital output function. Move the cursor to the eigth bit on the far-right and toggle this bit “1”. The LED should illuminate red on all models”. © 2007 Tyco Safety Products PAGE 7 of 10 www.acornfiresecurity.com...
  • Page 8 FOR MX ADDRESSABLE DEVICES Service Tool may be reset. This is done by pushing a small jewellers type screwdriver into the pinhole on the bottom of USES TYCO MX DIGITAL PROTOCOL the Service Tool to actuate a switch. Tyco Safety Products...
  • Page 9: Main Menu Display

    Switch is accessed through a small hole at the rear of the unit near the label CPU Reset LCD Backlight The display can be temporarily illuminated by pressing any two buttons simultaneously Table 1: Functional Reference table © 2007 Tyco Safety Products PAGE 9 of 10 www.acornfiresecurity.com...
  • Page 10 www.acornfiresecurity.com 801AP 17A-05-AP 8/07 TYPE TYPE DESCRIPTION MARKET MODEL DESCRIPTION MARKET MODEL VALUE VALUE Europe 801PH IS Call point IS Baseefa CP840Ex Marine 811PH Contact Input All/France CIM800 Australia 814PH Monitor Optical smoke IS Baseefa 801PHEx Detector Input + Heat DIM800 Module France...
