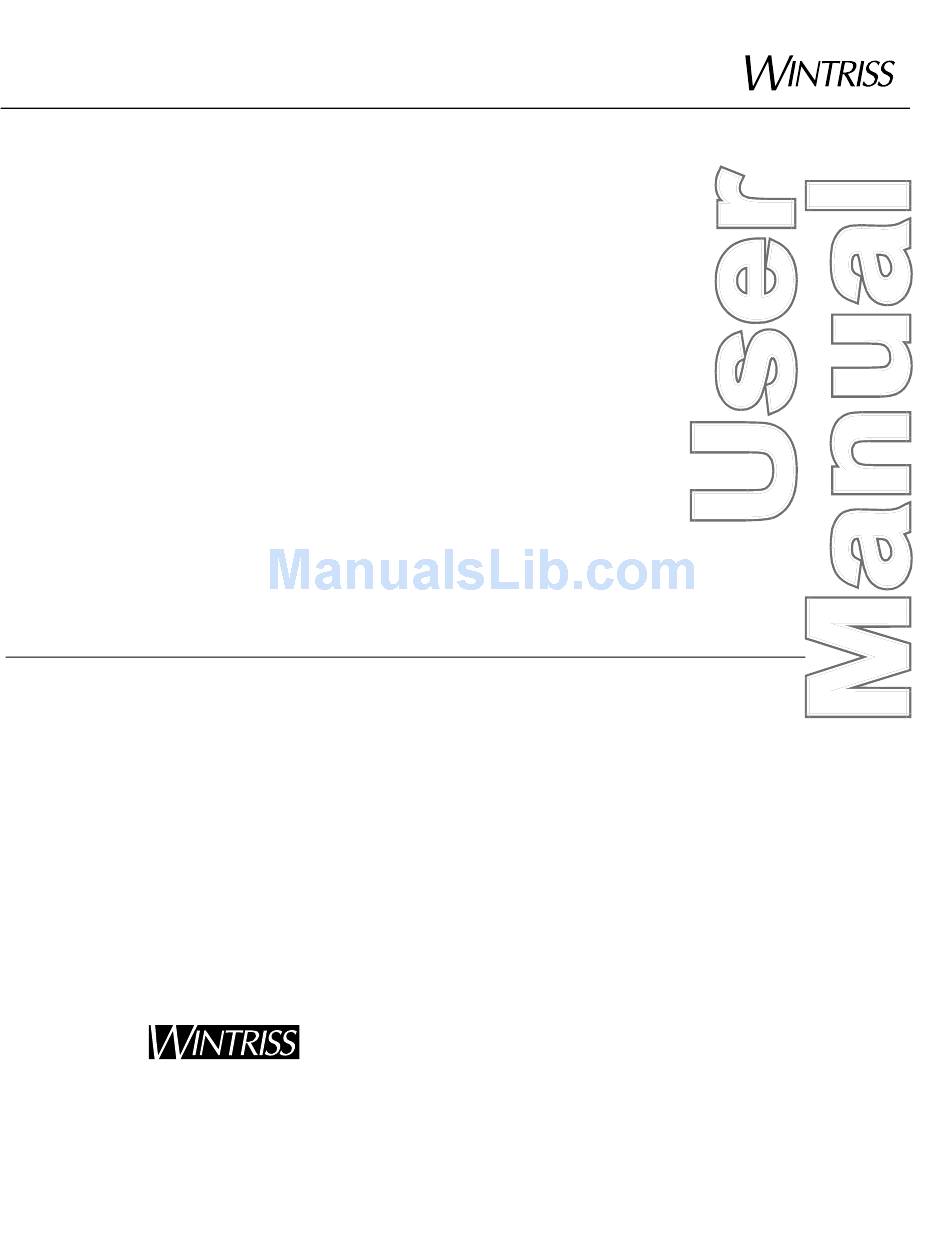

Wintriss ProCam SFI User Manual

Procam 1500 servofeed interface 1095900
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ProCam SFI
®
ProCam 1500 ServoFeed Interface
1095900
Rev. A5
September 2010
®
Wintriss Controls Group, LLC
100 Discovery Way
Unit 110
Acton MA 01720 USA
Phone (800) 586-8324
Fax (978) 263-2048
PRINTED IN USA
DA45965
Tech Support Hotline
800-586-8324
8-5 EST
www.wintriss.com
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProCam SFI and is the answer not in the manual?

Questions and answers

Related Manuals for Wintriss ProCam SFI

Summary of Contents for Wintriss ProCam SFI

  • Page 1 ProCam 1500 ServoFeed Interface 1095900 Rev. A5 September 2010 Tech Support Hotline 800-586-8324 8-5 EST ® Wintriss Controls Group, LLC 100 Discovery Way Unit 110 Acton MA 01720 USA Phone (800) 586-8324 Fax (978) 263-2048 www.wintriss.com PRINTED IN USA DA45965...
  • Page 2 Changes for Revision A5 of the ProCam 1500 SFI User Manual Revision A5 of the ProCam 1500 SFI User Manual covers all SFI configurations. Here are the changes for Revision 1.4: • “Location of components” figure changed to show only the important components.
  • Page 3 Wintriss Product. We appreciate your business and want to do whatever we can to ensure your satisfaction. Wintriss products are built to stay on the job day after day, and are backed by an ironclad guarantee, international standards approvals, and unbeatable support. Whenever you need assistance or service, we back all our products with excellent spare parts inventories, training programs, and prompt repair service.

  • Page 4: Table Of Contents

    Table of Contents Chapter 1 ProCam 1500 Servo Feed Interface ..........1 Servo feeds covered in this manual ................1 What you can do using the ProCam 1500 Servo Feed Interface (SFI)......2 How SFI works ......................2 Chapter 2 Installation ..................3 Installing SFI firmware ....................3 Wiring Connections: ....................5 Chapter 3 Using the SFI menus..............9 About Tool numbers ....................9...
  • Page 5 Table of Contents How to use this manual Chapter 1 introduces you to the ProCam 1500 ServoFeed Interface (SFI). It lists the specific feed companies and models with which SFI communicates. And it explains what you can do with your SFI. Installation is discussed in Chapter 2.
  • Page 6 90 days from date of shipment. Wintriss’s obligations under this warranty are limited to repairing or replacing, at its discretion and at its factory or facility, any products...
  • Page 7 Table of Contents ProCam 1500 SFI Manual 1095900...

  • Page 8: Chapter 1 Procam 1500 Servo Feed Interface

    Chapter 1 ProCam 1500 Servo Feed Interface Your ProCam 1500 Servo Feed Interface is hardware and software that allows you to operate your servo feed through ProCam 1500. Once installed, you can make all the necessary settings for your servo feed right at the ProCam 1500 keypad. ProCam 1500 will automatically operate the servo feed during press operation.

  • Page 9: What You Can Do Using The Procam 1500 Servo Feed Interface (Sfi)

    ProCam 1500 SFI What you can do using the ProCam 1500 Servo Feed Interface (SFI) Using the ProCam 1500 menus, you can: • Set feed length, percent acceleration, and possibly some other parameters for your servo feed (depending upon which feed you have) •...

  • Page 10: Chapter 2 Installation

    Chapter 2 Installation Installing the components that allow your ProCam 1500 to operate your servo feed is quite simple. Connecting ProCam 1500 to your feed requires these tasks: • Installation of SFI firmware into ProCam 1500 • Wiring connections from the ProCam 1500 TB103 terminal block to the RS-232 port of your servo feed controller Each step is described below.
  • Page 11 Installation POWER TB104 TRANSFORMER CAUTION VOLTAGE SELECTOR S102 INPUT CHECK SWITCH S101 SPEED SELECT. J101 U105 U104 MASTER/SLAVE JUMPER J102 RESOLVER TB105 TB101 SP-1 REMOTE RESET COMMUNICATIONS POSITION SENSOR SP-2 INPUT CHECK TB103 CAM OUTPUT DIAG. PACNET TB102 BLOCK Figure 2-1. Location of components on ProCam 1500 processor board ProCam 1500 SFI Manual Ch 2 1095900...

  • Page 12: Wiring Connections

    Installation INSTALLING THE CHIP Be sure to note the exact orientation of the firmware chip. Notice in particular the semi-circular notch on the bottom of the chip. When you replace the chip, the notch on the new chip MUST also be face down.
  • Page 13 Installation 3. If ProCam 1500 and your servo feed controller have been installed inside two separate enclosures, run the cable through flexible liquid-tight conduit from your feed to ProCam 1500. ProCam 1500 is rated NEMA 12 (protected against dust and oil). You must use conduit of the same rating and make proper connections to ensure NEMA 12 protection.
  • Page 14 Installation 10. Look at TB103. There may be a plastic plug over pin 5 on this terminal block. If so, remove the pin using needle-nose pliers. Plug the 10-pin connector into TB103. 11. You are finished installing ProCam 1500 SFI. Re-connect the ProCam 1500 panel to your enclosure and re-tighten the hardware.
  • Page 15 Installation Table 2-1B. Wiring connections for CLM, CWP SD2, COE, Dynamic, and Waddington feed controllers FEED CONTROLLER RS232 PORT CLM/IDS; Direction CLM/SOT2; Dynamic Waddington ProCam 1500 CWP Servo of data ServoFeed MiniFeed TB103 Dial II; COE flow BG2; COE CPEC; Unico * #4 -RXD #2 Black...

  • Page 16: Chapter 3 Using The Sfi Menus

    Chapter 3 Using the SFI menus In this chapter you will learn how to use the SFI menus. You will learn how to use: • Initialization mode • Setting feed initialization parameters • Program mode • Setting feed length • Setting percent acceleration •...

  • Page 17: Feed Parameters

    Using the SFI Menus To get into Initialization mode, turn the Program/Run key to "program" and then press both the left and right "ANGLE-OFF" keys at the same time for one second. (See "Using the keyboard" in Chapter 3 of the ProCam 1500 user manual) NOTE Before changing modes (for instance -- from Initialization to Program), make sure your screen shows the first display in the...

  • Page 18: Change Groups

    Using the SFI Menus Important! If you are interfacing with a Reliance CTL feed control, there will be a menu choice on the "Feed Initialize" menu called "SCALE GROUP". Select "Scale Group" and then choose "Time Base" to set the correct unit of measure for this feed —...

  • Page 19: Check Setup

    Using the SFI Menus 6.283812 ENG. UNITS 100.0000 POS. TORQUE NEG. TORQUE 100.0000 100000.0 ACCEL LIMIT IN/MIN/SEC 100000.0 DECEL LIMIT IN/MIN/SEC USE CURSOR KEYS TO MAKE SELECTION PRESS ENTER TO SELECT, RESET WHEN DONE CHANGE GROUP 2 EQ. AC / DEC 62838.12 BASE SPEED INCHES/MIN...

  • Page 20: Security Access

    Using the SFI Menus FEED LENGTH 2.252000 INCHES 40.00000 ACCELERATION 4000.000 MAX RUN SPEED INCHES/MIN PRESS RESET WHEN DONE Figure 3-6. Check setup display "Check setup" is a diagnostic tool available in SFI which lets you view the feed parameters in your servo feed. It gives you an opportunity to make sure that these parameters match your currently loaded setup.

  • Page 21: Program Mode

    Using the SFI Menus LOAD TOOL #: PROGRAM AND RUN MODES ADJUST CAMS: PROGRAM AND RUN MODES ADJUST COUNTERS: PROGRAM AND RUN MODES RESET MODE: PROGRAM AND RUN MODES ADJUST FEED: PROGRAM AND RUN MODES USE CURSOR KEYS TO CHANGE SELECTION PRESS ENTER TO CHANGE, RESET WHEN DONE Figure 3-7.

  • Page 22: Feed Settings

    Using the SFI Menus TOOL #1 SET COUNTERS SET CAMS SET FEED SET BATCH MODE SET COUNTER ANGLE USE CURSOR KEYS TO CHANGE SELECTION PRESS ENTER TO SELECT, RESET WHEN DONE Figure 3-9. Selecting "SET FEED" in Program mode Here is the "SET FEED" display (Figure 3-10). You have up to four choices. The selections on your screen may vary depending upon your servo feed model.
  • Page 23 Using the SFI Menus As the display indicates, use the left and right, as well as the up and down CURSOR keys. Press the left and right CURSOR keys to position the triangular-shaped pointer over the desired digit, and then press the up and down CURSOR keys to increase or decrease the value, one step at a time.

  • Page 24: Feed Advisor

    Using the SFI Menus Feed Advisor You select "Feed Advisor" when you want ProCam 1500 SFI to figure out the acceleration rate and maximum run speed for you. NOTE Feed Advisor is not available with all servo feed models. Feed Advisor is a convenience which saves you the time of calculating the acceleration rate yourself.
  • Page 25 Using the SFI Menus SERVO-FEED ADVISOR 2.252 INCHES FEED LENGTH DEGREES FEED ARC PRESS SPEED CALCULATE Figure 3-14. Feed Advisor display Now select "Calculate". Once you press ENTER, Feed Advisor calculates your acceleration rate. This message quickly flashes on the screen. PLEASE WAIT …...

  • Page 26: Load By Tool Number

    Using the SFI Menus FEED PARAMETERS FOR TOOL #1 2.252 FEED LENGTH INCHES ACCELERATION 5,313 MAX RUN SPEED IN/MIN FEED ADVISOR USE CURSOR KEYS TO MAKE SELECTION PRESS ENTER TO SELECT, RESET WHEN DONE Figure 3-15. New feed parameters created by Feed Advisor ABOUT USING FEED ADVISOR You can use Feed Advisor (if available with your servo feed) any time that you want ProCam to calculate the acceleration rate and maximum run speed for you.

  • Page 27: Troubleshooting

    Using the SFI Menus TOOL NUMBER 1 COUNTERS ADJUST CAMS ADJUST FEED STOP TIME SHOW TIMING USE CURSOR KEYS TO LOAD TOOL # MAKE SELECTIONS. PRESS ENTER TO ACCESS SELECTION. Figure 3-16. Run menu To adjust feed settings, select "Adjust feed". As the display indicates, you can adjust "Feed length"...

  • Page 28: Index

    Index Maximum run speed 16 Acceleration 16 Adjust feed 20 NEMA 12 protection 6 Change group 11 Check Setup 12 phoenix connector 3, 6 Program/Run key 10, 14, 19 DB25 connector 3, 8 Program mode 14 acceleration 15 Feed Advisor 17 feed length 15 EPROM 3 maximum run speed 15...
