IMPORTANT NOTICE If you have any questions regarding wire routing in a vehicle, please contact MTX Technical Support at 1-800-225-5689. When connecting power and ground wires ensure that the red power wire is fused at the point where it is connected to the vehicle’s battery. Failure to do so can result in damage to the vehicle if a short circuit develops between the vehicle connection point and the product.

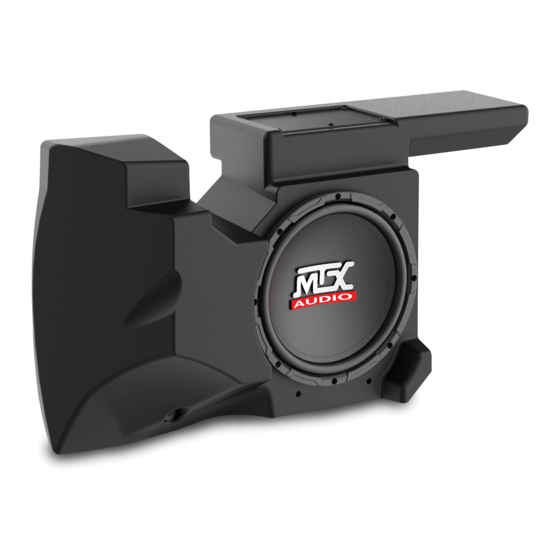

FEATURES • 10" All-Weather Amplified Subwoofer Enclosure • Integrated 250-Watt RMS / 500-Watt Peak Power Amplifier • Integrated Power and Ground Connections • Low Level Input with External Gain Control • Dash Mount Bass Control Knob (Included) • Mounts Underneath Dashboard - Direct Fit, No Drilling Required SPECIFICATIONS • RMS Power Handling: 250-Watts • Peak Power Handling: 500-Watts • Frequency Response: 34Hz - 120Hz M T X . C O M...
INSTALLATION Step 1 - Release the two quick locks to remove the hood from the vehicle. Step 2 - Lift up the hood and slide towards the front of the vehicle. Step 3 - Remove the two (2) T40 screws holding down the top dash cover. M T X . C O M...
Page 5
Step 4 - Lift and pull back the top dash cover to release the clips holding it in place. Unplug the gauge and switches making sure not to damage the vehicle and ignition wiring. Make note to remember what connector is associated with each specific switch. Step 5 - Remove the Torx head screw from the dash pocket brace. After this is removed the plastic dash pocket and bracket can be pulled out of the dash. M T X . C O M...
Page 6
Step 6 - Remove the two (2) T40 screws holding the dashboard in place. Step 7 - Pull the dashboard towards the back of the vehicle. There are locking clips on the right and left side that hold it in place. The dash will pop out. M T X . C O M...
Page 7
Step 8 - Carefully lift the dash out of the vehicle. If the locking clips have fallen off, place them back onto the locking tabs on the dash. These are needed to re-assemble the dashboard. Step 9 - Remove the two (2) 10mm hex bolts that are holding the glove box to the vehicle frame. When the screws are removed the glove box can be lowered down and out of the enclosure. Step 10 - Remove the five (5) T25 screws holding the glove box together. The glove box will then open like a book. M T X .
Page 8
Step 11 - Cut the “binding” plastic hinge with a razor knife to separate the front and back of the glove box. The back side of the glove box will no longer be used. The front side of the glove box will be attached to the enclosure. Step 12 - Using the five (5) T25 screws that were removed from the front / back assembly of the glove box, attach the front of the glove box to the RZRXP-10 enclosure. Take care to not strip out the plastic, but tighten it enough so the gasket seals between the enclosure and glove box. Step 13 - The enclosure can now be placed into the vehicle. Place the rectangular protrusion at an angle into the dash area first. The enclosure can then easily slide up into place. M T X . C O M...
Page 9
Step 14 - Hold the enclosure up and align the glove box screw holes with the vehicle frame mount. Replace the two (2) 10mm hex bolts and tighten the enclosure in place. It may help to place a supporting object under the enclosure so both hands are free to line up the screw holes with the vehicle frame mount. Step 15 - There are three mounting holes on the bottom of the enclosure to screw the base of the enclosure into place. The furthest hole to the right uses the included 1" screw. The other two mounting holes use the 1.5"...
Page 10
Step 16 - Now that the enclosure is securely tightened in place, the power and signal wires need to be connected to the battery and signal source. • The Red wire should be connected directly to the battery’s positive terminal and fused with a 20A fuse.
