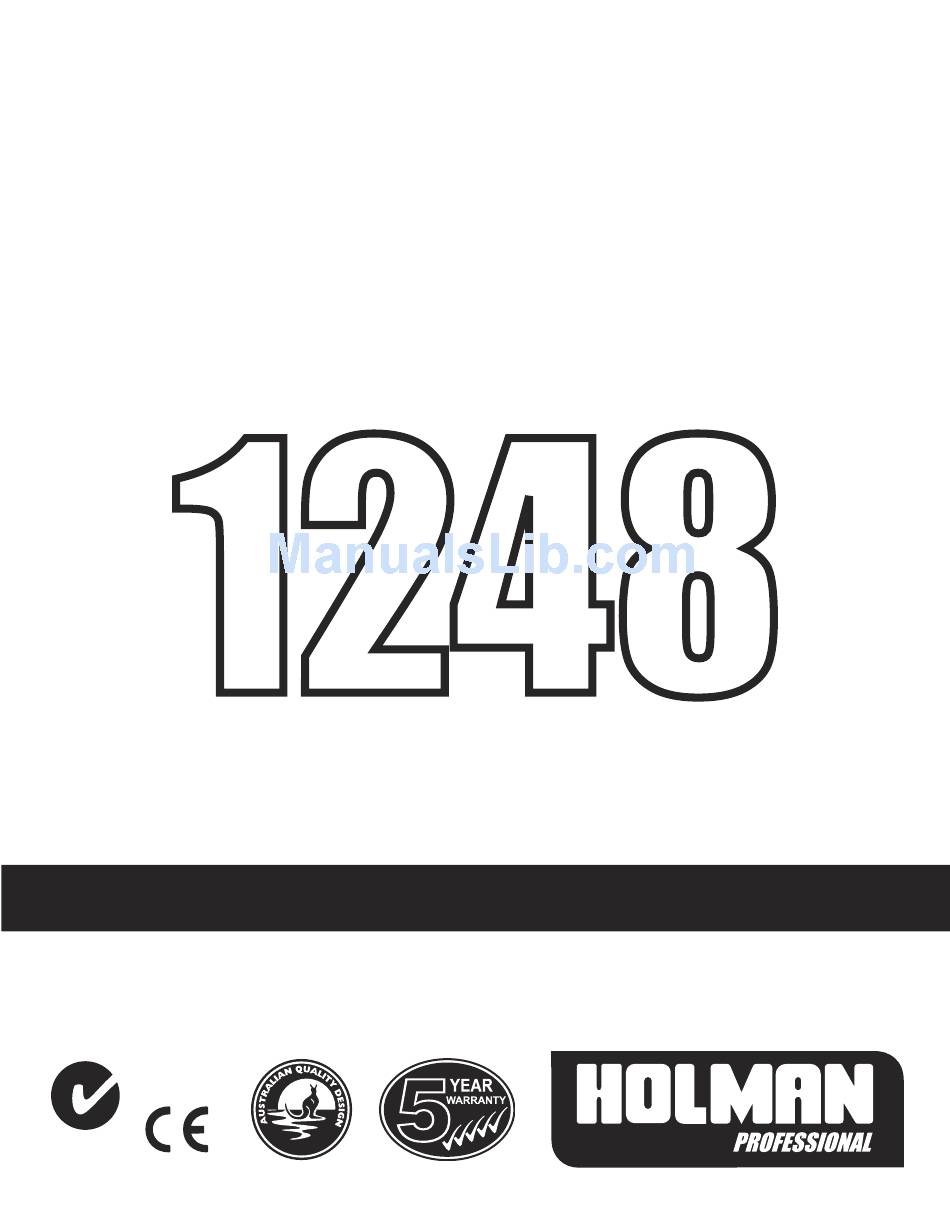

- Page 1 Irrigation Controller Instruction Manual STATION MODELS – Available in 12, 18, 24, 36 or 48 stations. OUTDOOR MODEL – Supplied with 240VAC x 24VAC inbuilt transformer, lead with plug. N10372...
-
Page 2: Table Of Contents
CONTENTS Introduction Electrical hook-up Field wiring connections 26-27 Glossary Terminal block layout 27-28 Key Features Pump Start Relay Connection 28-29 Programming Instructions Single phase pump installation Introduction Master valve installation Set automatic program (including rain sensor ) Programming example Station (valve) installation Spare watering planner Pump protection (system test) General tips for easy programming 7... -
Page 3: Introduction
1 minute to 12 hours 59 minutes or 25 hours if the water budget is set to 200%. Holman has always been concerned with sustainable water usage. The controller has many water saving features that can be used to maintain the highest standard of plant quality with the least amount of water consumption. -
Page 4: Glossary
GLOSSARY LARGE HIGH CONTRAST LCD LARGE SELECTION DIAL LARGE MENU BUTTONS Displays all programming Navigates through all Easy operation with fast scroll information. programming information. feature for entry and review. QUICK PROGRAM SELECTION KEY The “P” key allows faster program entry and review. -
Page 5: Key Features
KEY FEATURES 12, 18, 24, 36 & 48 station models. One configuration: - Outdoor model with an inbuilt transformer includes lead & plug. 8 programs, each of which has 8 start times. Maximum of 64 start times per day. ... -
Page 6: Programming Instructions
PROGRAMMING INSTRUCTIONS INTRODUCTION This controller has been designed with 8 separate programs to allow different landscape areas to have their own individual watering schedules. A program is a method of grouping stations (valves) with similar watering requirements to water on the same days. These stations will water in sequential order and on the days selected. -
Page 7: Programming Example
PROGRAMMING INSTRUCTIONS PROGRAMMING EXAMPLE A typical example of a 12 station system is outlined below as a guide to assist you when planning your watering schedule. In this example only 5 of the possible 8 programs are used, the lawn areas are using gear drive sprinklers. The vegetable garden is using drip and the flower beds are being watered with micro sprays. -
Page 8: Spare Watering Planner
SPARE WATERING PLANNER STN.NO GARDEN AREA PROGRAM STATION RUN WATERING WATERING TIME START TIME(S) DAYS... -
Page 9: General Tips For Easy Programming
PROGRAMMING This controller has been designed for quick intuitive programming. Remember these simple tips for hassle free programming. 1. Complete the spare watering planner at the back of this book. 2. When setting, one push of the button will increment one unit. 3. -
Page 10: Set Current Time & Correct Day
PROGRAMMING Set current time & correct day Turn the dial to “Set Clock/Calendar” position. The hour will be flashing. Use the to adjust. NOTE: AM/PM must be set correctly. Press button and the “minutes” will flash. Use to adjust the minutes. Press and the “day of the week”... -
Page 11: Set Start Times
PROGRAMMING Example: SET PROGRAM 1 Step 1 – SET START TIMES NOTE: all stations will come on in sequential order for each start time. Turn the dial to “Set Start Times” and ensure that “Prog No 1” is showing. If not, then use the button to select “Prog No 1”. -
Page 12: Set Watering Days
PROGRAMMING Step 2 – SET WATERING DAYS This unit has interval watering from every day to every 15th day, individual day selection or a 365 day calendar with odd/even day selection in areas where water restrictions require this feature. INDIVIDUAL DAY SELECTION Turn the dial to “Set Watering days”... - Page 13 PROGRAMMING INTERVAL DAY SELECTION Press the button until the “interval days” is flashing. The display will show: “Interval 1” will be flashing. This means the controller will water every day. The display will show how many days are left before an active schedule. For example, if it showed “1”...
-
Page 14: Set Station Run Times
PROGRAMMING Step 3 - Station Run Times (cont.) Press button to select the station (valve) number, and press the button and the run time minutes will flash. Alter by using Press the button and the run time hours will flash. Alter by using Press the button and the current station will flash. -
Page 15: Manual Operations
MANUAL OPERATIONS Run a Single Station The maximum run time for a station is 12 hours 59 minutes. To manually run a single station once, turn the dial to the “System Test or Run Single Station” position. The display will show: The default run time for a single station is 10 minutes. -
Page 16: Run A Program
MANUAL OPERATIONS The controller will start running all stations with the selected run time. The time will decrement in the display and will sequentially move through all stations, running them for the same set period of time. This option is designed so that it is possible to test all sprinklers and valves that make up the irrigation design. - Page 17 MANUAL OPERATIONS There may be times when it is desirable to run more than one program manually. The controller allows this to occur using its unique facility of enabling a program, before running it. For example if I wished to run Program 1 and also Program 2, the controller will manage stacking of the programs so they do not overlap.
-
Page 18: Stop Watering
OTHER FEATURES Stop Watering To stop an automatic or manual watering schedule, turn the dial to the “OFF” position. NOTE: For automatic watering remember to turn the dial back to the “Auto Run” position, as “OFF” will stop any future watering cycles from occurring. Stacking Start Times Should you accidentally set the same watering start time on more than one program, the controller will “stack”... -
Page 19: Rain Sensor
OTHER FEATURES Rain Sensor When installing a rain sensor, first remove the the factory fitted link between the “C” and “S” terminals shown here by the wire. Replace with the two wires from the rain sensor into these terminals, polarity NOT required. Move the rain sensor switch on the fascia to “ON”. -
Page 20: Rain Delay
OTHER FEATURES Rain Delay (Rain sensor cont...) Different rain sensors react in different ways. The most common complaint about rain sensors, is that they dry out too quickly, and allow the system to come on within hours of a rain storm. To counter this problem the controller has a “Rain Delay” setting that allows a specific delay time to elapse after the rain switch has dried out before the controller will water again. -
Page 21: Water Budgeting & Seasonal Adjustment
OTHER FEATURES Water Budgeting & Seasonal Adjustment The automatic station run times can be adjusted by percentage as the seasons change. This will save valuable water as the run times can be adjusted quickly in spring, summer, and autumn to reduce or increase water usage. Ensure the dial is in the “Auto Run”... -
Page 22: Special Functions
SPECIAL FUNCTIONS Pump ON/OFF Selection In most systems the water supply will be from a bore or from the mains. This controller will turn on either a pump (bore supply) or master valve (mains supply) input each time an automatic or manual start occurs. Normally the pump or master valve input is activated for all stations. - Page 23 “ON” or “OFF” with the buttons. Pump No.2 Selection The PRO 1248 Controller comes with a second pump / master option. To set Pump No. 2 per program: Turn the dial to “Set Auxiliaries”. Press the button 3 times.
-
Page 24: Pressure Build
SPECIAL FUNCTIONS To set Pump No. 2 per stations: Turn the dial to “Set Auxiliaries”. Press the button 4 times. The display will show: This means we are in the pump per stations menu for Pump No.2 (master valve No.2). Press the button to enter this menu option. -
Page 25: Water Hammer Saver
SPECIAL FUNCTIONS The display will show: Press the or the buttons to increment or decrement the program number to apply the pressure build time too. NOTE: each program can have its own pressure build time programmed. To alter the pressure build time press the button. -
Page 26: Looping Program
SPECIAL FUNCTIONS LOOPING PROGRAM FOR PRO 1248 The looping routing allows for the highest program in the unit to be used for looping. The looping program can be set in Hours/Minutes or in Minutes/Seconds. A delay time can be programmed between loops, and the number of loops can also be programmed. -
Page 27: Looping Program
SPECIAL FUNCTIONS to the sensor terminals “C” and “S” and slide the RAIN SENSOR switch to the “ON” position and remove the link (if fitted). The looping can now be activated via the sensor input, breaking the contact between the “C” and “S” terminals will cause the looping program to stop till the contacts close again. -
Page 28: Installation Instructions
INSTALLATION INSTRUCTIONS Mounting the Controller Install the controller near a 240 VAC outlet. Preferably located in a house, garage, or exterior electrical cubicle. For ease of operation, eye level placement is recommended. Ideally, your controller location should not be exposed to rain or areas prone to flooding or heavy water. -
Page 29: Terminal Block Layout
INSTALLATION INSTRUCTIONS 3. A maximum of 0.75 Amps may be supplied by any output. Check the inrush current of your solenoid coils before connecting more than two valves to any one station. Power Supply Connections INBUILT TRANSFORMER It is recommended that the transformer is not connected to a 240 vac supply which is also servicing or supplying motors (i.e. -
Page 30: Pump Start Relay Connection
INSTALLATION INSTRUCTIONS Terminal Block (24,36 and 48 stations) The terminal block for 24, 36 and 48 station models is fitted to the base of the controller housing and is connected to the top panel via a ribbon cable. To get access to the terminal block remove the top panel from the controller housing by unscrewing the two screws in the lower corners of the fascia. -
Page 31: Single Phase Pump Installation
INSTALLATION INSTRUCTIONS Single Phase Pump Installation Link any unused stations to the last active station. Master Valve Installation (Water supply off mains water) The purpose of the master valve is to shut off the water supply to the irrigation system when there is a faulty valve or none of the stations are operating correctly. -
Page 32: Station Valve Installation
INSTALLATION INSTRUCTIONS Station Valve Installation Up to three 24 vac solenoid valves can be connected to each station output and wired back to the Common (COM) connector. When using long runs of cables, be aware that voltage drop can play a significant roll, especially when more than one coil is wired to a single station. -
Page 33: Pump Protection (System Test)
INSTALLATION INSTRUCTIONS Pump Protection (System Test) In some circumstances not all operational stations might be hooked up. For example, if the controller was capable of running 18 stations but there were only 7 field wires and solenoid valves available for connection. This situation can pose a risk to a pump when the system test routine for the controller is initiated. -
Page 34: Fault Finding Guide
FAULT FINDING GUIDE SYMPTOM POSSIBLE CAUSE SUGGESTION No display Faulty transformer or Check fuse, check field wiring, check blown fuse transformer Single station Faulty solenoid coil, or Check solenoid coil (a good solenoid not working break in field wire coil should read around 33ohms on a multi meter). -
Page 35: Fault Finding Guide
FAULT FINDING GUIDE SYMPTOM POSSIBLE CAUSE SUGGESTION More than one Possible faulty driver triac Check wiring and swap faulty station station coming wire’s on the controller terminal on at once block with known working stations. If the same outputs are still locked on, return panel to supplier or manufacturer. -
Page 36: Electrical Characteristics
ELECTRICAL CHARACTERISTICS Electrical Outputs POWER SUPPLY Mains supply: This unit runs off a 240 volt 50 hertz single phase outlet. The controller draws 30 watt at 240 VAC. The internal transformer reduces the 240 VAC to an extra low voltage supply of 24 VAC. -
Page 37: Servicing The Controller
SERVICING THE CONTROLLER Servicing the Controller The controller should always be serviced by an authorised agent. Follow these simple steps to return the unit: 1. Turn the mains power OFF to the controller. a) If the controller is hardwired, a qualified electrician will be required to remove the entire unit depending on the fault. -
Page 38: Spare Watering Planner
SPARE WATERING PLANNER STN.NO GARDEN AREA PROGRAM STATION RUN WATERING WATERING TIME START TIME(S) DAYS... - Page 39 SPARE WATERING PLANNER STN. NO GARDEN AREA PROGRAM STATION RUN WATERING WATERING TIME START TIME(S) DAYS...
- Page 40 SPARE WATERING PLANNER STN.NO GARDEN AREA PROGRAM STATION RUN WATERING WATERING TIME START TIME(S) DAYS...
- Page 41 SPARE WATERING PLANNER STN. NO GARDEN AREA PROGRAM STATION RUN WATERING WATERING TIME START TIME(S) DAYS...
- Page 42 463 Scarborough Beach Road 12 Macquarie Drive Osborne Park, WA 6017 Thomastown, VIC 3074 Tel: +61 8 9204 1011 Tel: 03 9464 5355 Fax: +61 8 9204 1013 Fax: 03 9464 5366 Email: sales@holmanindustries.com.au www.holmanindustries.com.au Copyright 2008 Holman Industries P/N 0108P2041 REV01...
