General Pipe Cleaners 88 Operating Instructions Manual page 5

Model 88™

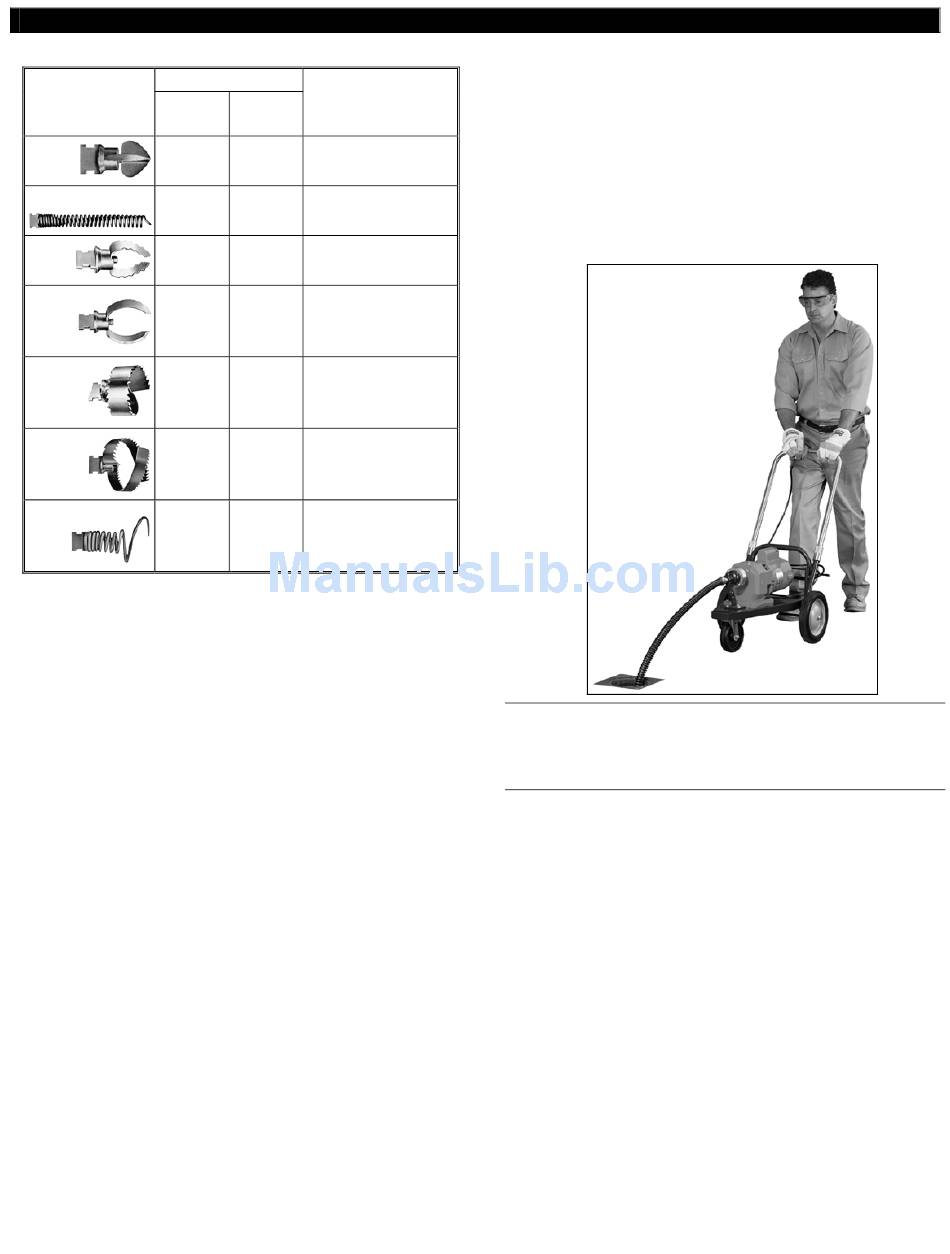

Cutter Application Chart (Table 2)
Catalog #
"G"
Cutter
Conn.
Spear
G-SHD
Head
Hook Auger
G-HA
2" U-
G-2UC
Cutter
3" Heavy
Duty G-3HDSC L-3HDSC
Side Cutter
3" Heavy
Duty G-3HDB L-3HDB
Saw Blade
4" Rotary
Saw G-4RSB L-4RSB For cutting roots.
Blade
Retrieving
Tool G-RTR-2 L-RTR-2
Note: There are no fixed rules for what cutter to use. If
one tool doesn't take care of a stoppage, simply try
another.
Operating Instructions
1. Use LEATHER gloves only, when handling the
cable. A cloth glove might get caught between
the coils of the cable while it is rotating.
2. Insert cutting tool in female connector at the
front of the cable section. A good tool to start
with is the Spear Head or 2" U-Cutter. On
cables with "G" connectors, be sure the
connector locking ring is turned far enough for
the plunger pin to click into place. On cables
with "L" connectors, twist the cables until the
plunger pin pops out.
3. Push the cable section and cutter into the pipe.
If first cable goes easily, push several sections
into the pipe until resistance is met.
attach the male end of the last cable to the
machine.
4. On machines using the "G" cables, you can
connect the male connector of the cable to the
machine by twisting the knurled ring on the
Cable Drive Coupler until the plunger pin clicks
into place. On machines using "L" cables, twist
the cable until the plunger pin springs out.
"L"
Conn. Typical Applications
Starting tool, gets the
L-SHD
water flowing
Starting tool, to
L-HA
remove loose objects.
Starting tool, for
L-2UC
cutting and scraping.
Finishing tool, for
scraping inside edges
of pipe.
Heavy duty tool for
cutting roots.
For removing loose
objects and broken
cables.
Then
5. Pull the machine back until the slack is out of
the cable.
Forward position and, while standing behind
the machine, press down on the switch
mounted on the handle and walk with the cable
into the line. Do not allow slack in the cable
since this will cause cable whipping.
cable starts to buckle or twist, take your hand
off the switch and the motor will spin in the
opposite direction to relieve the twist.
DO NOT PUSH THE MACHINE FASTER THAN
THE CABLE FEEDS INTO THE LINE. IF YOU
DO, THE CABLE WILL WHIP AND MAY KINK.
6. When all but the last two or three feet of cable
section have fed into the line, stop the machine.
If you are using the "G" connectors, simply twist
the knurled ring on the Cable Drive Coupler 90°
and detach the cable from the machine. If you
are using the "L" cables, disconnect the cable
from the machine using the Coupling Wrench.
7. Pull the machine back from the drain opening
about ten feet. Attach the female coupling of
the next section to the male coupling of the
cable in the line.
coupling of the cable to the machine. Repeat
until you have reached the stoppage.
8. If the section is not feeding through a trap or
bend, remove the switch from the handle of the
machine and place it near the drain opening so
it can be used as a foot pedal. Then take the
Cable Feeding Tool and press it against the
cable at the drain opening. Step on the foot
5
With the motor switch in the
Then connect the male
If the
