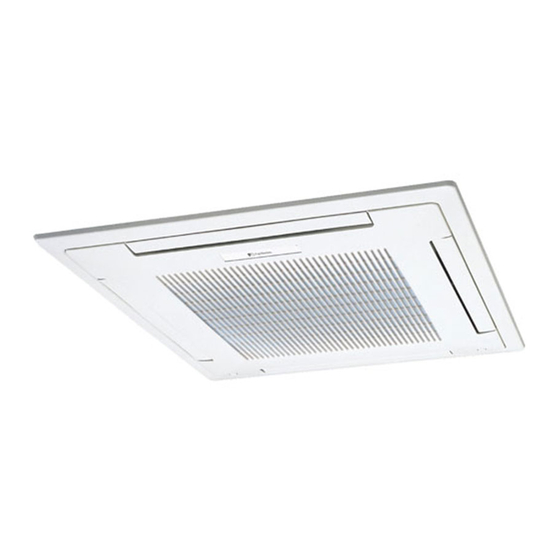

Fuji Electric RC-30FA Service Manual

Split type air conditioner, cassette type (50hz)

Hide thumbs

www.enindel.com

SPLIT TYPE

AIR CONDITIONER

CASSETTE

Models

Indoor unit

Outdoor unit

RC-30FA

RO-30FD

RC-30UA

RO-30UD

C ON TE NTS

. . . . . . . . . . . . . . . . . . . 1

SPECIFICATIONS

OUTLINE AND DIMENSIONS

REFRIGERANT SYSTEM DIAGRAM

. . . . . . . . . . . . . . . . .

CIRCUIT DIAGRAM

INDOOR PCB CIRCUIT DIAGRAM

OUTDOOR PCB CIRCUIT DIAGRAM

. . . . . . . . . . . . . . . .

ERROR CONTENTS

DISASSEMBLY ILLUSTRATION

. . . . . . . . . . . . . . . . . . . . . 20

PARTS LIST

type (50Hz)

. . . . . . . . . 2

. . . .

. . . . .

. . .

. . . . . . . 11

Table of Contents

Need help?

Do you have a question about the RC-30FA and is the answer not in the manual?

Questions and answers

Summary of Contents for Fuji Electric RC-30FA

Page 1: Table Of Contents

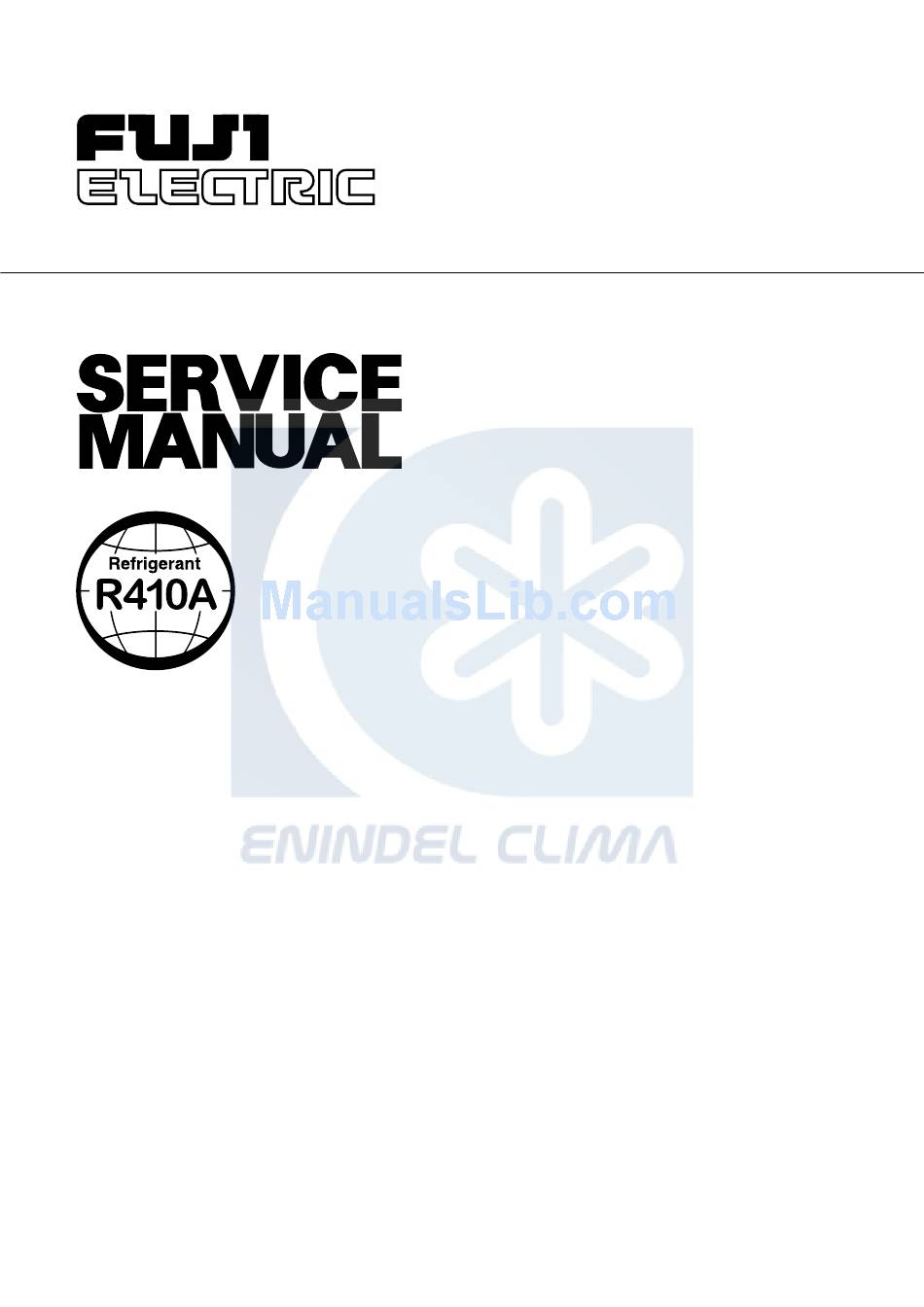

SPLIT TYPE AIR CONDITIONER CASSETTE type (50Hz) Models Indoor unit Outdoor unit RC-30FA RO-30FD RC-30UA RO-30UD C ON TE NTS ....1 SPECIFICATIONS .
Page 2: Specifications
SP EC IFI CATIO NS TYPE COOLING COOLING & HEATING INDOOR UNIT RC-30FA RC-30UA OUTDOOR UNIT RO-30FD RO-30UD COOLING CAPACITY (kW) 8.40 8.40 HEATING CAPACITY (kW) ------ 9.50 ELECTRICAL DATA POWER SOURCE FREQUENCY (Hz) COOLING 13.6 13.6 RUNNING CURRENT (A)
Page 3: Outline And Dimensions
OUTLIN E AND DI MENS I ON S INDOOR UNIT (Unit : mm) Drain inside Dia. ø32 outside Dia. ø37 298.5 298.5 305.5 248.5 305.5 248.5 2005.04.27 www.enindel.com...
Page 4 OUTDOOR UNIT (Unit : mm) Air Flow www.enindel.com 2005.03.07...
Page 5: Refrigerant System Diagram
REFRIGER ANT S YS T EM D I AG R AM Models : RC-30FA / RO-30FD INDOOR UNIT OUTDOOR UNIT REFRIGERANT PIPE PRESSURE 15.88mm(5/8") CHECK VALVE CHARGING VALVE ACCUMULATOR COMPRESSOR CAPILLARY TUBE STRAINER REFRIGERANT PIPE THERMISTOR (ROOM TEMP.) 9.52mm(3/8") THERMOSTAT (OUTDOOR TEMP.) THERMISTOR (PIPE TEMP.)
Page 6: Circuit Diagram
CIRCUI T D IA GR AM Models : RC-30FA / RO-30FD INDOOR UNIT OUTDOOR UNIT FAN MOTOR BLUE BLACK PURPLE INTERNAL WHITE OVERLOAD COMPRESSOR BLACK OUTDOOR PROTECTOR THERMOSTAT THERMAL FAN MOTOR PROTECTOR CAPACITOR COMPRESSOR CAPACITOR WHITE WHITE FUSE BLACK GRAY...
Page 7 Models : RC-30UA / RO-30UD INDOOR UNIT OUTDOOR UNIT THERMAL GRAY THERMISTOR BLACK PROTECTOR BLUE GRAY (PIPE TEMP.) INTERNAL COMPRESSOR WHITE OVERLOAD BLACK THERMISTOR BLACK PROTECTOR BLACK (OUTDOOR TEMP.) FAN MOTOR BROWN THERMISTOR YELLOW BROWN (DISCHARGE TEMP.) YELLOW FAN MOTOR RELAY BLACK CAPACITOR...
Page 8: Indoor Pcb Circuit Diagram
INDOOR P CB C IR CUIT D IA GRA M Model : RC-30FA CONTROLLER PCB ASSEMBLY ( MAIN PCB ) K01AL-040LWSE-C R15-R17 B2B-XASK-1-A ROOM TEMPERATURE THERMISTOR 4700P 10K <1/10W> x 3 CN8-1 BLACK <ECQM> REMOTE CONTROL R18 1.0K <1/10W> CN8-2...
Page 9 CONTROLLER PCB ASSEMBLY ( MAIN PCB ) Model : RC-30UA K01AL-040KHSE-C0 R5 62K R15 - R17 <RSP2-2W> B2B-XASK-1-A ROOM TEMPERATURE THERMISTOR 10K <1/10W> x 3 CN8-1 BLACK 4700P R18 1.0K <1/10W> CUSTOM CODE SWITCHING CN8-2 <ECQM> BLACK R19 1.0K <1/10W> CUSTOM CODE SWITCHING R44 1.0K R43 10K...
Page 10: Outdoor Pcb Circuit Diagram
OUTDOO R PCB CIRC UI T D IA GR AM CONTROLLER PCB ASSEMBLY ( MAIN PCB ) EZ-0028HUE-C Model : RO-30UD POWER RELAY EL12D1-F (M) 3.5 uF, 450V POWER SOURCE 230V 50Hz www.enindel.com 2005.04.27...
Page 11: Disassembly Illustration
DISA SSE MBL Y I L L U STRAT IO N Models : RC-30FA RC-30UA 876-2 834-2 472-1 472-2 472-4 253-A 777-2 472-3 777-1 472-5 472-5 472-5 472-5 2005.04.27 www.enindel.com...
Page 12 Models : RC-30FA RC-30UA 460-1 460-2 143-3 835 482 184-1 476-2 117-3 146-2 337-2 146-1 337-1 337-1 834-1 2005.04.27 www.enindel.com...
Page 13 Models : RC-30FA RC-30UA 143-1 815-2 824-3 815-1 982-1 2005.04.27 www.enindel.com...
Page 14 Models : RO-30FD RO-30UD 2005.04.27 www.enindel.com...
Page 15 Models : RO-30FD RO-30UD 2005.04.27 www.enindel.com...
Page 16 Model : RO-30FD 2005.04.27 www.enindel.com...
Page 17 Model : RO-30UD 2005.04.27 www.enindel.com...
Page 18 Model : RO-30FD 2005.04.27 www.enindel.com...
Page 19 Model : RO-30UD 2005.04.27 www.enindel.com...
Page 20: Parts List
PARTS LI S T INDOOR UNIT Part No. Part No. Ref. Ord. Ref. Ord. Description Description RC-30FA RC-30FA Q'ty Q'ty RC-30UA RC-30UA Capacitor (Fan Motor) 9900270216 Turbo Fan Assy 9362810012 Decoration Plate 9363133004 476-2 Special Washer 9362756006 Grille Hook Holder...
Page 21 OUTDOOR UNIT Part No. Part No. Ref. Ord. Ref. Ord. Description Description Q'ty Q'ty RO-30FD RO-30UD Top Panel Sub Assy 9374417018 Top Panel Sub Assy 9374417018 Front Panel 9374094066 Front Panel 9374094066 Fan Guard 9374330010 Fan Guard 9374330010 Grip Side 9374173013 Grip Side 9374173013...
Page 22: Indoor Unit Accessories
STAND A RD ACCESS ORI ES The following installation parts are furnished. Use them as required. INDOOR UNIT ACCESSORIES Name and Shape Q'ty Application Coupler heat For indoor side pipe joint insulation 9350716029 1 each 9352766015 Screw For installing the remote controller 0700181108 Special nut A...
Page 23 0504G2804 www.enindel.com...
