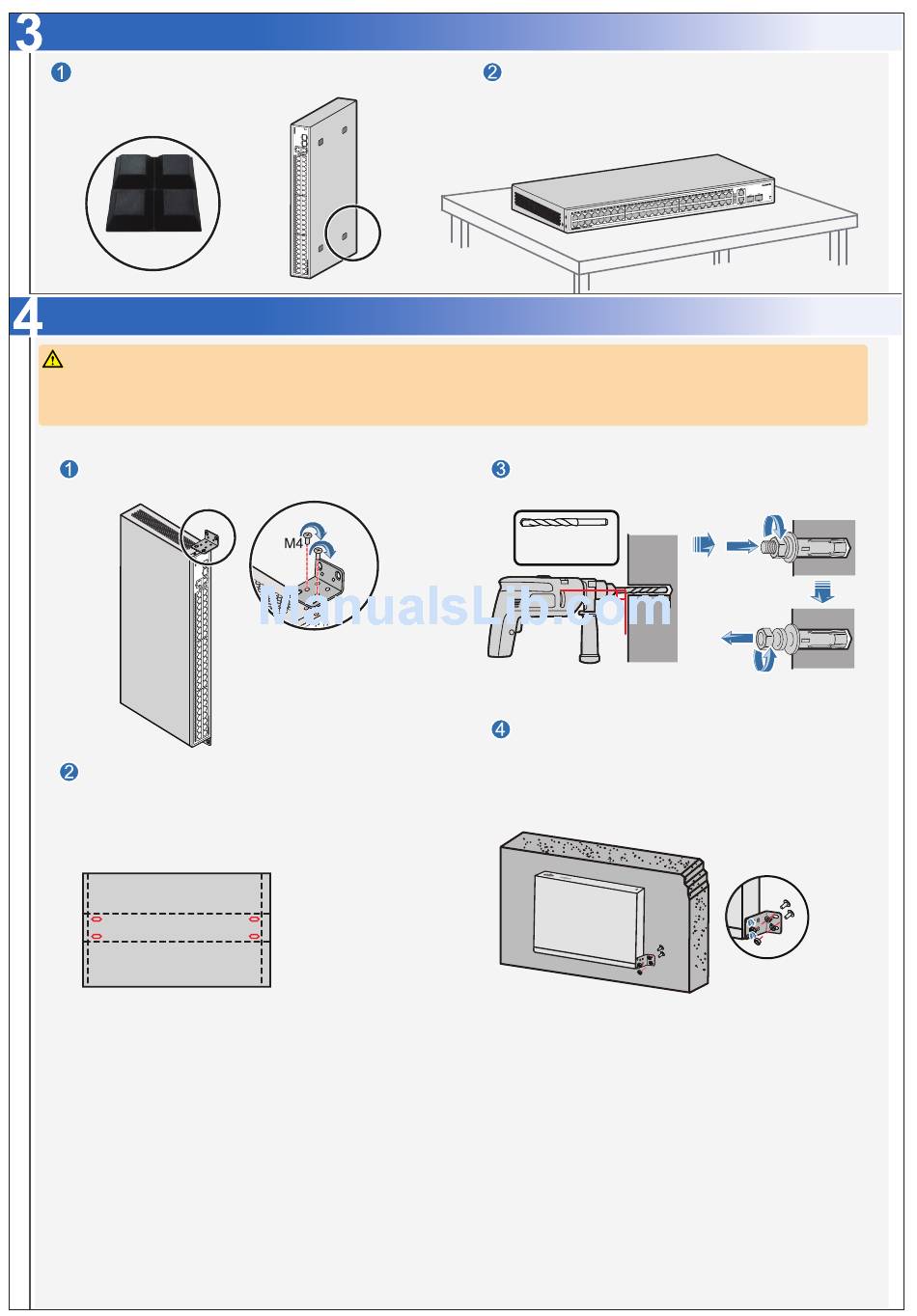

Installing the Device on a Worktable

安装设备到工作台
Adhibit the rubber pads.
粘贴胶垫贴。
Rubber pads
胶垫贴

Installing the Device on a Wall

安装设备到墙面
●To prevent injuries, check that there is no electrical wire at the locations to be drilled before drilling holes in the wall.
● Flammable and explosive items under the device is prohibited. Leave more than 100 mm of space around the device for proper heat dissipation.
●
在墙上打孔时，必须确认打孔处没有墙电，避免造成人身伤害。
●
设备下方禁止摆放易燃易爆物品，距离设备100mm范围内不能有异物挡住。
Fix the rack-mounting ears.
安装挂耳。
Mark the hole locations on the wall according to
the device installed with rack-mounting ears.
根据已安装挂耳的设备，用记号笔标记打孔位置。
Install the device on a worktable.
安装设备到工作台。
Install the plug bolt.
安装膨胀螺栓。
φ8 Drill bit
φ8钻头
90 。
Install the device on the wall.
安装设备到墙面。
5
M6 plug bolt
M6膨胀螺栓
