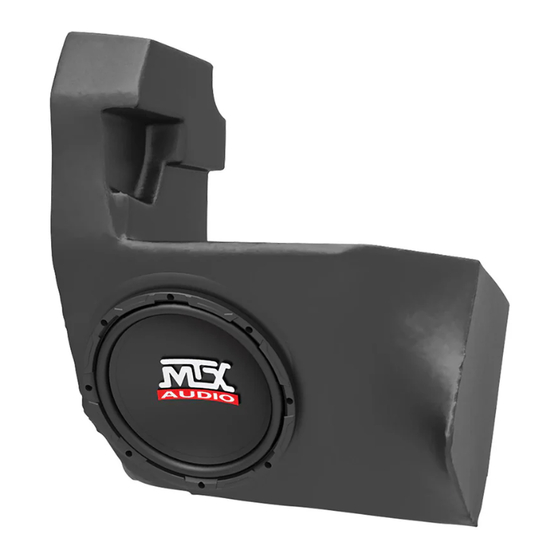

Amplified subwoofer enclosure
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

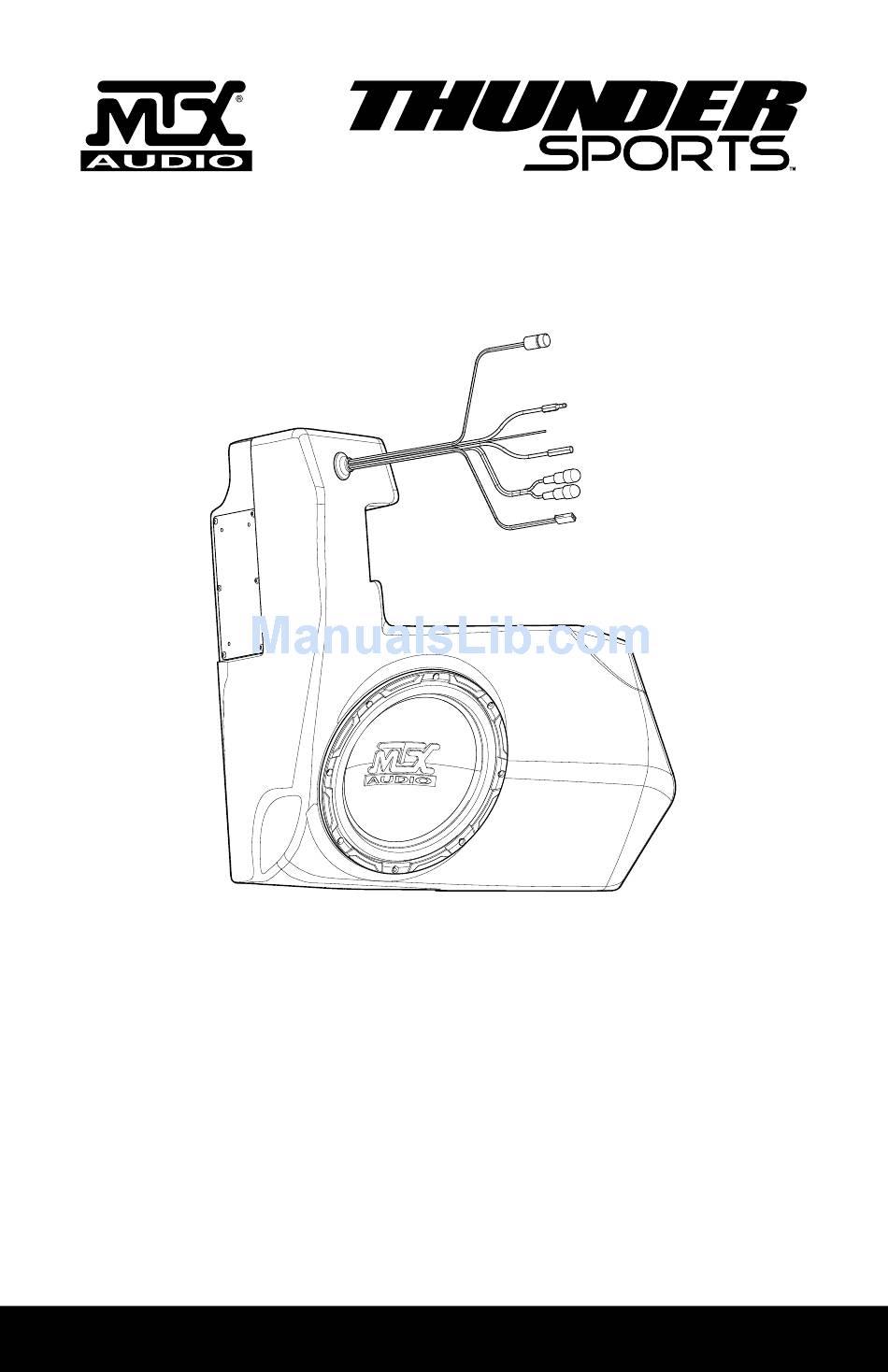

OWNER'S MANUAL
CANAM-10
CAN-AM
AMPLIFIED SUBWOOFER ENCLOSURE
®
M T X . C O M

Advertisement

Table of Contents
loading

Related Manuals for MTX CANAM-10

Summary of Contents for MTX CANAM-10

  • Page 1 OWNER’S MANUAL CANAM-10 CAN-AM AMPLIFIED SUBWOOFER ENCLOSURE ® M T X . C O M...

  • Page 2: Important Notice

    IMPORTANT NOTICE If you have any questions regarding wire routing in a vehicle, please contact MTX Technical Support at 1-800-225-5689. When connecting power and ground wires ensure that the red power wire is fused at the point where it is connected to the vehicle’s battery. Failure to do so can result in damage to the vehicle if a short circuit develops between the vehicle connection point and the product.

  • Page 3: Specifications

    FEATURES • 10" All-Weather Amplified Subwoofer Enclosure • Integrated 250-Watt RMS / 500-Watt Peak Power Amplifier • Integrated Power and Ground Connections • Low Level Input with External Gain Control • Dash Mount Bass Control Knob (Included) • Mounts Underneath Dashboard (Passenger Side) - Direct Fit SPECIFICATIONS •...

  • Page 4: Installation

    INSTALLATION Step 1 - Using a T25 Torx, remove the center switch bezel by removing the two top screws and the two plastic retainer pins from both the left and right sides. Open the glove box and slide the dash bezel towards you.
  • Page 5 Step 3 - Remove the 10mm hex bolts that hold the glove box in place. These are located in the upper left and upper right area of the glove box. Step 4 - To remove the glove box, pull straight back towards the passenger seat. If equipped, carefully remove the winch plug from behind the center switch bezel.
  • Page 6 Step 6 - Unscrew the woofer from the enclosure using a T20 Torx and disconnect the speaker wire going to the terminal. Step 7 - Place the enclosure in the vehicle with the enclosure angled as shown. Push the narrow part of enclosure up under the dash and rotate the enclosure up and into the vehicle, it will be a snug fit.
  • Page 7 Step 10 - Use a ⁄ " drill bit to drill through the firewall from inside the enclosure using the two existing holes behind the subwoofer mounting hole. Remove the plastic shavings created by the drilling process from inside the enclosure. Step 11 - Bolt the enclosure in place using the supplied M6 hardware, tighten down until secure.
  • Page 8 Step 17 - The included EBC can be connected and mounted to a desired location to allow easy trim adjustment of the bass level after the gain has been set. Step 18 - Replace all the parts and screws that have been removed to return the vehicle back to its completely assembled state.
  • Page 9 NOTES: M T X . C O M...
  • Page 10 NOTES: M T X . C O M...
  • Page 11 NOTES: M T X . C O M...
  • Page 12 © 2016 Mitek Corporation. All rights reserved. MTX, Mud Nation, and Let’s Do Something Dirty are trademarks of Mitek Corporation. All other trademarks are property of their respective owners. Designed and Engineered in the U.S.A. Due to continual product development, all specifications are subject to change without notice.
