BOXLIGHT ProColor 750H User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ProColor 750H
Interactive User Guide
mimio.boxlight.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProColor 750H and is the answer not in the manual?

Questions and answers

Related Manuals for BOXLIGHT ProColor 750H

Summary of Contents for BOXLIGHT ProColor 750H

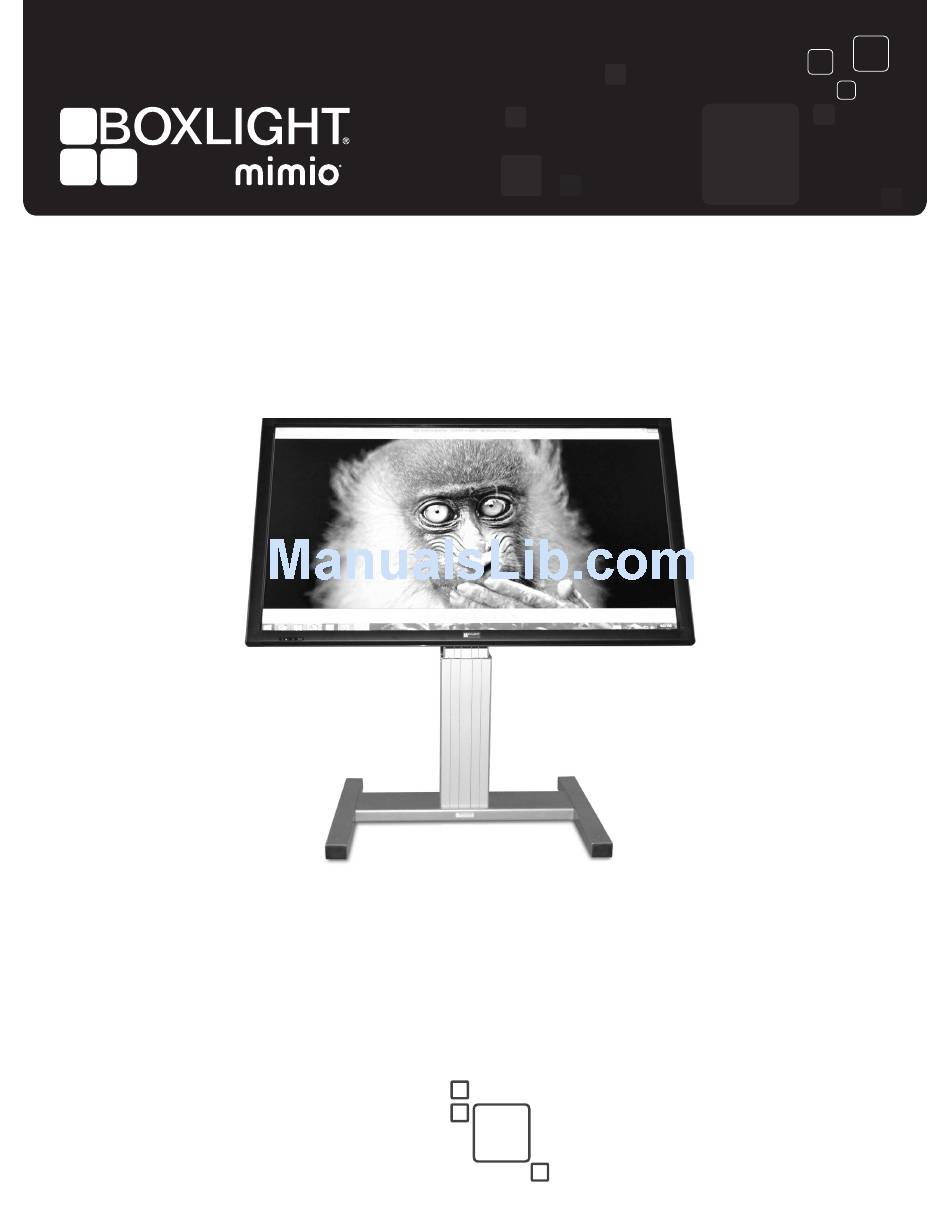

  • Page 1 ProColor 750H Interactive User Guide mimio.boxlight.com...

  • Page 2: Table Of Contents

    Contents 1. Important safety Instructions...……….……..………………………………….3 1.1 Safety precautions 1.2 Care and maintenance 2. Introduction...……………………….……………………..……………………..8 3. Each Description..…………………………..…………………………………9 3.1 Front View 3.2 Rear View 4. PC Connection...……………..………..………....…….…………….11 5. When using OPS PC CAUTION……..………....…….…………….11 6. Remote Control..……………..………..………....…….…………….12 7. OSD Menu Description…….…..….….………………..………..….…………..13 8. Product Specification..……..………………..……………………….………….36 8.1 LED Specification 9.

  • Page 3: Important Safety Instructions

    1. Important Safety Instructions ICON NAME MEANING Warning Failing to follow the precautions marked with this sign may result in a serious injury or even a fatality. Caution Failing to follow the precautions marked with this sign may result in a personal injury or property damage. Before operating the set, please read this manual carefully.
  • Page 4 1) Read Instructions 2) Follow Instructions All operating and use instructions should be followed. 3) Retain Instructions The safety and operating instructions should be retained for future reference. 4) Heed Warnings All warnings on the product and in the operating instructions should be adhered to. 5) Cleaning Disconnect the unit from the electricity supply before cleaning.
  • Page 5 13) Lightning For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent possible damage to the product due to lightning and power-line surges. 14) Power Lines An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits.
  • Page 6  Products at the same time holding the products when building or product, do not hold the back of the handle. under the product makes. the handle is a secondary role.  Table stand and put them on the table by using the installation gets the nose does not necessarily prevent a fall on the floor using the screws fixed.

  • Page 7: Care And Maintenance

    1-2. Care and Maintenance External Surface and Screen Maintenance Clean the product with a soft dry cloth. • Avoid cleaning the product with an inflammable substance such as benzene or thinner or with a wet cloth. This may result in a problem with the product. •...

  • Page 8: Introduction

    2. Introduction 2-1. Package Contents · Unpack the product and check if all of the following contents have been included. · Store the packaging box in case you need to move the product later. · If any items are missing, contact your dealer. ·...

  • Page 9: Each Description

    3. Each description 3.1 Front View ⑤ 1. POWER( ) : Turns the LED Display On/Off. 2. LED Indicator Shows Power ON mode -- BLUE Power Saver mode by blinking RED. Shows Power OFF mode -- RED. . 3. SOURCE( ) : Selection Input Signal button 4.

  • Page 10: Rear View

    3.2 Rear View USB for TOUCH L(8©)R(8©) AUDIO PC-RGB RS-232C SPEAKER HDMI HDMI 1 HDMI 2 (Option) Interface Description Interface Description DISPLAY PORT Input- up to UHD Input UHD HDMI High Definition Multimedia Input- up to UHD input AUDIO IN Audio IN for DVI and PC source PC(RGB) PC Screen Input...

  • Page 11: Pc Connection

    4. PC Connection 1. Connect RGB cable to RGB, Voice connection will be connected to PC AUDIO IN with stereo cable. 2. HDMI cable will be connected to (display and voice are available at the same time) 3. External speaker will be connected to R , L input with using Ø3.5 stereo cable and then connect same as below drawing.

  • Page 12: Remote Control

    Key Name Description 6. Remote Controller POWER Power ON/OFF. SOURCE Activates OSD menu of input source selecting. Navigates input source. HDMI HDMI 1, HDMI 2, HDMI 3. Picture mode: Standard, Dynamic, Soft, User. Sound mode: Standard, Flat, Music, Movie. MENU Activates main OSD menu.

  • Page 13: Osd Menu Description

    7. OSD MENU DESCRIPTION 7.1. MENU OVERVIEW In this menu system, there are several ways to customize the menu settings provided. Most menus consist of three levels to set up the options, but some require greater depth for the variety of settings.
  • Page 14 7.2. Video Input Selection 1) How to select a video source from the OSD 1. Select a button you can click the SOURCE button to select each video source. 2. To go to the desired video source, press the OK button. Version 1.0...

  • Page 15: Basic Operation

    7.3 BASIC OPERATION 1) Turning On the Monitor 1. First, connect power cord correctly. At this moment, the monitor switches to standby or power on mode. In standby mode, in order to turn monitor on, press the POWER button on the remote control. 2.
  • Page 16 7.4 On Screen Menus Selection and Adjustment 1) How to adjust the OSD screen 1. Press the MENU button and then button to select each menu. 2. Press the OK button and then use button to display the available menus. •...
  • Page 17 7.5 PICTURE MENU OPTIONS 1) Picture Mode - Adjust the picture appearance to suit your preference and viewing situations. 1. Press the MENU button and then button to select the PICTURE mode. 2. Press the button and then use OK button to select Picture Mode menu. Standard, Dynamic, Mild, User 3.
  • Page 18 2) Color Temperature Control - Choose one of five automatic color adjustments. Set to warm to enhance hotter colors such as red, or set to cool to see less intense colors with more blue. 1. Press the MENU button and then use button to select the PICTURE icon.
  • Page 19 3) Aspect Ratio - Selects the screen format. 1. Press the MENU button and then use button to select the PICTURE icon. 2. Press the button and then use OK button to select Aspect Ratio menu. 3. Press the OK button and then use button to select desired option: Auto, 4:3, 16:9, Zoom1, Zoom2.
  • Page 20 5) PC Menu 1. Press the MENU button and then use button to select the PICTURE icon. 2. Press the button and then use OK button to select PC Menu. 3. Press button and then use button to make appropriate adjustments. ...
  • Page 21 7.6 SOUND MENU OPTIONS 1) Sound Standard Mode - Adjust the sound to suit your taste and room situations. 1. Press the MENU button and then use button to select the SOUND icon. 2. Press the button and then use OK button to select Sound Mode menu : Standard, Music, Movie, Sports, User.
  • Page 22 3) Auto Volume – Automatic Volume Limit System: For protecting the hearing - Adjust the sound to suit your taste and room situations. 1. Press the MENU button and then use button to select the SOUND icon. 2. Press the button and then use OK button to select the Auto Volume menu.
  • Page 23 5) Volume - Adjust the sound to suit your taste and room situations. 1. Press the MENU button and then use button to select the SOUND icon. 2. Press the button to select the Volume menu. 3. Press OK button and then use button to make appropriate adjustments.
  • Page 24 7.7 SETUP MENU OPTIONS 1) Language - Select a language for the menus to appear in. 1. Press the MENU button and then use button to select the OPTION icon. 2. Press the button to select the OSD Language menu. 3.
  • Page 25 2-1-1) Dimming Menu – Auto Dimming (Light Ambient Sensor Option only) - Enable/disables auto dimming control by light ambient sensor 1. Press the MENU button and then use button to select the OPTION icon. 2. Press the button to select the Dimm Control Menu. 3.
  • Page 26 2-1-3) Dimming Menu – MAX Ambient (Light Ambient Sensor Option only) - Adjusts detected light ambient to set the maximum dimming 1. Press the MENU button and then use button to select the OPTION icon. 2. Press the button to select the Dimm Control Menu. 3.
  • Page 27 2-1-5) Dimming Menu – Ambient (Light Ambient Sensor Option only) - Displays current detected light ambient level by LUX unit. Read Only. 3) Heat Control - Automatic Fan controls by internal/external temperature sensor 1. Press the MENU button and then use button to select the OPTION icon.
  • Page 28 3-1) Heat Control Menu – Fan Control - Controls fan driving option by temperature sensor / force on / force off 1. Press the MENU button and then use button to select the OPTION icon. 2. Press the button to select the Heat Control Menu. 3.
  • Page 29 3-3) Heat Control Menu – Hysteresis - Adjusts fan driving hysteresis temperature by Celsius degree. 1. Press the MENU button and then use button to select the OPTION icon. 2. Press the button to select the Heat Control Menu.. 3. Press the OK button and then use button to select the Hysteresis Menu.
  • Page 30 3-5) Heat Control – Current temperature - Displays current detected main sensor’s temperature and auxiliary sensor’s (option) temperature Read Only. 4) Reset Resets user setting values as default 1. Press the MENU button and then use button to select the OPTION icon. 2.
  • Page 31 6) 3D Type 3D used and whether adjustments. 1. Press the MENU button and then use button to select the OPTION icon. 2. Press the button to select 3D Type menu 3D OFF, Side by Side, Top and 3. Press the OK button to select the Details Menu : Bottom, Frame Packing.
  • Page 32 8) Media Effect - Adjusting the slideshow effect in picture playback of USB mode.  Photo playback applies only 9) OPS Whether to use OPS PC adjustment 1. Press the MENU button and then use button to select the OPTION icon. 2.

  • Page 33: Clock Menu

    7.8 CLOCK MENU 1) Time Settings Enable the user to set up the clock information. 1-1) Clock If current time setting is wrong, reset the clock manually. 1. Press the MENU button and then use button to select the TIME icon. 2.
  • Page 34 2) On Timer Timer function operates only if current time has been set. 1. Press the MENU button and then use button to select the TIME icon. 2. Press the button to select On Timer. 3. Press the OK button and then use button to select the Off.
  • Page 35 4) Sleep Timer Timer function operates only if current time has been set. 1. Press the MENU button and then use button to select the TIME icon. 2. Press the button to select Sleep Timer. 3. Press the OK button and then use button to select the desired time.

  • Page 36: Product Specification

    8.Product Specification 8-1. LED Specification System Specifications Items Specification Touch detection method IR BAR blocking sensor system Touch tool / Reaction Hand or Others solid object, 15ms (Typ.) Effective screen size(mm) 1652.4(W) x 932.2(H)mm Resolution (Pixel) 3840 x 2160 Front Glass Tempered Glass 4.0t (Nonglare Type) Overall dimensions(WxHxD) 1765 x 1014 x 99 mm...
  • Page 37 Input / Output Description Items Specifications Display Format(Not support at UHD 5 Modes(Auto,4:3, 16:9, Zoom1, Zoom2) mode.) Video Picture Status Memory 4 Modes(Contrast, Brightness, Color, Sharpness) Color Temperature Status Memory 4 Modes(User, Cool, Medium, Warm) Output(RMS) EQ Max. 10W X 2 Channels Sound System Stereo Equalizer...
  • Page 38 Signal specification Parameter Specification Sync Sync H: 30-75KHz V: 56-75Hz Video Level Video Level 0.7Vp-p@75ohm MODE Max 1920X1080@60Hz Color system PAL/NTSC/SECAM Video Level 1Vp-p@75ohm Audio Level 500mV rms Video Level Y:1Vp-p@75ohm,PbPr:0.7Vp-p@75ohm YPbPr Audio Level 500mV rms (Optional) Format 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Video Level Standard TMDS HDMI...

  • Page 39: Product Dimensions

    9. Product Dimensions 9-1. LED Dimensions Version 1.0...

  • Page 40: Troubleshooting

    10. Troubleshooting 10-1. Product Self-Diagnosis · You can check if the product is working properly using the Self-Diagnosis function. · If a blank screen is displayed and the Power LED blinks even if the product and the PC are properly connected, perform the self-diagnosis function according to the procedures below.

  • Page 41: Customer Support And As Guide

    11. Customer support and AS guide. 11-1. Before request AS 1) When the product does not operate normally, product manuals can be found on the troubleshooting please refer to the page. 11-2. AS Cost 1) Our warranty period is 1 years. 2) A/S is the cost incurred to our bylaws, item rated A/S price is determined according to the criteria, accurate repair cost, please contacts a customer support counseling over the phone.
