3.

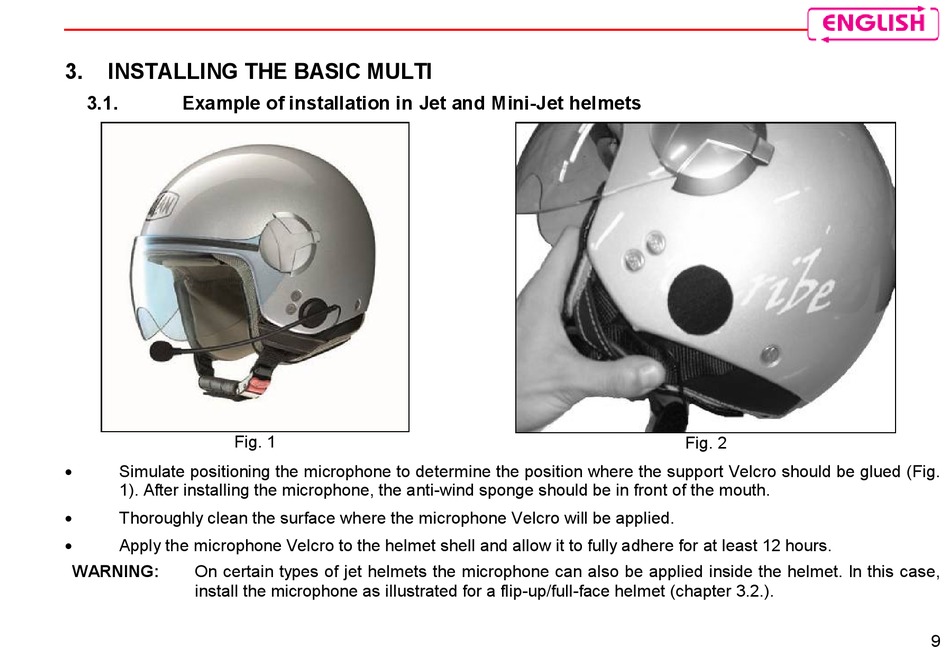

INSTALLING THE BASIC MULTI
3.1.
Example of installation in Jet and Mini-Jet helmets
Fig. 1
Simulate positioning the microphone to determine the position where the support Velcro should be glued (Fig.
1). After installing the microphone, the anti-wind sponge should be in front of the mouth.
Thoroughly clean the surface where the microphone Velcro will be applied.
Apply the microphone Velcro to the helmet shell and allow it to fully adhere for at least 12 hours.
WARNING:
On certain types of jet helmets the microphone can also be applied inside the helmet. In this case,
install the microphone as illustrated for a flip-up/full-face helmet (chapter 3.2.).
Fig. 2
9
