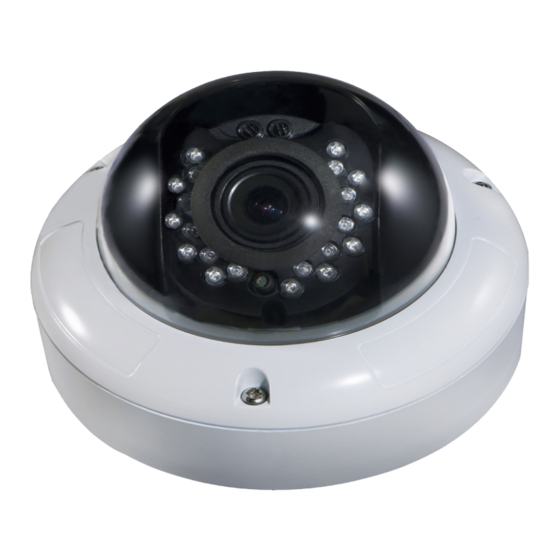

Monacor TVCCD-370/WS Manual

TVCCD-370/WS
Thank you for purchasing our products. Please read the manual carefully
before operating.
Warning
* In order to prevent damage caused by fire or electric shock, please do not
put cameras exposed in the moist environment or rainwater.
* Please make sure the adapter is consistent with product specifications,
otherwise it might cause fire, electric shock or damage.
* Pay attention to polarity of the adapter, it might cause some accidents like
fires.
* Please don't connect multiple cameras with the same adapter at the same
time; overloading of adapter capacity may cause fires.
* Power supply must be firmly fixed so as not to loose to cause fires.
* If the device gets abnormal smell or smoke", please stop it immediately
and contact with our customer service center.
* If the camera doesn't work as usual, please do not dismantle it by yourse
Please contact our local distributor or our maintenance office authorized b
our company, otherwise we won't promise warranty.
* Please do not splash water on the product components when cleaning.
Technical Specifications
Item Number: .......................... TVCCD-370/WS
Signal System: ...................... PAL
Sensor CCD: ......................... 1/3" SONY Super HAD II CCD
Horizontal resolution: .............. 700 TV lines
Lens: ....................................... 2.8-12mm
Minimum Illumination: ............. 0 LUX (IR ON)
S/N Ratio: ................................ > 48 dB
Water-resistant: ....................... IP66
Distance: ................................. 15 m
LED: ........................................ 21PCS
Video output: ........................... 1Vpp 75 . Y/C Separated
Connector video: ..................... BNC
Operation temperature: ........... -20°C to +50°C
Power supply: ......................... 12VDC (+/-10%)
Installation
1. Connect the terminating wire of the cable directly to the DC power source
2. Connect the BNC end of the Camera Cable to an extension cable,
directly to a DVR / Observation System or to a TV/Monitor.
3. Fix up the pedestal on the ceiling, fix up the screw of pedestal.
4. Aim at the scope what you want to watch and then fix up the screw
horizontal angle.
5. Choose a good angle to the aim thing first and then fix up the screw
declining angle.
