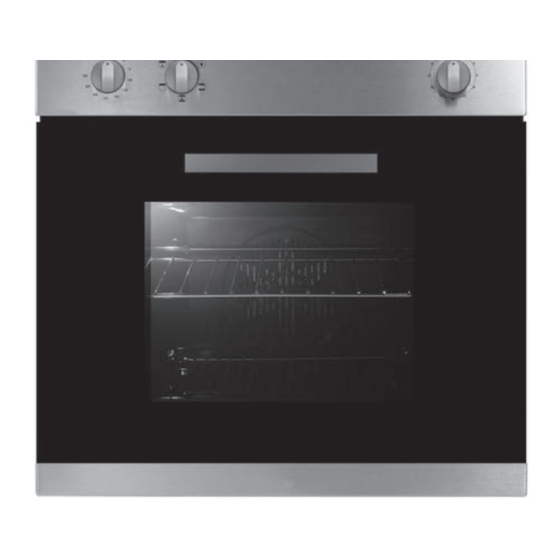

Built-in electric oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER HANDBOOK
Built-In Electric Oven
EF600

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EF600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Apelson EF600

Summary of Contents for Apelson EF600

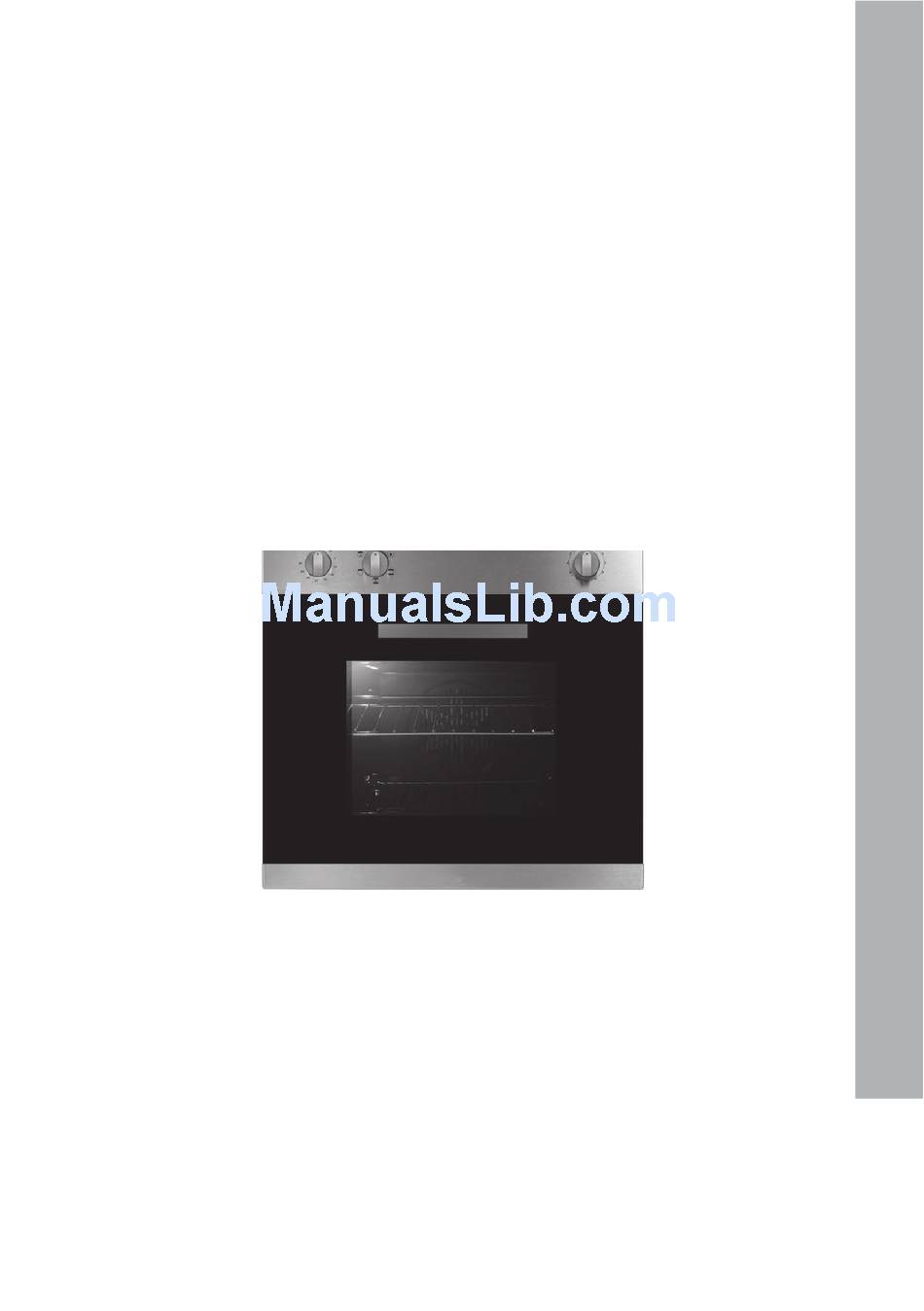

  • Page 1 USER HANDBOOK Built-In Electric Oven EF600...
  • Page 2 [01] x 1 [02] x 1 [03] x 1 [04] x 1 [07] x 4 (Ø3.9 x 32mm) [05] x 1 [06] x 4...
  • Page 3 60cm Fan Assisted Oven EF600 Built In Multifunction Fan Oven Installation...

  • Page 4: Table Of Contents

    Let's get started... Getting started... Before you start Safety more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity Appendix Installation...

  • Page 5: Getting Started

    Getting Started... Before you start Safety...

  • Page 6: Before You Start

    Before you start Before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. Please keep this instruction booklet for future reference and pass it on to any future owners.
  • Page 7 Before you start Instructions This user manual must be kept for future reference and use by someone who is not familiar with the appliance. Before using the oven, carefully clean the inside with a non-abrasive detergent and warm water. Position the grill and tray in their respective runners.

  • Page 8: Tools Required

    Before you start Tools Required We advise when installing this appliance two people are recommended.

  • Page 9: Safety

    Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. All installation work must be carried out by a This appliance must be installed correctly by a manufacturer’s instructions. This appliance complies with all current European safety legislation, however, the Manufacturer must emphasise that this compliance does not prevent the surfaces of the appliance from heating up during use and...
  • Page 10 Safety We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully. A steam cleaner is not to be used. The appliance is not intended to be operated by means of external timer or separated remote-control system.

  • Page 11: In More Detail

    more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity...

  • Page 12: Product Functions

    Product functions Product functions > The oven is controlled by a thermostat between 50 ºC and 250 ºC, depending on the temperature required. The thermostat pilot light turns on and off to indicate the temperature control during use. > The required cooking mode is selected using the multi-functional control button.

  • Page 13: Cooking Instructions

    Operation Cooking instructions FAN ASSISTED MODE Cakes/Biscuits Temperature °C Shelf Position Cooking Time (Recommended) in min. from the bottom Cake Mixture Desserts in Moulds Sponge cake 150 – 170 60 – 70 Marble, nut cake (tin) 150 – 170 60 – 80 Fresh fruit cake (tray) 150 –...
  • Page 14 Operation GRILL FAN GRILL Food to be grilled Recom- Temperature Total grilling Temperature Total grilling mended setting Time in min. in °C Time in min. shelf level Thin cuts Steak 3 or 4 2) maximum 10 – 16 maximum 20 – 25 Kebabs maximum 25 –...
  • Page 15 Operation Temperature Shelf level Time in Notes Food in °C * from the min. * bottom * Potato, pasta or 1 or 2 20 – 25 Place in a suitable dish. vegetable bake Lasagne, cannelloni 1 or 2 35 – 40 Remove the lid.

  • Page 16: Operation

    Operation Using the mechanical timer (Fig.1) > Once the thermostat controls are in the desired position, turn the knob clockwise to the maximum position. > Then turn it anti-clockwise to the desired time. At the end of this set time the buzzer will sound.

  • Page 17: Care And Maintenance

    Care and maintenance Care and maintenance IMPORTANT ! Warning Always switch off the electricity supply before As a safety precaution, before beginning to clean the performing maintenance work. In the event of a fault, appliance always switch off at the mains switch. FUSE contact customer services.
  • Page 18 Care and maintenance Removing the door from the oven (Fig.2) > To simplify cleaning the interior of the oven, the door can be removed. The process of removing the door is shown below: > Open the door fully to position “C” >...
  • Page 19 Care and maintenance Cleaning the glass door (Fig.3) > If possible, remove the oven door glass following the manufacturer's instructions. Use warm water with a little detergent to clean the glass sections of the door. > Do not use abrasive products which could damage the glass. Remember that if the surface of the glass panel becomes scratched, it could cause a dangerous failure.
  • Page 20 Care and maintenance Replacement of the oven light bulb (Fig.4) > Not covered by the appliance guarantee. 90’ WARNING: Disconnect the appliance from the electricity supply, open the oven door and remove the oven shelves. The oven has a light with the following characteristics: >...

  • Page 21: Troubleshooting

    Care and maintenance Troubleshooting Fault Cause Solution Oven doesn't work Something at the Turn off main supply and connection is wrong, or check if some wire has it's not connected. been disconnected. Power supply Turn off main supply and connections are loose. check if some wire has been disconnected.

  • Page 22: Recycling And Disposal

    Care and maintenance Recycling and Disposal Environmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste.

  • Page 23: Technical And Legal Information

    390mm Model Gross name Volume Volume (Litres) (Litres) EF600 Electrical information: Nominal voltage: 220 V - 240 V ~ 50 Hz Power connection: 13 A (automatic bipolar switch with protected socket, with 3 mm separation between contacts) Power absorption: 2100 - 2450W Network power cable: 3 x 1.5 mm2 type H07RN-F <HAR>...
  • Page 24 Technical and legal information All installation work must be carried out by a Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. Warning: THIS APPLIANCE MUST BE EARTHED. Mains Supply could be connected to the Mains Voltage by Direct Connection DOUBLE POLE SWITCHED...
  • Page 25 Technical and legal information Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. For roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation. Electrical Connection Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the appliance.

  • Page 26: Guarantee

    Guarantee Manufacturer's Guarantee This appliance is covered by a full manufacturer’s 24 month parts and labour guarantee and covers all parts and labour costs associated with the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts.

  • Page 27: Customer Service

    Guarantee Exclusions to the guarantee (continued) Claims arising from non-domestic use or commercial environment. If no fault is found then GAA reserves the right to charge for the call out at the going rate of £55.00 plus VAT. In the course of the service work carried out it may be necessary to glued, grouted or tiled in such a manner that it cannot be removed, it is the responsibility of the customer/installer to remove and reinstall the appliance to facilitate the repair.

  • Page 28: Ce Declaration Of Conformity

    MANUFACTURER: CATA ADDRESS: C/Ter n° 2, Torelló 08570 – Barcelona (Spain) We hereby certify that the mentioned accessory complies with the essential requirements transpositions from the national law. EF600 MACHINE APPLICATION: TYPE: OVEN EC DIRECTIVES APPLIED: EC Symbol - 2006/95/EEC Low voltage - 73/23...

  • Page 29: Appendix

    Appendix... Installation...
  • Page 30 Installation Fitting the appliance Important > The adjacent piece or furniture or cupboard and all the materials used in the installation must resist a minimum temperature increase of 85 ºC above the ambient temperature during use of the appliance. > Certain types of vinyl or laminated kitchen furniture are particularly susceptible to damage due to decolouration at temperatures below those indicated.
  • Page 31 Installation 85mm - 90mm FIG.5...
  • Page 32 85mm - 90mm...
  • Page 33 Installation 85 - 90mm 600 mm 60 mm 85 - 90mm 550mm Minimum ventilation gap 80cm...
  • Page 34 Installation [06] [07] [06] x 4 [07] x 4 Note: For electrical connection see Technical and legal information section...
  • Page 35 Installation Adjusting the shelf position Note: For electrical connection see Technical and legal information section...
  • Page 36 Apelson Appliances myappliances Unit 3 Unit 3, Normandy Landings Normandy Landings, Wakefield Europort, Pope Street Pope Street Castleford NORMANTON West Yorkshire West Yorkshire WF6 2AG WF6 2AG...
