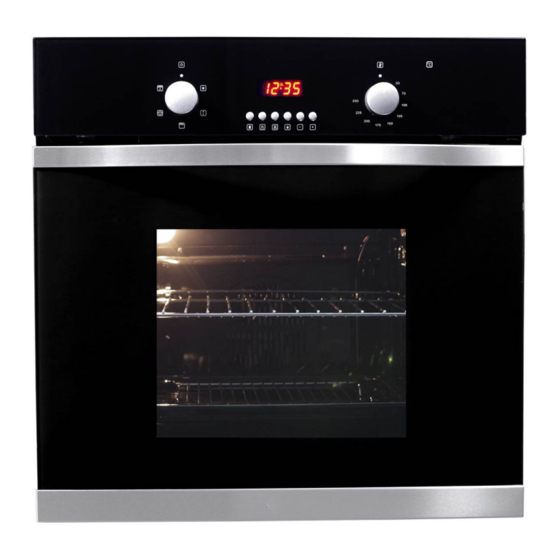

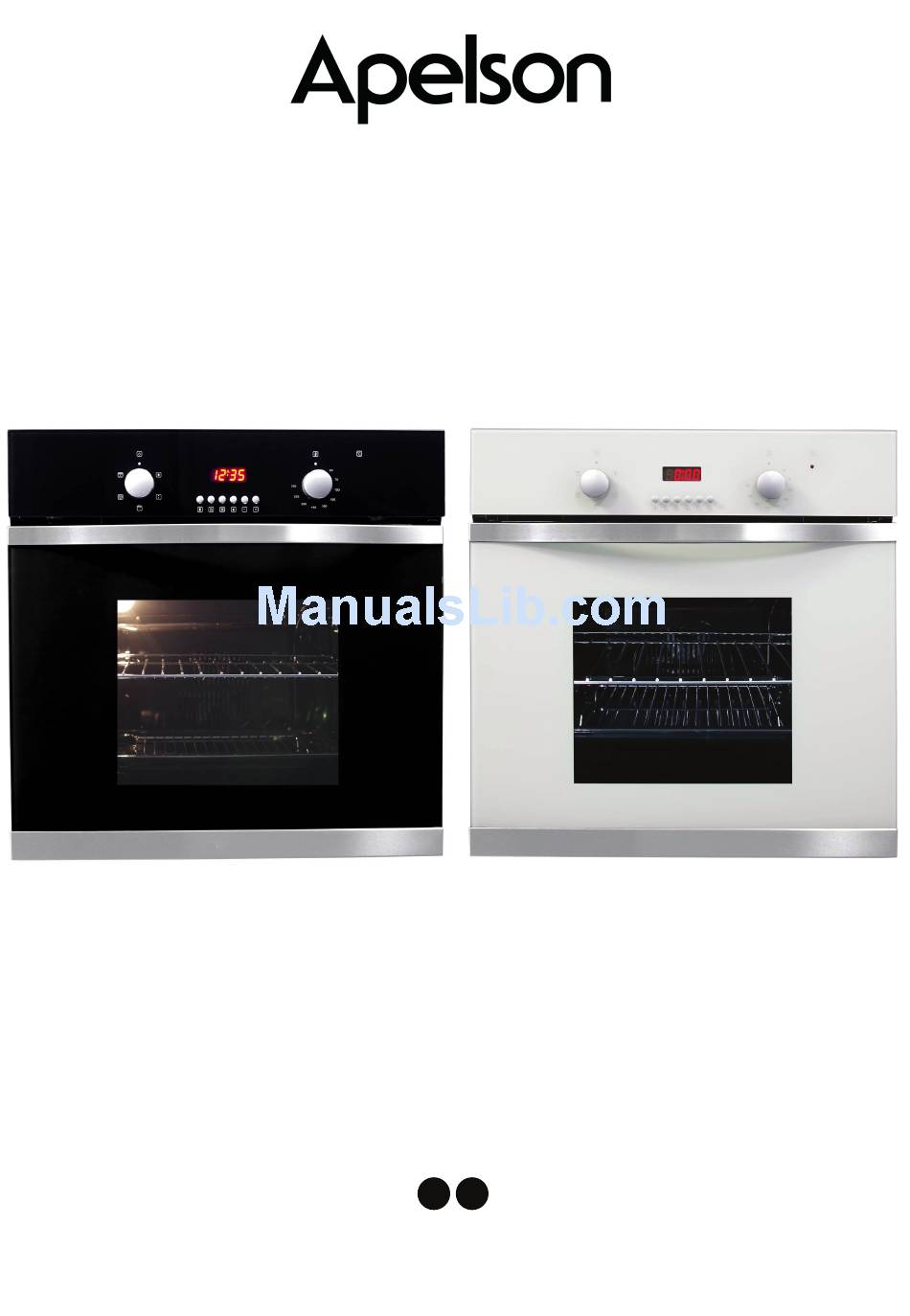

- Page 1 Built-in Single Oven with Digital Timer Model Numbers: CAEFL60BK / CAEFL60W...
- Page 2 [01] x 1 [02] x 1 [03] x 1 [07] x 4 (Ø3.9mm x 32mm) [04] x 1 [05] x 1 [06] x 4...
- Page 3 Built-in Single Oven with Digital Timer Installation...
-
Page 4: Table Of Contents
Let's get started... started... Getting Before you start Safety more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity Appendix Installation... -
Page 5: Getting Started
Getting Started... Before you start Safety... -
Page 6: Before You Start
Before you start Before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. Please keep this instruction booklet for future reference and pass it on to any future owners. - Page 7 Before you start Instructions This user manual must be kept for future reference and use by someone who is not familiar with the appliance. Before using the oven, carefully clean the inside with a non-abrasive detergent and warm water. Position the grill and tray in their respective runners.
-
Page 8: Tools Required
Before you start Tools Required We advise when installing this appliance two people are recommended. -
Page 9: Safety
Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. • This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions. - Page 10 Safety We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully. A steam cleaner is not to be used. The appliance is not intended to be operated by means of external timer or separated remote-control system.
-
Page 11: In More Detail
more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity... -
Page 12: Product Functions
Operation Product functions > The oven is controlled by a thermostat between 50 ºC and 250 ºC, depending on the temperature required. The thermostat pilot light turns on and off to indicate the temperature control during use. > The required cooking mode is selected using the multi-functional control button. -
Page 13: Operation
Operation Cooking instructions TRUE FAN MODE Cakes / biscuits Temperature Shelf Position Cooking Time (ºC) (Recommended) in min. from the bottom Cake Mixture Desserts in Moulds Sponge cake 150-170 60-70 Marble, nut cake (tin) 150-170 60-80 Fresh fruit cake (tray) 150-170 35-45 Flan base... - Page 14 Operation Food to be Recom- GRILL FAN GRILL grilled mended shelf level from the bottom Temperature Total Temperature Total setting grilling setting grilling Time in Time in min. min. Thin cuts Steak 3 or 4 maximum 10-16 maximum 20-25 Kebabs maximum 25-30 maximum...
- Page 15 Operation Food Temperature Shelf level Time Notes in ºC * from the in min. * bottom * Potato, pasta or 1 or 2 20-25 Place in suitable dish. vegetable bake Lasagne, cannelloni 1 or 2 35-40 Remove the lid. Filled baguette, 1 or 2 12-15 Place on baking paper,...
-
Page 16: Operation
Operation Operation instructions Using the 6-button electronic timer Description of the button functions: Alarm Automatic cooking (duration) End of cooking time (end time) Manual operation Reducing number in all programmes Adding number in all programmes Auto: Automatic programme 20 00 FIG.1... -
Page 17: Automatic Cooking
Operation > (Light on): Programmer in automatic position and programmed. > No symbol lit, except the clock numbers means that a waiting time is programmed. Programmer functions: > 24-hour display clock. > Alarm (Maximum 23:59). > Automatic programming (start and end of cooking). >... - Page 18 Operation Start and End of cooking: 1. Programme the cooking time using 2. Press the buttons to select the cooking time. 3. Press for programming the off time. 4. Select to set the off time. > After these operations, the "AUTO" symbol will appear on the display, indicating that the oven has been programmed.
- Page 19 Operation > The programming can also be cancelled at any time by pressing setting the marker to zero. By then pressing the oven will be ready for manual operation. Electronic alarm > The timer function consists solely of an alarm which can be adjusted for a maximum period of 23:59.
-
Page 20: Care And Maintenance
Care and maintenance Care and maintenance IMPORTANT ! Warning Always switch off the electricity supply before As a safety precaution, before beginning to clean performing maintenance work. In the event of a fault, the oven always unplug it from the power supply or FUSE contact an official distributor or authorised dealer. - Page 21 Care and maintenance Removing the door from the oven (Fig.2) > To simplify cleaning the interior of the oven, the door can be removed. The process of removing the door is shown below: > Open the door fully to position “C” Lift the two mobile links "A"...
- Page 22 Care and maintenance Cleaning the glass door (Fig.3): > If possible, remove the oven door glass following the manufacturer's instructions. Use warm water with a little detergent to clean the glass sections of the door. > Do not use abrasive products which could damage the glass. Remember that if the surface of the glass panel becomes scratched, it could cause a dangerous failure.
- Page 23 Care and maintenance Replacement of the oven light bulb (Fig. 3) > Not covered by the appliance guarantee. 90’ WARNING: Disconnect the appliance from the electricity supply, open the oven door and remove the oven shelves. The oven has a light with the following characteristics: >...
-
Page 24: Troubleshooting
Care and maintenance Troubleshooting Fault Cause Solution Oven doesn't work. Something at the Turn off main supply and connection is wrong, or check if some wire has it's not connected. been disconnected. Power supply Turn off main supply and connections are loose. check if some wire has been disconnected. -
Page 25: Recycling And Disposal
Care and maintenance Recycling and Disposal Environmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. -
Page 26: Technical And Legal Information
Gross Useable Model Volume Volume Name (LITRES) (LITRES) CAEFL60BK CAEFL60W Electrical information: Nominal voltage: 220 V – 240 V ~ 50 Hz Power connection: 13 A (automatic bipolar switch with protected socket, with 3 mm separation between contacts) Power absorption: Base Resistance: 1.30 kW... -
Page 27: Technical And Legal Information
Technical and legal information All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. Warning: THIS APPLIANCE MUST BE EARTHED. - Page 28 Technical and legal information Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. For your own safety a qualified electrician or contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation.
-
Page 29: Guarantee
Apelson Appliances UK Ltd then we reserve the right, at our discretion, to exchange the defective product with a replacement appliance at Apelson Appliances UK Ltd sole cost. If the same product is no longer available an alternative will be offered with the same functions as the faulty item. - Page 30 Claims arising from non-domestic use or commercial environment. Any gas appliance not fitted by a gas safe qualified installer. If no fault is found then Apelson Appliances UK Ltd reserves the right to charge for the call out at the going rate of £55.00 plus VAT.
-
Page 31: Ce Declaration Of Conformity
C/Ter n° 2, Torelló 08570 – Barcelona (Spain) We hereby certify that the mentioned accessory complies with the essential requirements ions and the corresponding transpositions from the national law. MACHINE APPLICATION: CAEFL60BK CAEFL60W TYPE: OVEN EC DIRECTIVES APPLIED: EC Symbol - 2006/95/EEC Low voltage - 73/23... -
Page 32: Appendix
Appendix... Installation... - Page 33 Installation Fitting the appliance Important > The adjacent piece or furniture or cupboard and all the materials used in the installation must resist a minimum temperature increase of 85 ºC above the ambient temperature during use of the appliance. > Certain types of vinyl or laminated kitchen furniture are particularly susceptible to damage due to decolouration at temperatures below those indicated.
- Page 34 Installation 85mm - 90mm FIG.4...
- Page 35 Installation 85 - 90mm 600 mm 60 mm 85 - 90mm 550mm Minimum ventilation gap 80cm...
- Page 36 Installation [06] [07] [06] x 4 [07] x 4 Note: For electrical connection see Technical and legal information section...
- Page 37 Installation Adjusting the shelf position Note: For electrical connection see Technical and legal information section...
- Page 38 Notes...
- Page 39 Notes...
- Page 40 Apelson Appliances U.K. Ltd Unit 3 Normandy Landings Pope Street Castleford West Yorkshire WF6 2AG...
