- Page 1 88067 Talking Digital Camera User‟s Manual © 2010 Sakar International, Inc. All rights reserved. Windows and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective companies.
-
Page 2: Table Of Contents
Table of Contents Introduction ......................... 2 Key Features ........................2 What your digital camera includes ..................2 Computer System Requirements for Windows XP ............... 3 Computer System Requirements for Windows Vista ............3 Computer System Requirements for Macintosh ..............4 A Quick Look at your Digital Camera ................... -
Page 3: Introduction

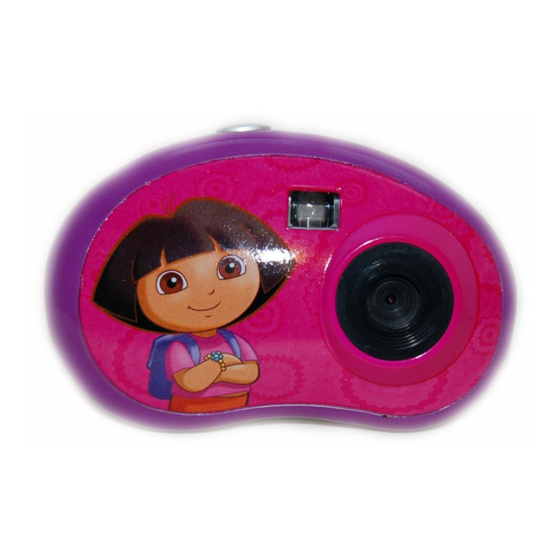

Introduction Thank you for purchasing the 88067 Talking Digital Camera. Everything you need to take quality digital photos and videos is included with your device. Please read this manual carefully FIRST in order to get the most out of your digital camera. -
Page 4: Computer System Requirements For Windows Xp
Computer System Requirements for Windows XP To be able to download photos and videos to your PC, you will need the following minimum configuration: Pentium 4 processor or above with Windows XP service pack 2 512 MB RAM, with 150MB of free disk space ... -
Page 5: Computer System Requirements For Macintosh
Computer System Requirements for Macintosh Macintosh with Intel processor running Mac OS X v10.5 or later 256 MB RAM, 150 MB free disk space Display: 1024 x 768 or higher-resolution monitor QuickTime 6 or higher A Quick Look at your Digital Camera... -
Page 6: Inserting Batteries
Inserting Batteries Your camera requires two AAA batteries. Insert the batteries into the camera: Open the cover of the battery compartment on the back of the camera. Insert the batteries according to the polarities (+ and -) indicated on the inside of the battery cover. -
Page 7: Starting Your Camera
Warning: Please download any photos you have on the camera before opening the battery compartment Do not remove the batteries before downloading the photos and videos from the camera. Doing so will erase everything in the camera`s memory. Note: We recommend downloading and saving your photos and videos often so as not to lose them if the battery power becomes too low. -
Page 8: Taking Photos
Taking Photos 1. Compose your shot using the view finder. 2. Hold the camera steady and press the Shutter button to take the photo. 3. The camera will emit a Dora voice message before the photo is taken. Note: You need to hold the camera steady until after the voice message ends and a “click”... -
Page 9: The Camera Modes
In order to continue taking photos you will need to: Download all the photos and videos from you camera to your computer. After the photos have been downloaded and appear on your computer you should delete all the photos from your camera. Once your camera memory is empty you are now ready to take more photos and videos. - Page 10 Power Off - Press the MODE button for the icon to appear on the LCD screen. Press the Shutter button and the camera will switch off. Self-Timer - Press the MODE button for the icon to appear on the LCD screen. Press the Shutter button.
- Page 11 3 Shot Mode - Press the MODE button for the icon to appear on the LCD screen. Press the Shutter button once - 3 continuous jpeg shots are taken. Note: The 3 photos taken in this mode will be downloaded individually. Delete All - To delete all photos on the camera: Press the MODE button for the...
- Page 12 The LCD counter will display the updated number of photos that can be taken at the current resolution and compression. Photo Resolution and Compression There are 2 photo resolutions to select from, high resolution – or low resolution – Press the MODE button for the icons to appear on the LCD screen.
- Page 13 If the LCD displays this means the present compression is . To change to , click the shutter button within 5 seconds. All photos taken after changing compression will be at the new compression. The compression setting can be changed at anytime. Note: Photos taken at lower compression take up more of the camera`s memory and therefore less photos can be taken at lower compression than with high compression.
- Page 14 Frequency - The camera has 2 Frequency settings, 50HZ for Asia and Europe, and 60HZ for the U.S. and Japan. To set the camera for the correct frequency: Press the MODE button for the 50HZ or the icon 60HZ icons to appear on the LCD screen If the LCD displays this means the present frequency is...
-
Page 15: Install The Dora The Explorer Snapshots Software
Install the Dora the Explorer Snapshots Software Warning: Do not plug your camera into the computer until the Dora the Explorer Snapshots software installation is complete. Insert the installation CD into your CD-ROM drive. The Dora the Explorer Snapshots will begin to install. -
Page 16: Connect Your Camera To The Computer
Connect your camera to the computer Use the USB cable that came with your camera to connect your camera to your computer. Your camera will automatically turn on. The first time you connect the device to the computer you will have to wait a few moments until the computer recognizes the device. - Page 17 The “Get media from device” window opens. Both photos and videos (if you have captured any) will get downloaded. Select your camera model from the device window. If your camera is the only device connected then it will be selected automatically. Select a location on the computer where to place the new photo and video files.
-
Page 18: Get Started
A media download progress window appears in the middle of the screen showing the number of media files downloading to your computer. A message appears when the download is complete. The photo and video files that you selected are now downloaded to your computer to the selected folder and albums ready for your use. -
Page 19: Using Your Camera As A Webcam
Using Your Camera as a Webcam Your camera when plugged into your computer can also be used as a Webcam with most instant messenger and web conferencing applications that support video. On PC: The webcam driver is installed on your computer when you install the software for this device. - Page 20 Rotating lines will appear on the LCD screen to show that it is active and in webcam mode. Once you see the object appearing in the Webcam application window, you can now open the instant messenger and web conferencing application that you use to begin using this camera as a webcam on your computer.
-
Page 21: Sakar Warranty Card
Sakar Warranty Card This warranty covers for the original consumer purchaser only and is not transferable. Products that fail to function properly UNDER NORMAL USAGE, due to defects in material or workmanship. Your product will be repaired at no charge for parts or labor for a period of one year. - Page 22 Mail or return your defective product to the appropriate address: US and Canada Sakar International Attention: Service Department 195 Carter Drive Edison, NJ 08817 UK and Europe Sakar UK 2D, Siskin Parkway East 4020 Middlemarch Business Park Coventry CV3 4PE ...
-
Page 23: Technical Support
Technical Support For technical support issues please visit our website at www.sakar.com. You can find manuals, software and FAQ‟s at the website. Can‟t find what you are looking for? E-mail us at support@sakar.com and one of our technical support team members will answer your questions. For phone support please call: ... -
Page 24: Technical Specifications
Technical Specifications Image Sensor ¼ inch CMOS Image Specification 640*480 (VGA); 320*240 (QVGA) Memory 16MB SDRAM Number of pictures Hi (VGA) 26; Lo (QVGA) 104 ( Ld non- compressed mode) Hi (VGA) 52; Lo (QVGA) 208 ( Hd compressed mode) Lens ¼... -
Page 25: Frequently Asked Questions
Frequently Asked Questions Q: I have taken photos, but my computer says "No photos in camera" or “No device is connected to the computer.” What do I do? First, ensure that you have taken photos with your camera. Press the shutter button a few times to take some sample photos and try again.
